Choosing the right wood mortiser is essential for precise furniture joinery. The most important features to evaluate in a square drill machine and hole making machine are table travel, tilting capability, and dust control. These elements directly affect accuracy, flexibility, and workshop cleanliness when drilling square or round mortise holes in solid wood.

Why Table Travel, Tilting, and Dust Control Matter in a Square Drill Machine

A high-quality square drill machine must handle different workpiece sizes, angled joints, and continuous production without excessive dust. Table travel determines how far the work can move under the drilling head. Tilting allows angled mortises common in chairs and frames. Effective dust control keeps the hole making machine clean and improves visibility. Together these features make a square drill machine more productive and easier to operate for furniture manufacturers.

Table Travel – Vertical and Horizontal Movement

Table travel is one of the first specifications to check on any hole making machine.

Vertical Travel (200 mm)

Vertical travel of 200 mm on a square drill machine allows the table to rise and lower enough for a wide range of solid wood thicknesses. This range supports most common furniture components without the need for extra packing or complicated setups. Adequate vertical travel ensures the drilling head reaches the correct depth consistently on a hole making machine.

Horizontal Travel (400 mm)

Horizontal travel of 400 mm gives operators room to position longer workpieces and create extended mortises. On a square drill machine this movement is guided by a dovetail system for smooth, precise adjustment. Longer horizontal travel increases the versatility of the hole making machine when working on table rails, chair stretchers, or door frames.

These travel ranges make the square drill machine practical for daily furniture production.

Tilting Capability – Working at Angles

Many furniture joints require angled mortise holes. A tilting table is therefore a critical feature on a modern hole making machine.

±30° Tilting Angle

The working table on a quality square drill machine can tilt ±30°. This range covers the majority of angled joints found in solid wood chairs, frames, and decorative furniture. Operators can set the exact angle needed and lock the table securely before drilling. The tilting function expands the usefulness of the hole making machine beyond straight 90-degree mortises and reduces the need for secondary operations or special jigs.

When evaluating a square drill machine, confirm that the tilting mechanism is stable and easy to adjust. Smooth tilting combined with solid locking improves both speed and accuracy on a hole making machine used for complex joinery.

Dust Control System

Dust is unavoidable when drilling wood, yet poor dust management reduces precision and creates health and maintenance issues. A good square drill machine includes an effective dust control solution.

Built-in Dust Blowing Device

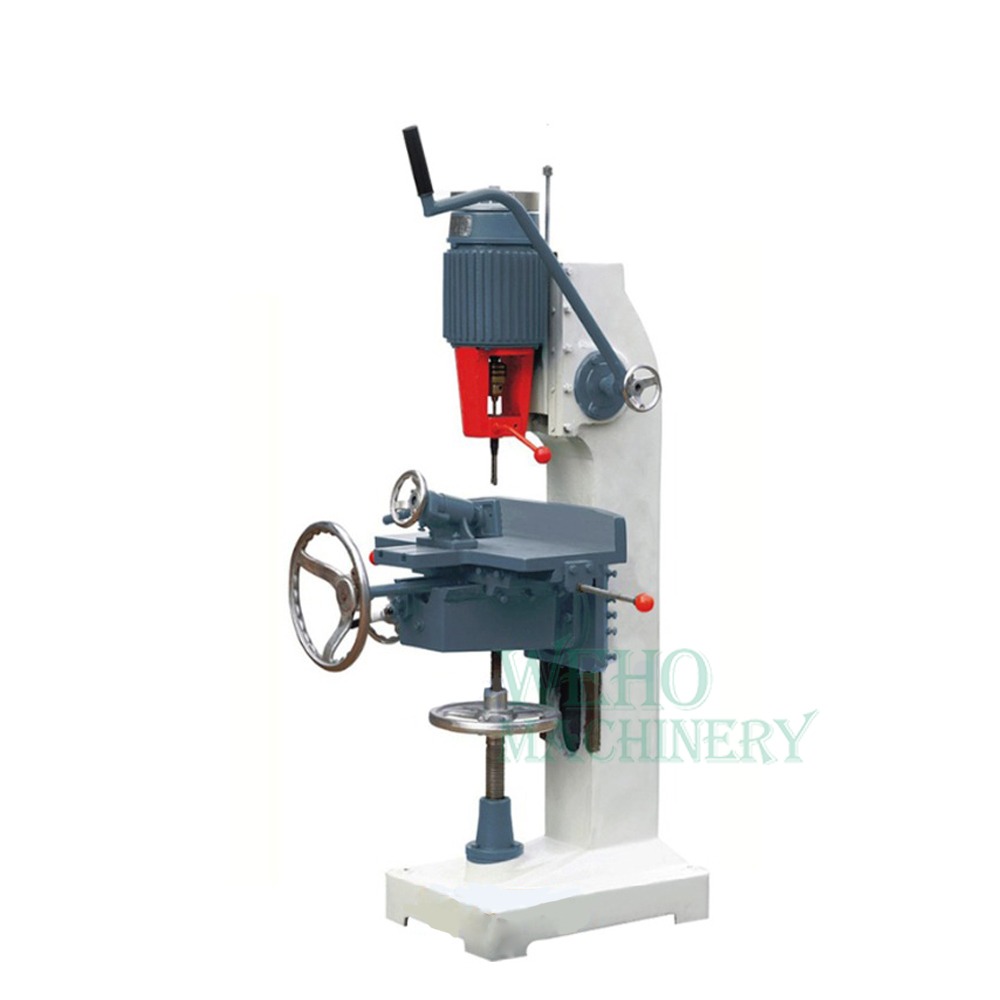

This square drill machine uses a special dust blowing device powered directly by the motor. The system directs air to clear chips and dust from the drilling area in real time. Clear visibility of the mortise location improves accuracy on the hole making machine. Reduced dust buildup also protects the guides, spindle, and other moving parts, extending the service life of the square drill machine.

Clean operation is especially important in continuous production. A hole making machine with reliable dust blowing keeps the workshop cleaner and minimizes downtime for manual cleaning.

Additional Features That Support Core Performance

Several supporting features enhance the main capabilities of table travel, tilting, and dust control on a square drill machine:

• Pneumatic motion of the drilling head provides consistent pressure and reduces operator fatigue.
• Dovetail guide system ensures smooth and accurate table movement in both vertical and horizontal directions.
• Maximum mortise width of 22 mm and maximum depth of 100 mm cover typical furniture joinery requirements.
• Spindle speed of 2840 r/min and 1.5 kW motor deliver sufficient power for solid wood.
• Compact overall size (500 × 650 × 1200 mm) and low weight (120 kg) suit smaller workshops.

These elements work together so the square drill machine and hole making machine remain precise and reliable over long production runs.

Feature Summary Table

This combination of features defines a practical square drill machine for furniture manufacturers.

How These Features Work Together in Daily Production

In normal use the operator first positions the solid wood workpiece using the vertical and horizontal table travel on the square drill machine. If an angled mortise is required, the table is tilted to the needed degree within the ±30° range. The pneumatic drilling head then advances while the dust blowing device keeps the area clear. The result is a clean square or round mortise produced efficiently on the hole making machine.

The dovetail guides maintain accuracy throughout the movement, and the compact design allows the square drill machine to fit easily into most workshop layouts.

Buying Checklist for a Square Drill Machine and Hole Making Machine

When selecting a wood mortiser, verify the following points:

• Sufficient vertical and horizontal table travel (ideally 200 mm and 400 mm)
• Stable tilting range of at least ±30°
• Effective motor-powered dust blowing system
• Pneumatic drilling head for consistent pressure
• Smooth dovetail guide movement
• Mortise capacity that matches your typical furniture components
• Compact size suitable for your available space

A square drill machine that meets these criteria will deliver reliable performance for solid wood joinery.

View the full specifications of the solid square wood hole drilling machine here:
Solid square wood hole drilling machine for furniture

For inquiries or quotations, contact WEHO Machinery:
Contact Us

Conclusion

Table travel, tilting capability, and dust control are the essential features that determine the practical value of a wood mortiser. A well-designed square drill machine and hole making machine with 200 mm vertical travel, 400 mm horizontal travel, ±30° tilting, and effective dust blowing provides the accuracy and efficiency furniture manufacturers need. Evaluate these points carefully to select the right equipment for your solid wood production.
