3D laser tube cutting machine
3D Fiber laser cutter machine for metal round square pipe cutting: Pipe Structural Steel Beams Laser Cutting for tubes and Profiles
Full automatic laser pipe cutting machine is controlled by numerical control system, The cutting head is dedicated for three-dimensional pipe cutting with automatic focusing function. The automatic laser pipe cutting machine can cut conventional pipes such as round pipes and square pipes, as well as angle steel, channel steel and other profiles.
Full automatic laser pipe cutting machine is controlled by numerical control system, The cutting head is dedicated for three-dimensional pipe cutting with automatic focusing function. The automatic laser pipe cutting machine can cut conventional pipes such as round pipes and square pipes, as well as angle steel, channel steel and other profiles.
Details
Spare Parts
Inquiry
3D Fiber laser cutter machine for metal round squre pipe cutting profile: Pipe Structural Steel Beams Laser Cutting for tubes and Profiles
Full automatic laser pipe cutting machine is controlled by numerical control system, The cutting head is dedicated for three-dimensional pipe cutting with automatic focusing function. The automatic laser pipe cutting machine can cut conventional pipes such as round pipes and square pipes, as well as angle steel, channel steel and other profiles.

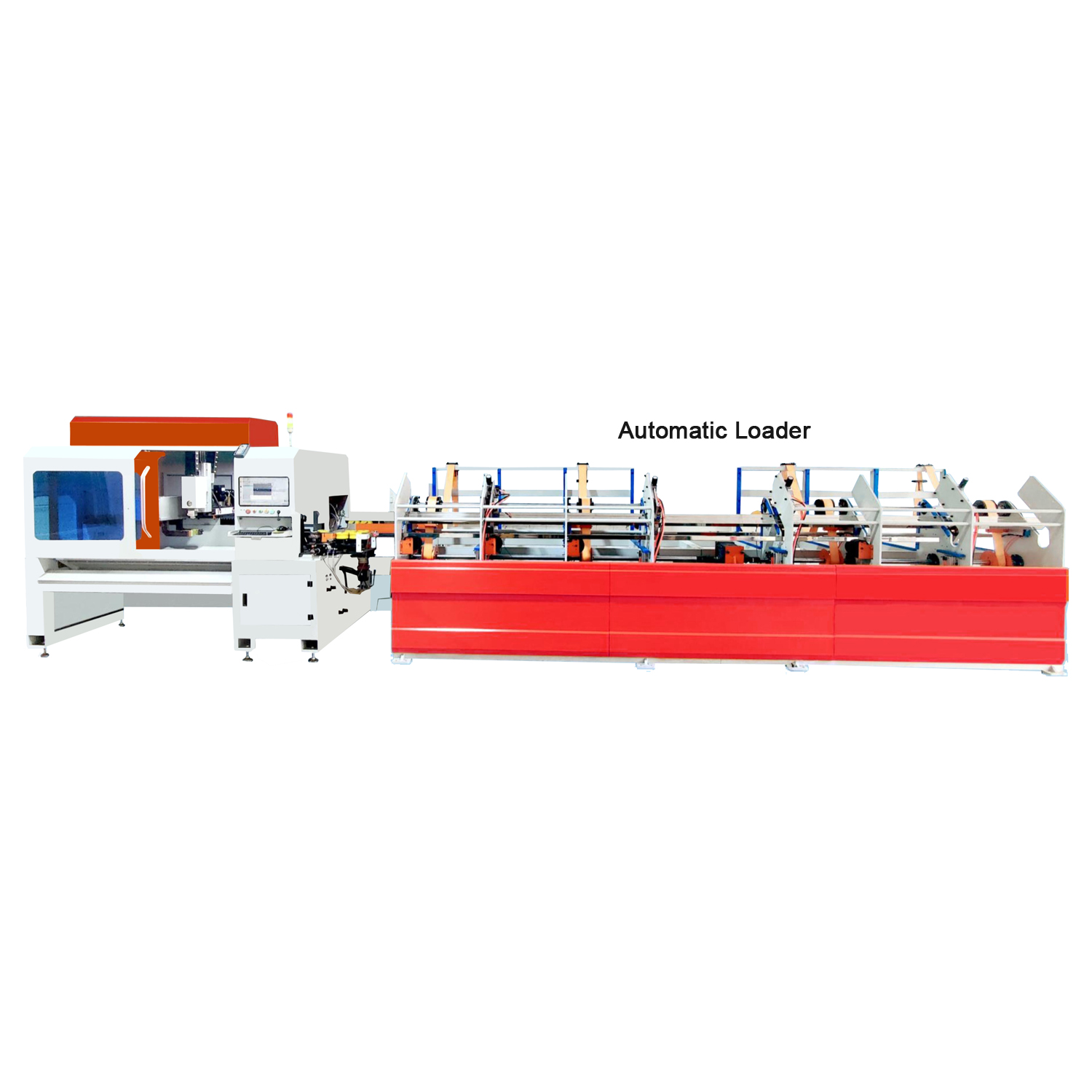

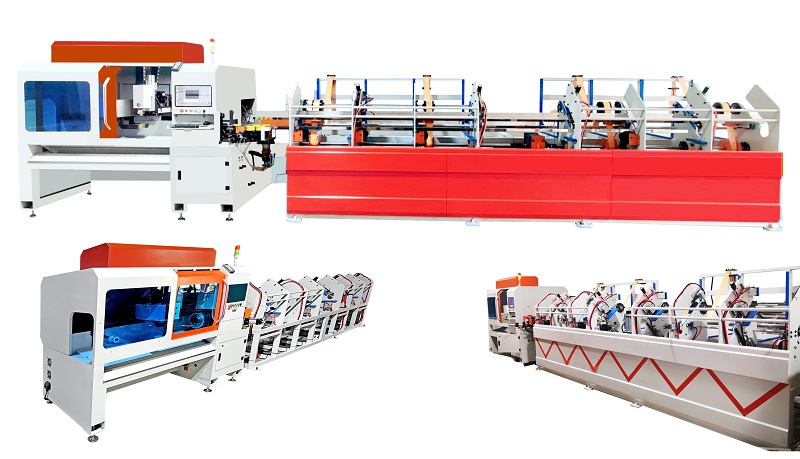

The equipment can realize automatic feeding. Just lift the raw materials into the storage rack in batches:
automatic Loading → automatic feeding → automatic cutting
→ the whole process flow of automatic blanking.

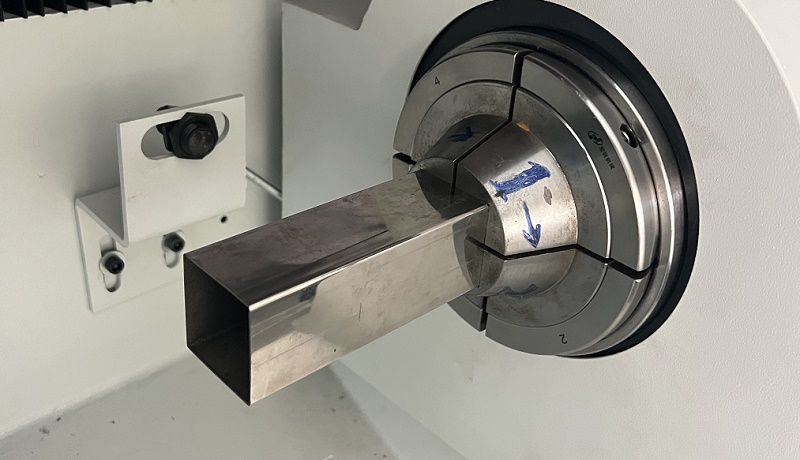

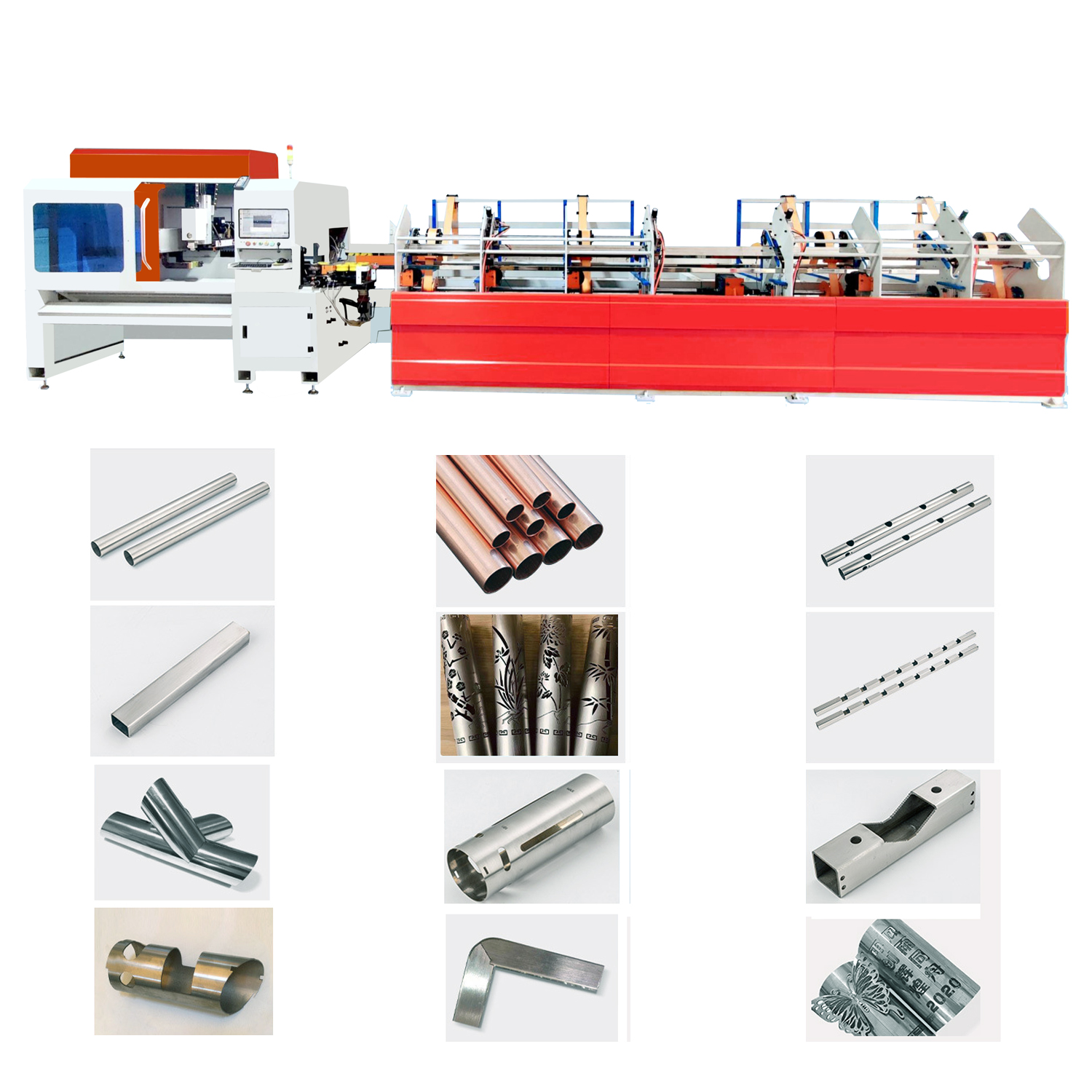

The machine can cut various types of pipes: round pipe, square pipe, oval pipe and other multi process cutting. Cut round pipe with pipe diameter range Φ 10-86mm, diagonal of square tube ≤ 82mm. Structural stability; The electric control original adopts imported accessories to support 24-hour operation. Industry customized operating system, in-depth optimization, fast response and minimal operation. Perfect combination of speed, function and stability
The acceleration reaches 1.6g, and the efficiency is 5 ~ 6 times that of ordinary pipe cutter;

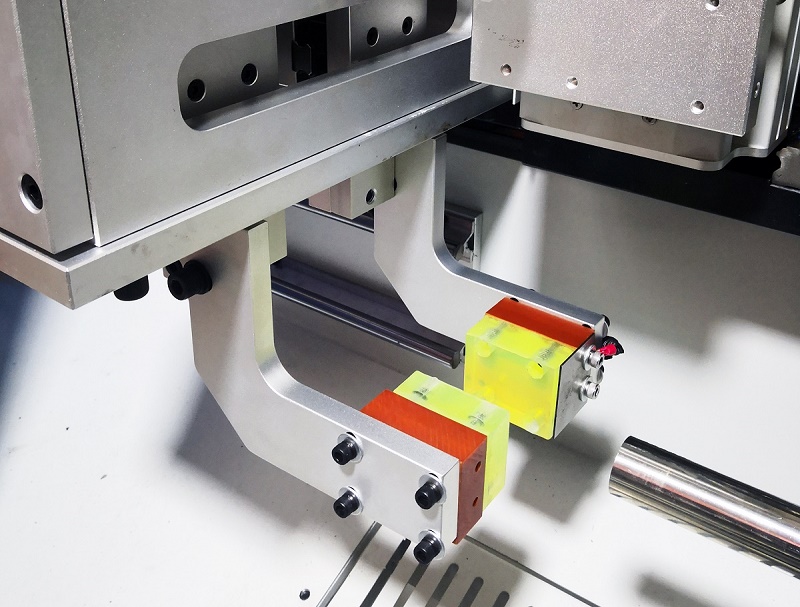

The tail material normally cut by the equipment is about 40mm, which greatly saves material loss.

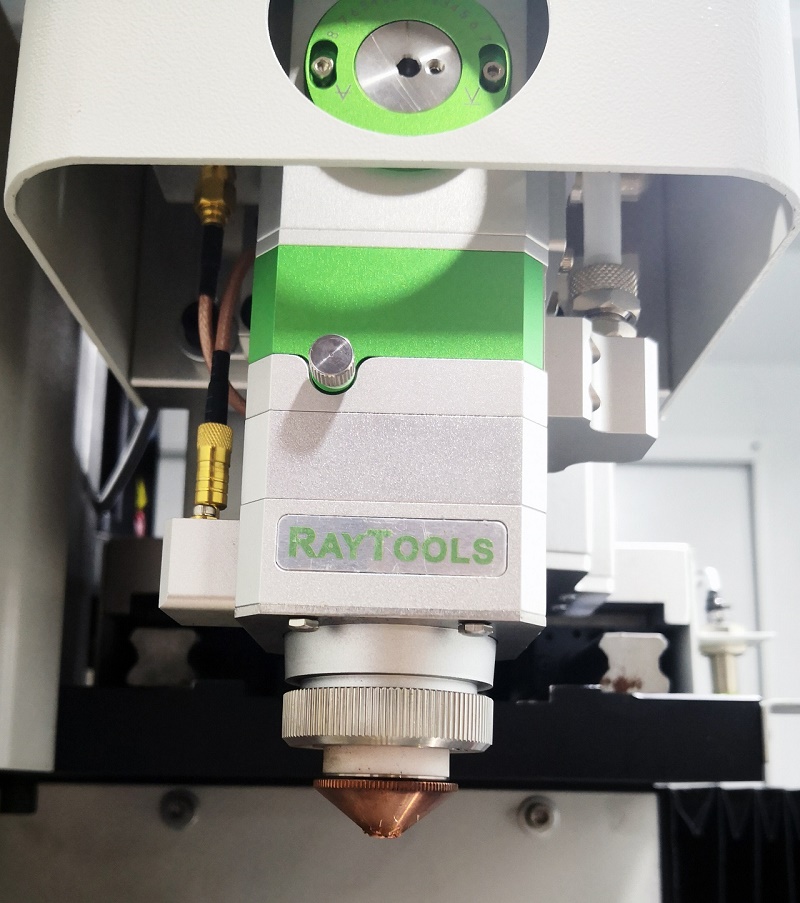

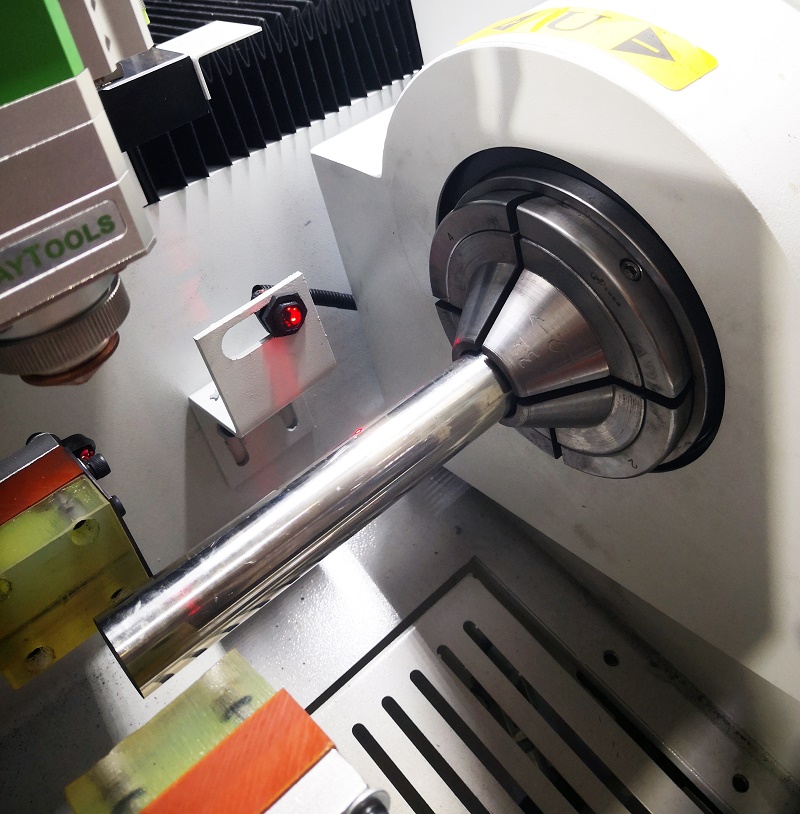

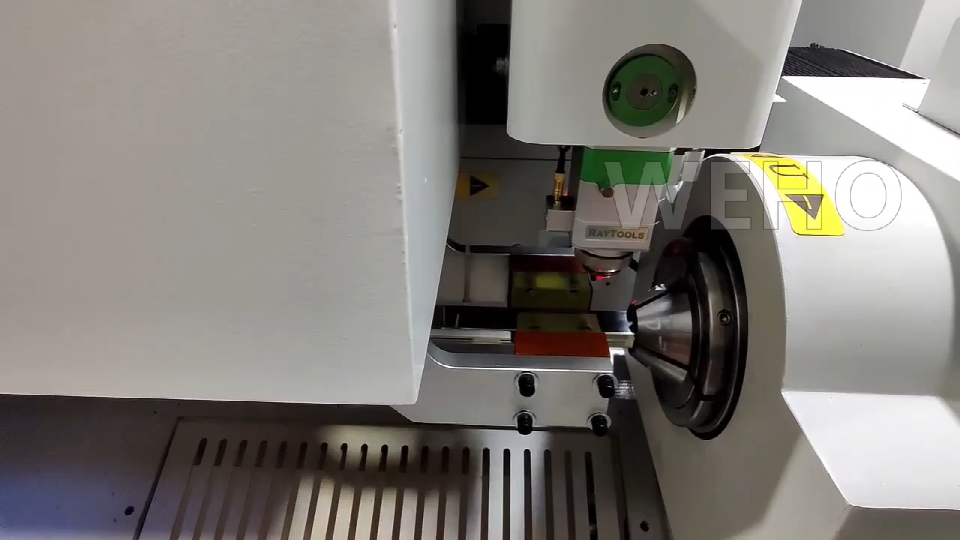

Laser head is Ray Tools Originating from Switzerland, have full functionality, strong performance, and multiple options, which can meet the different laser processing needs of OEM manufacturers, such as cutting, welding, and surface treatment.
Product features: High adaptability:
Equipped with multiple fiber interfaces such as QBH and QCS, it can adapt to various mainstream lasers
Excellent design: Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency. Slender nozzle design:
The modular and slender nozzle design reduces workpiece interference. Exquisite structure:
Extremely light in weight and compact in size, reducing robot load requirements and improving cutting speed and quality
Mechanism diagram of full-automatic material rack (full-automatic feeding can be realized for square tube, round tube and elliptical tube)
→ the whole process flow of automatic blanking.
Full automatic laser pipe cutting machine is controlled by numerical control system, The cutting head is dedicated for three-dimensional pipe cutting with automatic focusing function. The automatic laser pipe cutting machine can cut conventional pipes such as round pipes and square pipes, as well as angle steel, channel steel and other profiles.
The equipment can realize automatic feeding. Just lift the raw materials into the storage rack in batches:
automatic Loading → automatic feeding → automatic cutting
→ the whole process flow of automatic blanking.
The machine can cut various types of pipes: round pipe, square pipe, oval pipe and other multi process cutting. Cut round pipe with pipe diameter range Φ 10-86mm, diagonal of square tube ≤ 82mm. Structural stability; The electric control original adopts imported accessories to support 24-hour operation. Industry customized operating system, in-depth optimization, fast response and minimal operation. Perfect combination of speed, function and stability
The acceleration reaches 1.6g, and the efficiency is 5 ~ 6 times that of ordinary pipe cutter;
The tail material normally cut by the equipment is about 40mm, which greatly saves material loss.
Laser head is Ray Tools Originating from Switzerland, have full functionality, strong performance, and multiple options, which can meet the different laser processing needs of OEM manufacturers, such as cutting, welding, and surface treatment.
Product features: High adaptability:
Equipped with multiple fiber interfaces such as QBH and QCS, it can adapt to various mainstream lasers
Excellent design: Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency. Slender nozzle design:
The modular and slender nozzle design reduces workpiece interference. Exquisite structure:
Extremely light in weight and compact in size, reducing robot load requirements and improving cutting speed and quality
Mechanism diagram of full-automatic material rack (full-automatic feeding can be realized for square tube, round tube and elliptical tube)
→ the whole process flow of automatic blanking.
| Laser generator | Feibo |
| Laser head | Raytools |
| Chiller | Hanli |
| Chuck | Taiwan JATO Precision |
| Servo system | Schneider, France |
| Guide rail and slider | Taiwan TBI |
Pipe processing scope |
Full automatic feeding round pipe：∅ 16-85mm Square Pipe：16×16-60×60mm |
| Arranged feeding round pipe：∅ 10-85mm Square pipe：10×10-60×60mm |
|
| Note: the theoretical range can cut 10mm pipe at least, but due to the deformation and bending caused by too small pipe, it can be cut by manual feeding. Whether it can be loaded and unloaded automatically depends on the collimation of pipe | |
Rack configuration |
Seamless butt joint pipe cutting system of feeding system |
| Airtac air parts, Borrell reducer URV130：100、 | |
| Zhengming Motor Y2100L-4 Yuanxin frequency converter |
|
| Minimum cutting length | 1mm |
| Loading length | 4000mm-6200mm |
| Cutting Thickness | ≤3.5mm |
| Incision seam width | 0.1-0.15mm |
| Cutting accuracy | ±0.2mm |
| Weight of primary packing | 2000kg |
| Max working speed | 1.6G |
| Power Source | 380V/50Hz |
| Weight | 3000kg |
| area covered | 8350* 1550* 2100mm |
Protective glass: 300-500 hours, 10USD per pieces
Copper nozzle: 300-500 hours, 9 USD per pieces
Copper nozzle: 300-500 hours, 9 USD per pieces
