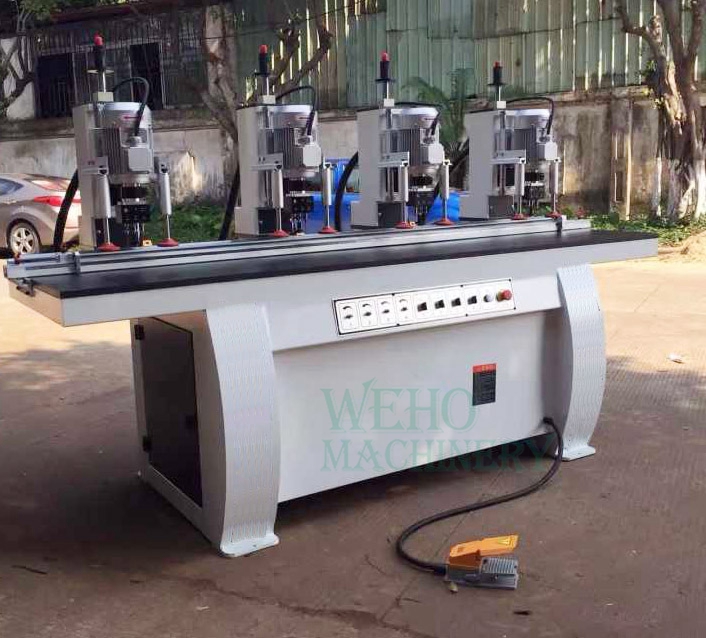

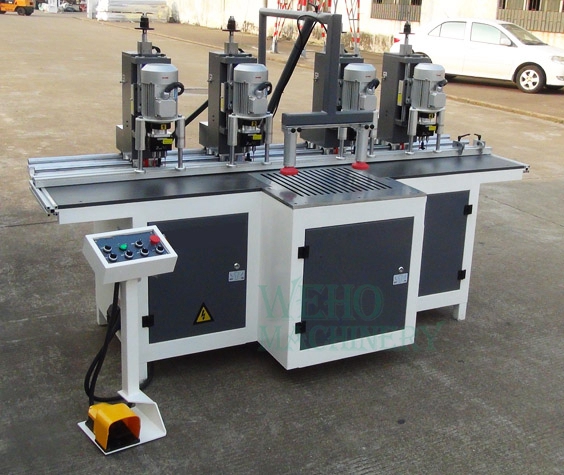

4 heads hinge driller and inserter machine for wood manufacturer MWZ7431A
4 heads hinge driller and inserter machine for wood manufacturer MWZ7431A

4 heads hinge driller and inserter machine for wood manufacturer MWZ7431A


Model:MWZ7431A
Max. panel thickness:60mm
Vertical max. boring depth:65mm
Number of vertical spindle:4*3
Working height:820mm
Dimension(L*W*H):1860*710*1530mm
Weight (KG):650 KG
Power (kW):4.4


Details
Spare Parts
Inquiry
4 heads hinge driller and inserter machine for wood manufacturer MWZ7431A
Wood door hinge inserting machine mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.
Product Name
4 heads hinge driller and inserter machine
Model
MWZ7431A
Groups of main spindle
4pc
Groups of vertical spindle
4pc
Number of main spindles
4
Number of vertical spindle
4*3
Max. panel thickness
60mm
Vertical max. boring depth
65mm
The min. distance between two vertical central axis of the spindle box
280mm
Total power consumption
4.4kw
Motor power of vertical group
1.1*4kw
Working height
820mm
Rotation speed of the main spindle
2800r/min
Working pressure
0.6-0.8Mpa
The max. air consumption of producing 10 plates per minute
2.1L/min
Overall size
1860*710*1530mm

This machine is ideal for hinge holes drilling..Drilling and clamping of workpieces are pneumatically controlled.Drilling head infeed and moving is pneumatically controlled.Drillingdepth can be adjusted.
The boring unit is ruggedly constructed and precision ground making it ideal for precise boring.Hinge Driller mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.


Hinge Driller
[]
