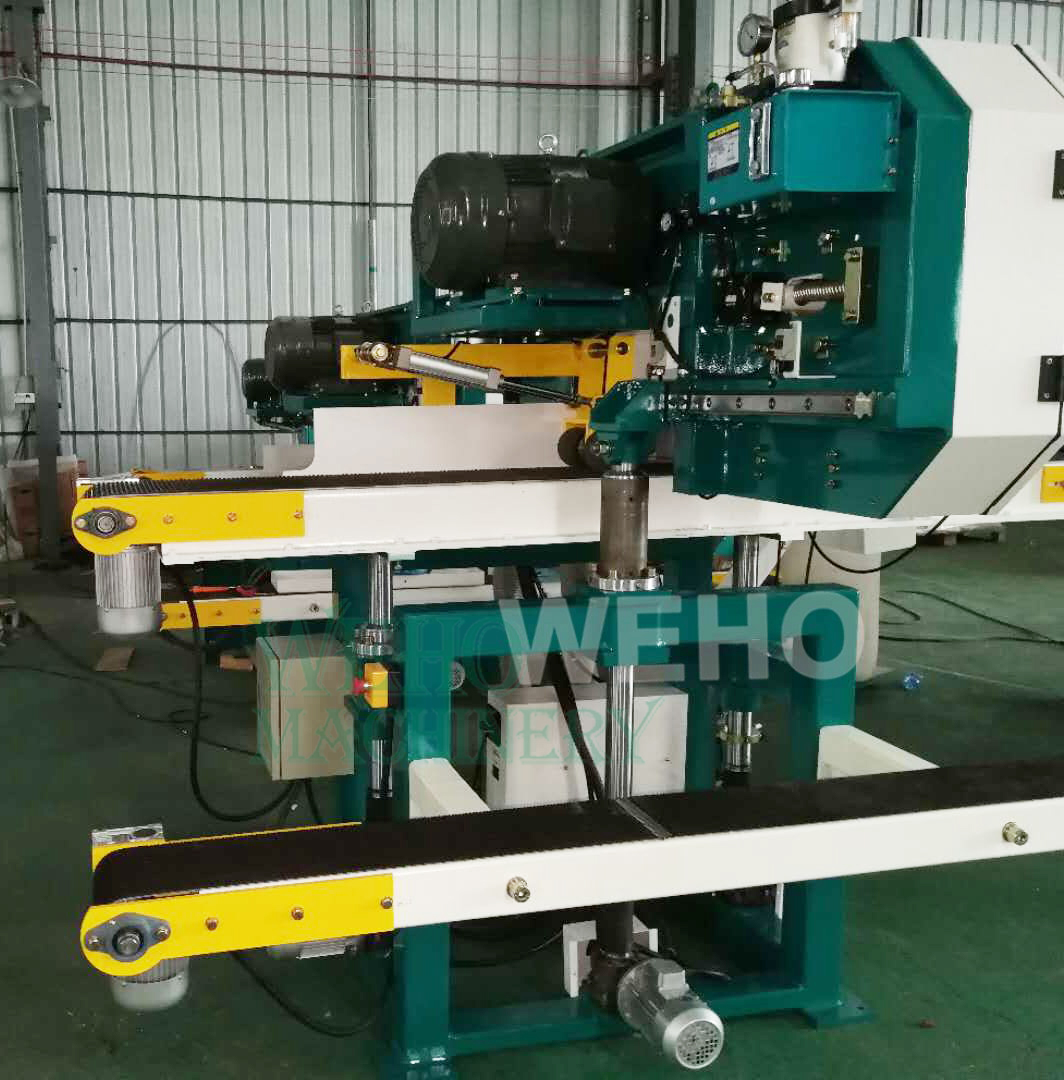

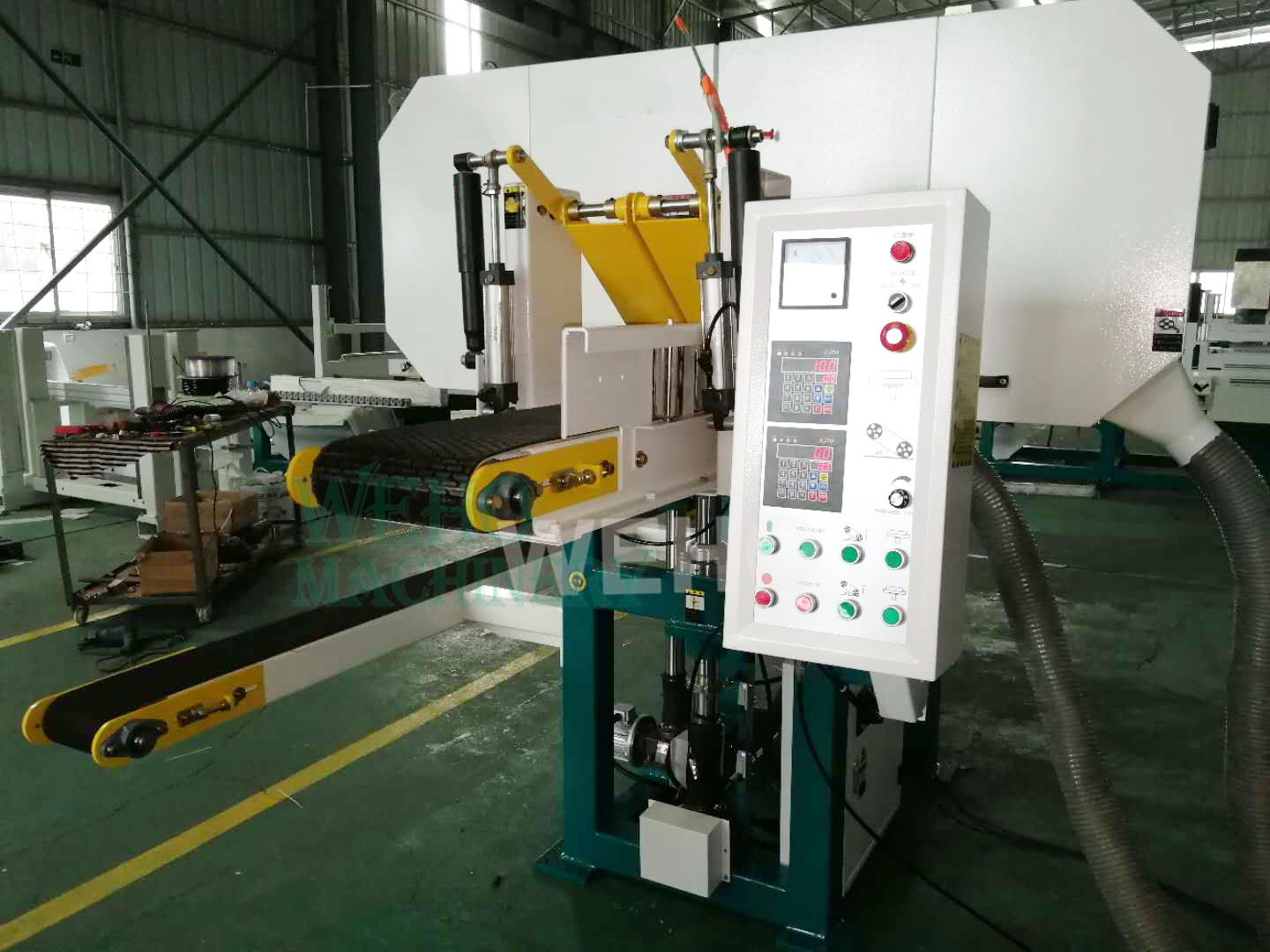

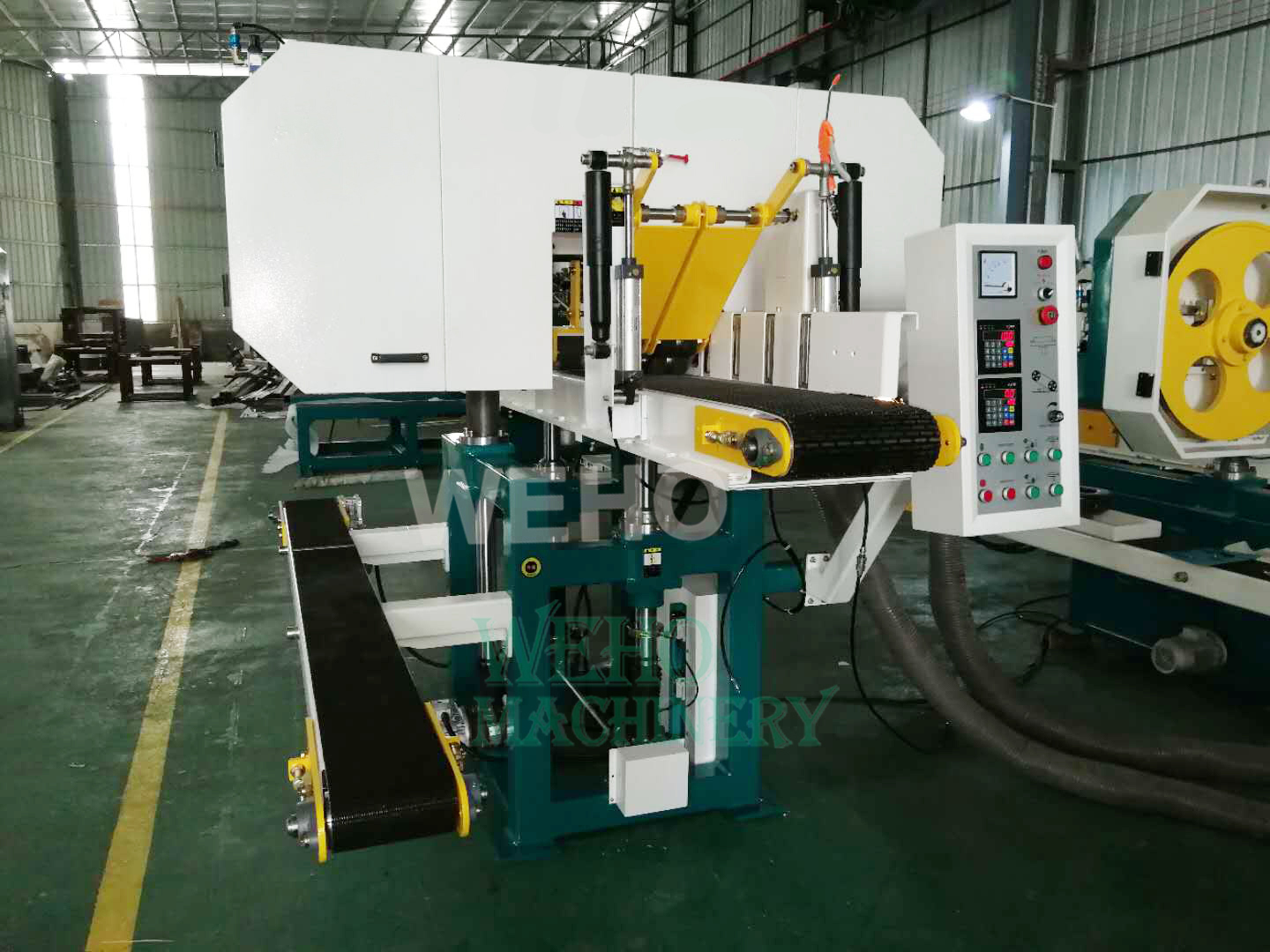

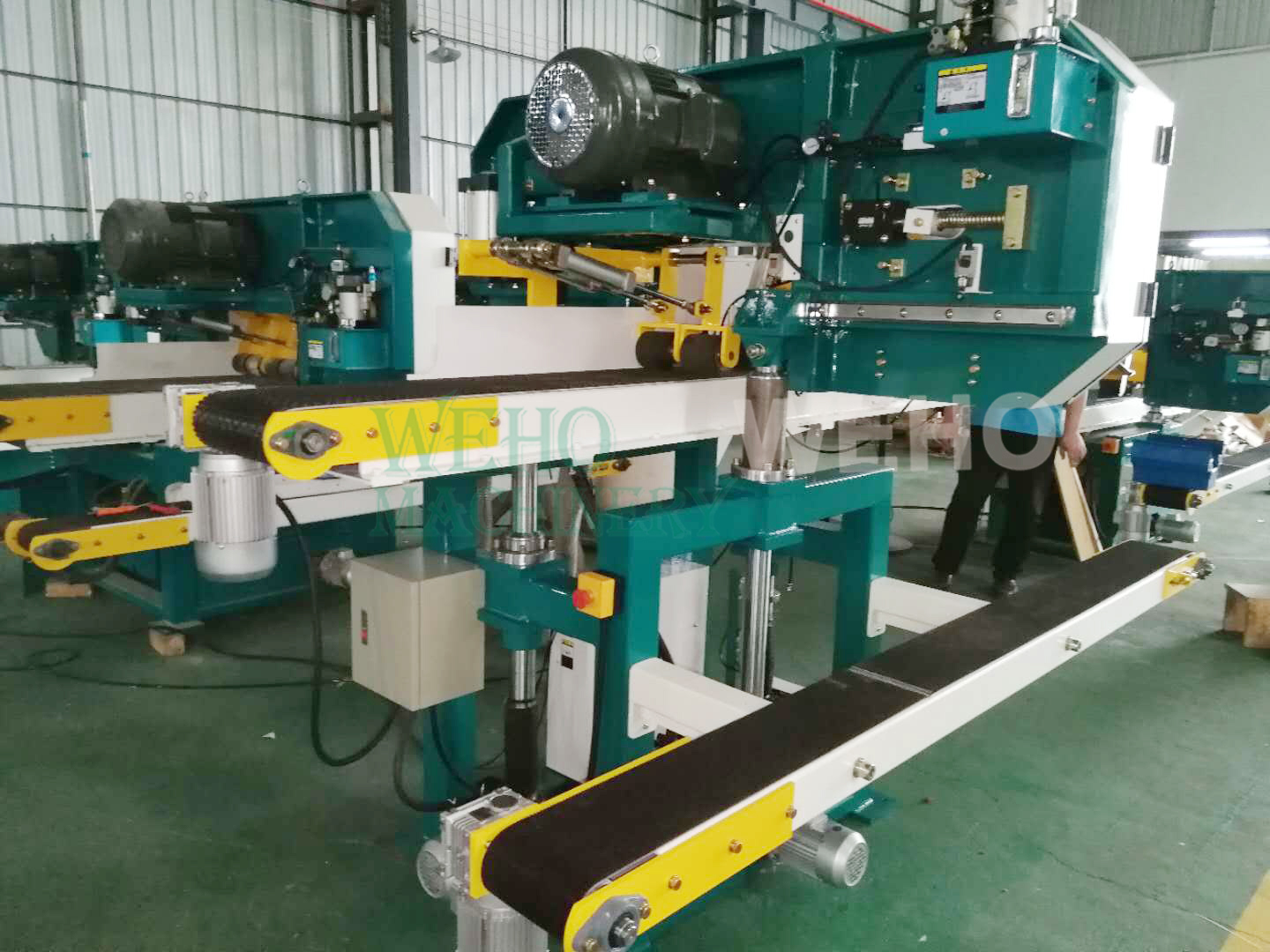

45 degree tilt bevel wood horizontal band saw machine for cutting wood | Band Saw For Cutting Logs
45 degree tilt bevel wood horizontal band saw machine for cutting wood | Band Saw For Cutting Logs

45 degree tilt bevel wood horizontal band saw machine for cutting wood | Band Saw For Cutting Logs


 Model: MJQ71B×300(45 degree tilt)
Max. working size:300*300mm
Conveyer belt width:285mm
Diameter of saw wheel:711mm
Power of saw wheel:15kw


Details
Spare Parts
Inquiry


Horizontal wood cutting band saw machine is taking over the wood cutting market! Topping the scale at over 1850kg, the band saw isthe master of all resaw machines! Applicable to all kinds of wood, panel, thick material board processing.
1) Digital height control for accurate blade positioning (enter the thickness you want and press a button)
2) Variable-speed driven feed and return conveyor
3) Powered saw elevation
4) Hydraulic blade tensioning with gauge
5) Dual 4" dust port
6) Adjustable ceramic blade guides
7) Massive steel frame construction
8) Steel conveyor table
9) Steel fence with rollers
10) 4" pressure rollers with polyurethane tires
11) Hinged wheel cover
12) Simple and quick blade changes
Horizontal 300mm wood cutting sawmill prices wood band saw machine to cut logs
Max.working size  300X300mm
Distance from band saw blade to worktable 3~200mm
Conveyer belt width 285mm
Power of saw wheel 15kw
Diameter of saw wheel 711mm
Feeding speed 0~12m/min
Feeding motor 1.1kw
Return motor 0.37kw
Size of saw blade (LxWxH)  4572x27x0.9mm
Dust outlet diameter 102mmX2
Saw kerf (mm) 1.4~1.6mm

Built to the exacting standards demanded by today's professionals, features state-of-the-art systems such as digital controls,precision blade tensioning with gauge, and a variable-speed conveyor drive system.


Automatic tensioning: The Rexroh rails are fitted with a tensioning system to make the saw blade more durable.

The sawing wheel has advanced processing technology, good stability, wear resistance, and the saw blade is not easy to break. UsesJapan imported NSK6200VV and NSK32013 bearing to ensure smooth rotation of the saw wheel.Zhengtai,SIMENS, LG and other imported electrical components: the electrical box is durable and not easy to damage.

A strong power,3-phase motor rounds out this machine for unsurpassed power to handle your biggest resaw operations.
"Dock" delivery or flatbed truck arrangements are necessary for this item.

Wear-resistant ceramic saw clamp to protect the saw blade for efficient heat dissipation and better sawing surface quality





Band Saw For Cutting Logs
[]
