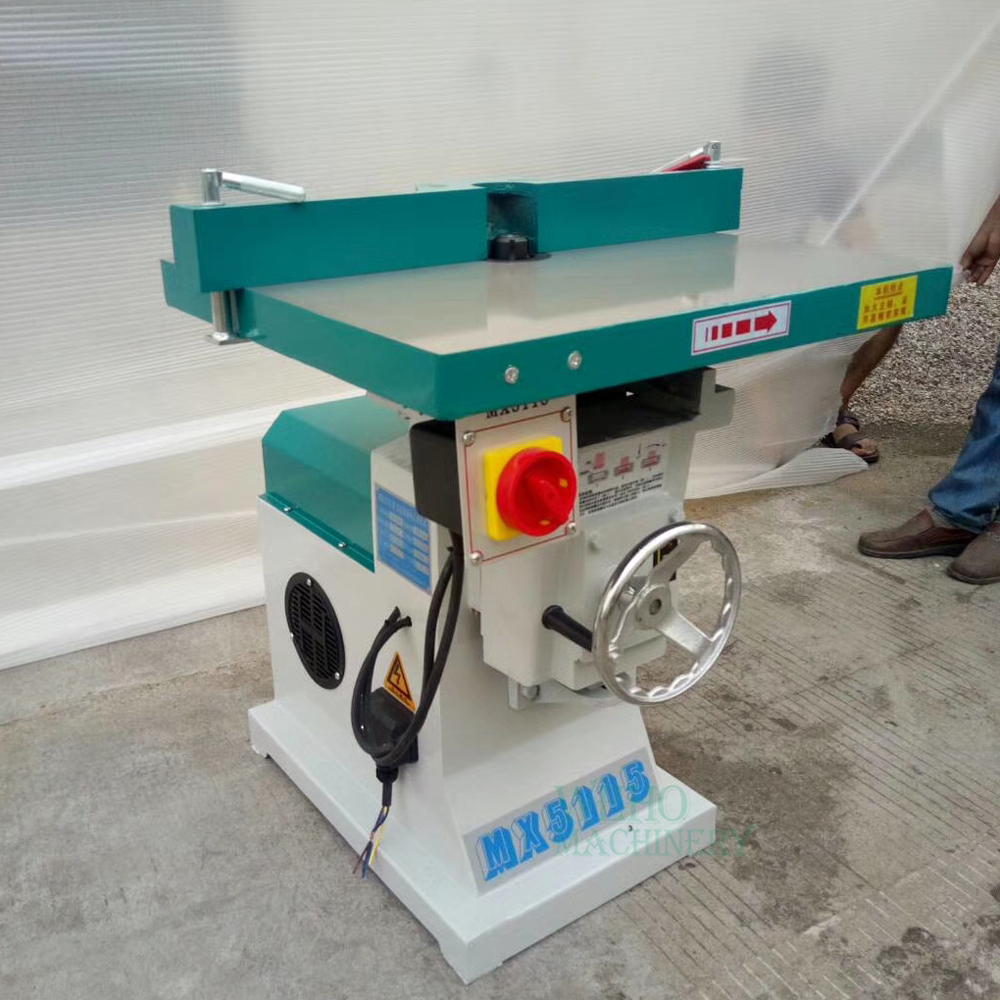

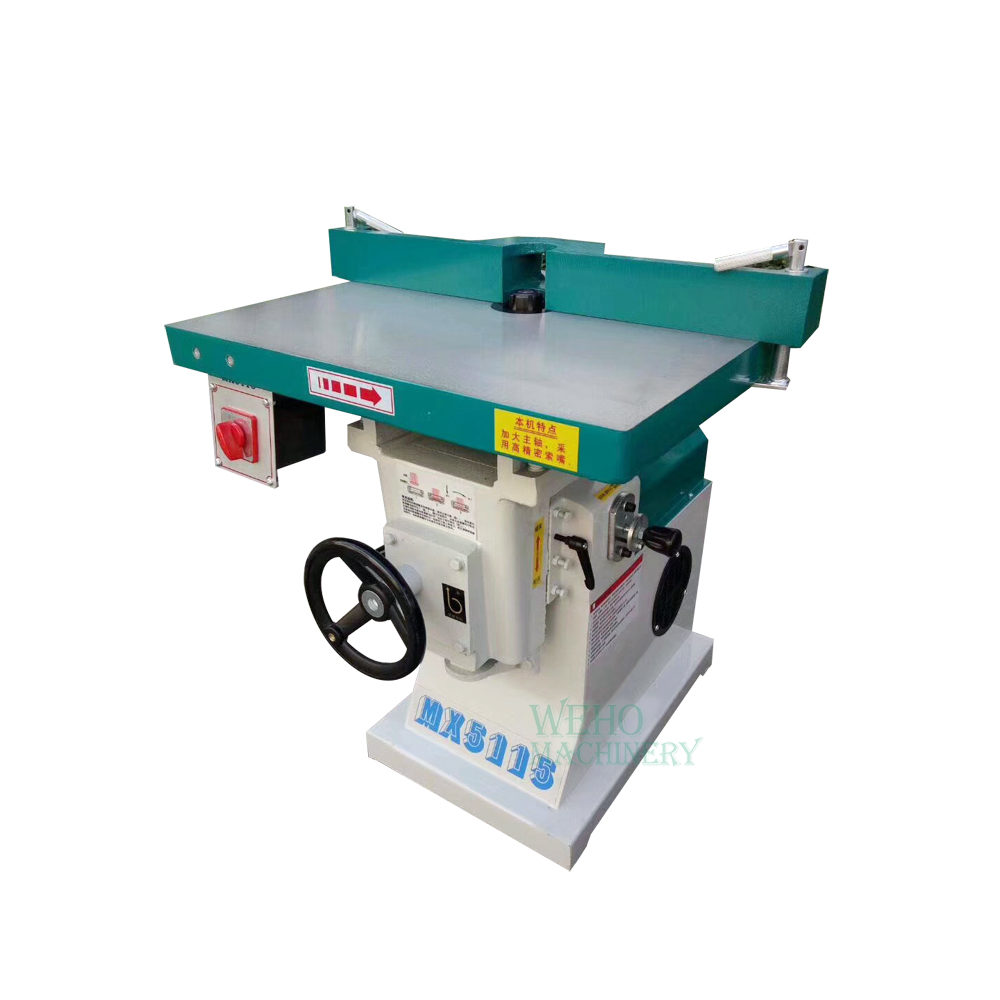

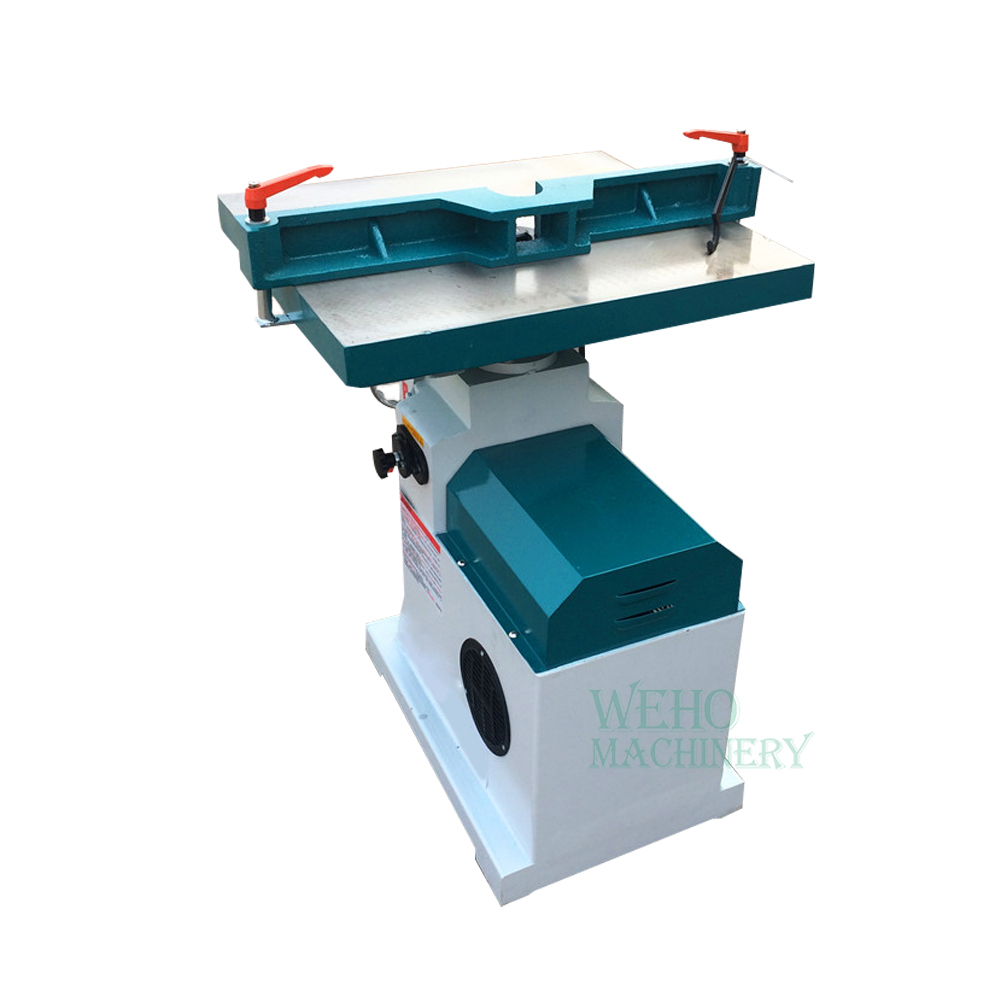

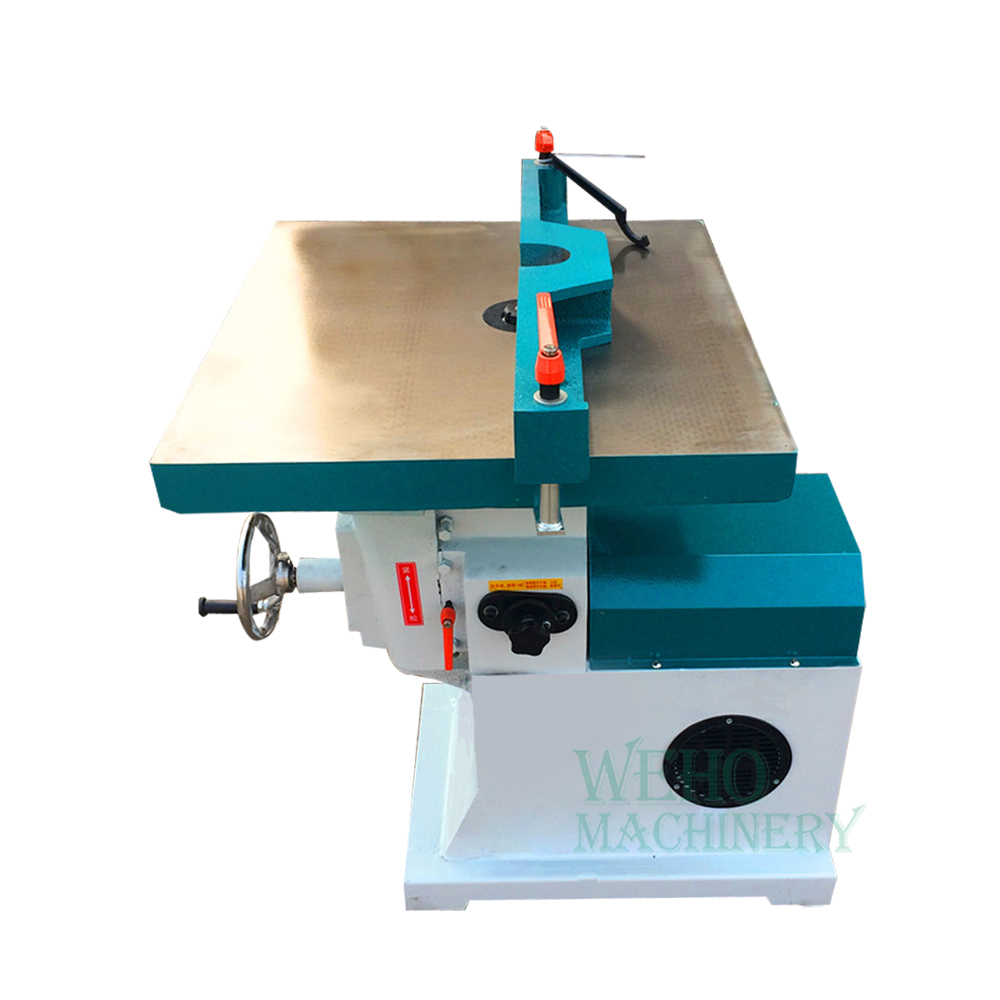

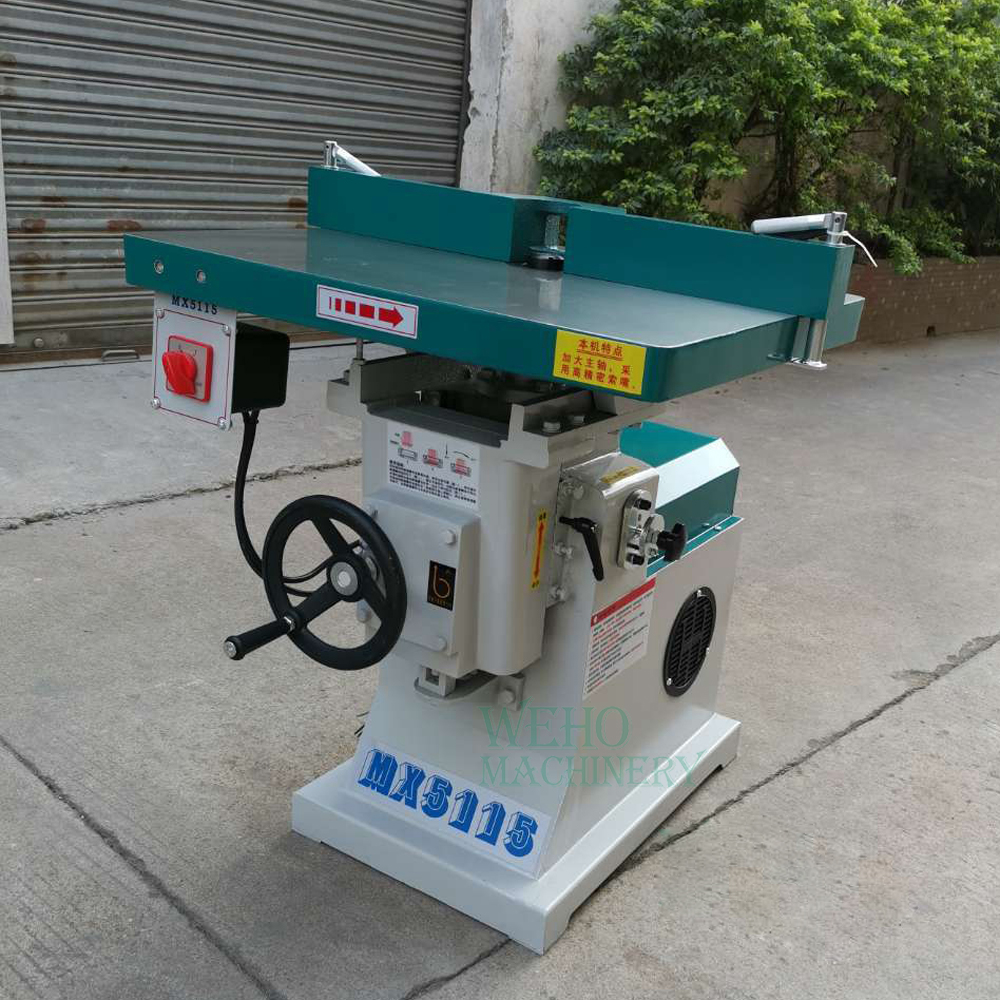

45°  tilting table wood spindle shaper moulder for furniture trimming and slotting | 45° Tilting Table Moulder
45°  tilting table wood spindle shaper moulder for furniture trimming and slotting | 45° Tilting Table Moulder

45° tilting table wood spindle shaper moulder for furniture trimming and slotting | 45° Tilting Table Moulder


Model:MX5115
Worktable size:640*580mm
Worktable tilting angle:45°
Max working thickness:120mm
Power:3kw
Weight:160kg


Details
Spare Parts
Inquiry

MX5115 vertical single axis woodworking Gong milling machine can be installed with all kinds of Gong milling tools, chamfering the workpiece, opening straight grain, straight line at carrier port, pulling table slide, opening t-row grain, etc
Model MX5115
Worktable size 640*580mm
Rise and down traveling for worktable 120mm
Working table tilting angle 45°
Max working thickness 120mm
Knife clamp diameter 6.3/12.7mm
Spindle rotating speed 18000r/min
Install power 3kw
Weight 160KG
Overall dimension 690*790*810mm


Working table:Smooth grinding cast iron table, low resistance, easy to slide.
Back plate:Can move forward and backward, and can be adjusted according to the size of the wood.

Adjustable angle ruler: the working table can accurately adjust the tilt angle, which is more convenient for operation
Table hand wheel: manually adjust the table hand wheel to adjust the table up and down

Spindle locking device: adjust the height of the spindle and lock it to prevent the spindle from loosening during operation
Tool unloading lock: a special lock for tool unloading, which ensures that the spindle can not rotate when changing tools

Spindle: high precision lock nozzle, fixed more solid, can be used with different tools
