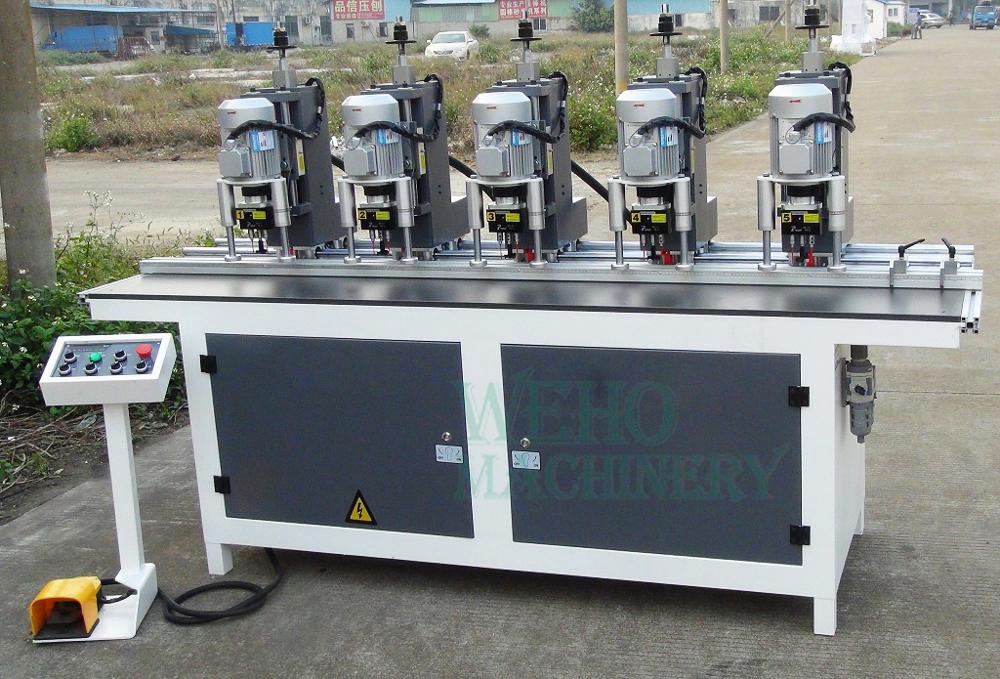

5 heads hinge boring machine for wood manufacturer
5 heads hinge boring machine for wood manufacturer

5 heads hinge boring machine for wood manufacturer


Model:MWZ7531A
Number of main spindles:5
Max. panel thickness:60mm
Vertical max. boring depth:65mm
Weight:800kg
Overall size:3200*800*1600mm


Details
Spare Parts
Inquiry
Wood door hinge inserting machine mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.
Product Name 5 heads hinge boring machine for wood manufacturer MWZ7531A
Model MWZ7531A
Groups of main spindle 5pc
Groups of vertical spindle 5pc
Number of main spindles 5
Number of vertical spindle 5*3
Max. panel thickness 60mm
Vertical max. boring depth 65mm
The min. distance between two vertical central axis of the spindle box 280mm
Total power consumption 5.5kw
Motor power of vertical group 1.1*5kw
Working height 820mm
Rotation speed of the main spindle 2840r/min
Working pressure 0.6-0.8Mpa
The max. air consumption of producing 10 plates per minute 2.1L/min
Weight 800Kg
Overall size 3200*800*1600mm

This machine is ideal for hinge holes drilling..Drilling and clamping of workpieces are pneumatically controlled.Drilling head infeed and moving is pneumatically controlled.Drillingdepth can be adjusted.

The boring unit is ruggedly constructed and precision ground making it ideal for precise boring.Hinge Driller mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.


Hinge Driller
 ​​
[]
