Aluminum PVC window and door double cutting mitre saw making machine | Pvc Door Making Machine
Aluminum PVC window and door double cutting mitre saw making machine | Pvc Door Making Machine

Aluminum PVC window and door double cutting mitre saw making machine | Pvc Door Making Machine


Model:MJLC405
Max sawing width:105mm
Max sawing height:40mm
Saw blade size:φ405*φ25.4mm*3.2*120T
Weight:550kg


Details
Spare Parts
Inquiry

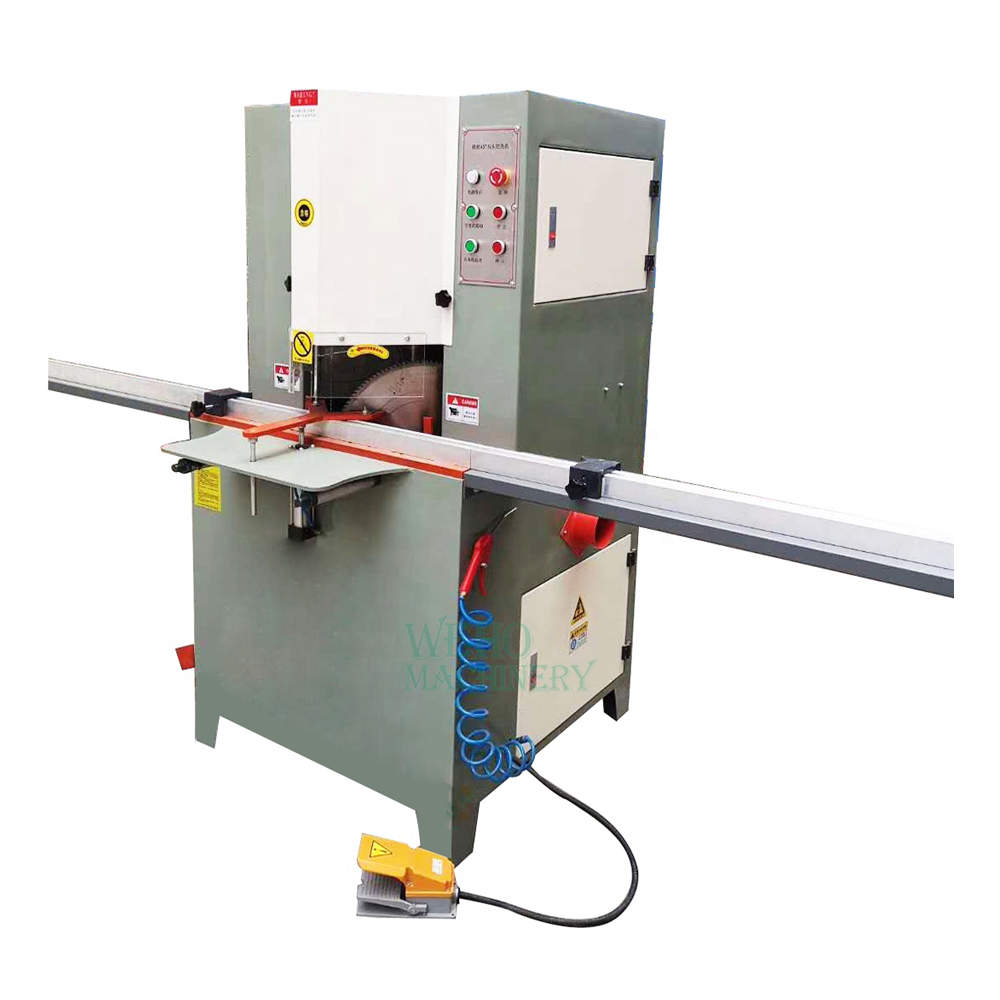

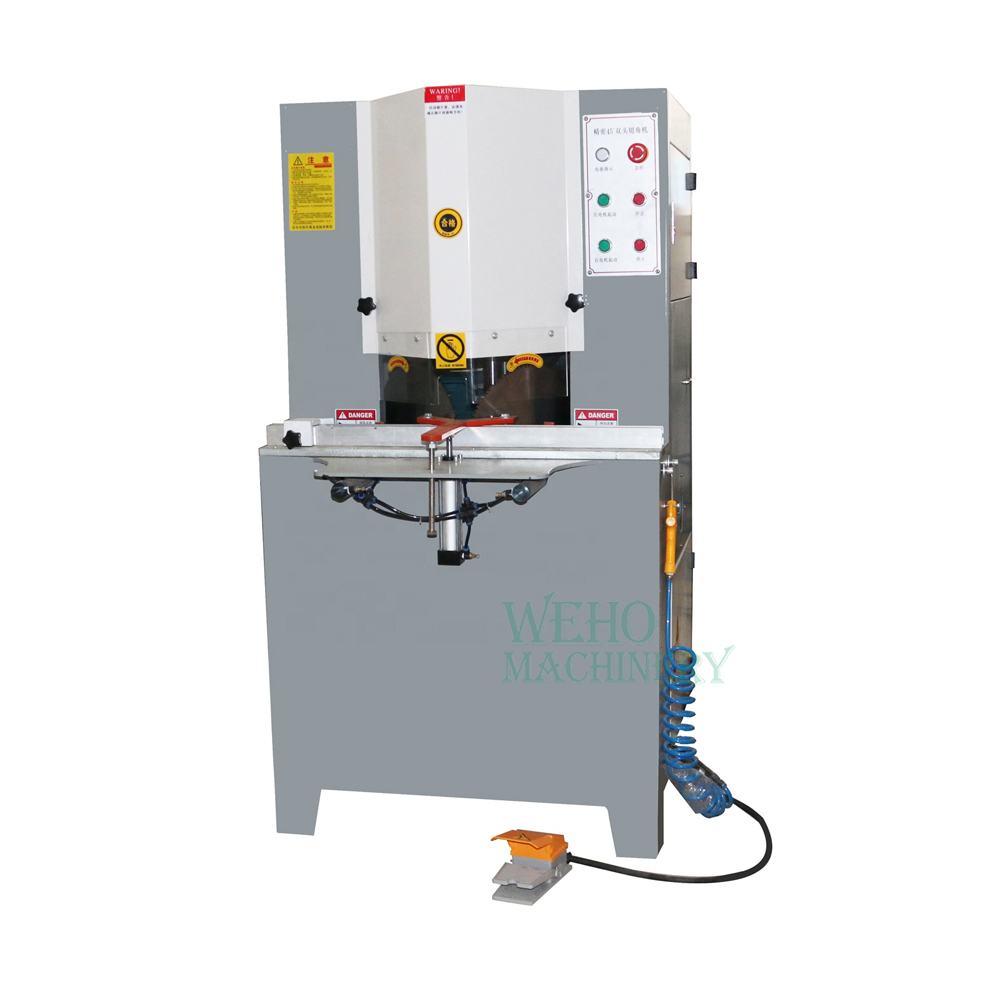

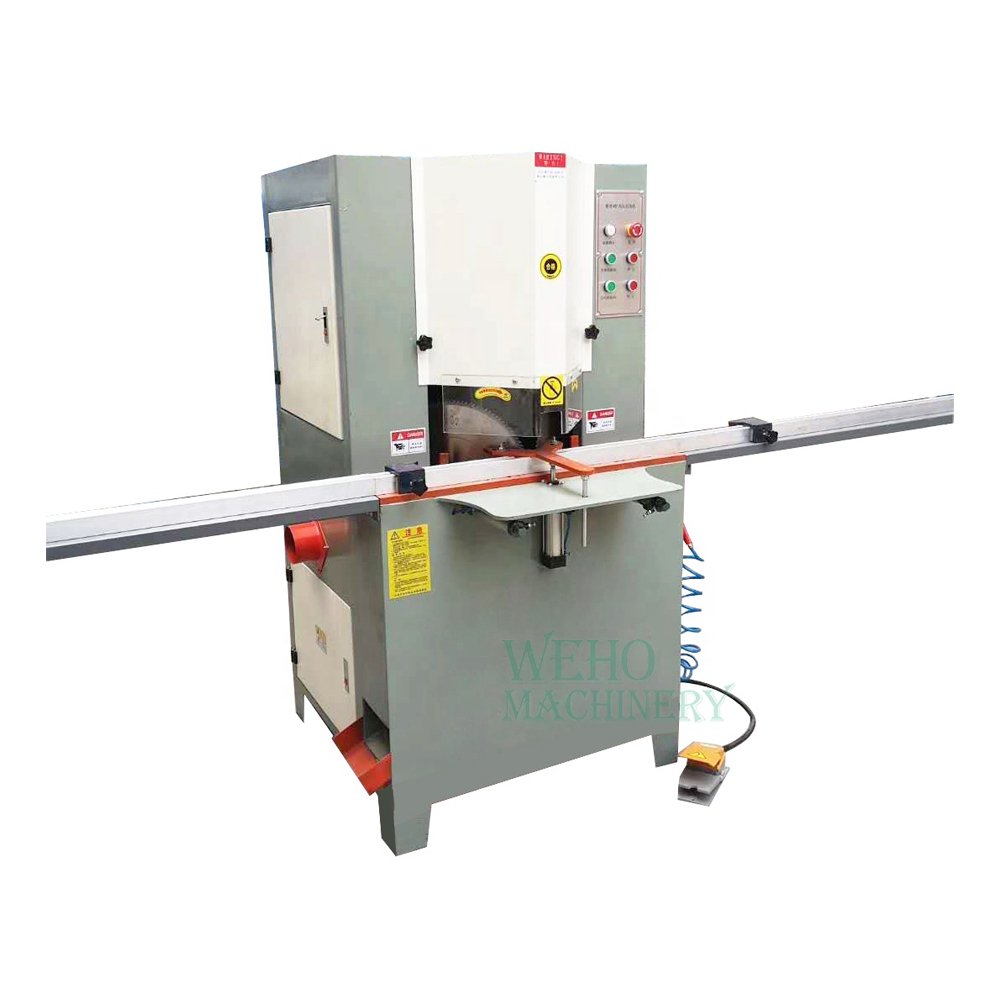

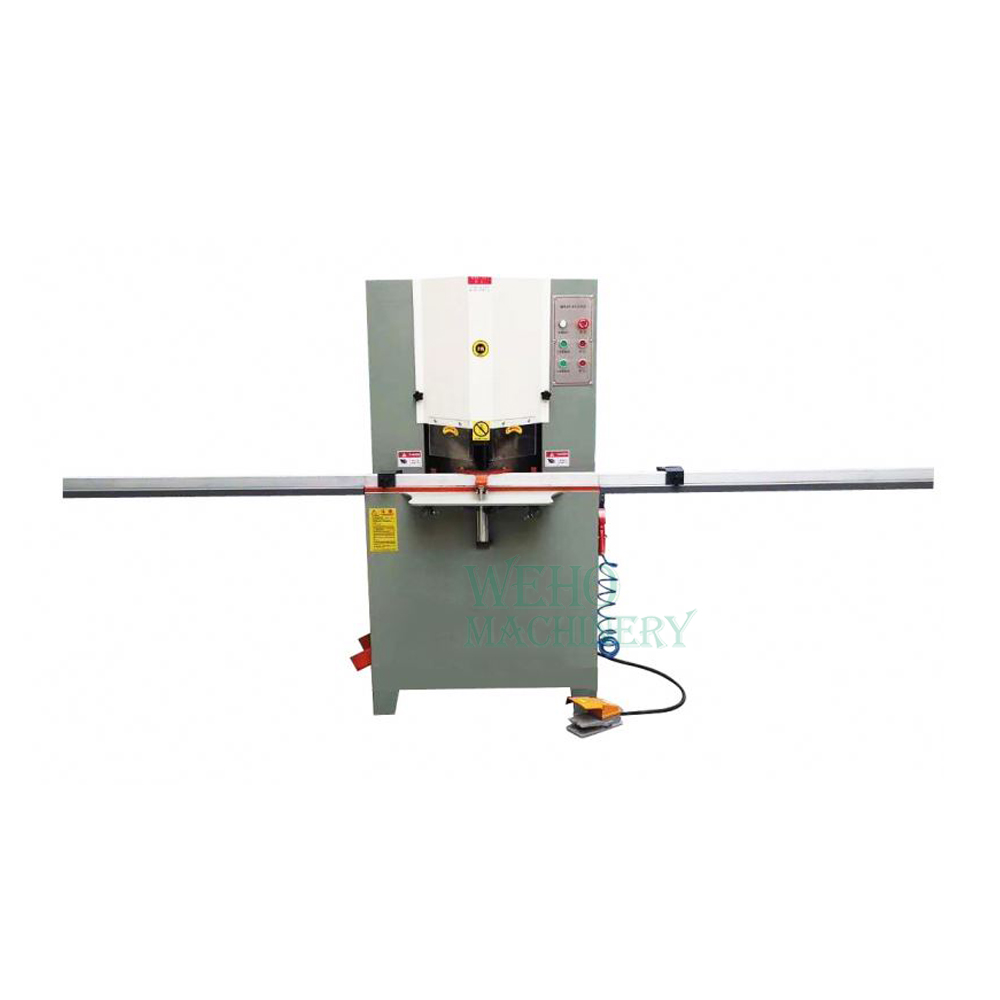

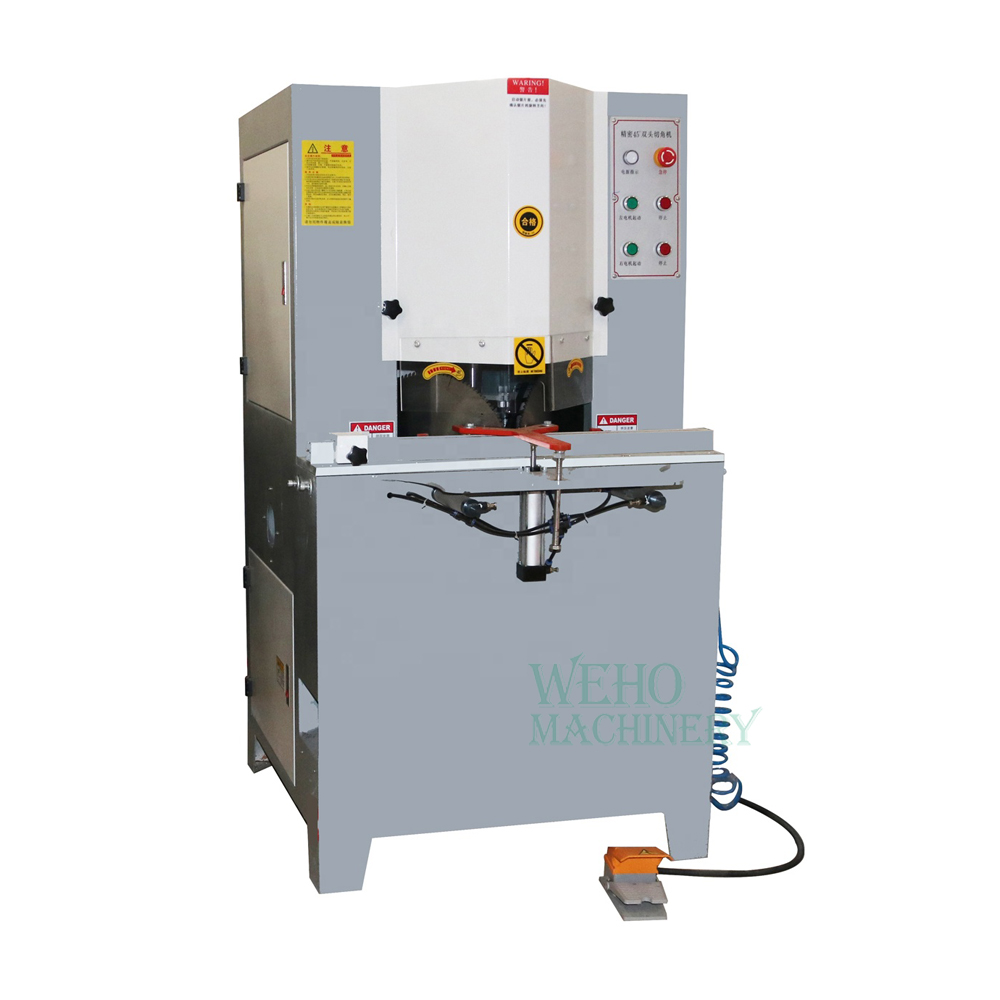

Aluminum cutting double mitre saw
1. Double blade synchronous sawing, save 2 / 3 times compared with general sawing.
2. Only step on the foot switch, the machine will automatically press and cutting materials, which is safe and easy.
3. The air + oil cylinder for feeding saw, get stable cutting speed. At the same time, the saw automatically sprays atomized cutting oil to achieve cooling and lubricating effect, ensure saw blade does not accumulate chips, and the saw blade is sharp and wear-resistant.
4. Front, back, upper and down sides are clamped by air cylinder, the material is stable, not easy to deform, the sawing angle is accurate, and pressing pressure can be adjusted so that the hollow material no deform.
5. aluminum double mitre saw is specially attached with 200 * 2000mm feed in and feed out sheet, The feed out rack is equipped with a positioning block plate for sawing in a fixed size (the conveying platform is an iron plate platform).
Model MJL405
Cutting angle 45°*2
Max sawing width 105mm
Max sawing height 40mm
Spindle speed 3800P/PM
Saw blade size φ405*φ25.4mm*3.2*120T
Corner sawing saw blade φ255*φ25.4mm*3.0*120T
Workbench dimensions 840*180mm
Working voltage 380V 50HZ
Motor power 2.2kw*2
Angle protection motor power 0.55kw*2
Control conversion mode PLC
Working air pressure 0.6-0.8mpa
Ootward size 840*1100*1600mm
Weight 550kg


According to Different working size, There are model MJL305, MJL355, MJL405, MJL455 and MJL505. If you have special profiles sawing requirements for aluminum cutting miter saw, WEHO factory can manufacture the machine according to your requirements.

Suitable for 45 ° sawing (suitable for push door, window frame, aluminum photo frame, mirror frame, display cabinet, air conditioner outlet, light box, screen, decorative strip, aluminum edge, cabinet, lamp, picture frame etc.).

Easy to operate, high efficiency, accurate cutting, labor-saving, easy to operate. It is the best choose of 45 degree bevel cutting of aluminum and wood.

The main spindle running at high speed. It can cut two (one on the left ,the other on the right) 45 degrees at the same time with one action.

Cutting angle of double mitre saw for aluminum is accurate.

Cutting section of the workpiece is smooth without burr, don’t need second processing.

aluminum cutting miter saw Cutting efficiency is high, which is three times the output compare to general single head machine
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood,metal processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
