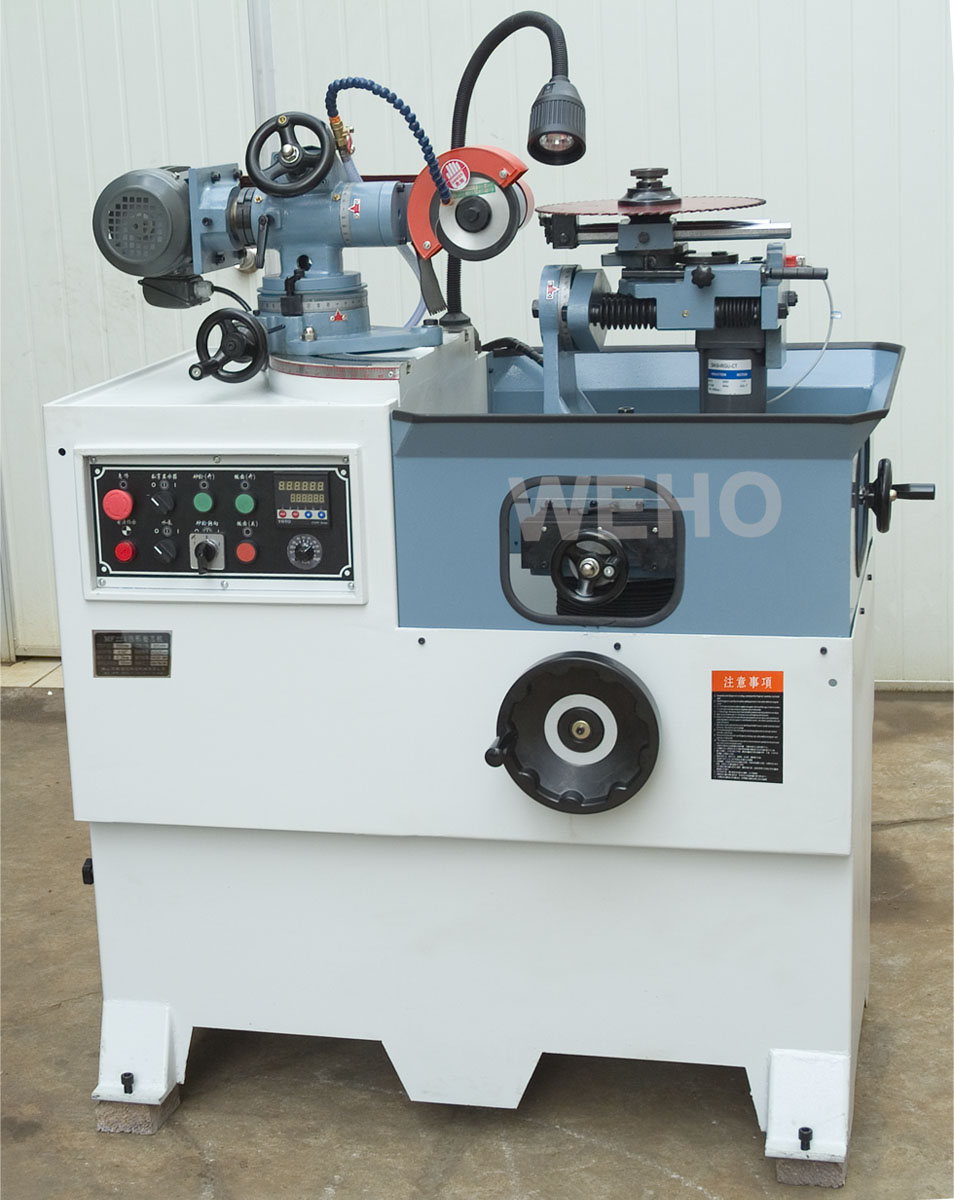

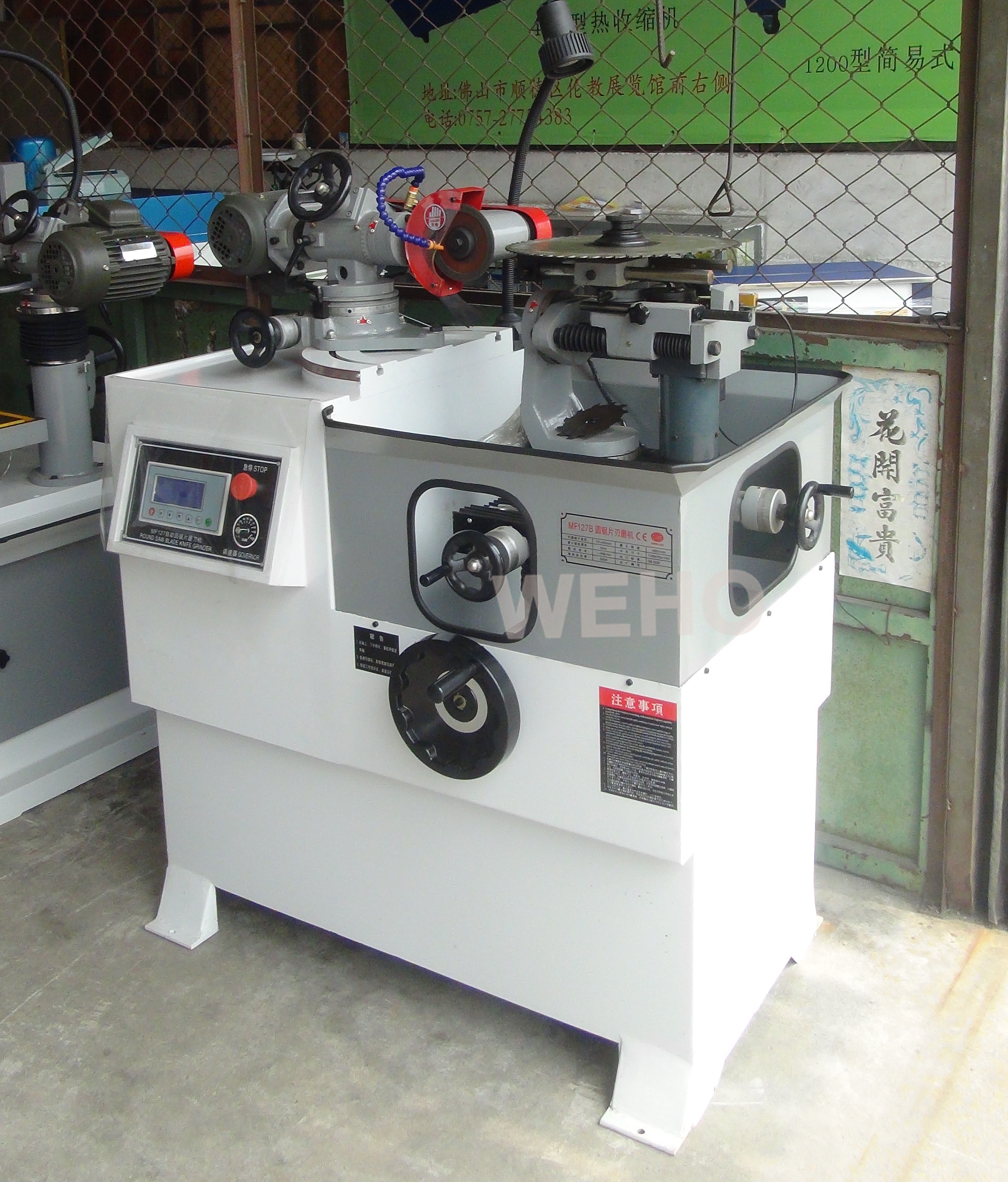

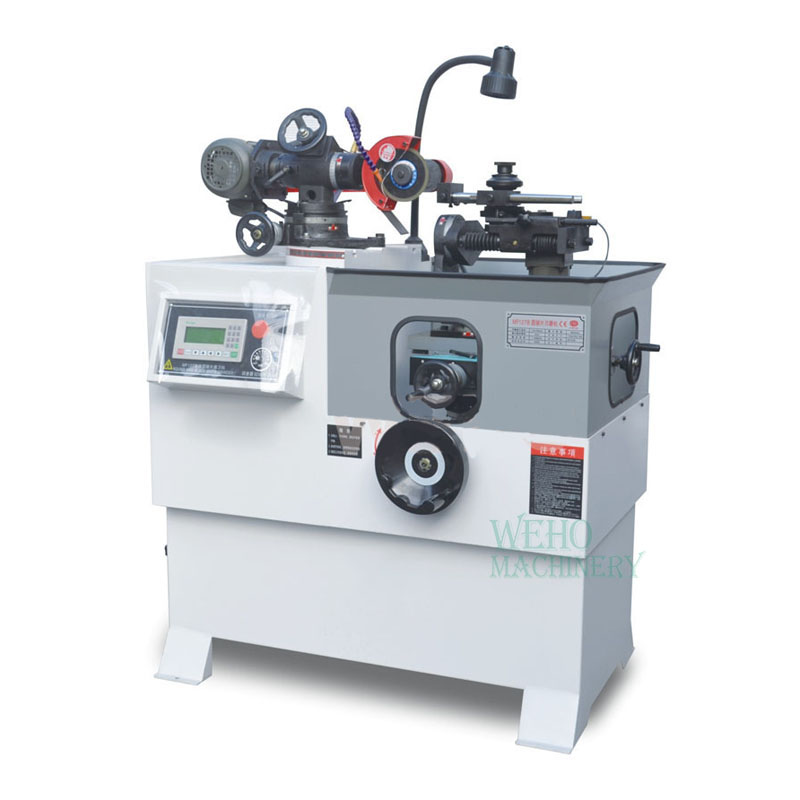

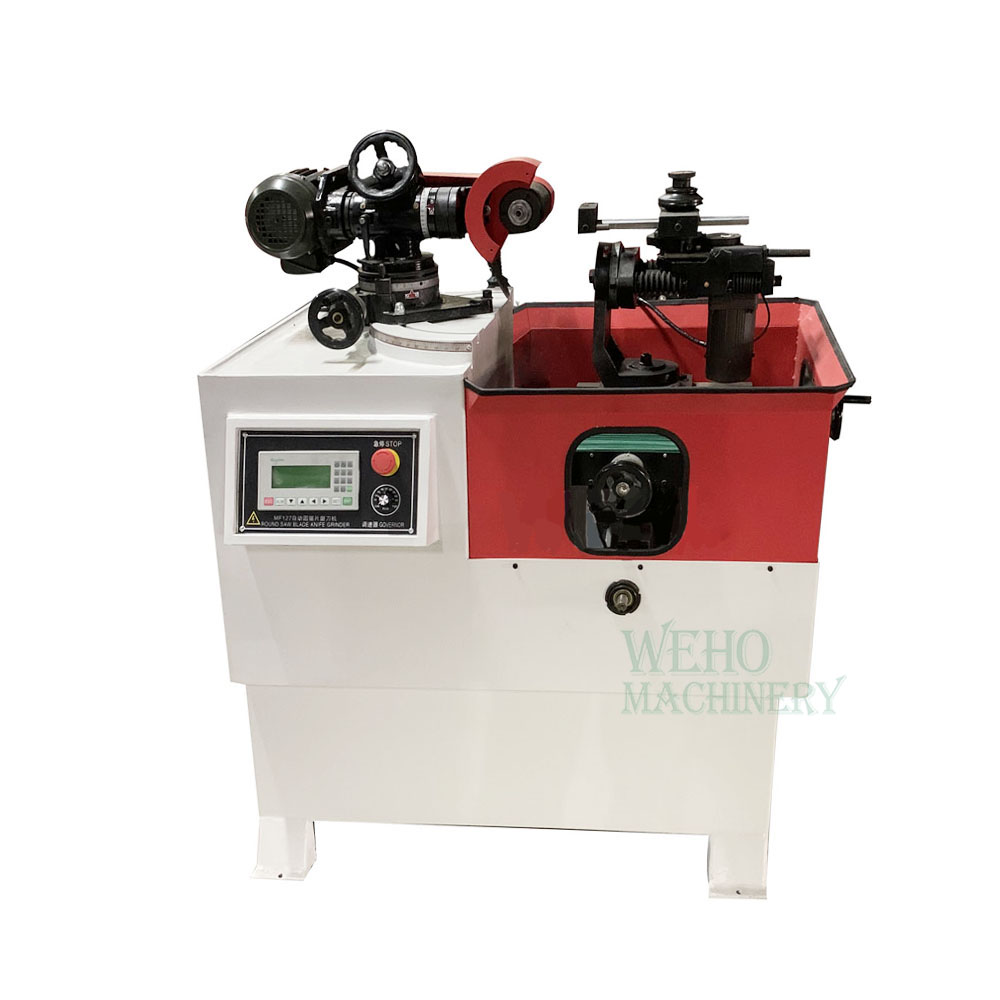

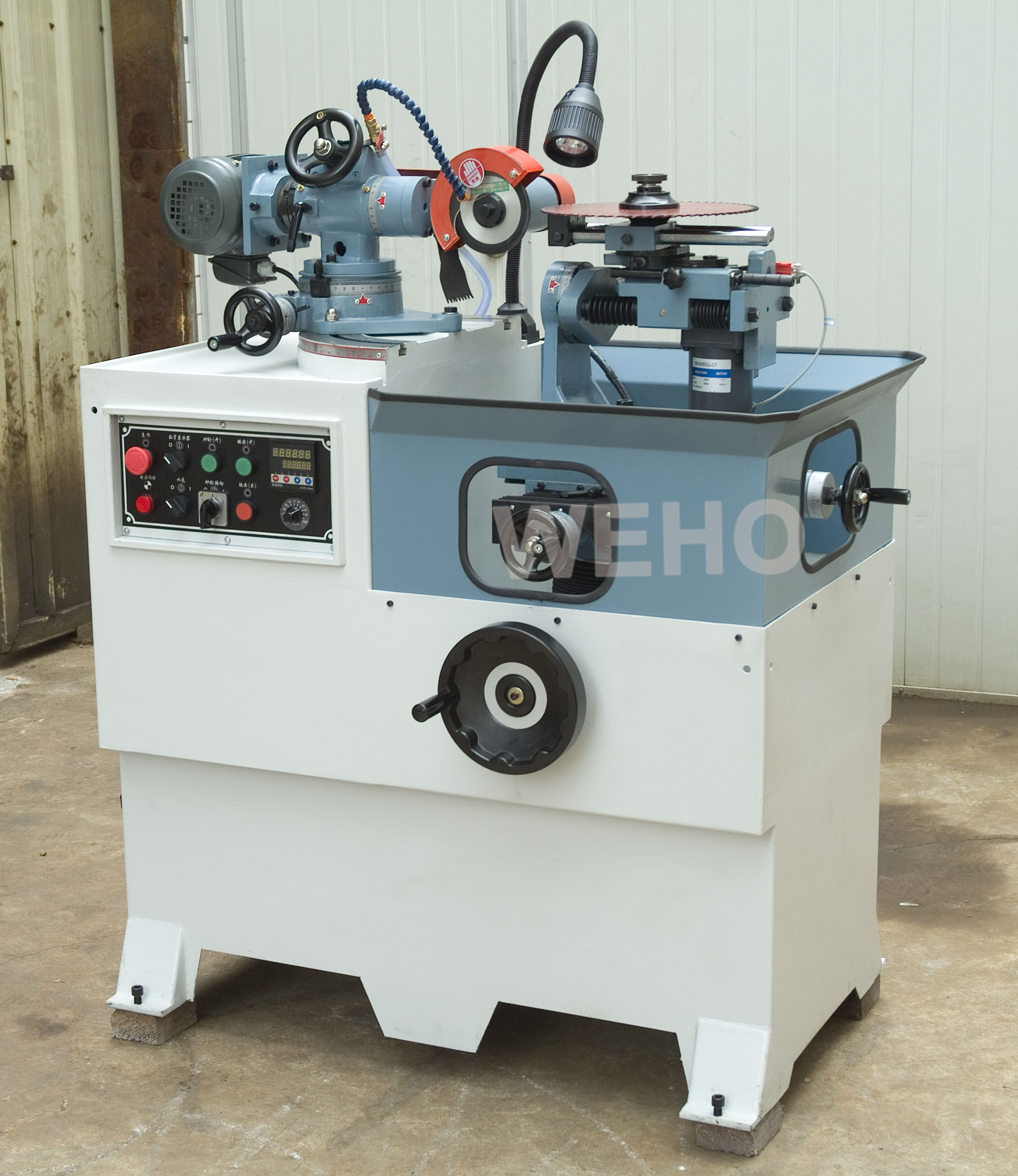

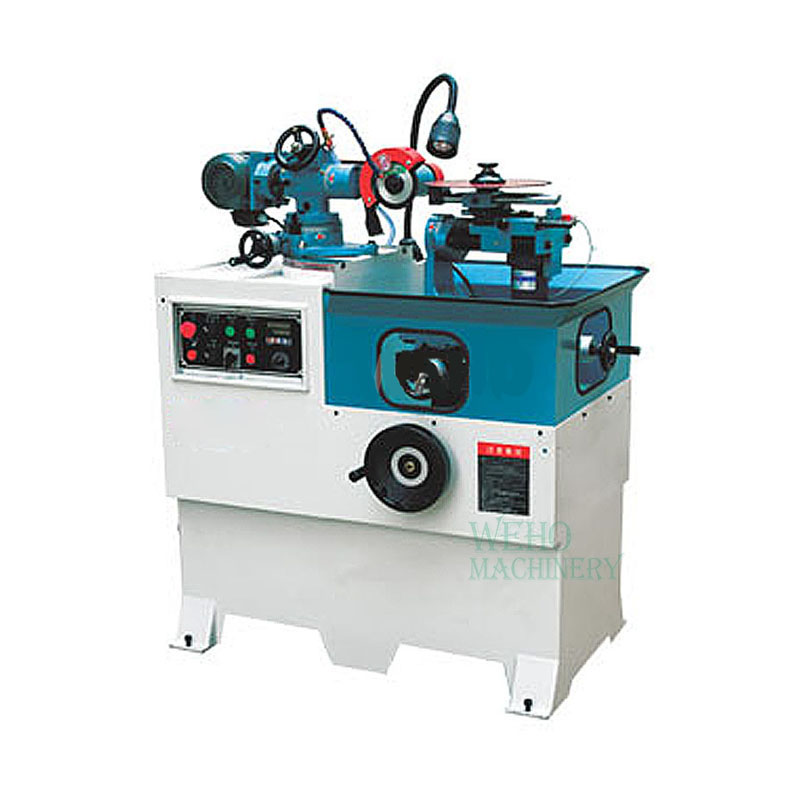

Automatic CNC high skill sawblade sharpener with diamond grinding wheel mill machine | Saw Sharpening
Model:MF127
Grinding saw dia:Φ125mm-Φ630mm
Max thickness of saw:8mm
Power:370w
Weight:300kg
Grinding saw dia:Φ125mm-Φ630mm
Max thickness of saw:8mm
Power:370w
Weight:300kg
Details
Spare Parts
Inquiry
Working with diamond grinding wheel, circular saw blade grinder can grind hard alloy saw blade to different angles, such as tooth surface, tooth crest, tooth surface bevel and tooth crest bevel etc. When input the corresponding data, the procedures can be finished automatically.
Model | MF127 | ||
Grinding capacity | Grinding saw dia | Φ125mm-Φ630mm | |
Grinding bore dia of saw | Φ16mm, Φ20mm、Φ22mm, Φ30mm, Φ40mm,Φ50mm, Φ80mm | ||
Max thickness of saw | 8mm | ||
Grinding wheel size ( Diamond wheel) | Grindingwheel dia | 125mm, Φ150mm | |
Bore dia | Φ20mm,Φ32mm | ||
Max angle of dialing tooth | 30° | ||
Speed of grinding wheel | 3800r/min | ||
Speed of dialing tooth | 0-24 teeth/m (variable speeds) | ||
Motor | Grinding wheel motor | 370W | |
Feeding motor | 60W | ||
Machine size | MF127A | 1100*750*1380MM | |
MF127B | 1100*750*1360MM | ||
Package size | MF127A | 300KG | |
MF127B | 300KG |
Specially designed for grinding various angle of carbide saws easily and efficiently.
Use diamond grinding wheel, This saw blade grinder can grind tooth top, tooth face ,bevel angle of tooth top, bevel angle of tooth face etc. Use widely, easy to operate and precise fix position.
It’s convenient to adjust saw blade diameter, angle, tooth distance,then input relevant details, this circular saw sharpener will complete working process automaticly provided with high accuracy and easy set-up of center of the blade thickness.
1.Install samll saw balde device
2.Grinding of tooth surface of the tooth surface
3.Grinding of tooth crest angle of tooth surface
4.Adopted high precising scale ring in all adjustable sections
