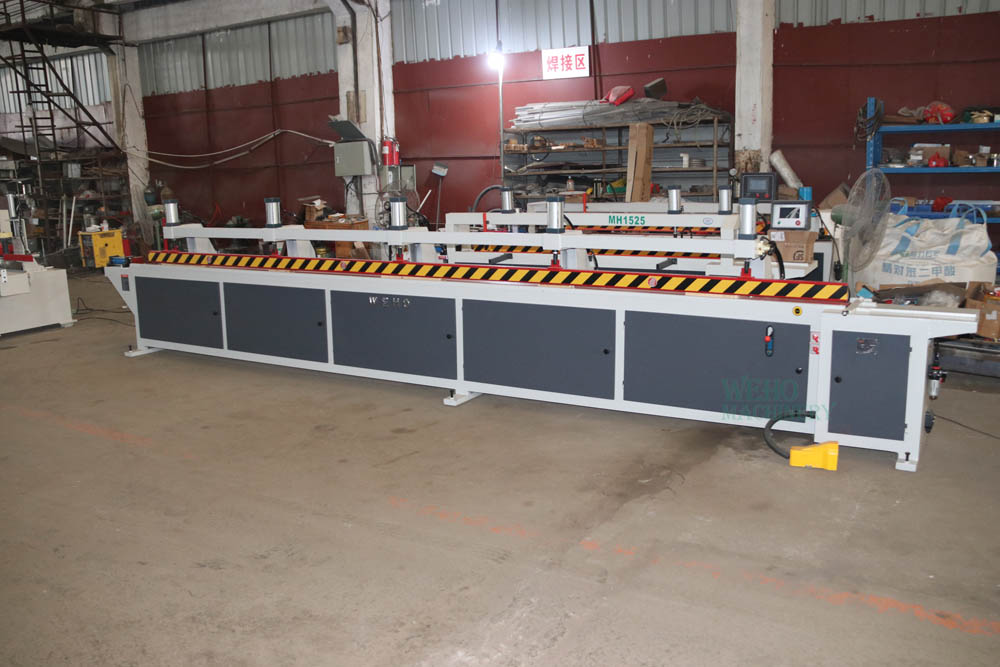

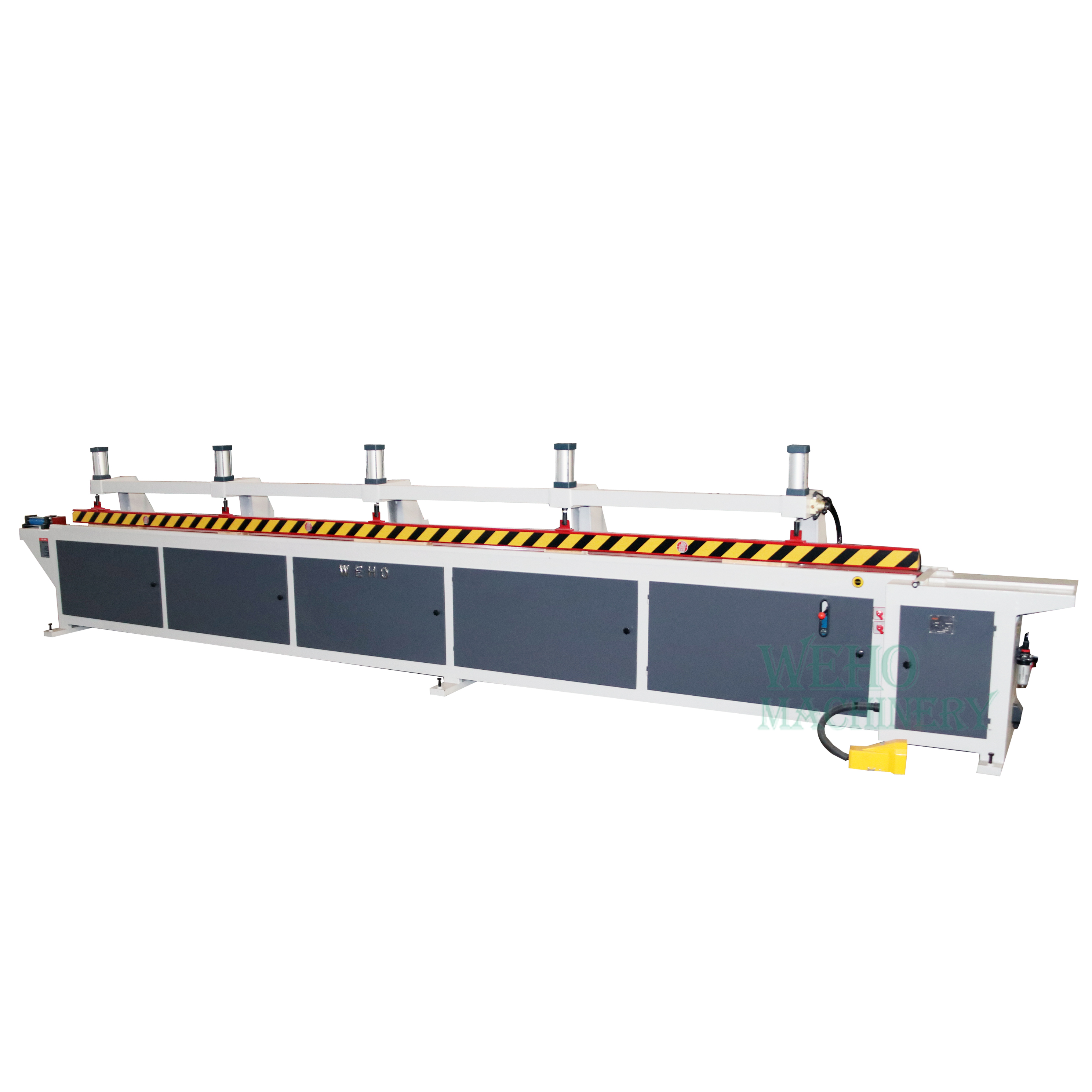

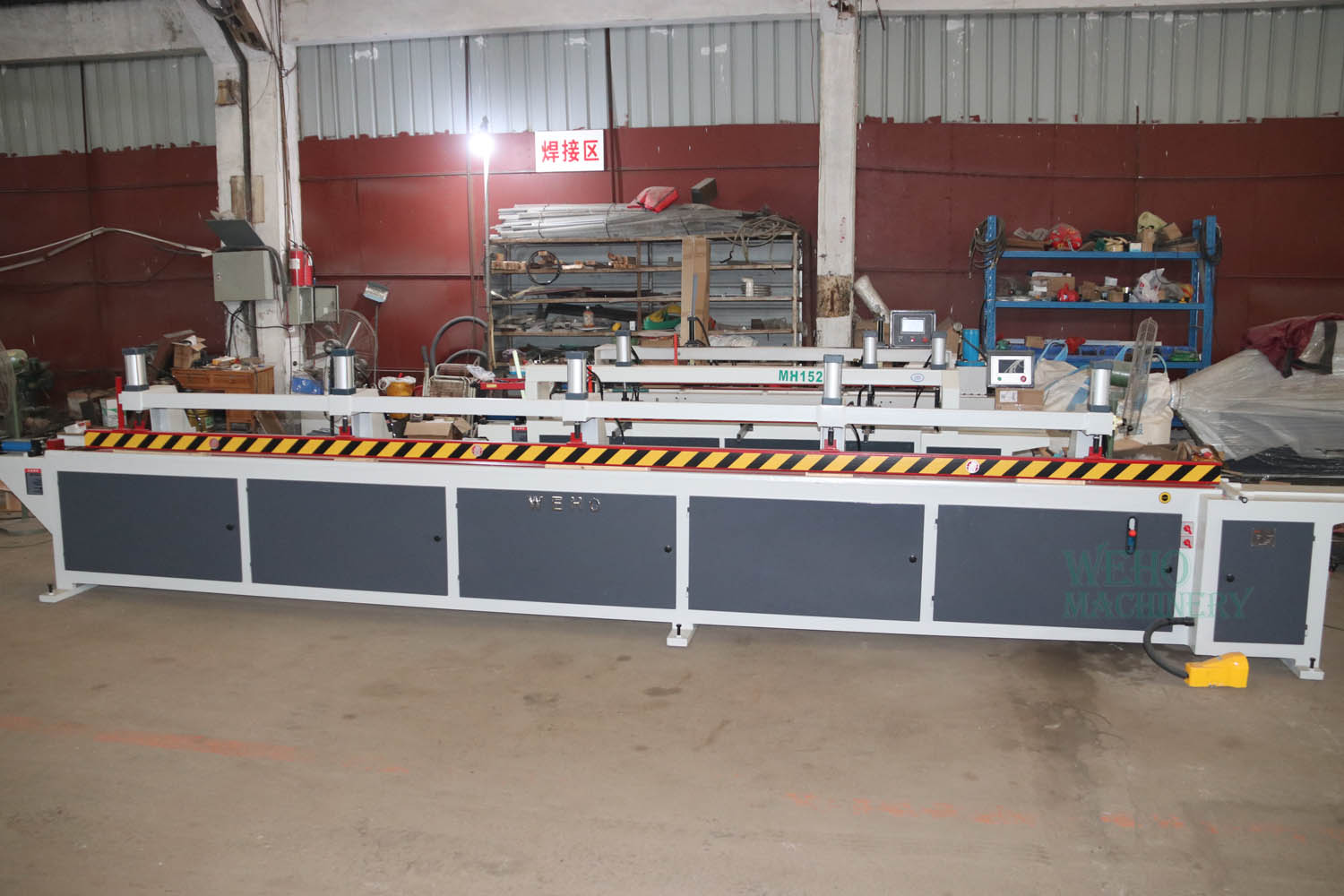

Automatic comb type splicing machine
Automatic comb type splicing machine

Automatic comb type splicing machine

Max joint length:4000mm
Max joint width:140mm
Max joint height:70mm

Spare Parts

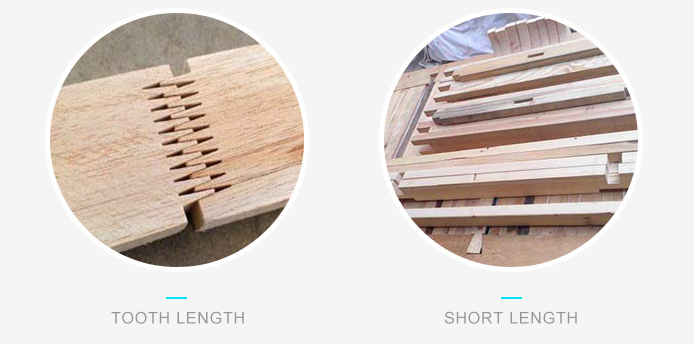

The fully automatic finger jointer splicing machine can lengthen all kinds of square short materials, and has good finger seam splicing effect. It can be used in major construction sites and furniture factories to effectively improve the utilization rate of waste wood.
Model MZ4000Z
Max joint length 4000mm
Max joint width 140mm
Max joint height 70mm
Joint force 7000
Motor power 3.0kw
Spindle saw power 2.2kw
Speed 3600r/min
Blade diameter 300mm

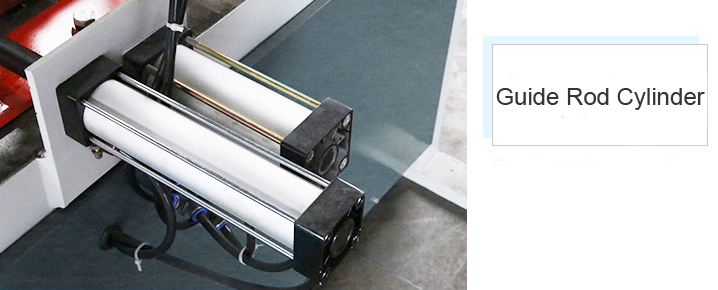

Press cylinder 40*100mm
Push culinder 63*125mm
Working pressure 0.8MPA
Size 4900*730*1380mm
Weight 450kg

Comb Type Splicing
