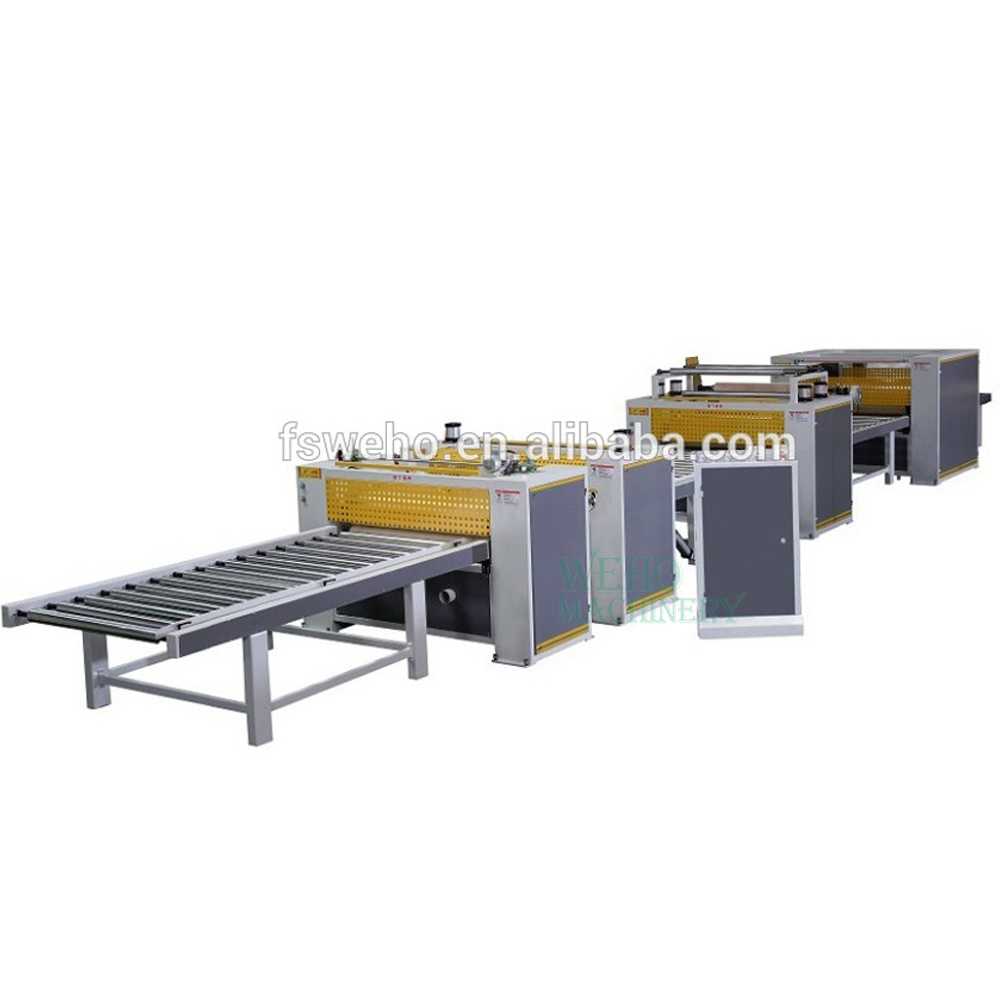

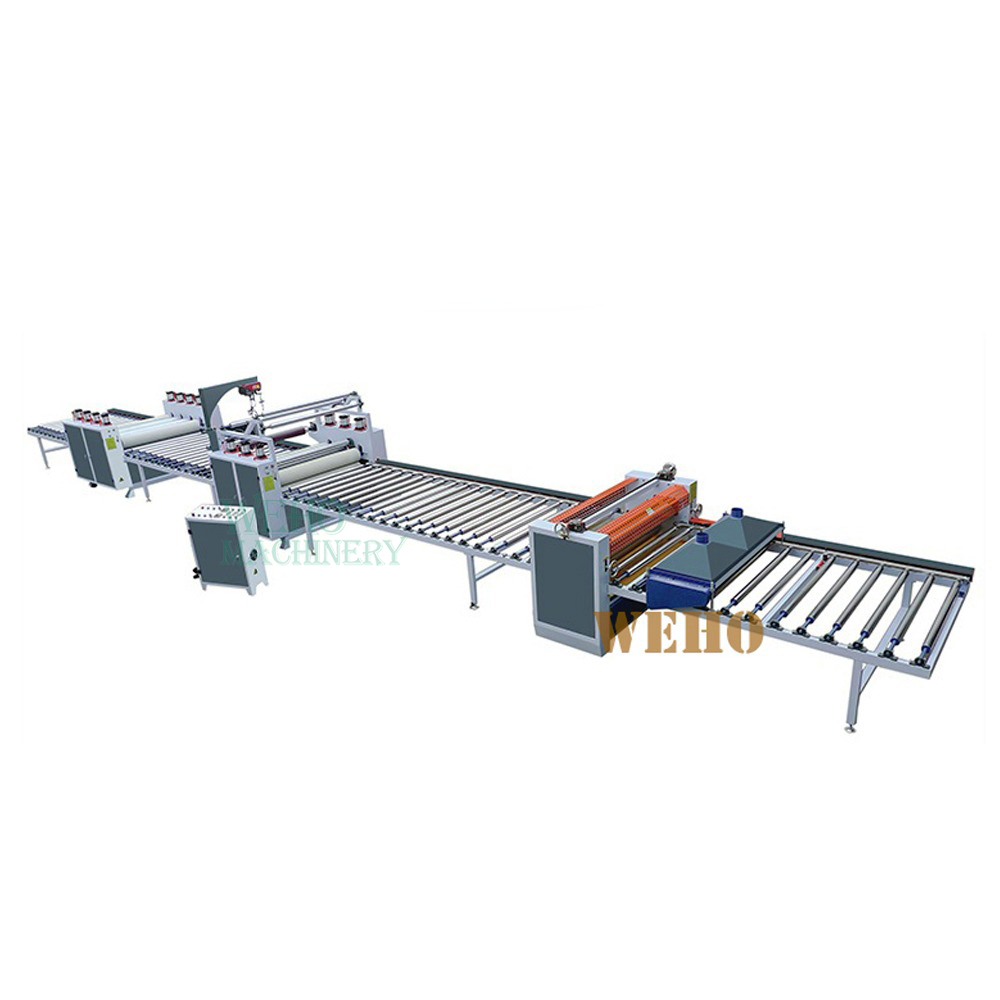

Automatic high speed acrylic MDF furniture paper laminating machine for large panel factory woodworking processing line
Automatic high speed acrylic MDF furniture paper laminating machine for large panel factory woodworking processing line

Automatic high speed acrylic MDF furniture paper laminating machine for large panel factory woodworking processing line


Model:TM689A
Specifications:
190 * 1350 mm
Passing Height:2.5-50mm
Working Width:1220mm
Feed Speed:3-22m/min
Dimension(L*W*H):17800*2000*1620mm
Power (kW):9
Weight (KG):5000 kg


Details
Spare Parts
Inquiry

Mainly aimed at the joint on the board a variety of decorative materials, such as PVC, wood grain paper and so on. has the speed force and other advantages, so that the processing plate surface smooth without wrinkles, is the ideal equipment used in large panel factory.
Technical Data PUR Line
Specifications
190 * 1350 mm
Working Width
1220mm
Feed Speed
3-22m/min
Passing Height
2.5-50mm
Operating Side
right hand;on request left hand
Feed Of Boards
right

Material
chipboards/MDF/HDF/Honeycomb boards
solid wood boards/sandwich elements
Surface Material
Processing in sheets cut size
PET,PVC foils,Acrylic,HPL,CPL
Processing from the roll
PET,PVC foils,Paper foils

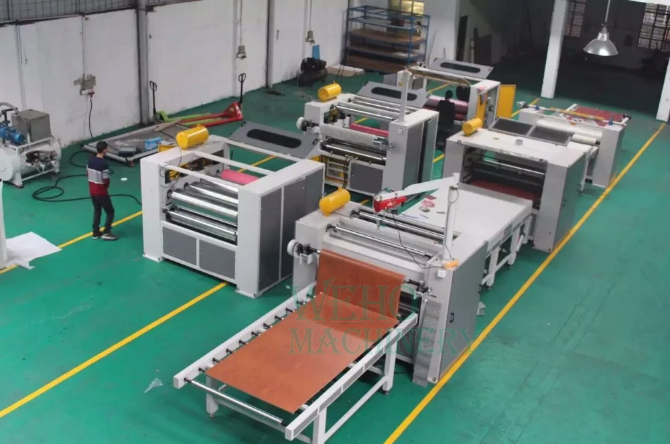

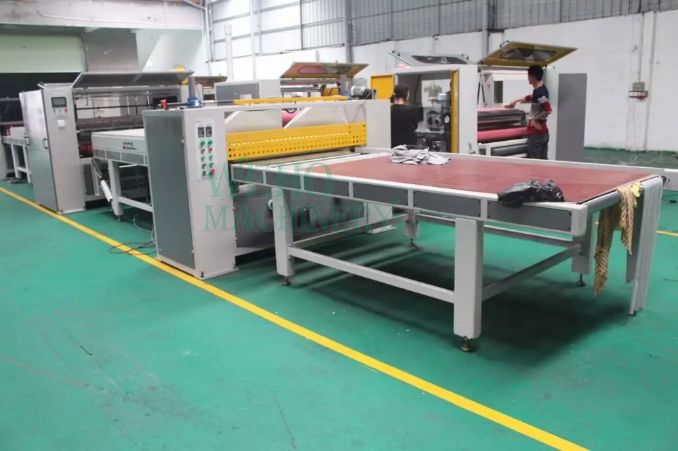

This machine integrates dust removal, glue, laminating and cutter function assembly line, using the pneumatic roller lifting,electric adjustment processing thickness. has the advantages of easy and continuous operation, stick smooth, do not wrinkle ,no foaming, and high genuine rate.
It has the advantage of no crushing, no bubbly and good quality feature, as well as advanced technical, high precision, reasonable composition, new structure, easy operation.

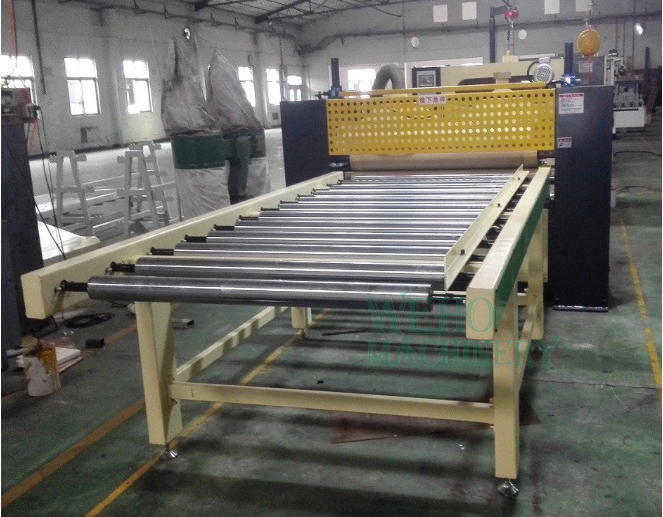

It a good machine for the PVC and paper laminating, machine also include front and back conveying, glue spreading structure, paper feeding, brushing clean and hot pressing structure.
PVC&Paper sticking paper machine is suitable for small- medium enterprises of furniture and audio and with the feature of no wrinkles, bubbles and high rate of quality products adopt to advanced- technology of laminating with the high precision, reasonable overlay, novel structure and easy operation.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
