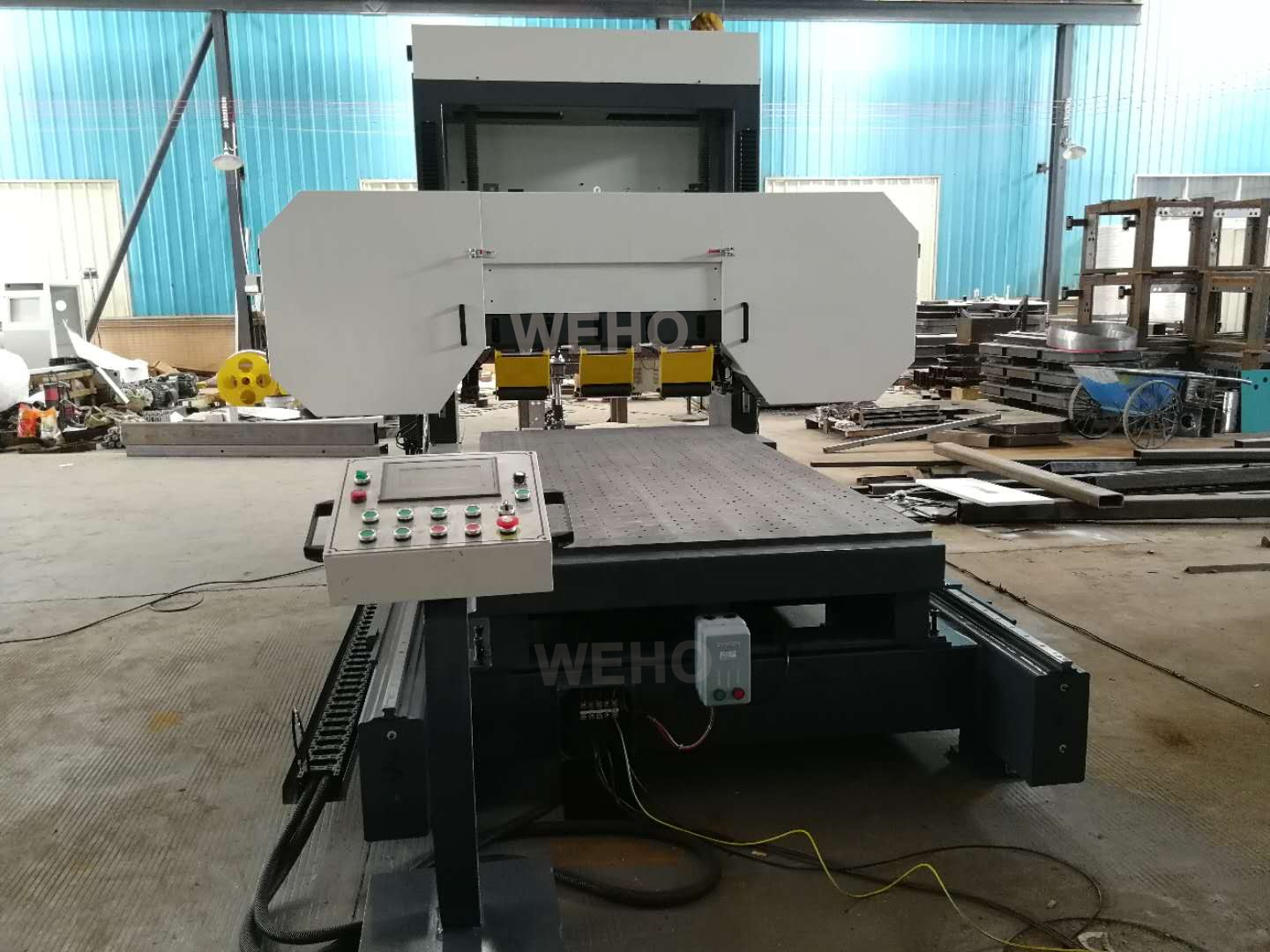

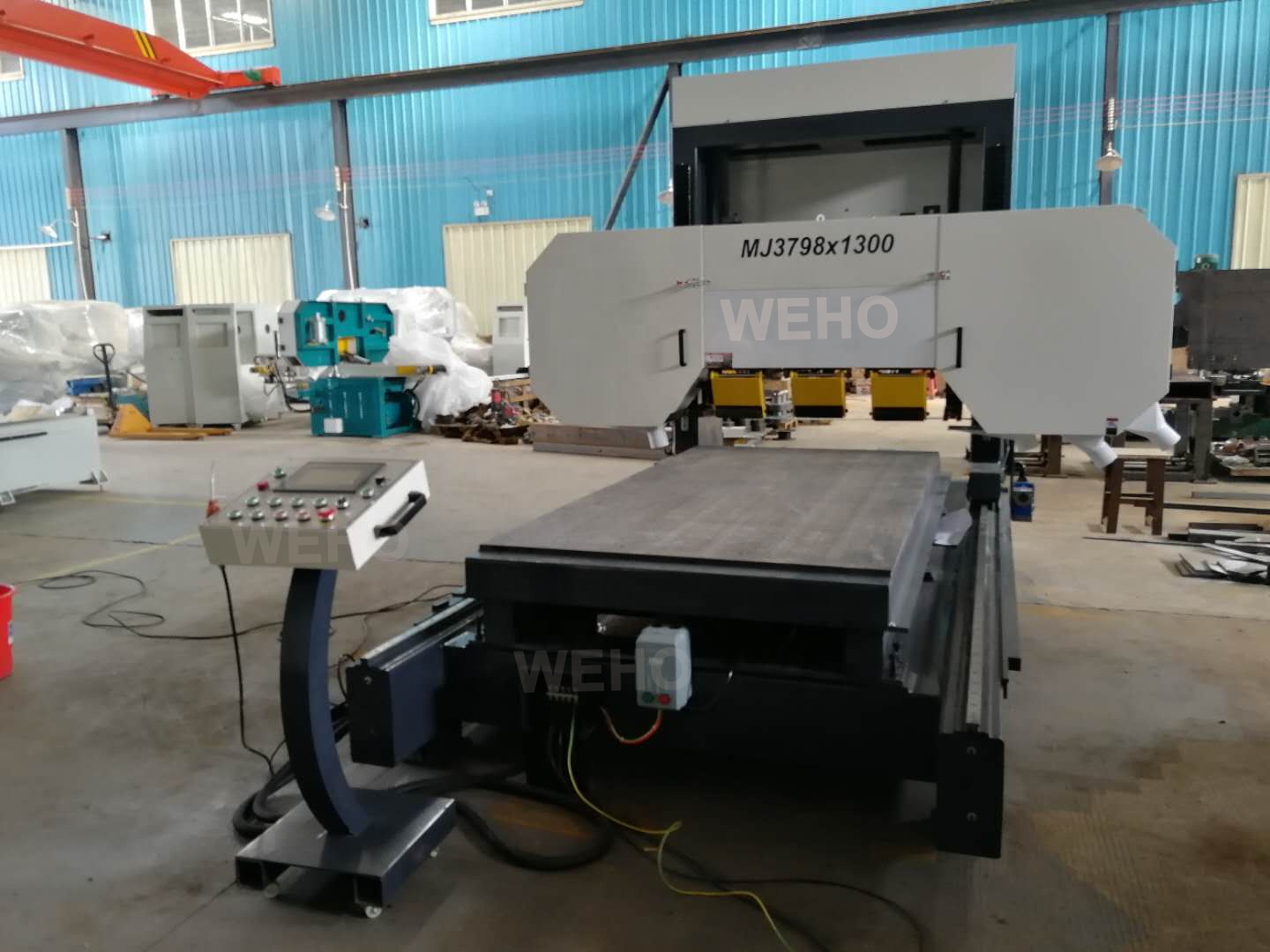

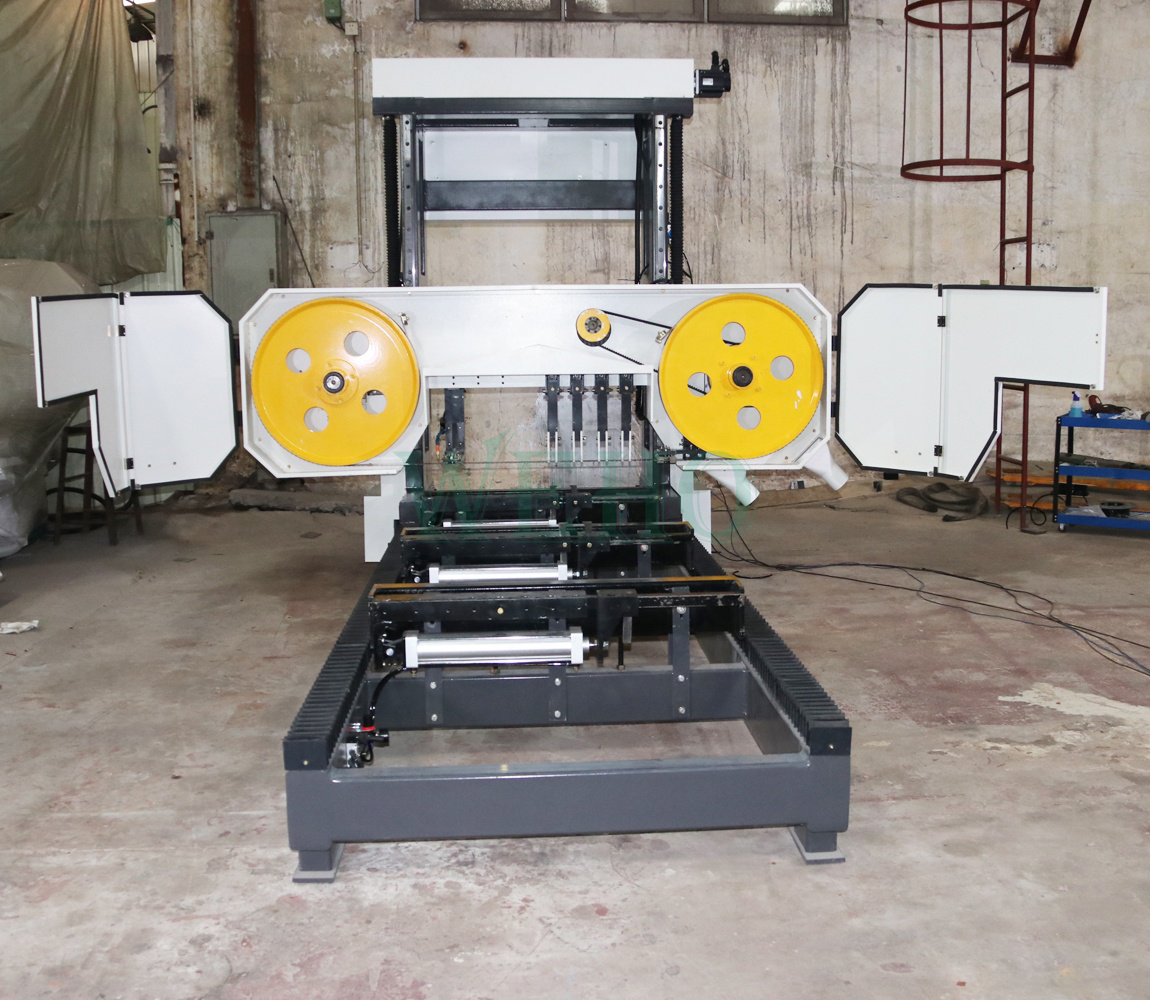

Automatic Log Cutting Horizontal Band Saw Machine for Wood Timber Log Portable Sawmill
Model:MJ3780X900
Working diameter:900mm(or optional)
working length:3000mm(or optional)
Dimension(L*W*H):3000*2000*2900mm
Main Power:20~45kw
Cutter type:band saw
The precision vertical saw suitable forlarge diameter Virgin forestWorking table and lifting parts adoptlinear guide rail,fast and smooth cuttingStraightness is very high.
| Model | MJ900-3000 |
| Length of blade | 3000mm |
| Feed speed | 5-25m/min |
| saw blade motor | 22KW |
| saw wheel diameter | 800mm |
| Total motor power | 380V~50HZ 30KW |
| Packing dimensions | 4700x2800x2300mm |
| Saw Wheel Width | 72mm |
| Saw blade kerf | 1.8-2.0mm |
| Max cutting dia | 900mm |

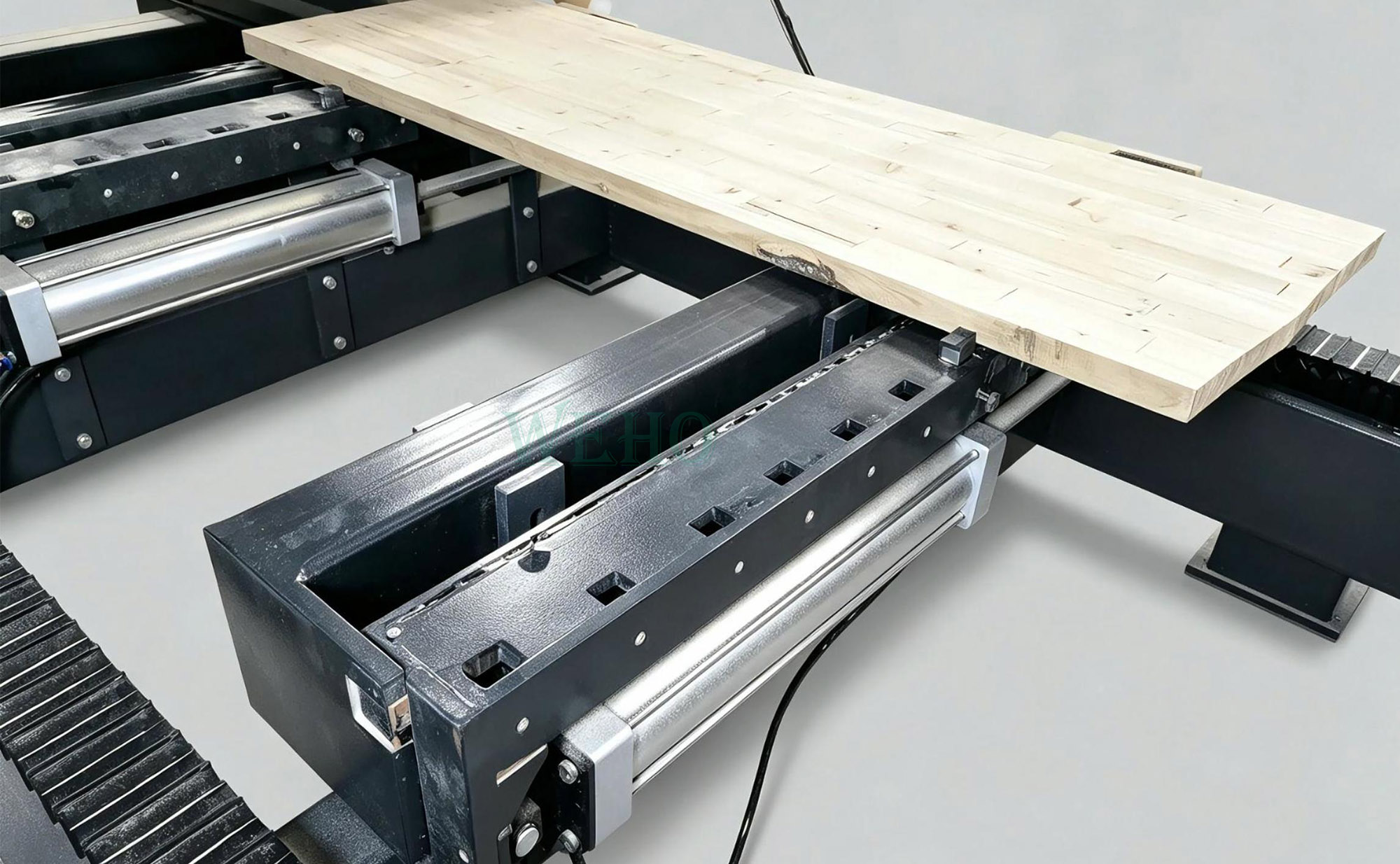

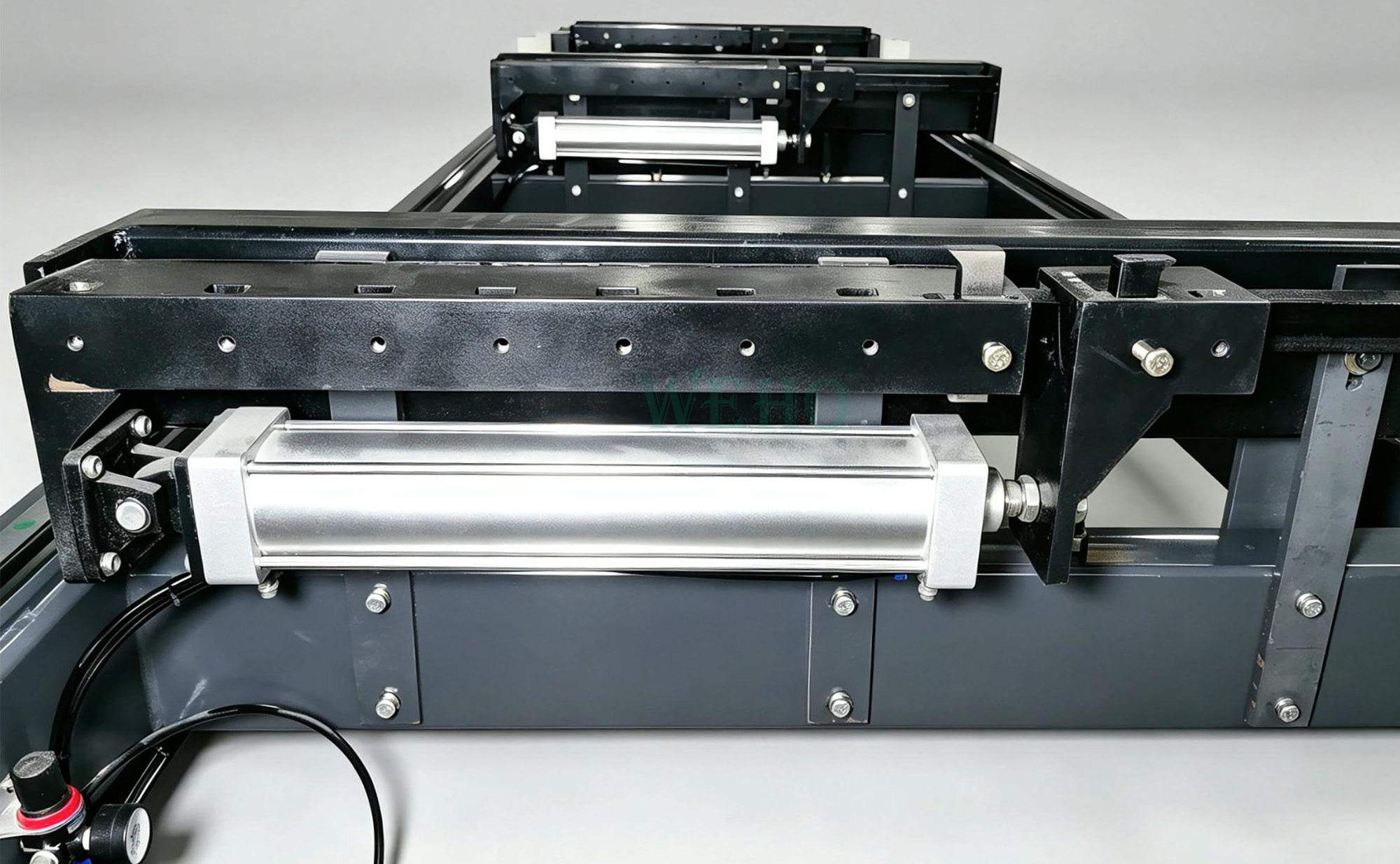

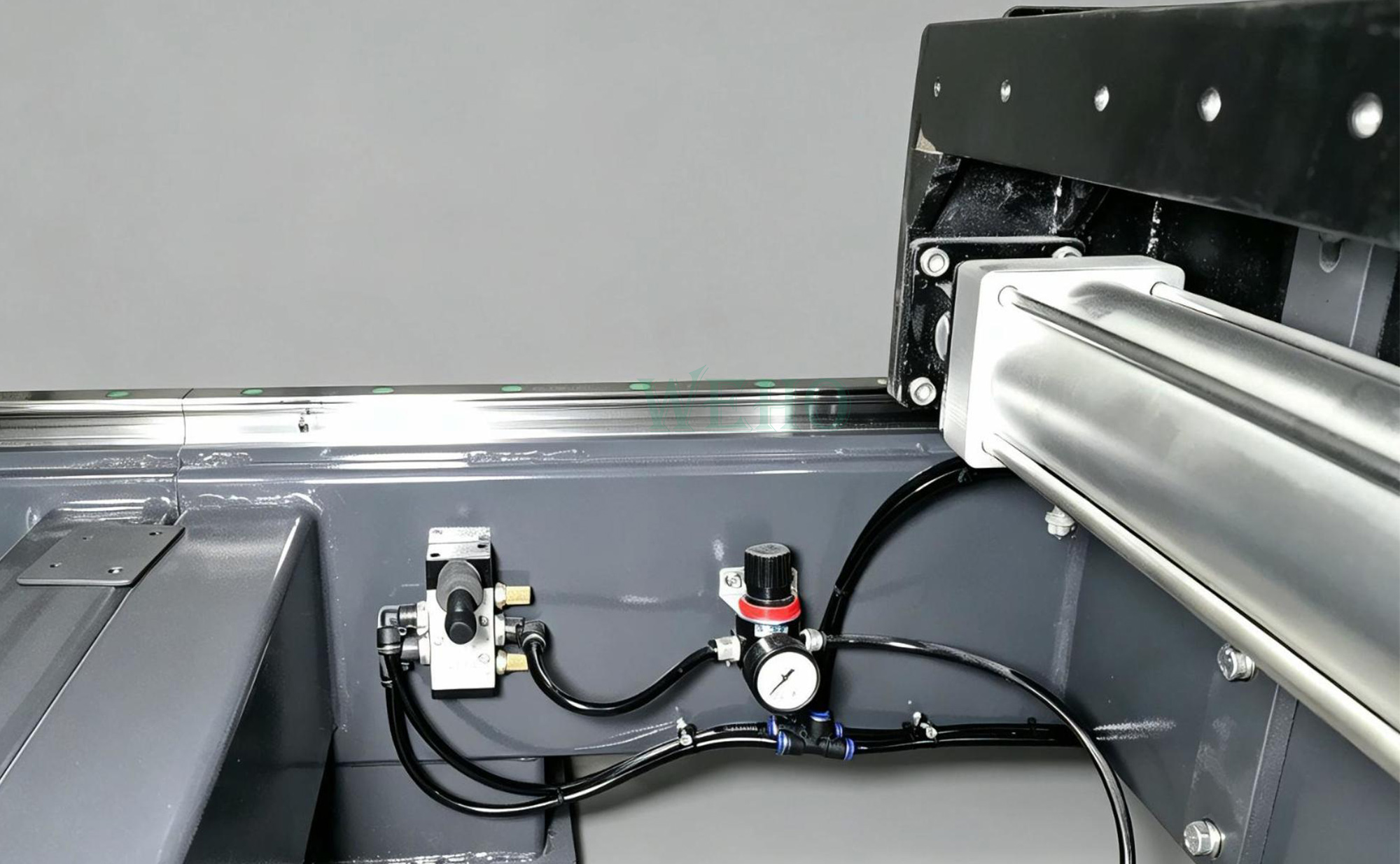

| Clamp type | By air |
| Saw blade moving servo motor | 2.6kw |
| Saw blade lift servo motor | 2.6kw |
| Saw blade tenosion pressure | 190kg/cm2 |

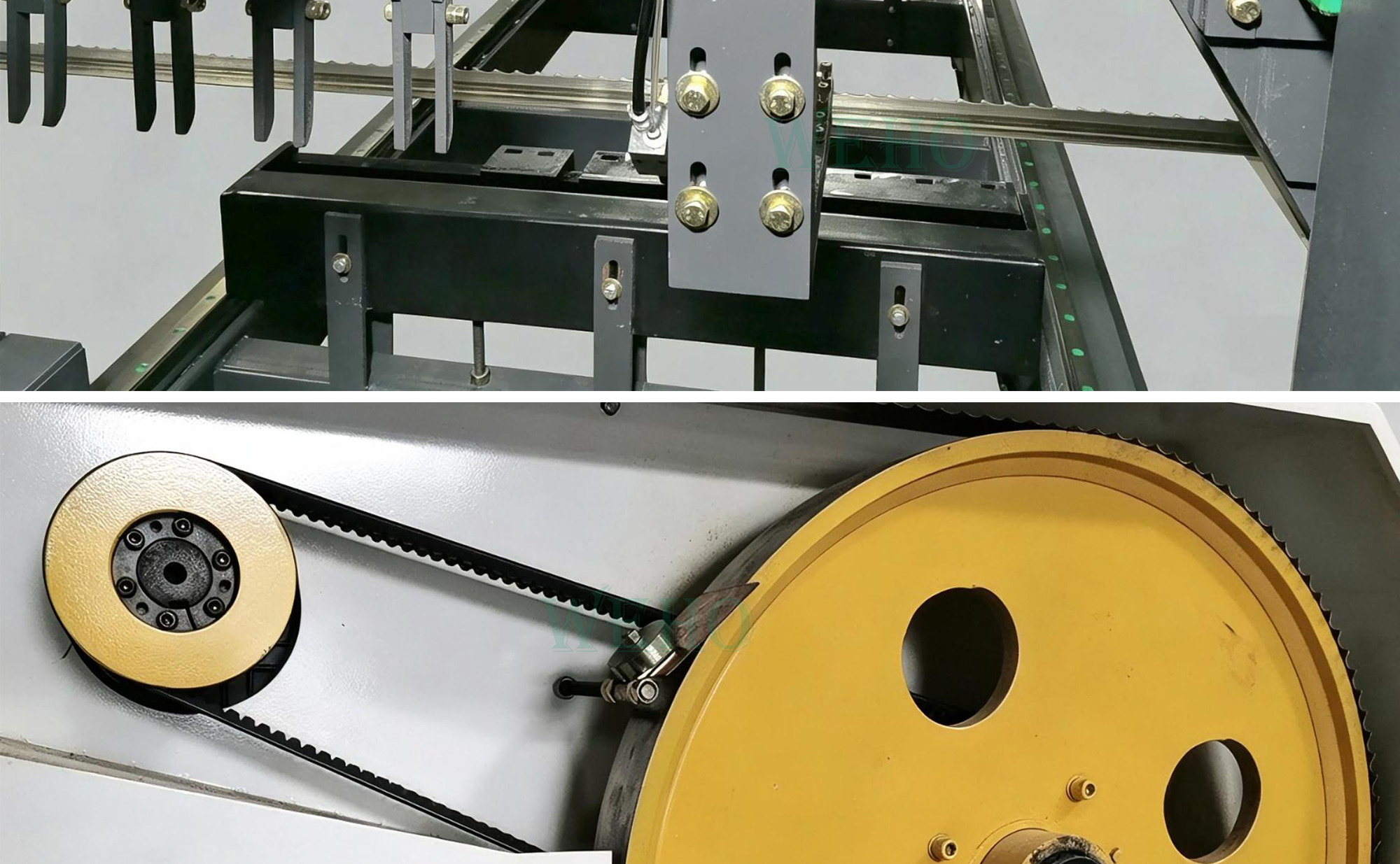

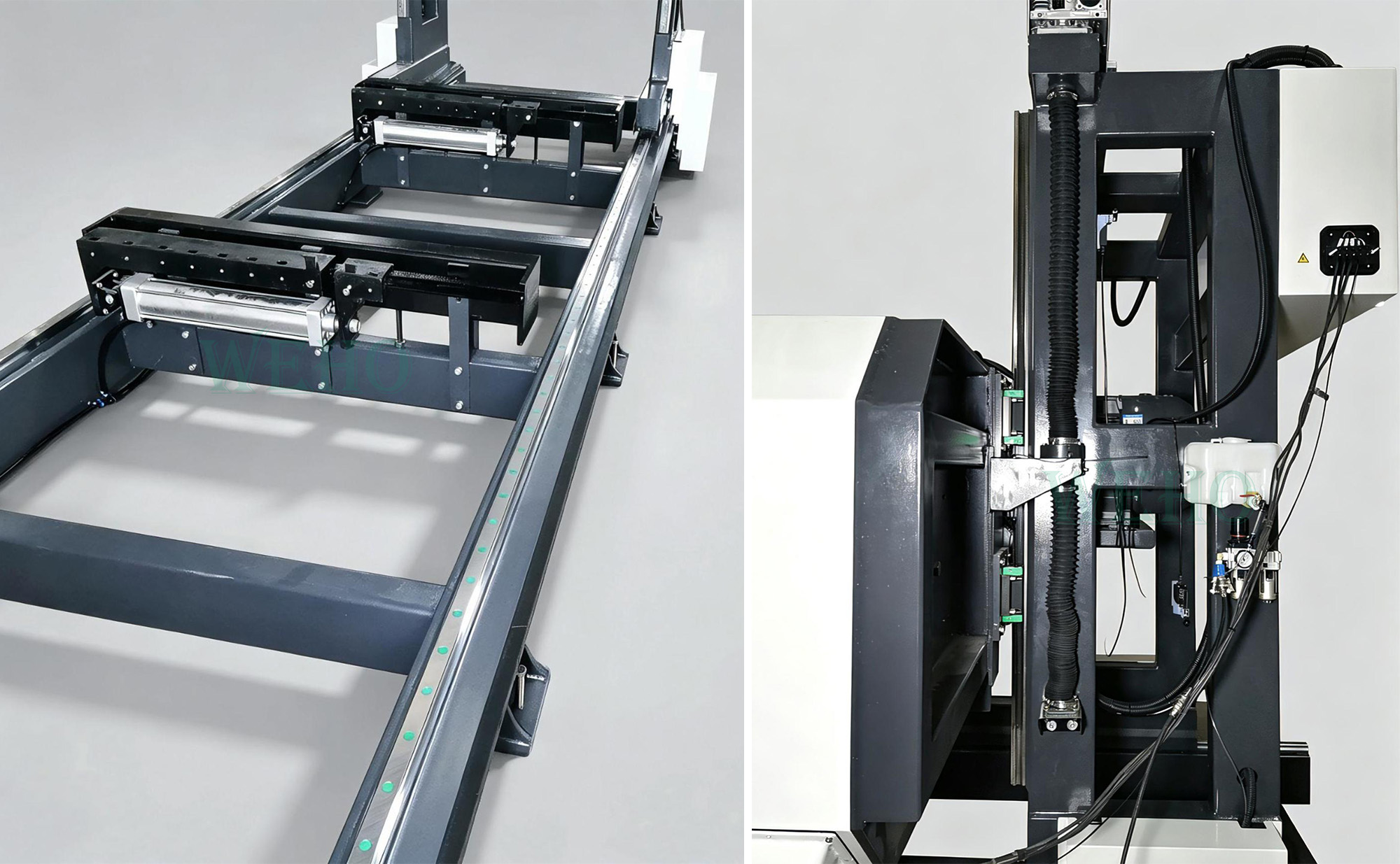

The linear guide system for saw wheel lifting and cutting head moving.

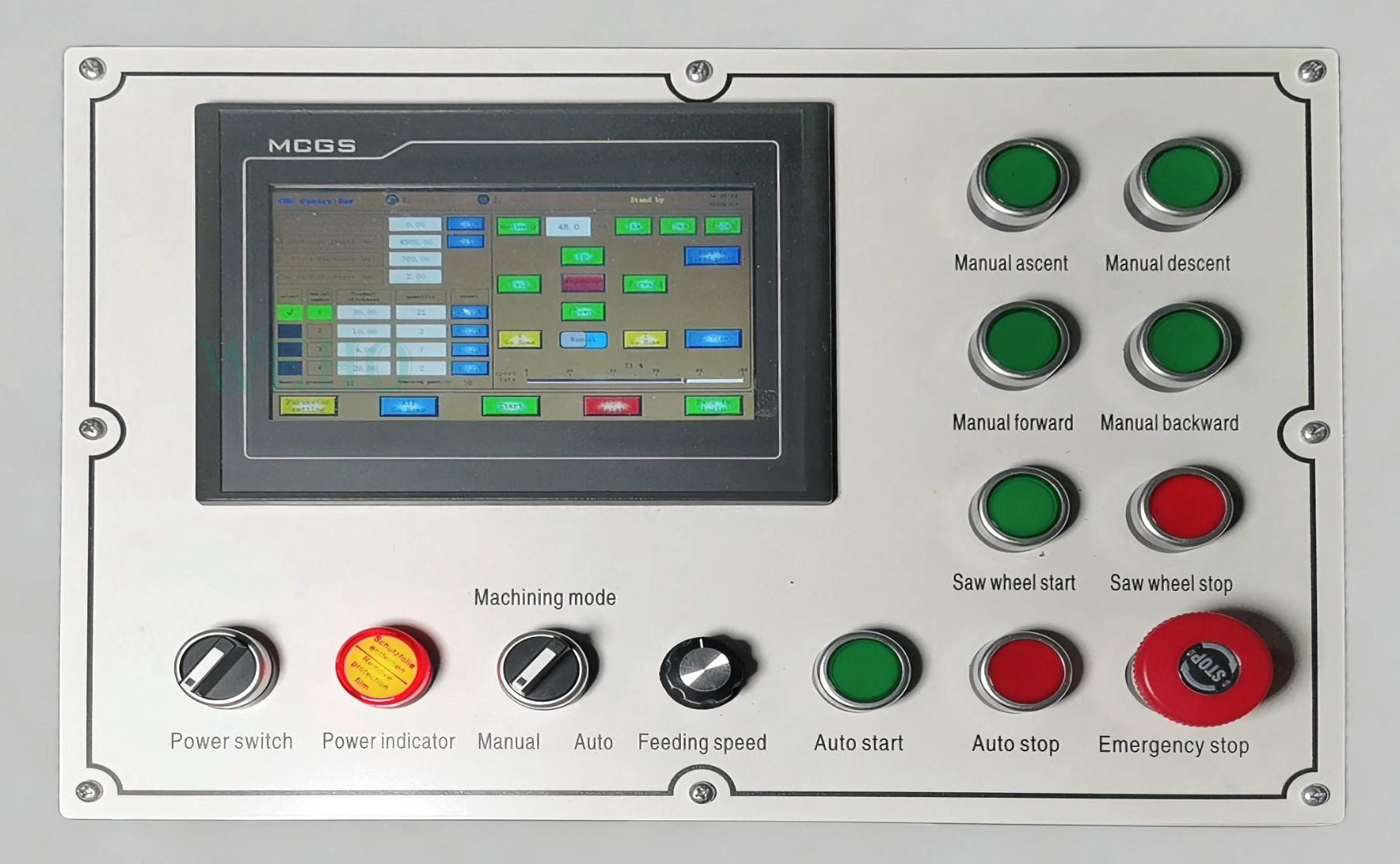

The Log sawmill using the HMI controll, flexible operation, convenient and use friendly.

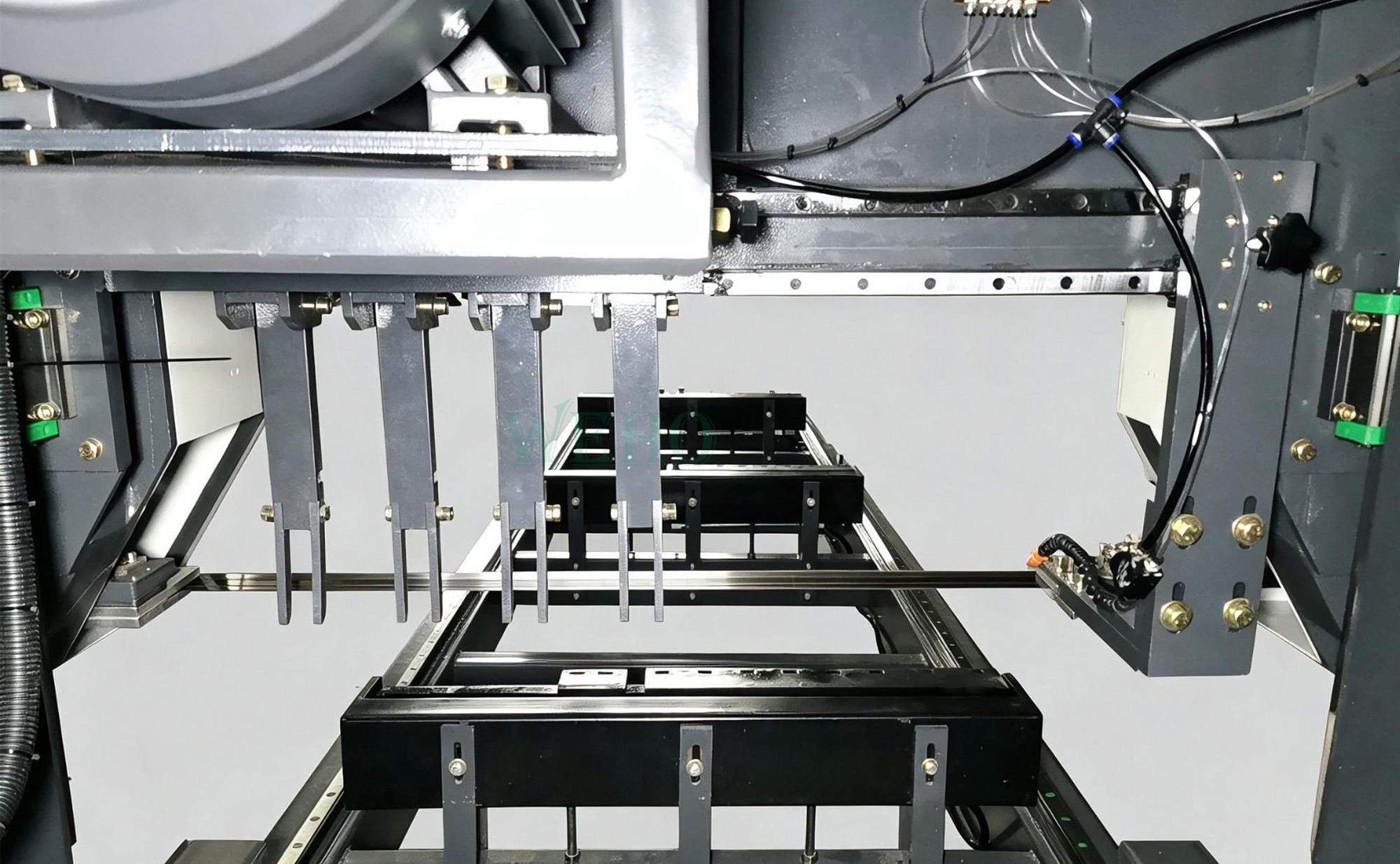

All tracks are all sealed, in order to better dustproof, waterproof,improve the service life of the tracks.
The linear guide system for saw wheel lifting and cutting head moving.
The horizontal band saw machine hasprecision servo motor control,it canquickly and accurately reach the desiredsize.
WEHO is professional for harbor freight log mil1] designing, you will get satisfied solution, just contact us now.
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
Professionally trained personnel inspect all phases of production to maintainWeho's high quality. Incoming and in-process material testing and final machine inspection are only part of our rigorous quality assurance program.
What logs can it cut?
Suitable for hardwood and softwood: oak, pine, poplar, beech and other solid wood logs.
Is this machine automatic? How about operation difficulty?
Fully automatic feeding & cutting, PLC control panel. Comes with English operation manual and operation video. One‑person operation, easy for workers to learn.
Why blade drift when cutting?
Common reasons: dull saw blade, improper blade tension, uneven log feeding. Please
replace/sharpen blade, adjust tension and feeding speed.
What voltage can this machine support?
Standard 380V/50Hz 3‑phase power. We can customize for 220V, 415V, 60Hz for different countries.
What kind of saw blade should I use?
Match special woodworking band saw blade. We can offer saw blade together with machine asspare parts.
What trade terms do you offer?
FOB, CFR, CIF, EXW are all available. We can quote based on your destination port.
Can you customize machine?
Yes, we support custom track length, working size according to your production demand.
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
