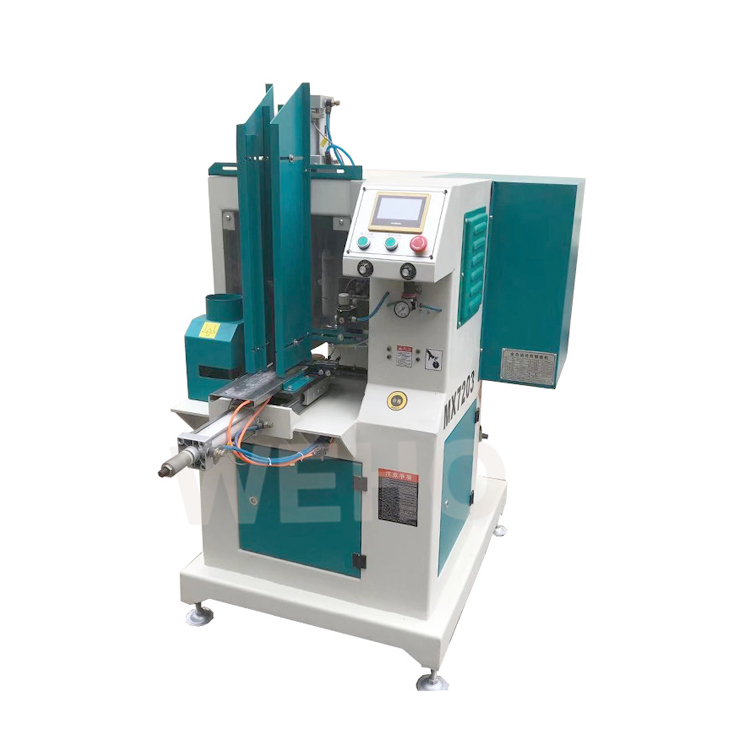

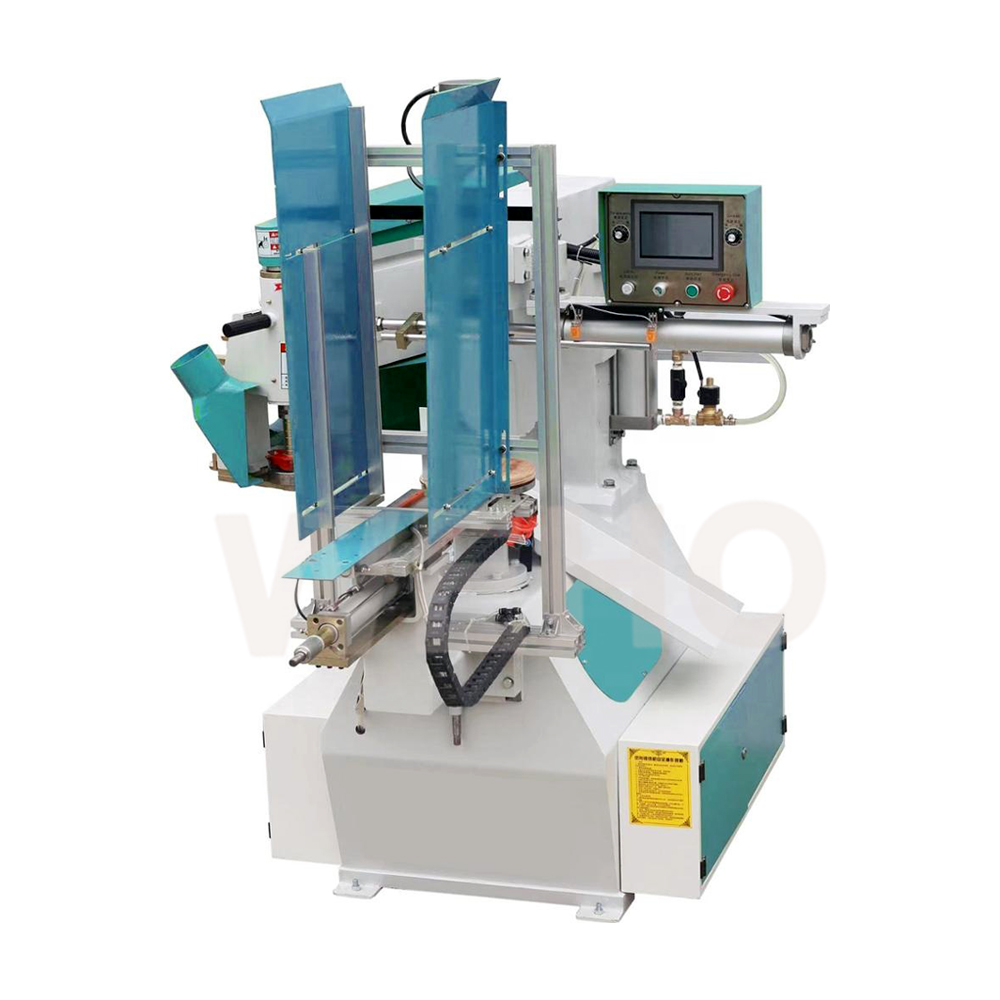

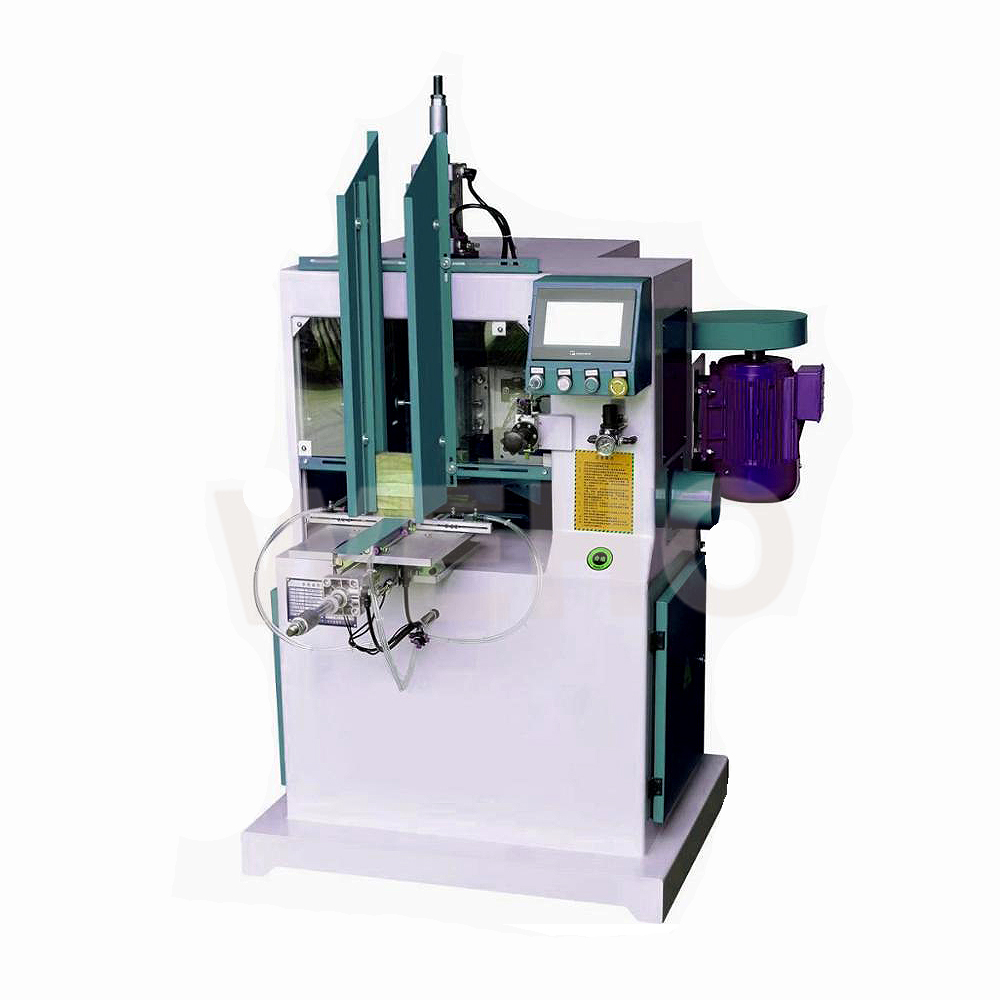

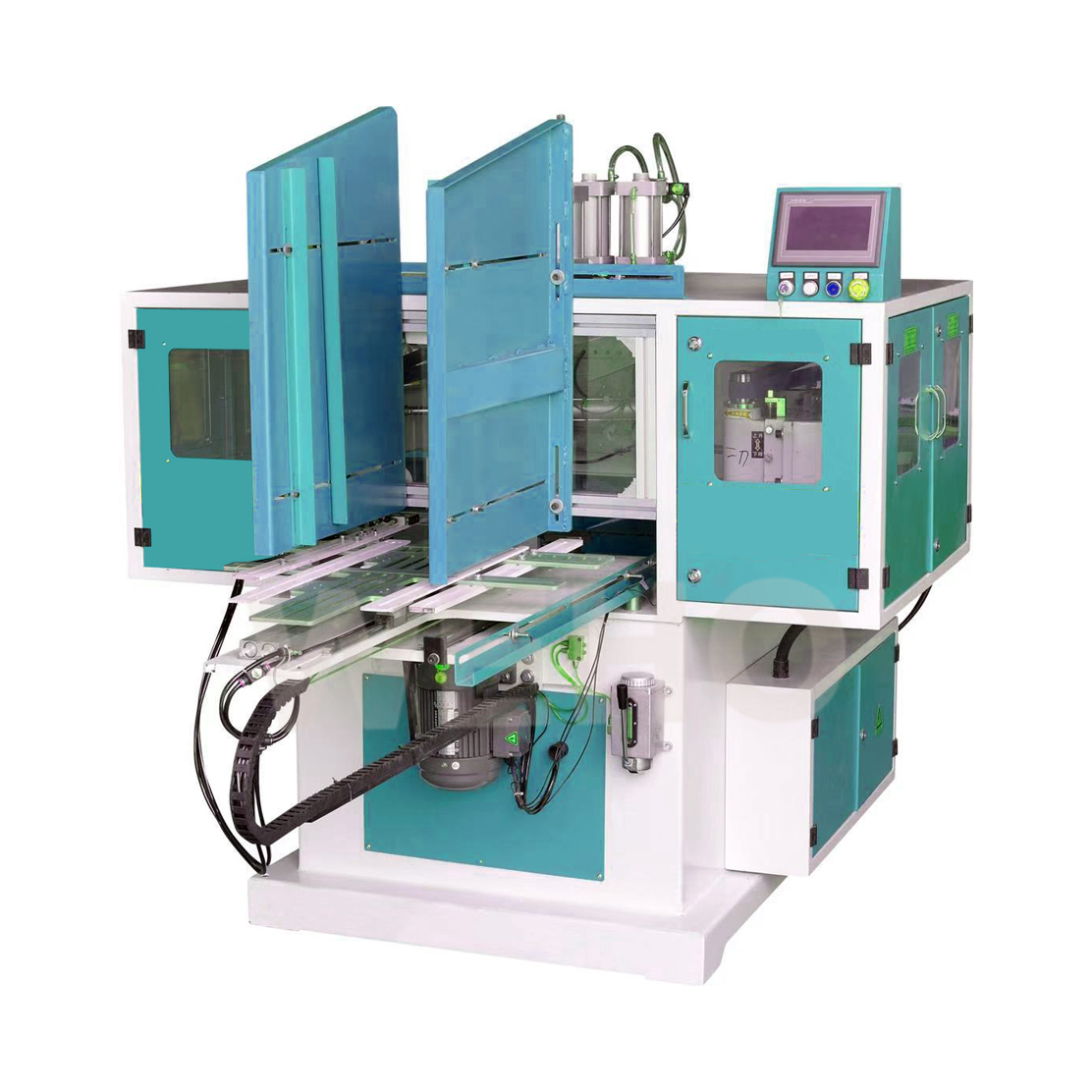

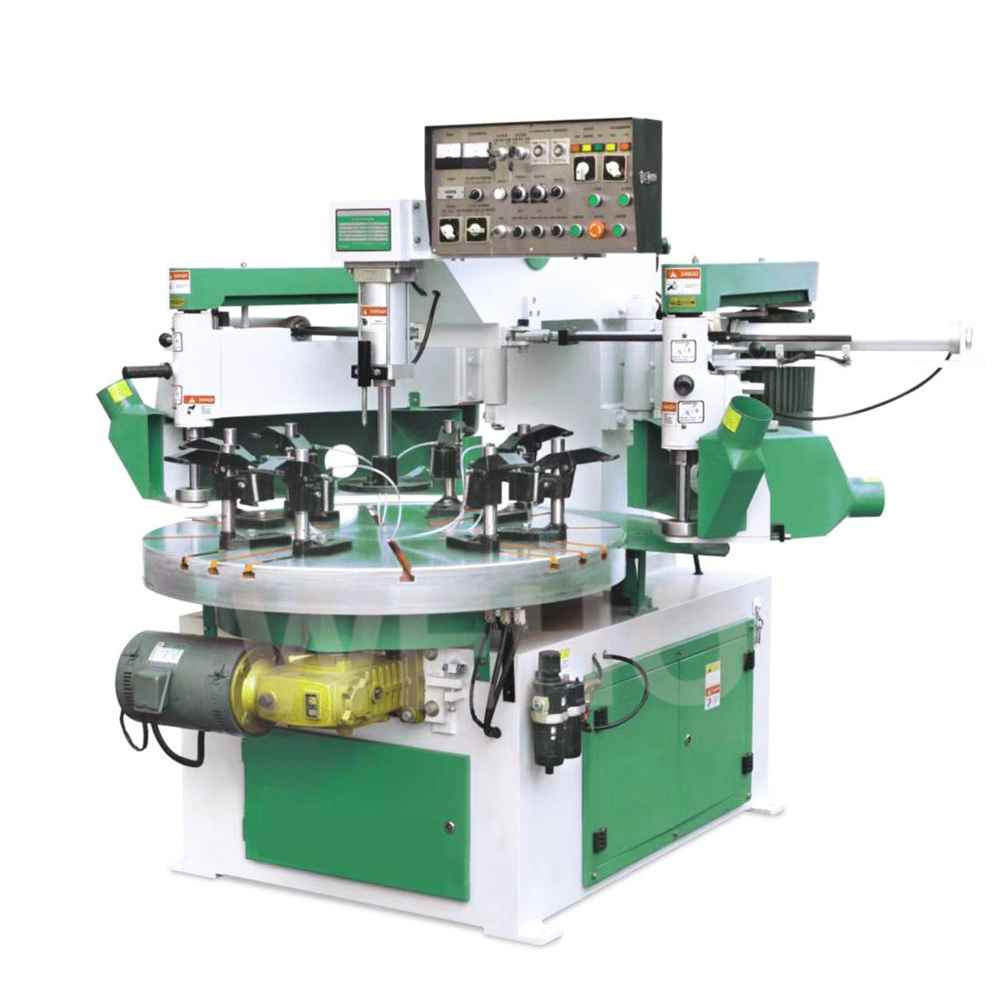

Automatic wood copy lathe maunfacturing machine for wooden spoon/tableware/brush handle/skateboard/chair making | Wooden Spoon Manufacturing Machine
Automatic wood copy lathe maunfacturing machine for wooden spoon/tableware/brush handle/skateboard/chair making | Wooden Spoon Manufacturing Machine

Automatic wood copy lathe maunfacturing machine for wooden spoon/tableware/brush handle/skateboard/chair making | Wooden Spoon Manufacturing Machine


Model:MX7012
Cutting diameter:110-1200mm
Max retangular cutting:2:01
Max cutting thickness:130
Cutter spindle diameter:30mm
Guiding roller diameter:100mm


Details
Spare Parts
Inquiry

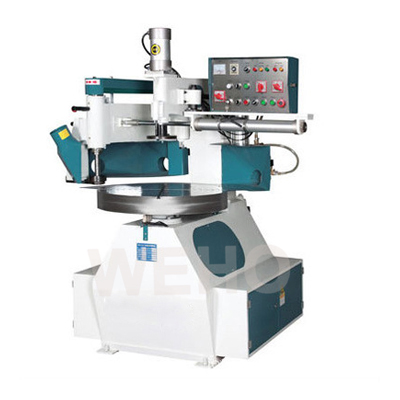

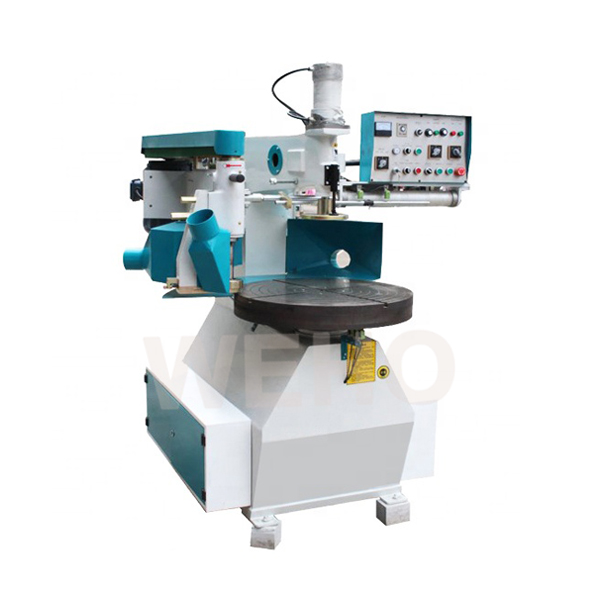

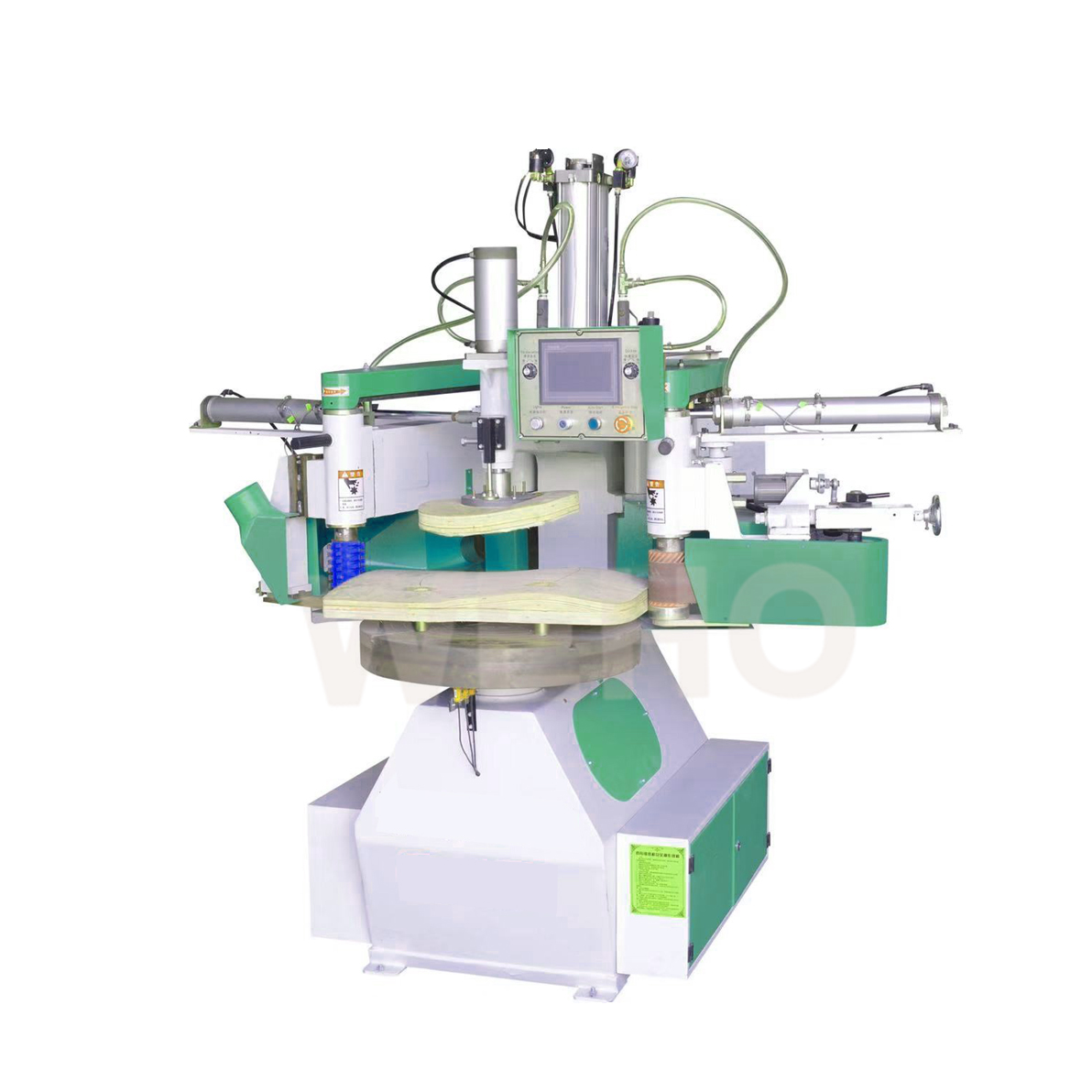

Mainly used for processing round, rectangular, oval and other shapes workpicese copy milling such as chair seat surface,kitch cutting board,coffe table etc
Model
MX7012
Range of cutting diameter
110-1200mm
Max retangular cutting
2:01
Max cutting thickness
130
Working table size
Dia 700mm
Cutter spindle diameter
30mm
Guiding roller diameter
100mm
Cutter spindle speed
9000 rpm
Working table speed
1.5-6 r/min
Main spindle motor power
5.5kW
Working table driving motor power
1.5kW
Working air pressure
0.6-0.8Mpa
Dust outlet diameter
100mm * 4 pcs
Dimensions
1560*1400*2120mm
Weight
930KG

Main body part: spindle shaper bed is assembled into a whole by welding of steel parts and casting.Feeding part: press the workpiece and send it out.Electrical control part: control the action of the whole equipment.

Working part: used for feeding and supporting workpiece processing.The system is equipped with overload, short circuit and pressure protection.

Adpot PLC control,automatic operation and manual operation adjustable.Working table rotation speed can be detected by sensor switch and control workprice`s working position.
Cutter spindle swing arm using hydraulic cylinder feeding,feeding speed steadily,constantly pressure,it can aviod products defects.

Dust collection part: connect the dust collection air pipe to discharge the sawdust.Round Wood Cutting Machine of twin spindle profile moulder installing by main body part, cutter shaft part, working table part, feeding part, dust collection part, electrical control part and pneumatic part

Cutter shaft part: it is the cutting part of the equipment function. cutter shafts swing, and the two sides of the workpiece are processed by profiling and milling.

Pneumatic part: provide air source for the equipment, display and adjust the air pressure to realize the action of each cylinder.
Scope of Application

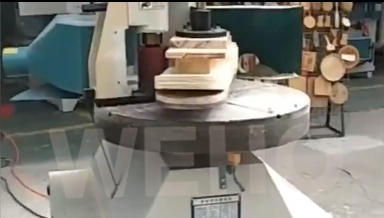

This wood shaper machine model mainly used for processing round, rectangular, oval and other shapes workpicese copy milling such as chair seat surface,kitch cutting board,coffe table etc.


WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can designand manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
