Automatic wood drilling boring machine woodworking for panel furniture holes
Model:MZ1A
Max. diameter of holes:13mm or 35mm
Max drilling diameter:35mm
Depth of drilled holes:0-60mm
Dimension(L*W*H):2600*1100*1600mm
Weight (KG):2000 KG
Power (kW):6kw
Max. diameter of holes:13mm or 35mm
Max drilling diameter:35mm
Depth of drilled holes:0-60mm
Dimension(L*W*H):2600*1100*1600mm
Weight (KG):2000 KG
Power (kW):6kw
Details
Spare Parts
Inquiry

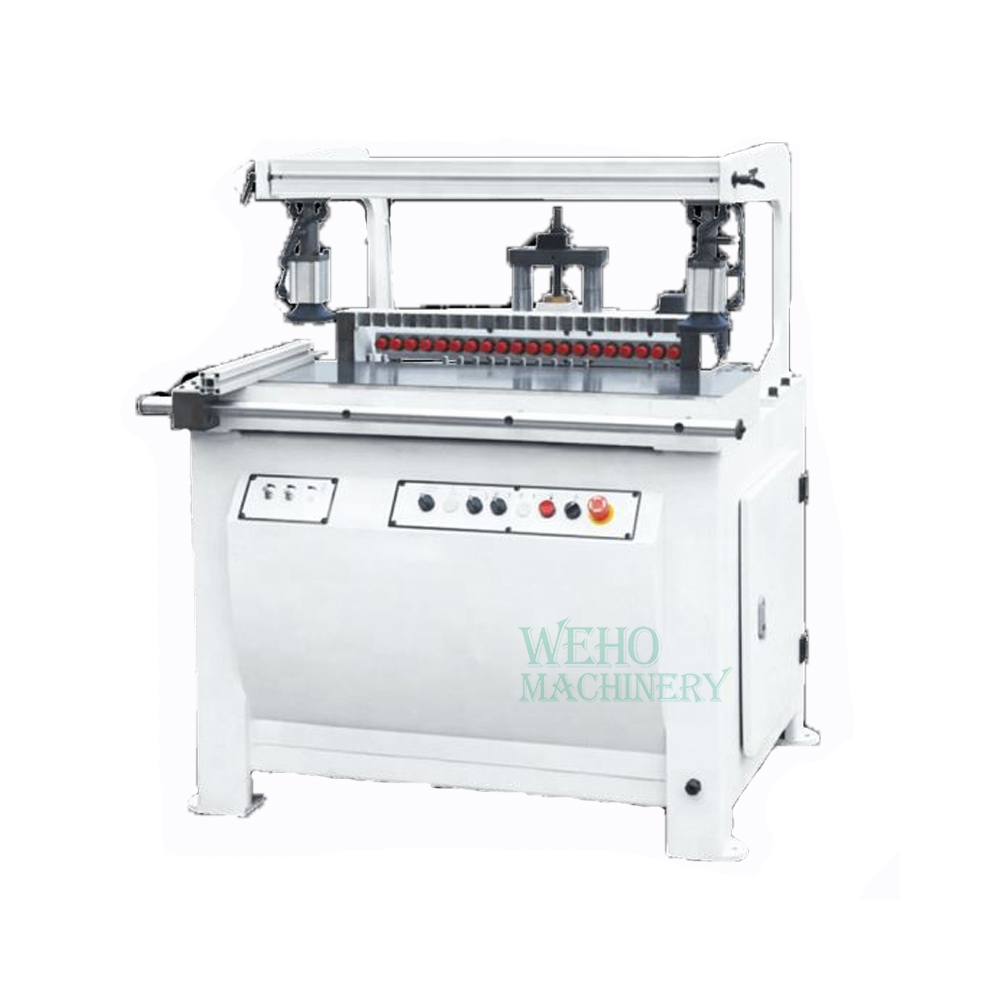

Automatic wood drilling boring machine woodworking
This machine is suitable for efficient production of dense, standardized, large batch and multi rows porous parts with high technological requirements.
1.The imported original drill row, famous and superior original electric appliance.
2.dowel boring machine elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation.
3. The kinetic components choose the high-grade anti-wear materials with fine durability.
4. Size positioning, prompt; accurate and convenient operation
5.dowel boring machine for carpenter is used for drilling wood, flakeboard, medium density fiberboard and so on.
Model | MZ1A |
Max. diameter of holes | 35mm(single bit) |
13mm(multi bits) | |
Depth of drilled holes | 0-60mm |
The total number of spindles | 21 |
Center distance between spindles | 10mm |
Rotation speed of spindle | 2800r/min |
Pressure of compressed air | 0.5-0.6Mpa |
Overall size | 1200*900*1350mm |
Weight of the whole machine | 260kg |
Suitable voltage | 380V |
Total motor power | 1.5kw |
Dowel boring machine for woodworking panel furniture holes Advantage:Save time, save human labor , high efficiency , the tolerance of the hole is very small . Boring machine for panel furniture Mainly for wood products, panel furniture, customized furniture, cupboard and wardrobe furniture.
It can drill holes in the vertical and horizontal direction.It is convenient and flexible to operate. One machine is multi-purpose, with high efficiency and wide range of workpiece dimensions.It is indispensable equipment for furniture processing factory, cabinet processing factory and other wood companies.

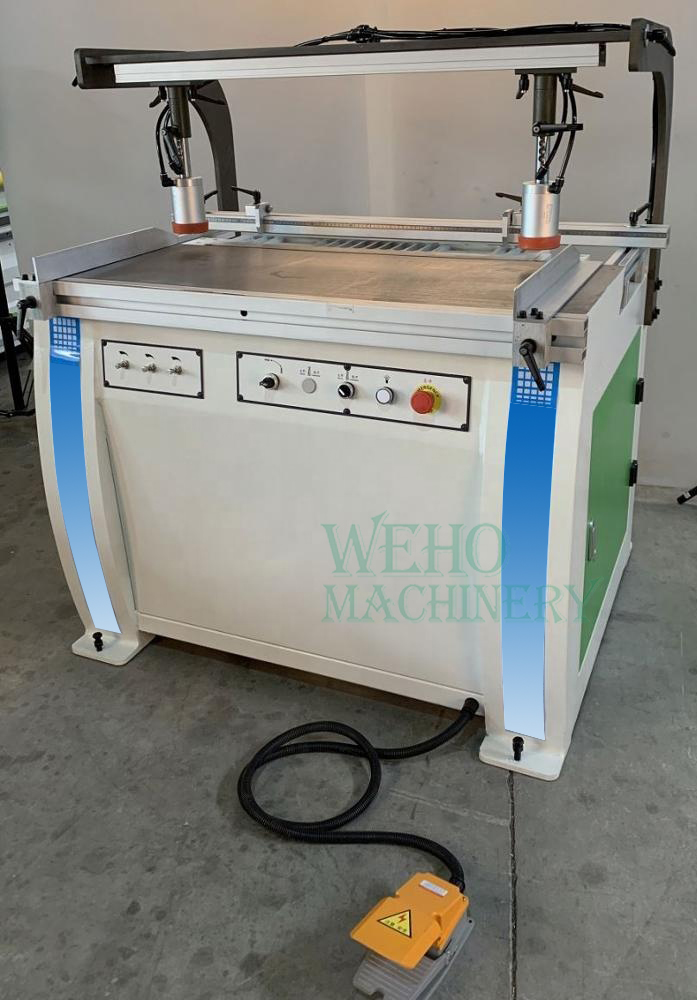

Working table with cast iron structure, enhancing the stability of the machine.A new locking device and backup device, increased processing size for boring machine.
The control panel simple and easy to operate.The traditional drill rows can only be turned in vertical and horizontal. A new designed turning seat,realize arbitrary turning of 0-90 degrees. It is especially suitable for the drilling needs of some special woodwork pieces, and more practical for the drilling of the triplets with special hole positions.
It is a porous processing machine with drill row turning angle of 0-90.According to the size of hole diameter, and hardness of plate, the air flow can be adjusted to select the appropriate drilling feed speed, and the drilling depth can be adjusted. WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
