CNC computer wood beam saw crosscut cutting machine | Beam Saw Cutting Machine
CNC computer wood beam saw crosscut cutting machine | Beam Saw Cutting Machine

CNC computer wood beam saw crosscut cutting machine | Beam Saw Cutting Machine


Model:HP330G
Main saw blade:405 mm
Max cutting length:3250 mm
Workpiece thickness:100 mm
Work platform height:1020mm
Power:2KW
Weight:5600 KG


Details
Spare Parts
Inquiry

1. Computer cnc panel Beam Saw cutter machine works for large amount of precise cutting.

2. Automatic blade reciprocating incising saw can be used for cutting several pieces of wood panel at presupposed width and thickness automaticly and continuously.

3. work stability to avoid after-sale maintain problem.

4.Having the rigid heavy duty machine frame.

5.High speed saw carriage runs up to 120m/min or 150m/min.

6.CNC panel pusher driven up to 100m/min with AC servo motor.

7.Saw blade can be controled to reveal 0-125mm programably.

Product Name

computer cnc panel Beam Saw cutter machine

Model

HP330G

Cutting length

3250mm

Cutting thickness

0-100mm(120mm)

Main saw blade diameter

405mm(455mm)

Main saw spindle diameter

60mm

Main saw spindle speed

3910rpm

Blade diameter

180mm

Auxiliary saw shaft diameter

45mm

Side saw spindle speed

5100rpm

Sawing seat speed

5-100m/min

Sawing seat back speed

120m/min

Main saw blade motor

20HP(25optional)

Blade motor

3HP

Sawing seat drive motor

1kw

High pressure blower motor

3HP

Automatic feeding system

2kw(AC sero motor)

Work holder feeding speed

5-80m/min

The use of air pressure

7kg/cm²

Work platform height

1020mm

Gross weight

7600KG


Name: pneumatic feeding clamp
High-performance pneumatic feeding clamp

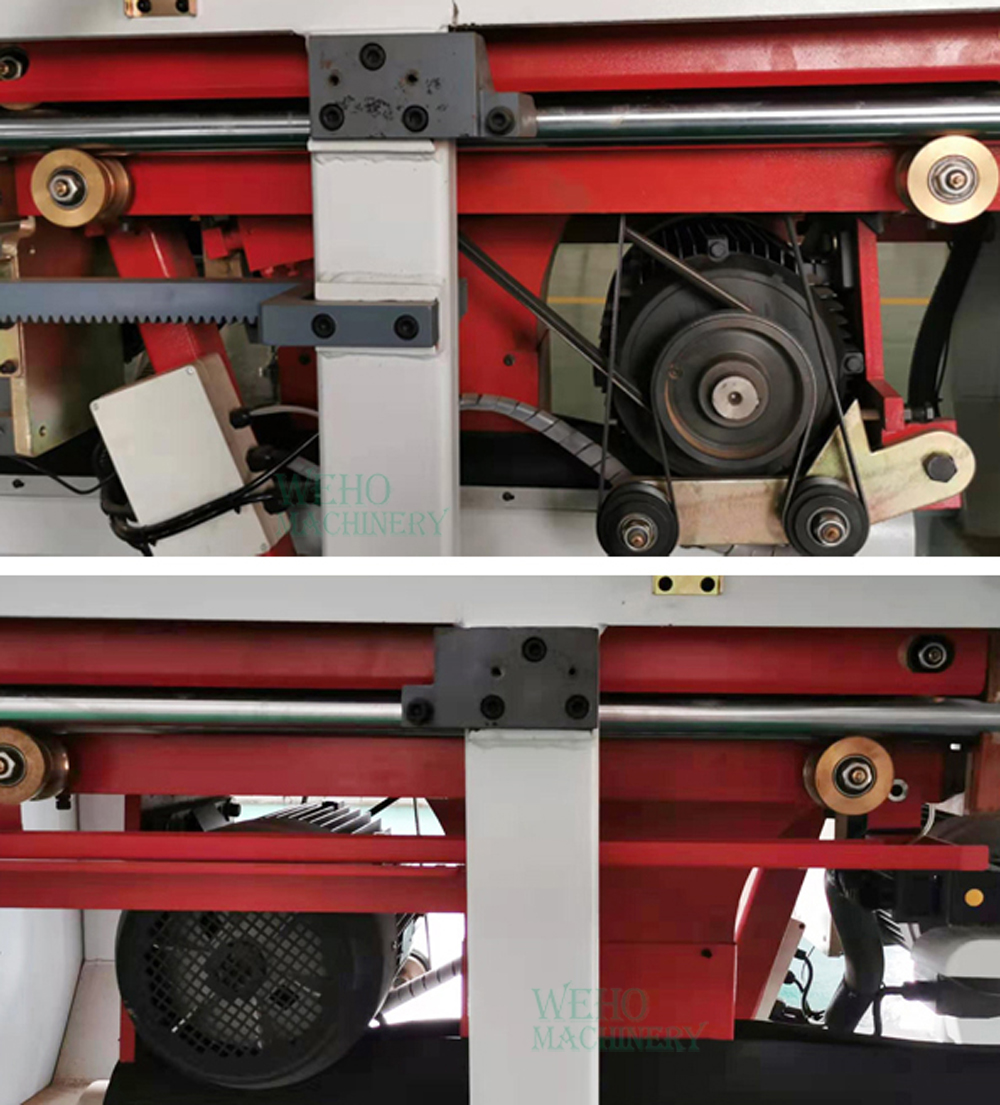

Name: Aluminum alloy heavy sawing carrage
Aluminum alloy heavy sawing carrage,saw car High-performance pneumatic feeding clamp intelligent lifting,stroke stability

Name: Main saw blade changing device
Pneumatic rapidly changing of main saw blade

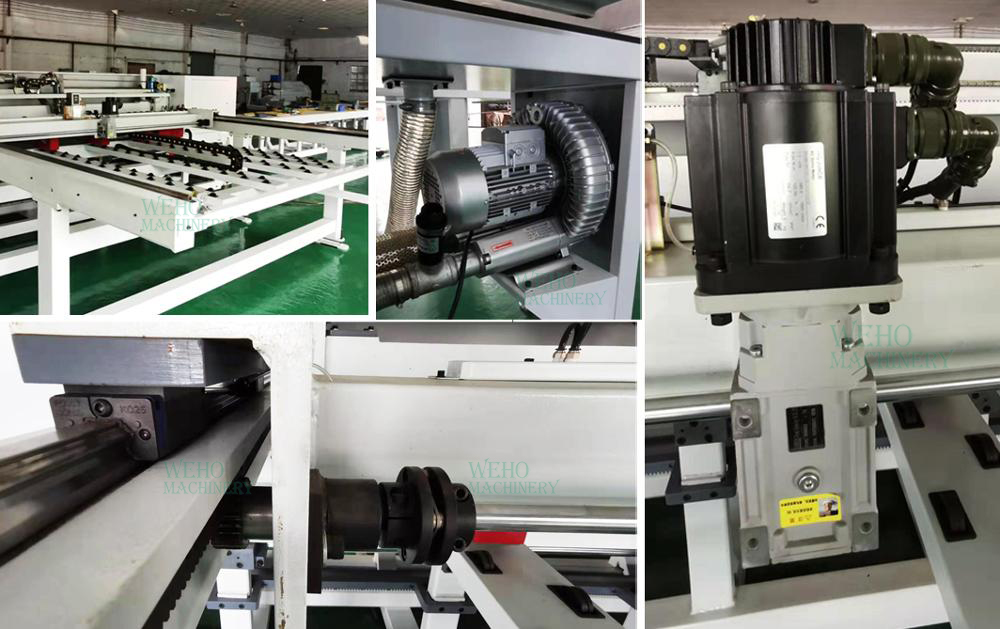

Optimising beam saw machine.Precision rack feed drive.
Computer Controlled Optimising beam saw machine.Rear loading platform.



Name: Main saw blade changing device
Pneumatic rapidly changing of main saw blade

Main Features
1) Super Heavy Backload Electronic Saw
2)Maximum sawing thickness up to 120mm
3)Heavy Duty Backload beam Saw
4)Hydraulic lift table
5)Maximum sawing thickness to 120mm
6)Pneumatic Quickly install Main saw blade device
7)Intelligent control lift height of saw blade according to cutting thickness.
8)Intelligent control lift height of pressing beam according to cutting thickness.
9)Control of lifting height according to the thickness of saw cutting board
10)Imported high strength aluminum saw carriage.
11)Saw carriage drive by servo moto.

Name: Aluminum alloy heavy sawing carrage
Aluminum alloy heavy sawing carrage,saw car High-performance pneumatic feeding clamp intelligent lifting,stroke stability.



[]
