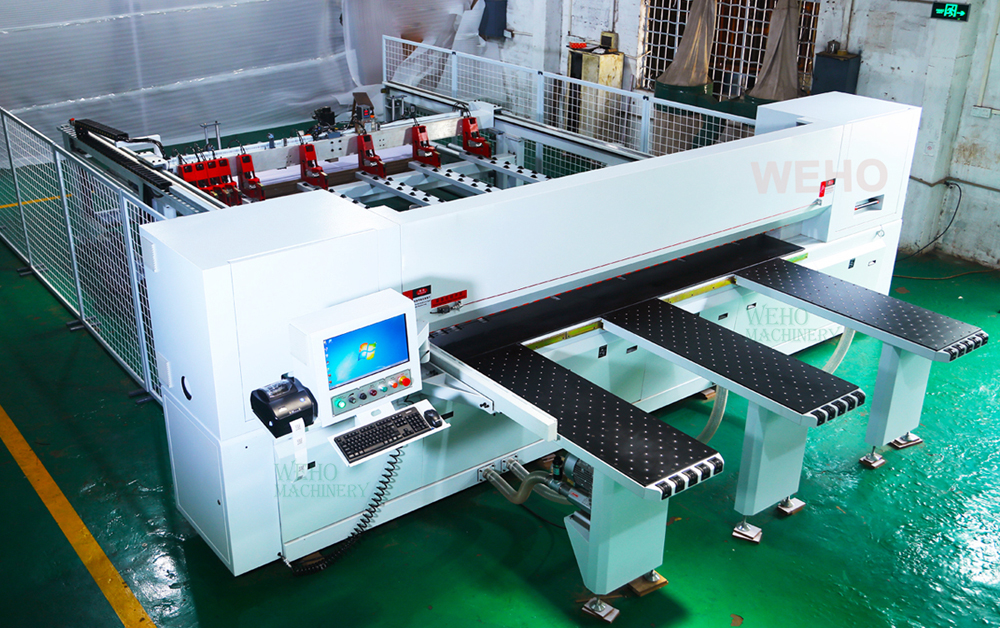

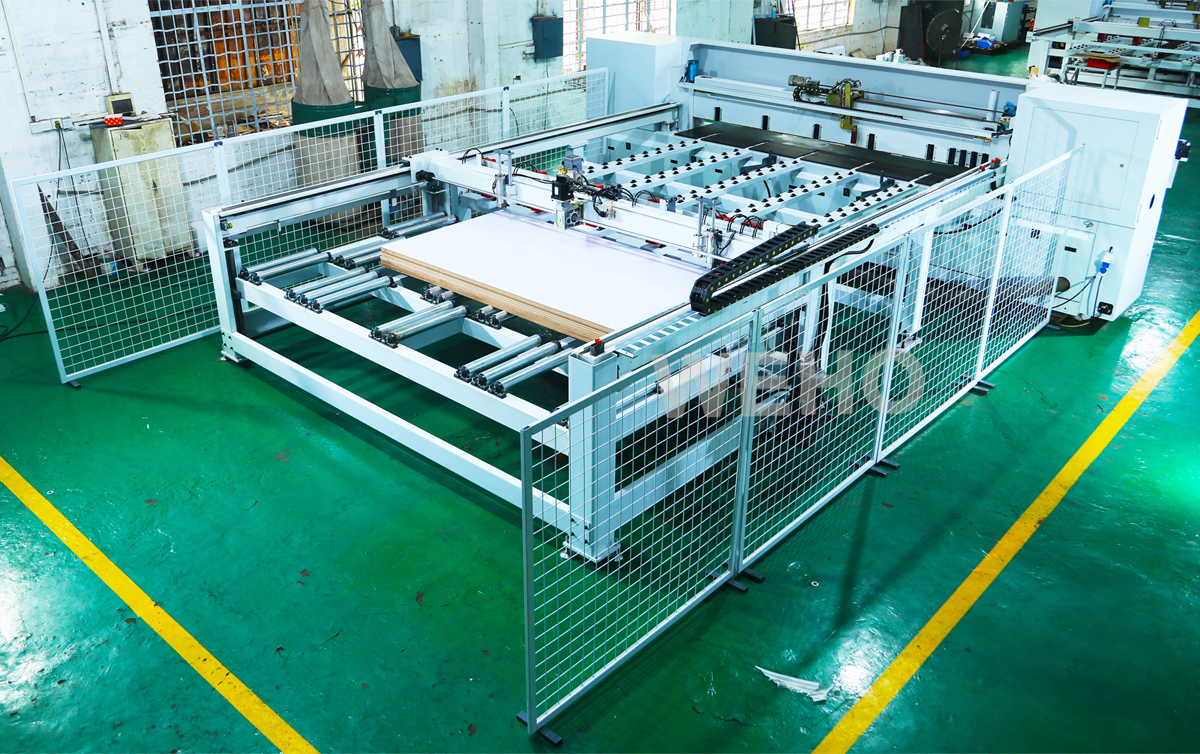

CNC hight speed horizontal sliding carriage cut beam panel saw machine for woodworking furniture
CNC hight speed horizontal sliding carriage cut beam panel saw machine for woodworking furniture

CNC hight speed horizontal sliding carriage cut beam panel saw machine for woodworking furniture


Model:MH300L
Max.Working Width(mm):
3280 mm
Workpiece thickness:100 mm
Main saw blade:15kw/20HP
Max cutting length:3300 mm
Main saw power:18kw
Weight (KG):8100 KG


Details
Spare Parts
Inquiry


Standard Pressure NUMERICAL CONTROL WOOD BEAM SAW, Main motor 18KW, maximum height of saw blae 100mm, clamper speed is 120 meter/min, double sides wheels, with optimized software and printer.
Model
MH300L
Max.cutting length
3280mm
Max.cutting width
3280mm
Max.height of blade
100(120)mm Intellingent lifting
Main saw blade
355x4.4x75x72Tx140 Optional 400x4.4x75x72Tx140
Scoring saw blade
160x4.4/5.4x45x24T
Forward speed of saw carriage
5-100m/min
Backward speed of saw carriage
0-100m/min
Forward speed of PRF program fence
0-100m/min
Backward speed of PRF program fence
0-100m/min
Side pressure device
Pnenmatic double side pressing wheels
Motor power of main saw shaft
18.5kw
Motor power of scoring saw shaft
2.2kw
Working table's height
920mm
Number of PRF program fence
10pcs
Air floating table
3pcs
High pressure blower of air floating table
2.2kw
Air compression
6bar
Air capacity
150L/min
Min.speed of dust collection
26m/sec
Negative pressure(at least)
1200pa
Input air capacity for dust collection
4400m3/h
Diameter of dust collecting holes
200 x 2pcs/ 100 x 2pcs
Dimension of rear feeding platform
2500x1300x600mm
Packing size
5400x1420x2200mm/4600x920x1000mm//2600x1350x800mm
Floor area
7100x5400x1890mm

Computer Beam saw cutter is updated products in the panel saw industry, with high cutting accuracy and stable cutting. With furniture development, rapid development of the industry, manufacturers spent huge human and financial resources on cutting plates.

The disadvantages of using the sliding table panel saw in the cutting of plates becomes more and more obvious: insufficient precision, edge collapse, fault, work injury and other phenomena often occur, which brings obvious constraints to development of enterprises.
1.Environmental protection: dustproof curtain can make the work environment more clean, more accurate sawing.
2.The cutting board workshop dust, reduce the harm to human and environment cleaner production, low noise.
3.Operation is simple, easy to understand: do not need to use skilled workers, a teacher will be, you can save the cost of the material master please.
4. Man-machine integration operation, directly on the touch screen to enter the size of a variety of sizes and then automatically starting.


WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We design and manufacture PRESSURE NUMERICAL CONTROL WOOD BEAM SAW in China,Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
