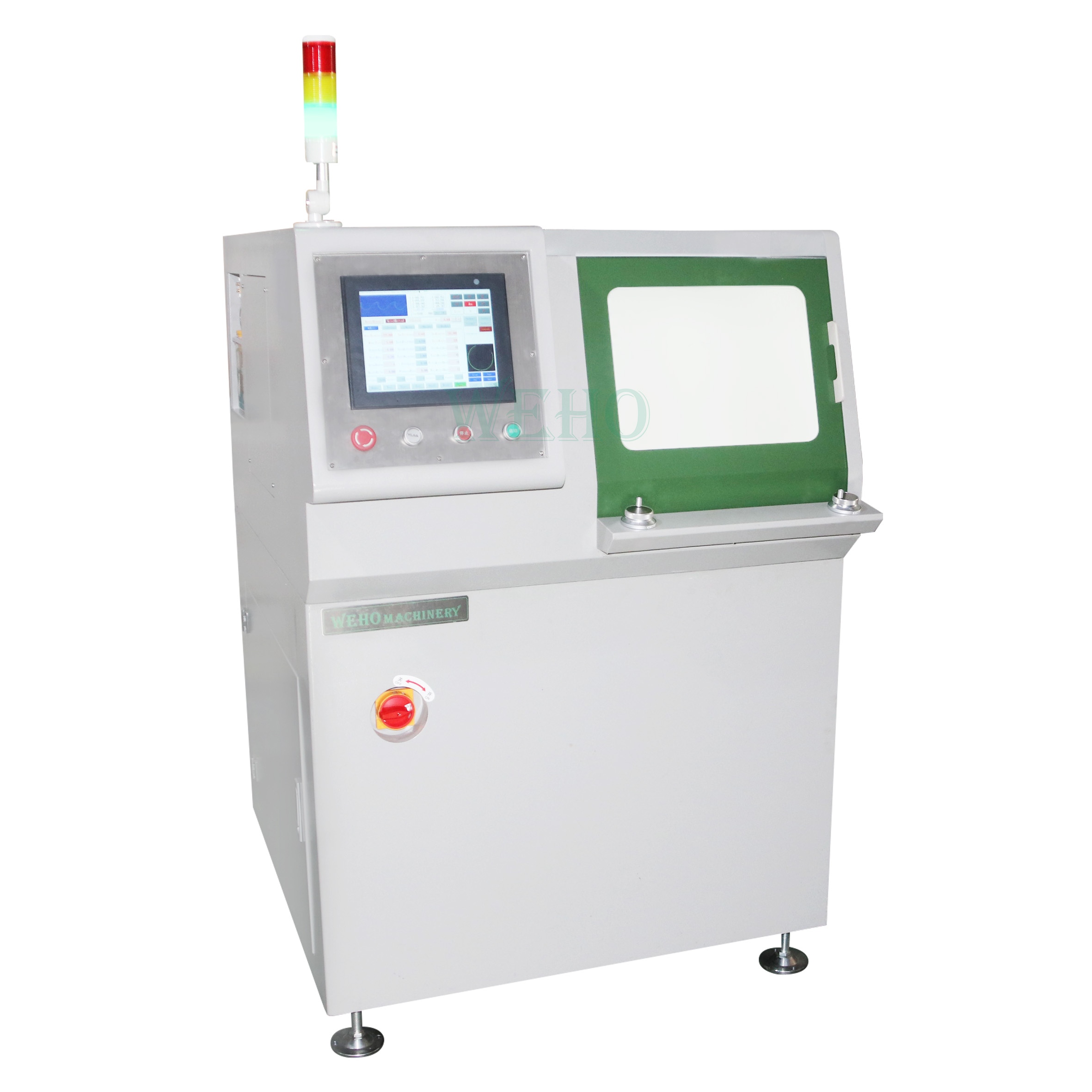

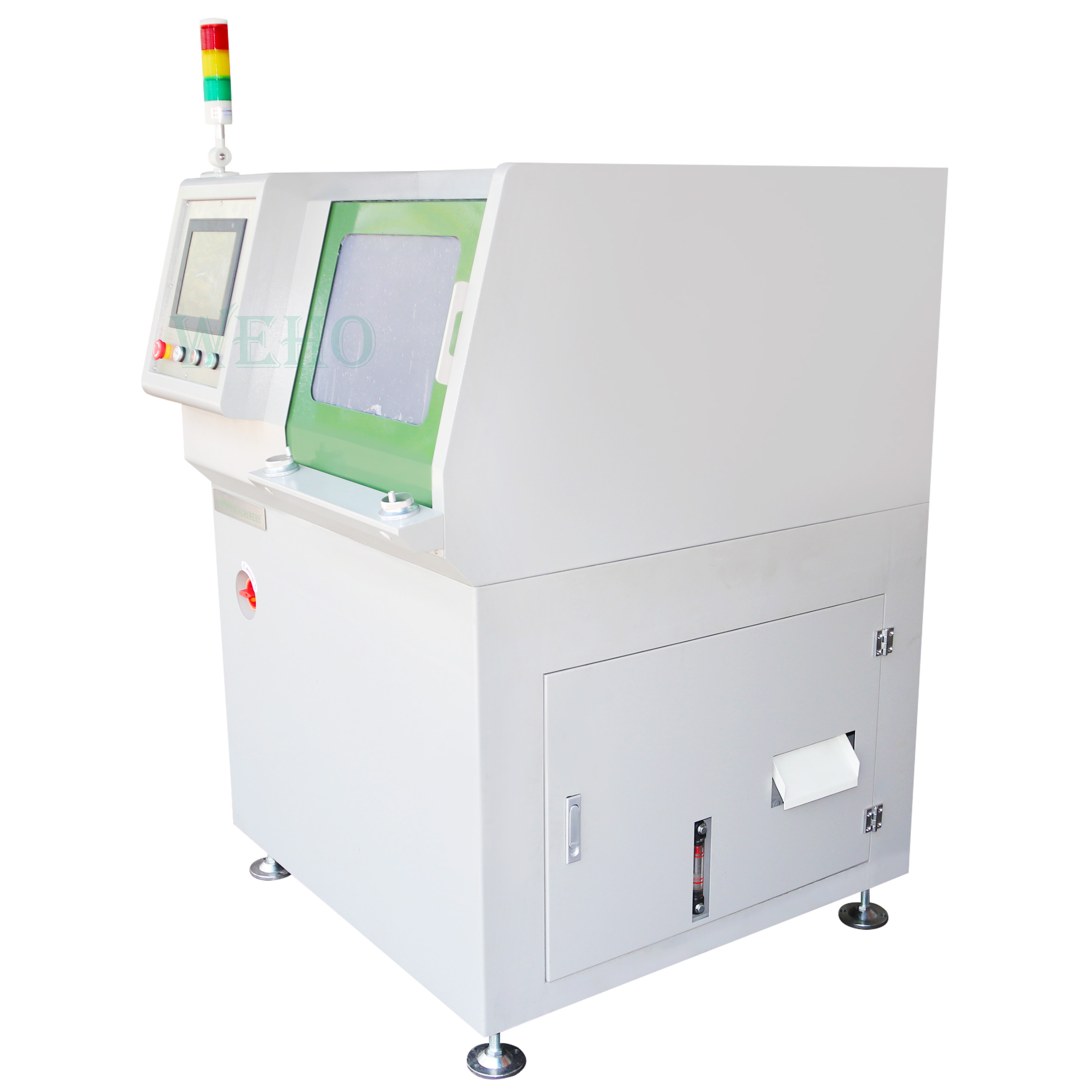

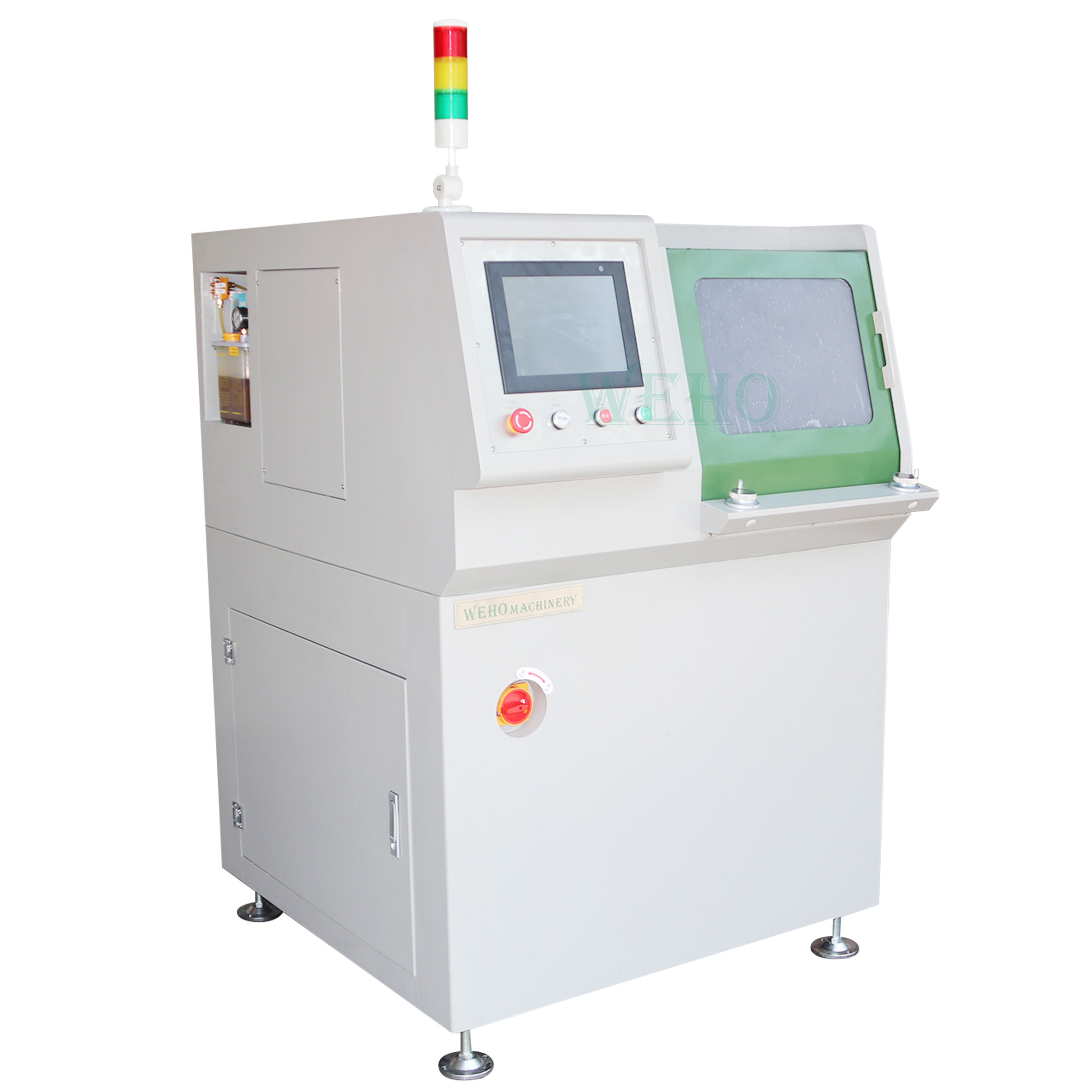

CNC hss circular saw blade sharpening machine
Model: HSS500-4A
4 Axes: X, Y, Z, C
Automatic chamfering range: Ø170mm–Ø450mm
Magnetic separation slag remover: 60L/min
Grinding tooth type: Triangular tooth, Arc tooth, High-low tooth, Variable pitch tooth
Grinding precision: Face angle ±1.0°, Top angle ±1.0°, Tooth depth ±0.1mm, R ±0.1mm
Best Sharpening Equipment for High Speed Steel Saw blade, Which use for metal cutting.

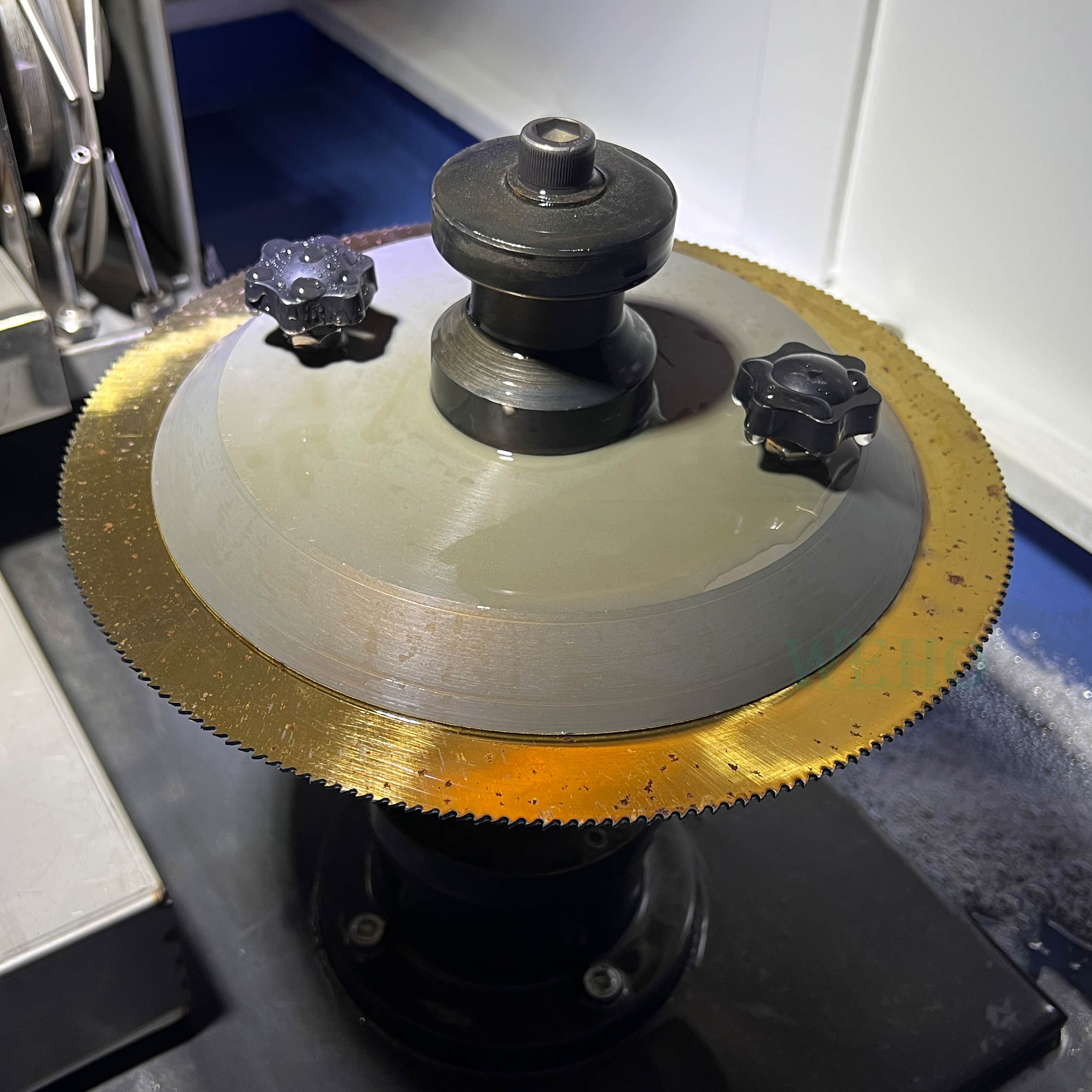

Suitable to sharpen or re-cut and chamfer automatically HSS saw blades in creep feed grinding method by using CBN grinding wheels.
Circular saw grinding machine are CNC sawblade sharpening machines with 3 or 4 axes servo control.
|
Model |
HSS500-4A |
|
4 Axes |
X, Y, Z, C |
|
Automatic chamfering range |
Ø170mm–Ø450mm |
|
Magnetic separation slag remover |
60L/min |
|
Grinding tooth type |
Triangular tooth, Arc tooth High-low tooth, Variable pitch tooth |
|
Grinding precision |
Face angle ±1.0°, Top angle ±1.0° Tooth depth ±0.1mm, R ±0.1mm |
|
Grinding saw blade size |
Diameter Ø80mm–Ø500mm, 10 ~ 600 teeth |
|
Saw blade pitch |
T1.3–T22mm |
|
Saw blade thickness |
＜3.5mm |
|
Cutting angle |
0.01° ~ 30° |
|
Grinding speed |
2 ~ 60 teeth/min |
|
Grinding wheel size |
Ø200mm*Ø32mm |
|
Grinding wheel thickness |
1mm ~ 3mm |
|
Running speed |
4500 ~ 6000rpm |
|
Total power |
About 8kw |
|
Weight |
About 600kg |
|
Size |
L1100mm*W1400mm*H1800mm |
Main Configuration
|
No. |
Name |
Brand |
Note |
|
1 |
3 Axis linear guide |
HIWIN Taiwan |
|
|
2 |
3 Axis ball screw |
TBI Taiwan |
|
|
3 |
C Axis reducer |
福德 China |
|
|
4 |
Four-axis servo driver |
Delta Taiwan |
|
|
5 |
Sensors |
Omron Japan |
|
|
6 |
Electrical components |
Chint |
|
|
7 |
Spindle motor |
Custom waterproof 5.5kw motor |
|
|
8 |
Machine outer cover |
Stainless steel with painted finish |
|
|
9 |

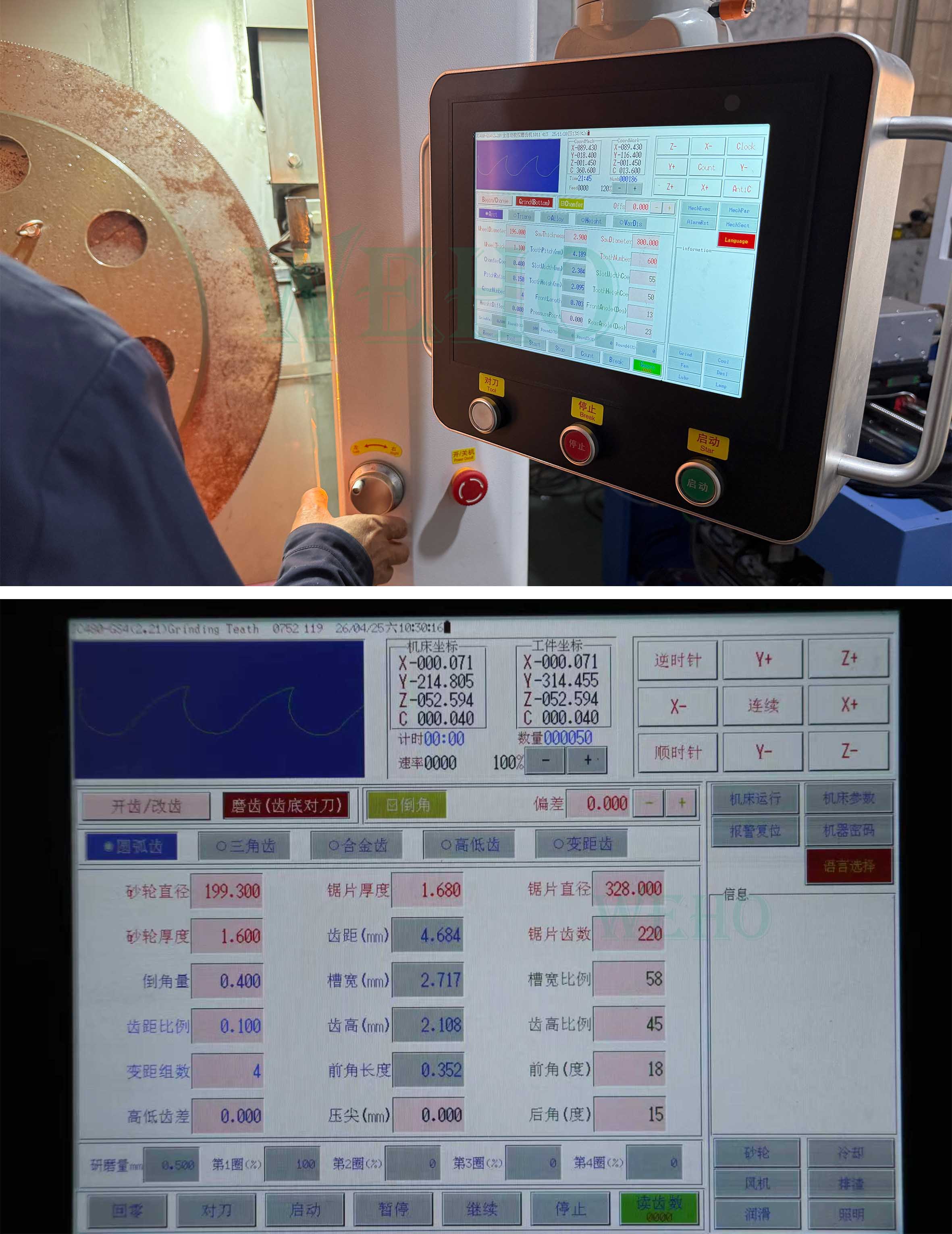

Operating system |
Self-developed |
|
|
10 |
control panel |
POD touch screen |
|

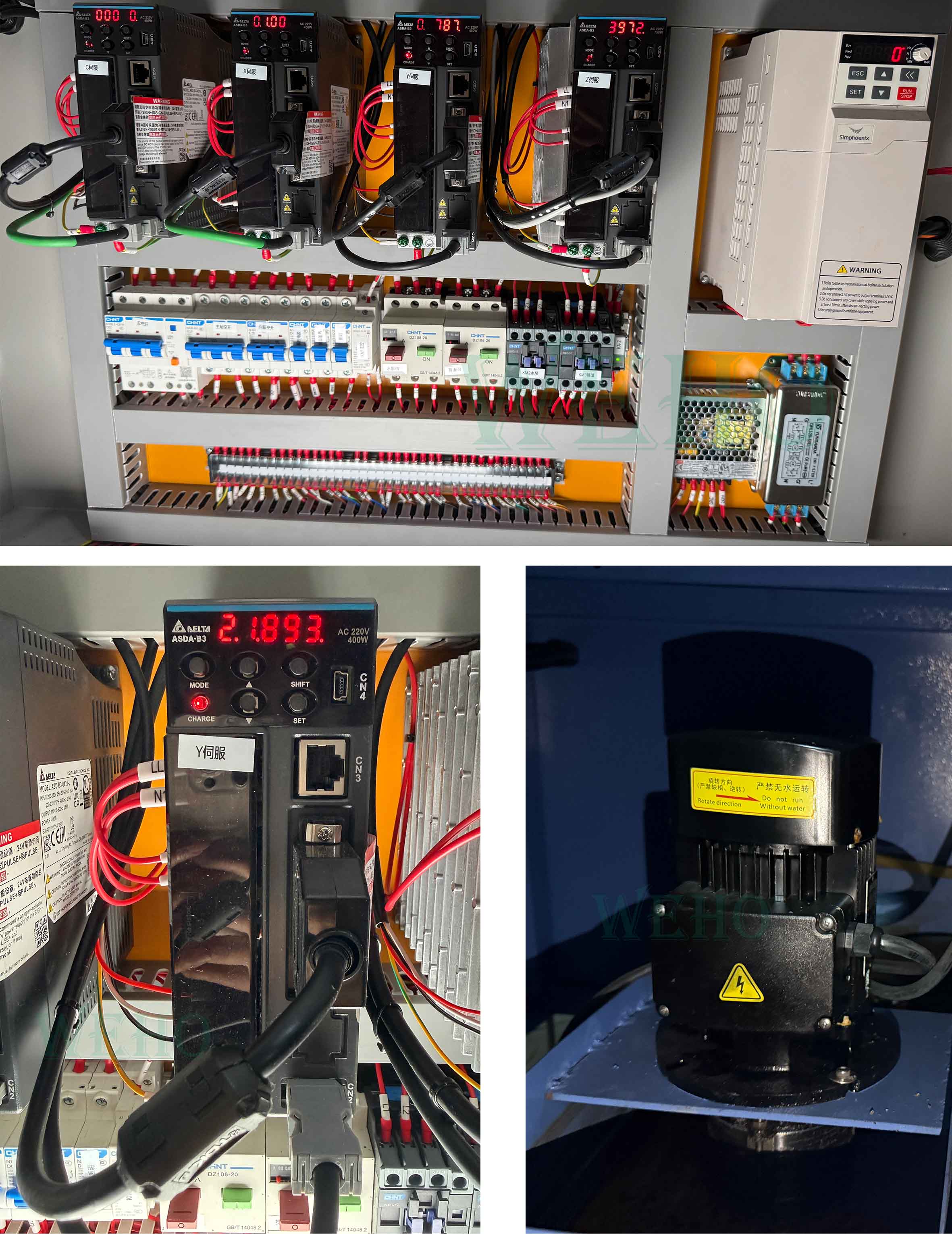

Delta Servo Drive System: Equipped with 3 units of 400W servo motors and 1 unit of 750W servo motor with brake (dedicated for chamfering function), ensuring smooth, efficient and accurate operation, even during high-intensity work.
Harmonic Reducer: Adopted for rotary tooth shifting, featuring ultra-high precision, strong wear resistance and long service life. It effectively guarantees the consistency of tooth grinding accuracy and reduces maintenance frequency.

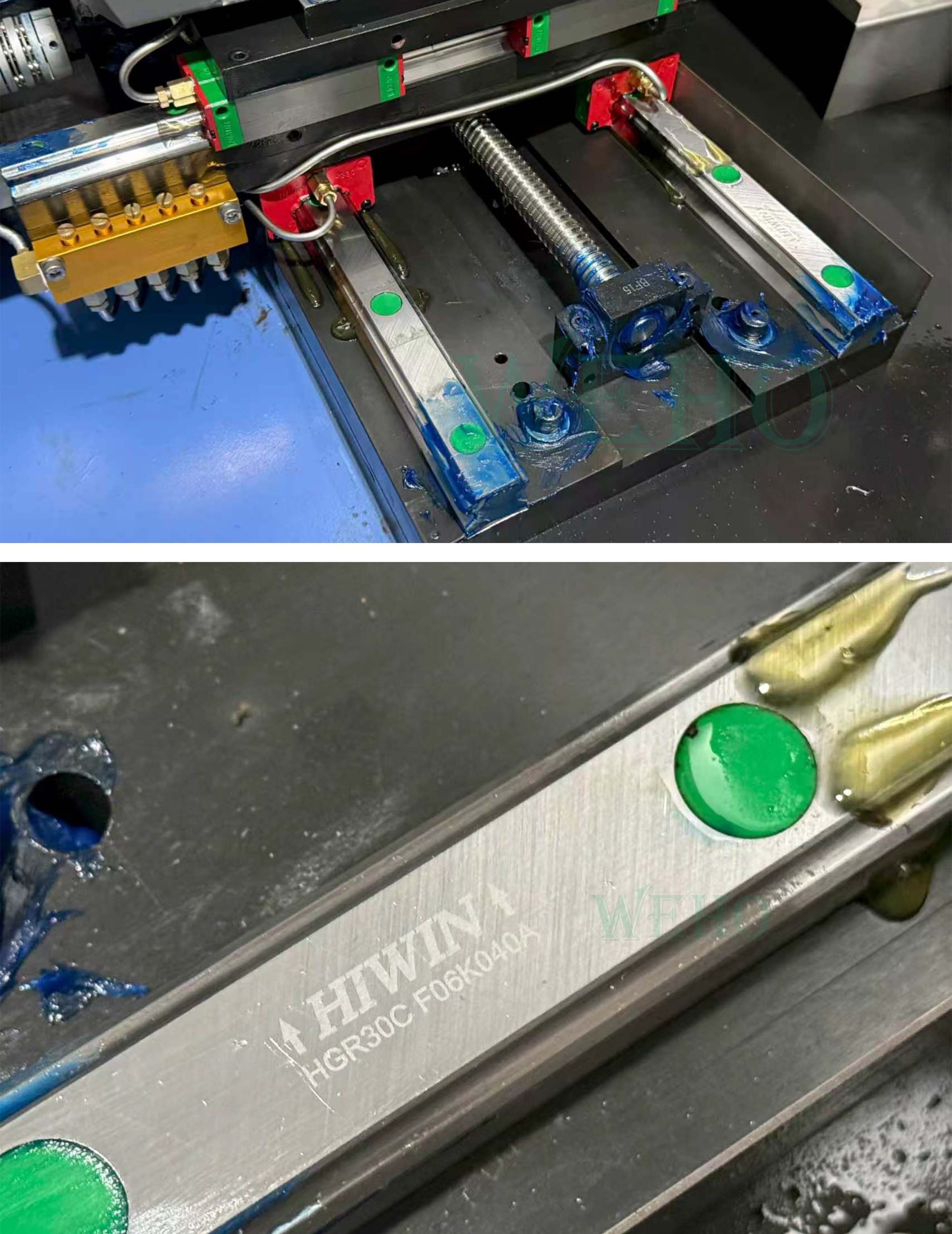

Linear Guides: Y-axis adopts 30mm Hinwin linear guide, X-axis and Z-axis adopt 20mm Hinwin linear guide. All guides are equipped with reinforced sliders, significantly enhancing the machine’s rigidity and load-bearing capacity, ensuring no deformation during long-term heavy-duty operation.
Ball Screws: Imported from Taiwan TBI, known for high precision, low friction and long service life. It ensures smooth and accurate movement of each axis, laying a solid foundation for precise tooth grinding.
Spindle Seat: Made of high-quality bearing steel, which is wear-resistant and anti-slip, with a service life of up to 10 years without thread slipping. Unlike other manufacturers that use 45# steel, our bearing steel spindle seat can effectively avoid thread slipping caused by frequent grinding wheel loading and unloading, greatly reducing maintenance costs and downtime.
HSS saw sharpening machine Advantage:
1)A fully automatic CNC HSS sawblade sharpening machine.
2) CBN diamond grinding wheel.
3) Cooling system
4) Automatic cutting angle setting.
5) Grinding wheel speed setting.
6) Three axes servo control.
7)Oil mist filter
8) Patented splash guard.
It is easy to open the guard and convenient to change the saw blade.
