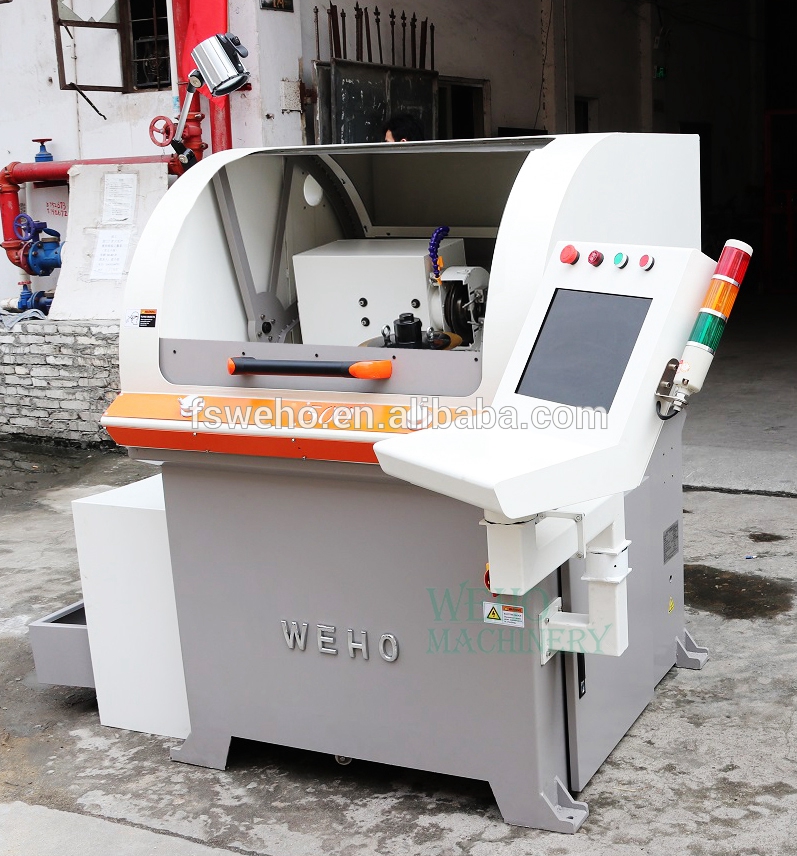

CNC hss circular saw blade sharpening machine
CNC hss circular saw blade sharpening machine

CNC hss circular saw blade sharpening machine


Model:HSS500-4A
Grinding teeth:10-998
Blade thinckness:≤8mm
Speed:1-60tooth/min
Weight (KG):600
Power (kW):8kw


Details
Spare Parts
Inquiry



Best Sharpening Equipment for High Speed Steel Saw blade, Which use for metal cutting.
Suitable to sharpen or re-cut and chamfer automatically HSS saw blades in creep feed grinding method by using CBN grinding wheels.
Circular saw grinding machine are CNC sawblade sharpening machines with 3 or 4 axes servo control.

Model HSS-500-4A
Working Area Diameter of HSS saw blade mm 120-500
Chamfering Diameter mm φ180-450MM
Saw Bore Diameter mm 10-40
Grinding teeth number Teeth 10-998
Max Blade Thickness mm 4mm
Cutting degree Degree 1-30°
Clearance angle degree Degree 1-30°
Grinding speed teeth/m 1-60
Grinding wheel mm Φ200x32
Servo motor parameter X servo motor KW 0.75
Y servo motor KW 0.75
Z servo motor KW 1.5
Chamfer motor KW 1.5 with braker
Motor power Main spindle power X axis KW 5.5KW
Water Pump KW 0.25kw
Total Power KW 8KW
  Size mm 2000*1800*1600
Weight KG 800

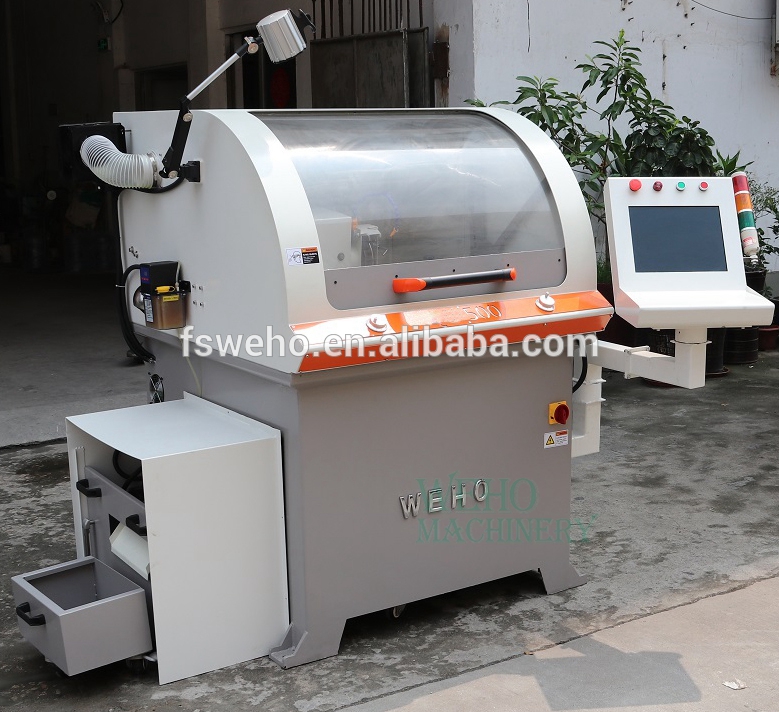

Fully automatic operations for sawblade outer diameter, number of teeth, sharpening amounts,cutting angles, back clearance angles, and up-down chamfer. Humanized two handwheels make re-sharpen old teeth easy to operate.The elegant, fully-enclosed splash guard is standard equipment.The guard prevents dust pollution during wet sharpening, reduces noise, and provides an excellent working environment. The new designed and special window provides widen vision and easy to see the grinded object.
HSS saw sharpening machine Advantage:
1)A fully automatic CNC HSS sawblade sharpening machine.
2) CBN diamond grinding wheel.
3) Cooling system
4) Automatic cutting angle setting.
5) Grinding wheel speed setting.
6) Three axes servo control.
7)Oil mist filter
8) Patented splash guard.It is easy to open the guard and convenient to change the saw blade.


WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
