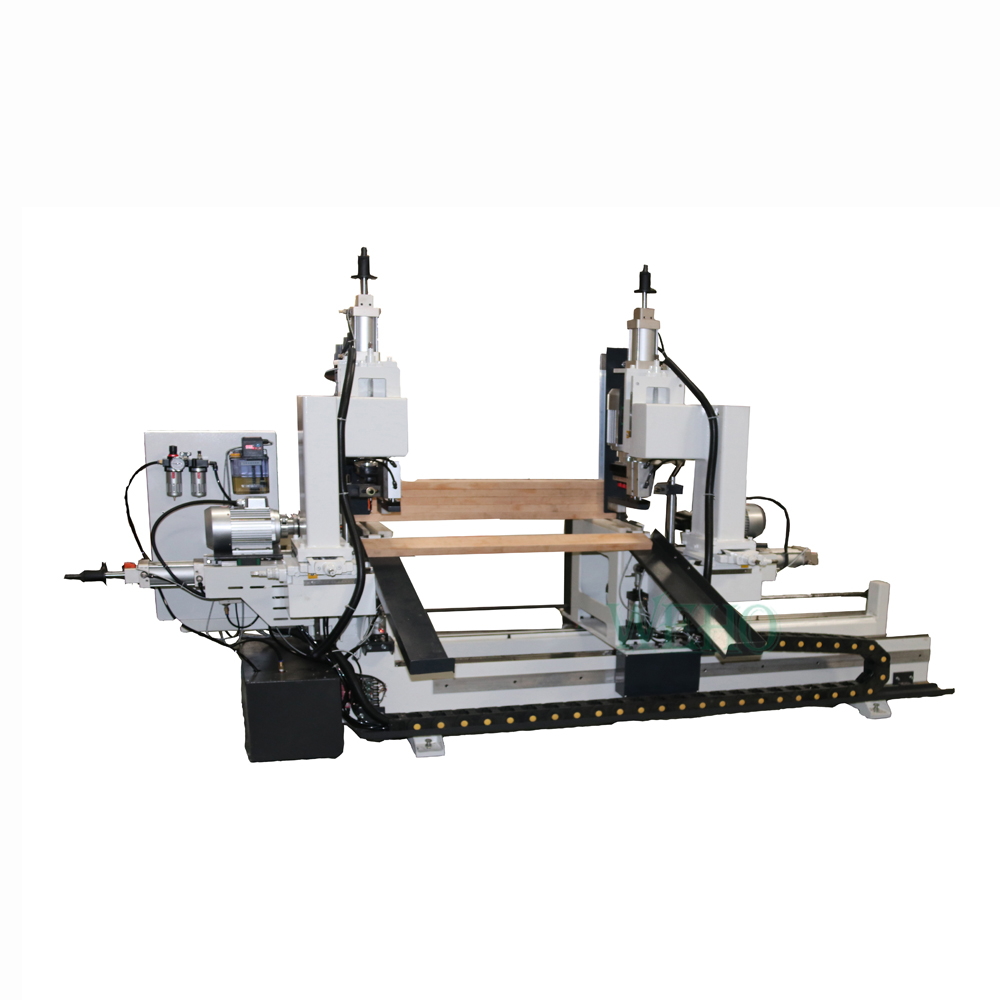

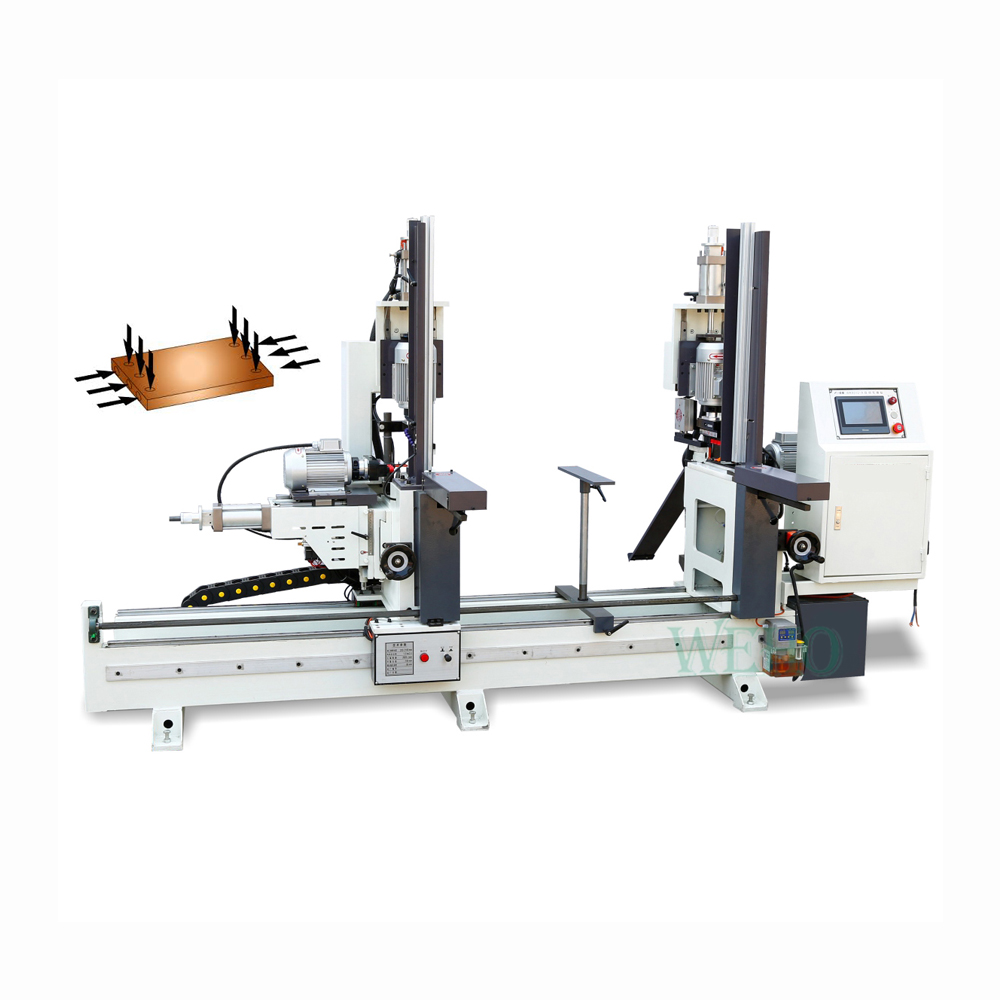

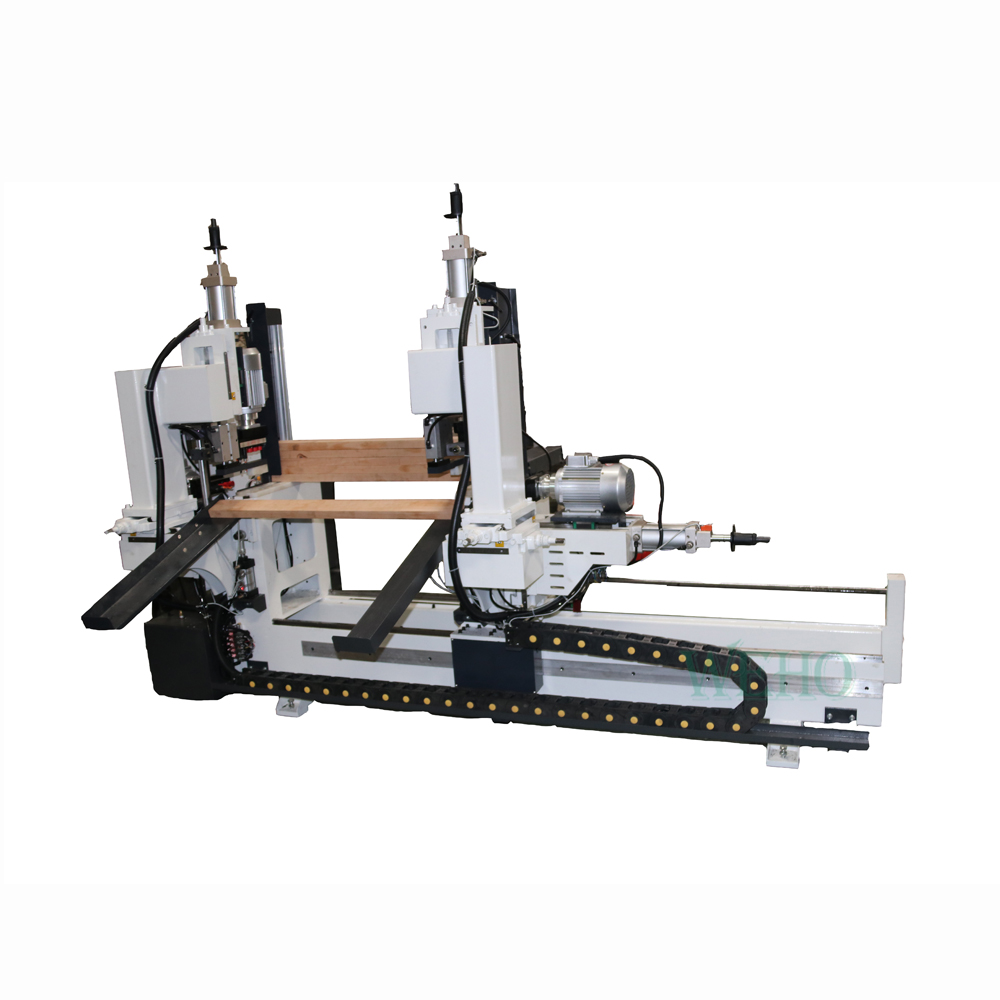

CNC vertical double end wood hole drilling boring machine manufacturer | Wood Drilling Machine
CNC vertical double end wood hole drilling boring machine manufacturer | Wood Drilling Machine

CNC vertical double end wood hole drilling boring machine manufacturer | Wood Drilling Machine


Model:MK9312-B
Max.Working Width(mm):2100
Working length:200-2100mm
Maximum drilling depth:80mm
Dimension(L*W*H):3300*1400*1750mm
Weight (KG):780 KG
Power (kW):1.5kw*4


Details
Spare Parts
Inquiry
Double end boring machine mainly used for three in one drilling of woodworking workpiece, it do accurate drilling position, flexibility, adjustable, simple and fast operation.
Model
MK9312-B
MK9312-A
Working length
200-2100mm
200-2100mm
Motor power
1.5KW*4
1.5KW*2
Spindle rotating speed
2820rpm
2820rpm
Vertical Lifting stroke
100
100
Maximum drilling depth
80mm
80mm
Control system
Delta PLC
Delta PLC
Net weight
780kg
690kg
The machine has worktable, pressing device, vertical and horizontal drilling head which can install some pieces of the drilling bits, it can drill double end of wood from vertical and horizontal same time.


This machine come with automatic feeding out device.


Linear guide rail and cross slider made from Taiwan,with high precise width setting. The pressing part can compact the wood,ensure that the wood does not move, and achieve accurate position drilling.



[]
