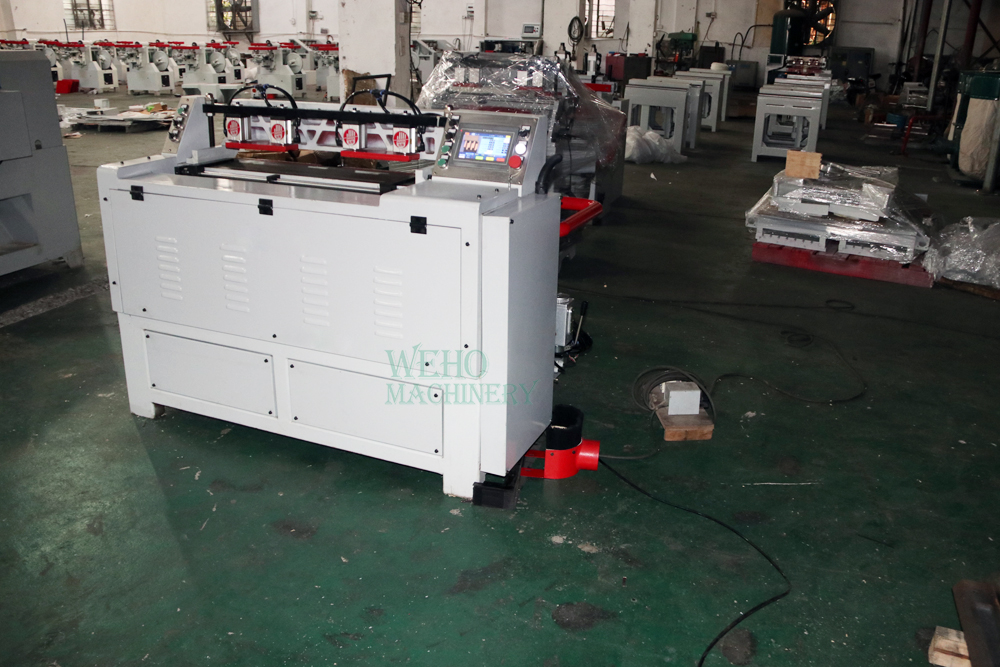

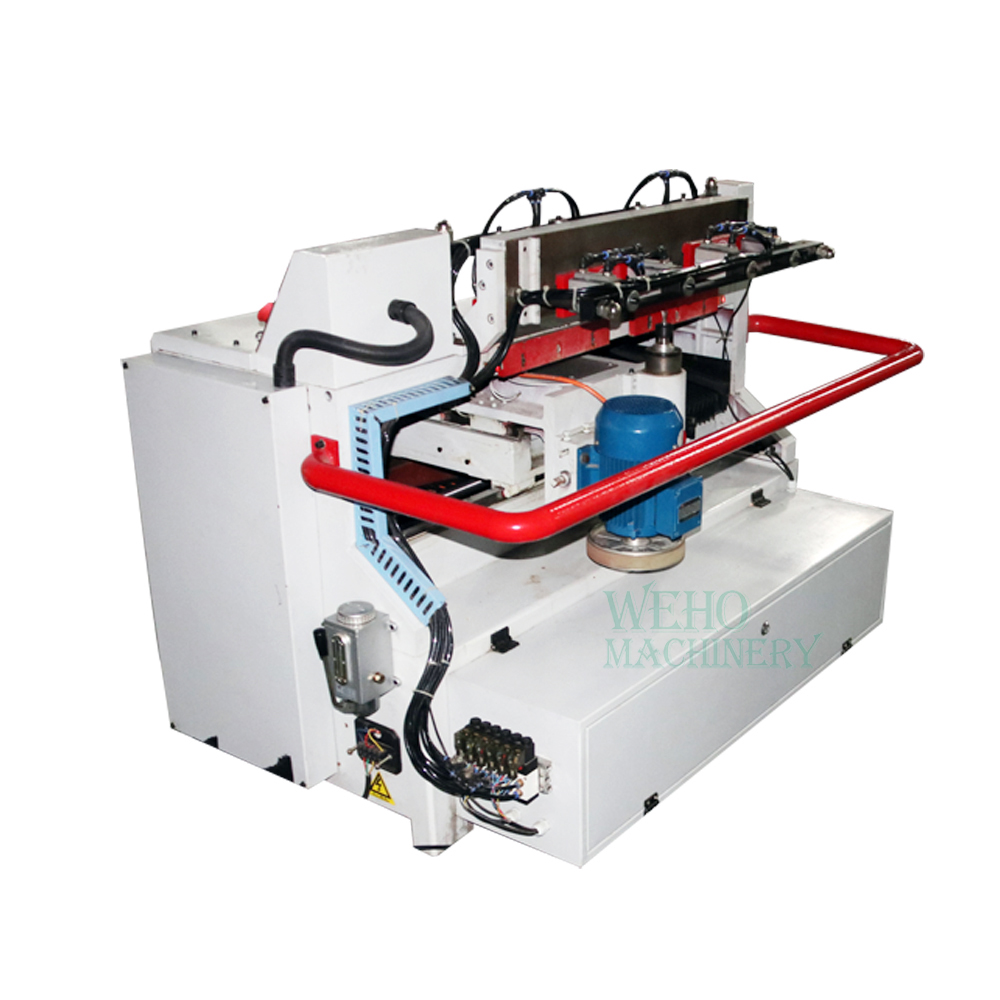

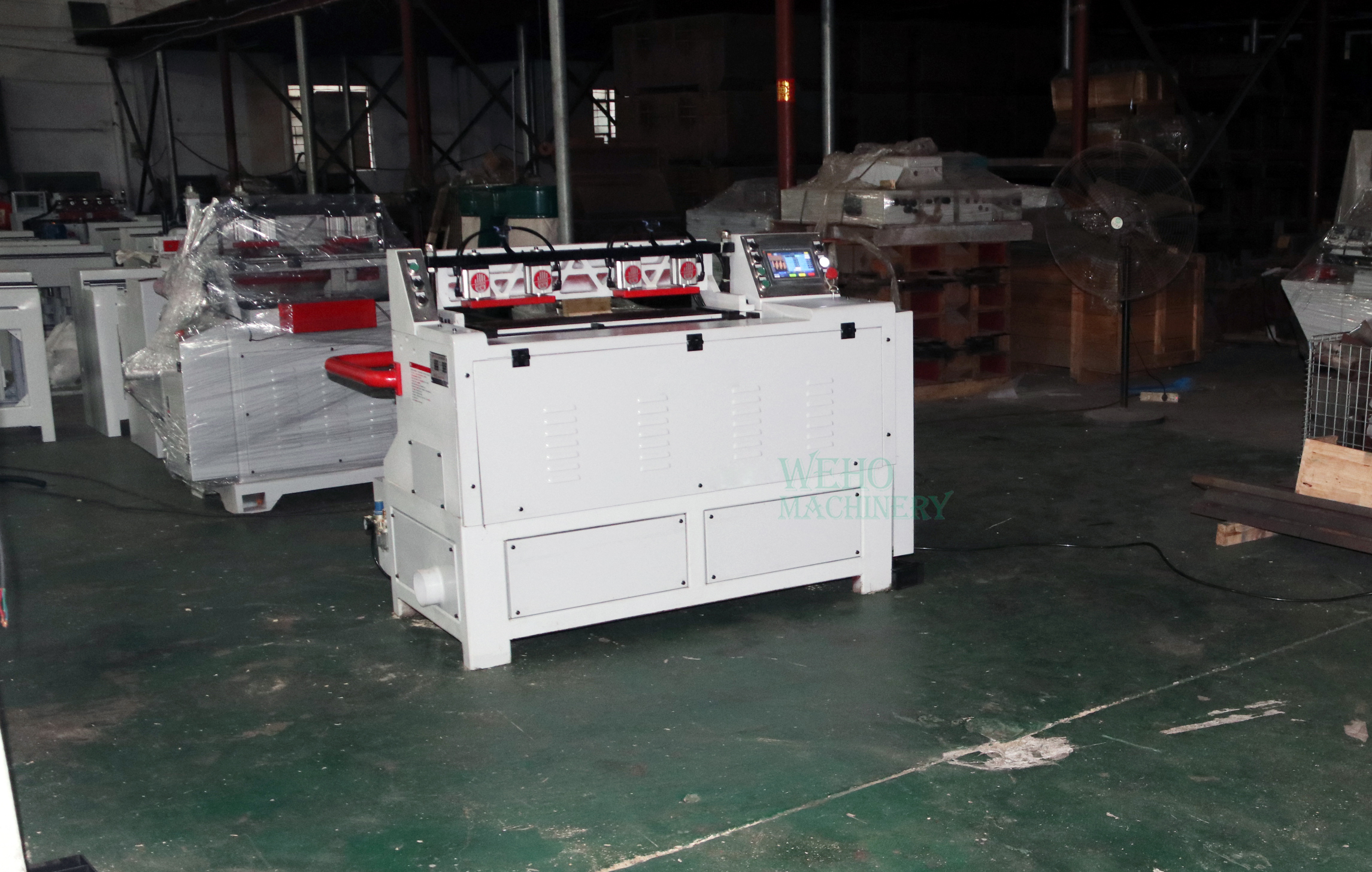

CNC wood furniture tenoner and mortiser making machine
CNC wood furniture tenoner and mortiser making machine

CNC wood furniture tenoner and mortiser making machine


Model:MX750
Max working thickness:45mm
Max working width:750mm
Total power:3.5kw


Details
Spare Parts
Inquiry

Dovetail tenon is a kind of right angle connection node of flat wood. The ladder shaped tenon can make the corner of the workpiece joint with high strength, so as to avoid the separation when stressed. It is a good choice for furniture manufacturing.
Model MX750
Z-axis maximum travel 750mm
Max machining thickness 45mm
Max machining width 750mm
Milling shaft speed 12000r/min
Milling shaft collet ER20
Milling shaft power 1.5kw
X-axis power 1kw
Z-axis power 1kw
Total power 3.5kw
Weight 600kg


Adjustable speed, according to the dry, wet, thick and thin wood, the speed of milling shaft can be adjusted.

Linear guide drive:
the motion system adopts high precision ball screw, linear guide drive, precision machining




Processing shape:
intelligent CNC system, can process a variety of mortise, mortise, various shapes




Tenoner And Mortiser Making Machine
[]
