CNC woodworking 5 axis multi spindle slot milling mortise and drill machine
CNC woodworking 5 axis multi spindle slot milling mortise and drill machine

CNC woodworking 5 axis multi spindle slot milling mortise and drill machine


Model:MSK3722-5*2
Travel (X Axis)(mm):3100 mm
Travel (Y Axis)(mm):260 mm
Max machining width:130mm
Spindle speed:18000r/min
Max machining speed:40m/min
Spindle power:3.7kw*5/2.2kw*5
Weight (KG):2890


Details
Spare Parts
Inquiry
This product adopts five-axis multi -staion,high-speed continuous milling,and one set of working parts can be processed with another set of disassembly and high production efficency.
Model MSK3722-5*2
Maximum stroke of X axis
3100mm
Maximum stroke of Y axis
260mm
Maximum Z stroke
300mm
Maximum machining width
130mm
The X axis power
2.0kw
Y shaft power
1.0kw
Z shaft power
1.5kw
Spindle speed
18000r/min
Spindle power
3.7kw*5/2.2kw*5
The spindle wheelbase
200mm
Maximum machining speed
40m/min
Dimensions
4700*2100*2200mm
Weight
2890kg

Adopt Taiwan million figure of CNC system,convenient adjustment,reliable control,convenient and easy to learn,use of tool rod on a knife, without progtamming,to point the automatic generation of processing procedure,production simply press the confirm button automatic processing.

The machine adopts Taiwan CNC system,canbe directly impoted program to process,high precision.

High precision,numerical control input and output,ensure taht each workpieces with different sizes and shapes,and has a strong practicability,especially for the curved holes,elliptical holes and special-shaped holes.

Easy to operate,high precision,safe and reliable,easy maintenance. High-speed spindle processing tenon high quality,double-station design,high efficiency.

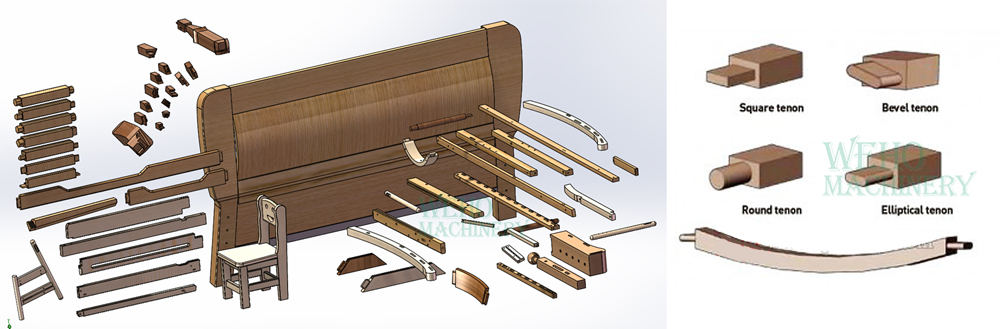

Wide processing range,can process a variety of mortise,spline,slot combination and so on.
The machine is mainly applied to the drilling,mortising,sloting on wood ,etc.And it is a kind of woodworking machinery which keep traditional furniture production process,and also can produces eddiciently.



More machining complex planer,the same workpiece mortise length and depth different and complicated hetermorphic workpiece are processed at one time.


WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can designand manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
