CNC woodworking bandsaw curve band saw machine for wood cutting
CNC woodworking bandsaw curve band saw machine for wood cutting

CNC woodworking bandsaw curve band saw machine for wood cutting


Model:JR-1214
Max.Working Width(mm):
1400 mm
Max.Size of workpiece:1200*1400mm
Max.working thickness:150mm
Band Saw wheel diameter:760mm
Min.cutting radius:R80 orR95mm
Saw tilting:±90
Power (kW):7.5
Cutting power:5.5KW


Details
Spare Parts
Inquiry

CNC woodworking band saw machine for wood cutting is designed for the clients who pay attention to the high efficiency and high precision. It is suitable for curve cutting of non-metal material. It takes the place of artificial processing, and improves utilization.
Furniture Decoration Industry: Chair legs, chair backs, dining table, hat stand, desk, bed, home decorations, the curve cutting of handrails, etc.
Other Industries: It is suitable for high density foam board and curve cutting of chemical board.
SPECIFICATIONS For  cnc woodworking band saw machine for wood cutting


Working size
Max working length and width mm 2000x1400
Max Thickness mm 150
Band saw blade size mm 5430x13x0.9


Main performance parameters
Working speed m/min 1-15
Saw blade Rotating angle ° +90 -90
Cutting power HP 10



Machine size
Dimensions mm 4800x3200x2600
Weight KG 4900
Cast aluminium wheel mm 760x60

Main Features
1) The processing efficiency is high, the processing work-piece surface is good quality and no need to be crossed.
2) Save the timber, processing range is wide, automatic programming, the operation is easy, man-machine division, it can reduce the risk of industrial injury, it is an ideal production equipment for wood furniture and other enterprises.
3) This machine no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide,  scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.
4) CNC band saw machine is an affordable and economy machine, it can solve the curve processing for hundreds of users.
5) The open feeding platform is more convenient, and the sawing efficiency is higher. Strong cylinder fixtures, the clamping device is reliable, clamping range is wide, it can saw the multi-layer sheet synchronously.
6) The saw clamping device can enhance its precision.



The open feeding platform is more convenient, and the sawing efficiency is higher.This cnc bandsaw no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide,  scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.

Strong cylinder fixtures, the clamping device is reliable, clamping range is wide, it can saw the multi-layer sheet synchronously.The saw clamping device can enhance its precision.

CNC band saw machine is an affordable and economy machine, it can solve the curve processing for hundreds of users.

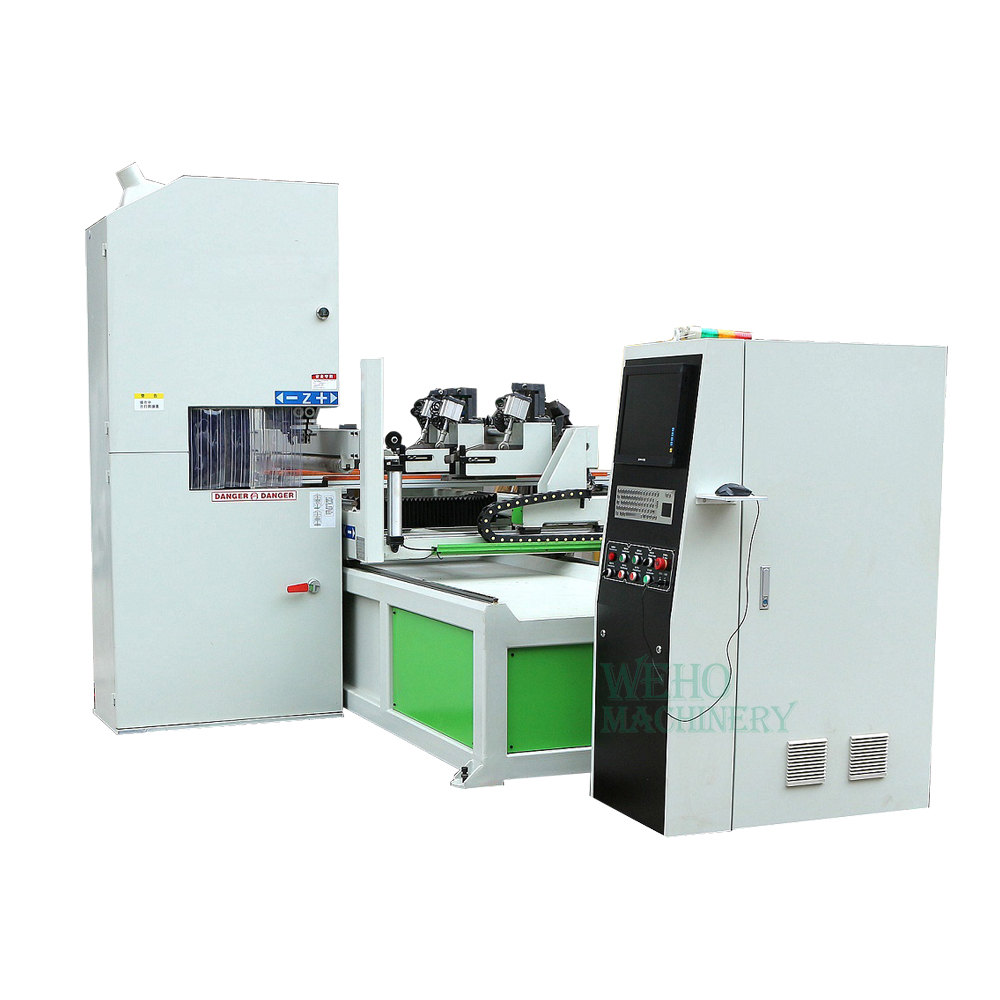

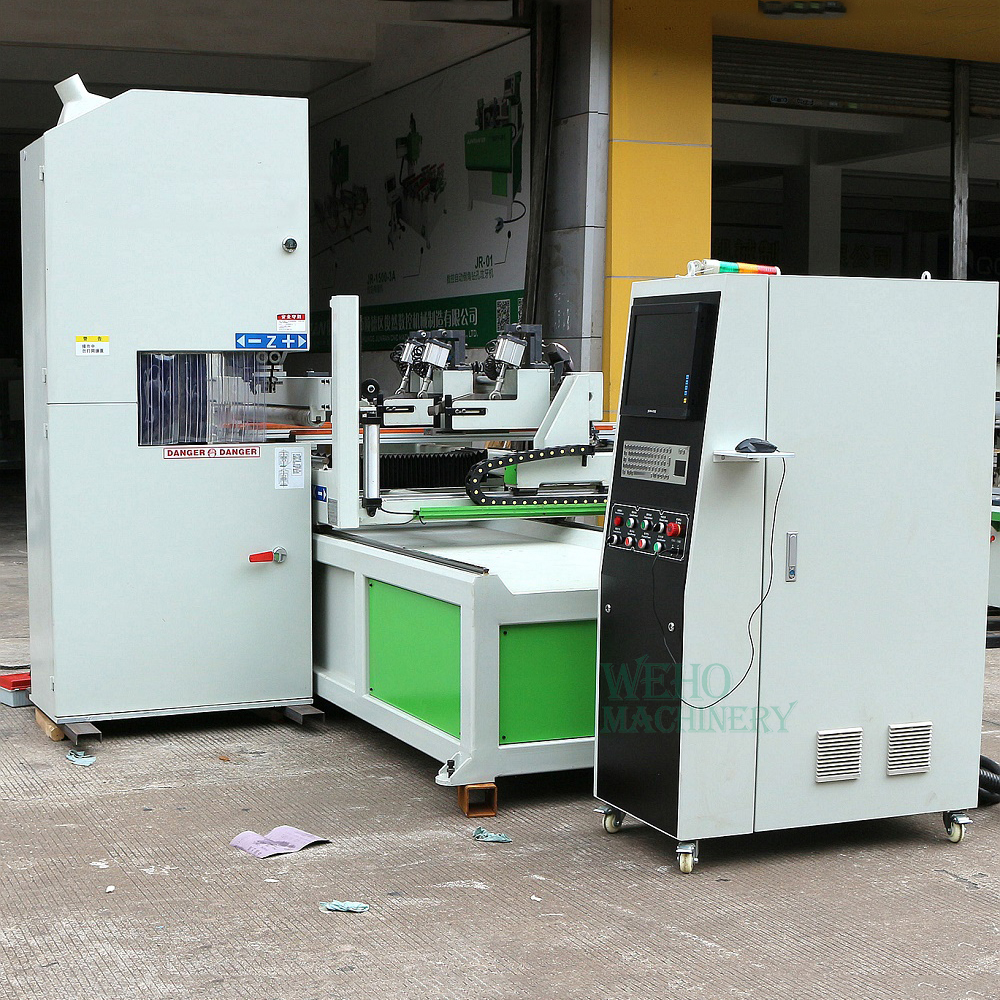

Woodworking vertical cnc band saw machine.Strong clamper for push workpieces.safety door to provent accident.Cast aluminium wheel.

CNC woodworking band saw machine for wood cutting,Use famous brand guide rail, strong force.Air cylinder clamp to fix work pieces on working table.




How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.

How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
