Cyclone dust double brush collection machine for woodworking industry | Dust Collection For Woodworking
Cyclone dust double brush collection machine for woodworking industry | Dust Collection For Woodworking

Cyclone dust double brush collection machine for woodworking industry | Dust Collection For Woodworking


Working width:1300mm
Working thickness:3-80mm
Minimum length:300mm
Feeding speed:0-20min/m
Feeding power:0.75kw
Installed power of the whole machine:2.42kw
Dimension(L*W*H):2000*1800*1750mm
Weight:1200KG


Details
Spare Parts
Inquiry

Cyclone dust double brush collection machine for woodworking industry
The double brush dust collection for woodworking machine is suitable for dust removal before or after sanding of bamboo wood floor, furniture,wooden door and other plane boards. It can also be used alone to clean the dust on the surface of all kinds of boards. The double dust removal brown brush roller has stronger dust removal effect and improves the coating quality of board surface.
Model
600
900
1300
Working width
600mm
900mm
1300mm
Working thickness
3-80mm
3-80mm
5-80mm
Minimum length
300mm
300mm
300mm
Feeding speed
0-20m/min
0-20m/min
0-20m/min
Feeding power
0.4KW
0.75KW
0.75KW
Installed power of the whole machine
2kw
2.42kw
2.42kw
Package size
2000*1100*1750mm
2000*1400*1750mm
2000*1800*1750mm

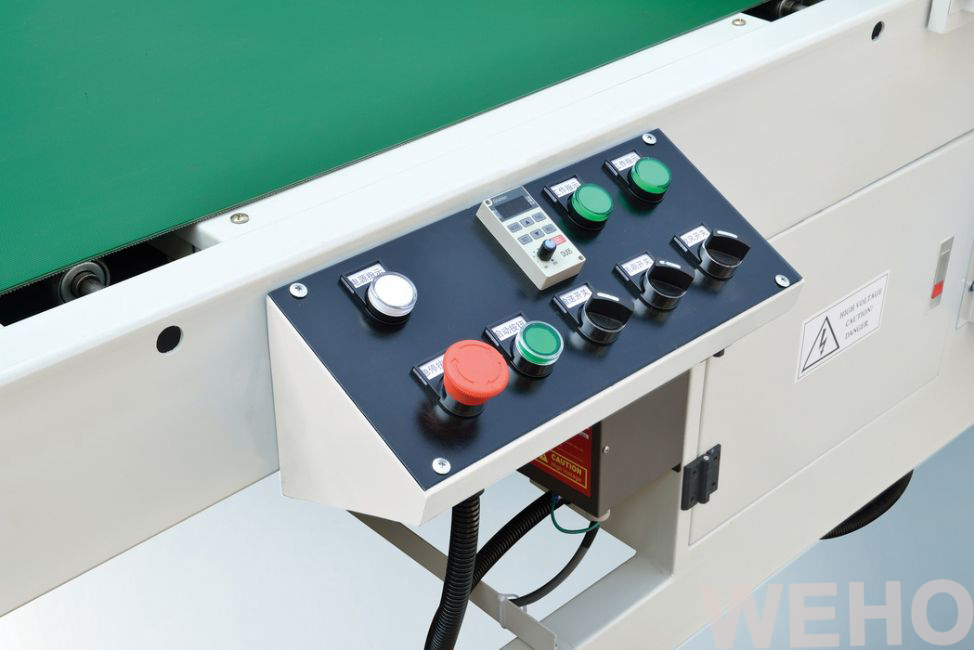

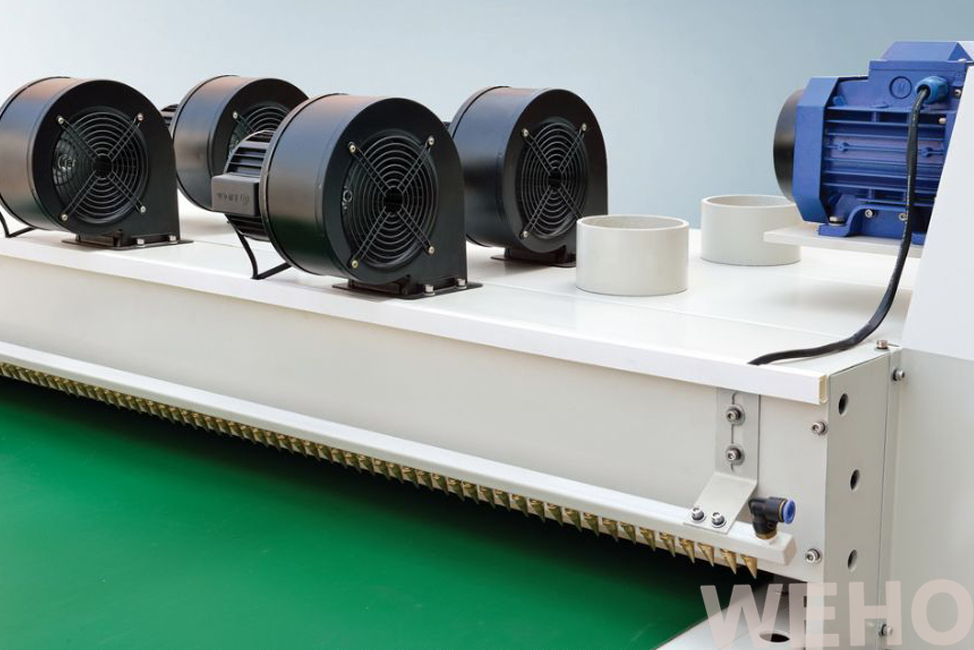

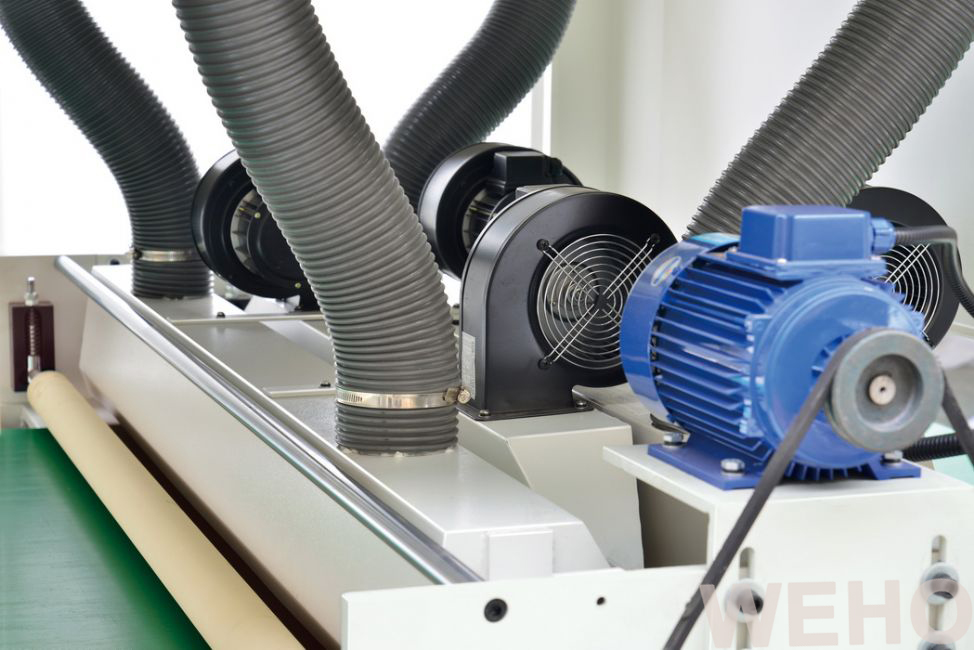

The power of mechanical conveying and dust removal brush device is controlled by independent motor, reducer and frequency converter, with high precision and 100% dust removal rate.This cyclone dust collection systems machine is equipped with dust removal double brush and strong blowing dust removaldevice, which can automatically remove the dust on the surface of substrate and improve the coating quality. The brush is placed at the back, and the front section is used for conveying excessively, which integrates dust removal and transportation.
The double-brush dust collecting machine for wood is equipped with 3 pressing wheels and made of wear-resistant rubber, which effectively ensures the stability of the workpiece during dust removal. Special design dust cover, high dust collection rate, special plate with static electricity can be equipped with static electricity generating device.There are single side dedusting and double side dedusting.











WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
