Double cutter CNC woodworking lathe for bracelet / wooden handle / ashtray / Wooden Chair Making Machine
Double cutter CNC woodworking lathe for bracelet / wooden handle / ashtray / Wooden Chair Making Machine

Double cutter CNC woodworking lathe for bracelet / wooden handle / ashtray / Wooden Chair Making Machine


Model:WH-5020
Wokring diameter:20cm
Working length:50cm
Spindle speed:0-2000rpm
Weight:320kg


Details
Spare Parts
Inquiry

High precision woodworking lathe can help you make hundreds of kinds of wood products, such as sticks, bowls, cups, plates, handles, handrails, etc.
Model WH-5020D WH-5020B
Electric machinery Fixed frequency Frequency conversion
Maximum machining diameter 20cm 20cm
Maximum machining length 50cm 50cm
Total power 1.9Kw 1.9Kw
Spindle motor power 1.5Kw 1.5Kw
Spindle speed 2000rpm 0-2000rpm
Machining accuracy 0.01mm 0.01mm
Machine dimensions 1350*650*1080mm 1350*650*1080mm
Weight 320kg 320kg


Tail design:Scientific design, fully closed dust control, lead screw track, high production accuracy, longer service life.

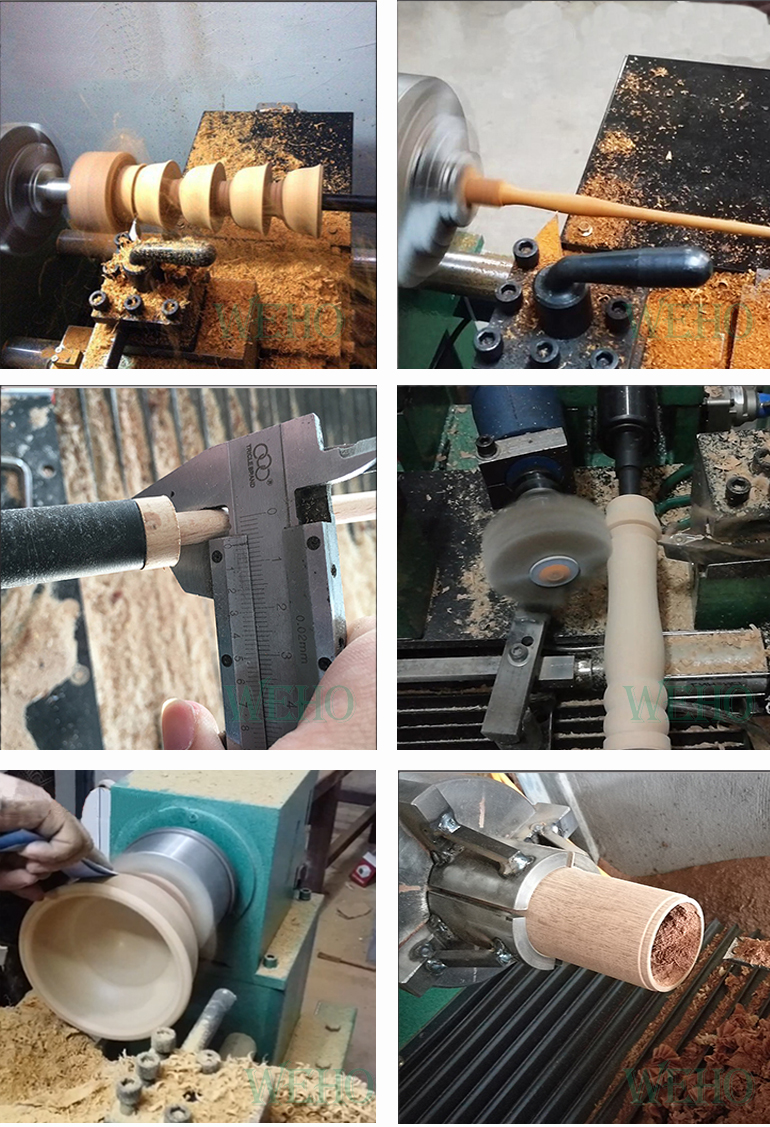

Processing Exhibition
80 * 80 national standard square pipe, with thickness of 6mm and stable guarantee Magnetic start key position can be placed at will, vector converter can be selected
Installation position of x-axis motor
Name TBI ball screw TRH linear guide
Model SFUR16140 TRH20B
Accuracy ±0.01mm ±0.01mm
Advantage high precision, low noise, high stability High precision, low drag 3D guidance

Lead screw design: maintain the accuracy of the ball screw, reduce sawdust and dust pollution, improve the service life of more than 5 times.

CNC lathes: The whole series of CNC lathes are upgraded to CNC digital controller control, which not only saves 1 control computer, does not need USB cable connection, has strong anti-interference, is more stable, does not need mouse and keyboard, is more convenient to operate, and is more suitable for factory work, with the use of intelligent code automatic generation software.

CNC system:Import the following shape picture, input the required size and length, select the processing method and tool, the software can automatically generate the NC lathe processing program (G). The processing Diamante is directly saved to the TF card, and the lathe processing is directly controlled by the controller.

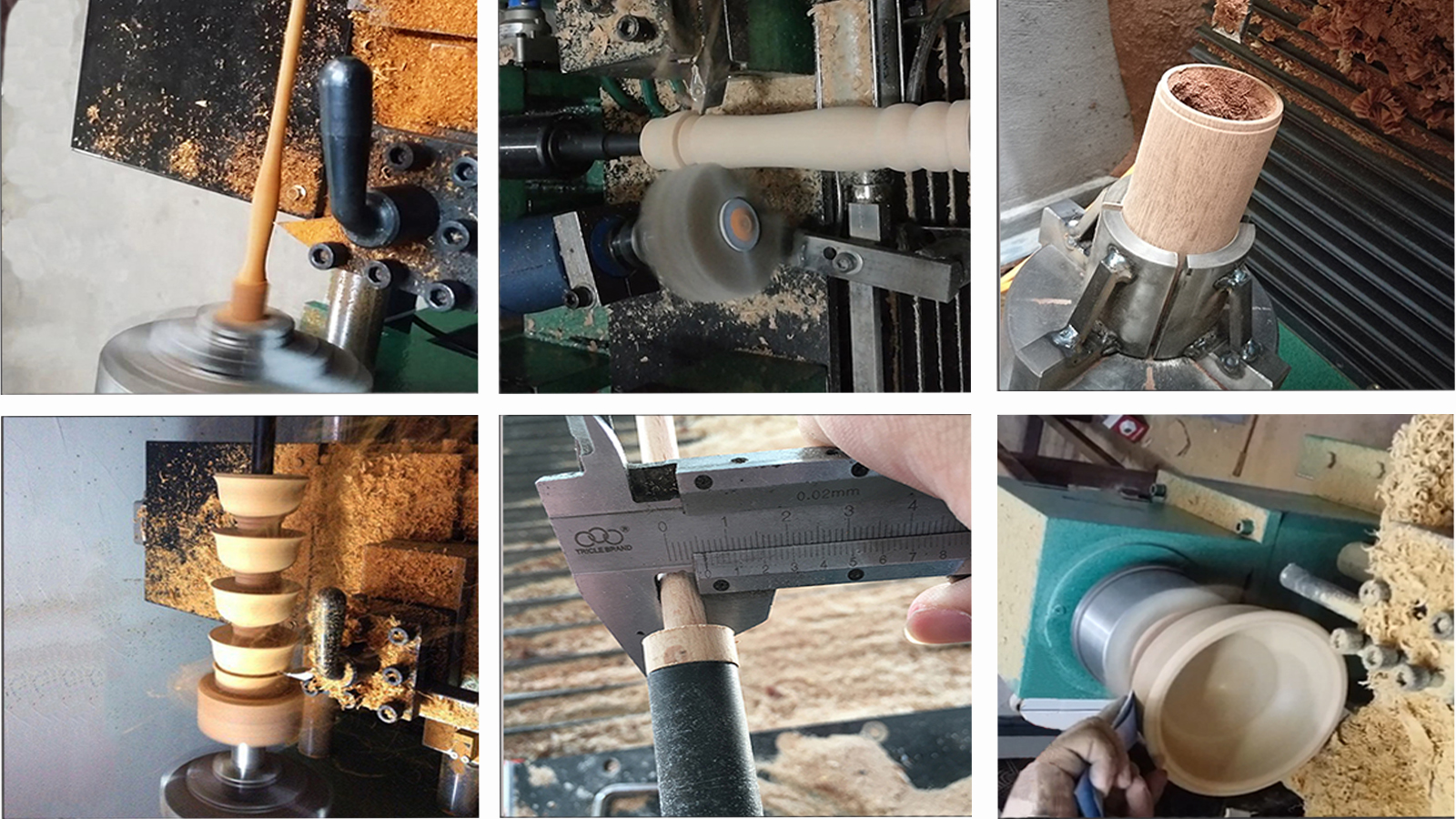

Product display


Product size

Accessories display

Double cutter CNC woodworking lathe for bracelet / wooden handle / ashtray / Wooden Chair Making Machine

[]
