Electric knife blade sharpening grinding machine diamond wheel grinder blade system | Blade Grinding Machine
Electric knife blade sharpening grinding machine diamond wheel grinder blade system | Blade Grinding Machine

Electric knife blade sharpening grinding machine diamond wheel grinder blade system | Blade Grinding Machine


Model:MF1000
Speed:2800rpm
Max. Grinding Length:1000mm
Max. Grinding Diameter:300mm
Weight (KG):1600
Power (kW):5.5


Details
Spare Parts
Inquiry

Electronic wet electric professional machine diamond wheel toothpick blade grinder knife sharpener system
1.Available with grinding lengths ranging from 100 mm to 1000 mm, or longer for special grinding purposes.
2.It features a heavy-duty reinforced machine base which gives the maximum stability.
3.3 axis cnc controls the carriage movement during the various stages of the working cycle.
4.Suitable for a broad range of industrial serrated toothed knives grinding , such as packing machine  knife blade, package machine knife blade, tissue machine cutting knife blade, paper cutter knife blade, leather, cloth cutting knife blade which the straight knife blade with serrated tooth.
6.Grinding motor 2.2kW (3HP)
7.Variable carriage speed from 1 to 30 m/min with carriage run adjustment
8.Automatic grinding wheel downfeed
9.Programmable work cycles: roughing, finishing, spark-out;
10. Separate coolant collection tank fitted with 90W motor pump

11. High suction magnetic table.
Model MF1000
Precision 0.01-0.03mm
Speed 2800rpm
Max. Grinding Length 1000mm
Max. Grinding Diameter 300mm
Power 5.5kw
Size 3200*1200*1980mm
Weight 1600kg

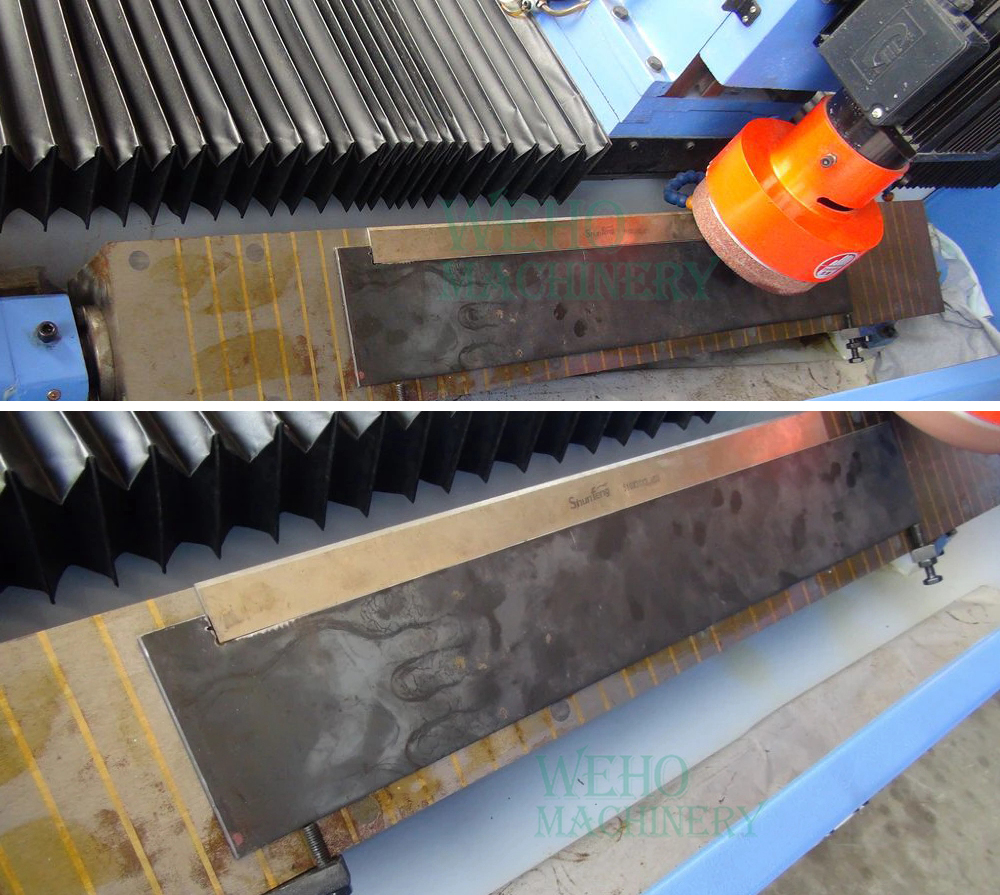

 Magnetic table hold serrated toothed knives blade on magnetic table
Electronic wet electric professional machine diamond wheel toothpick blade grinder knife sharpener system

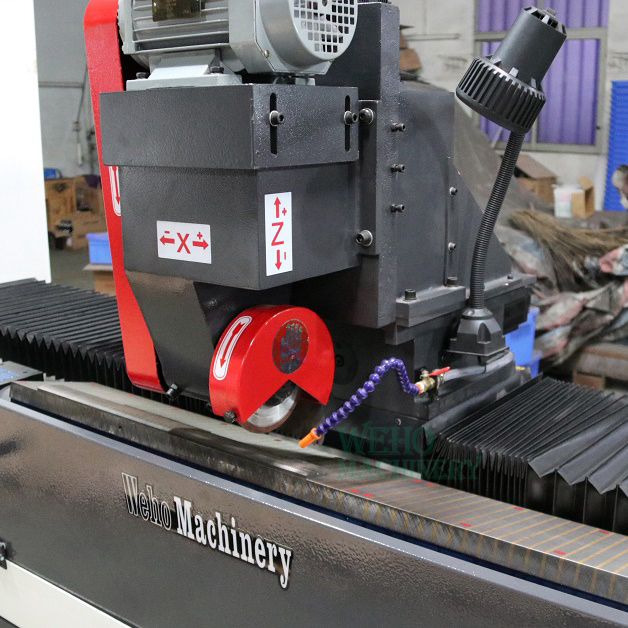

Linear guide rail with sliding block is optional, the grinding head moves more stable and precise. Serrated toothed knives blade in production
Grinding wheel of the machine

Big knife blade or small blade are available



[]
