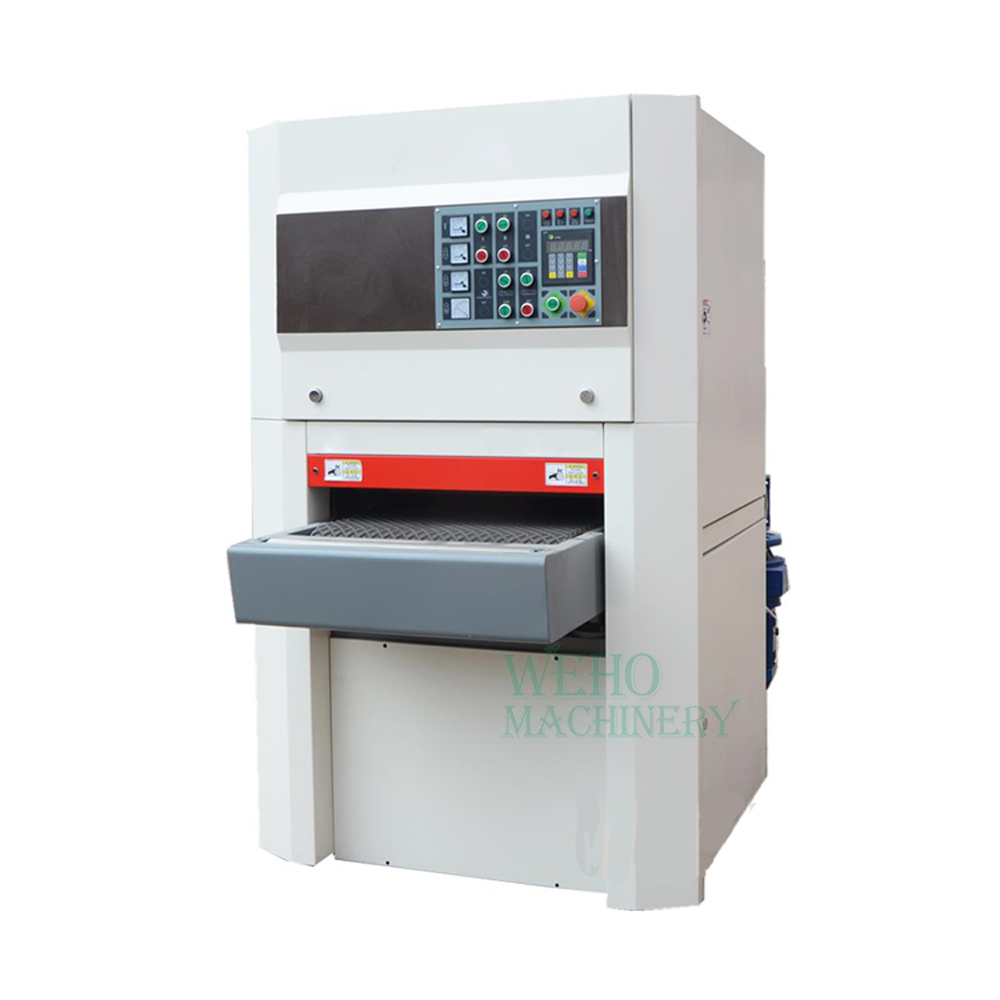

Factory direct sale woodworking wide belt sander machine
Factory direct sale woodworking wide belt sander machine

Factory direct sale woodworking wide belt sander machine


Model:MW630
Max sanding width:630mm
Working height:2-110mm
Sanding belt size:1900*650mm
Sanding belt speed:13m/sec


Details
Spare Parts
Inquiry

This machine tool is mainly used for the fixed thickness processing of solid wood plates, multi-layer boards, joinery boards, wooden doors and other products, with a large amount of sanding and high working efficiency.
Model MW630
QIY of sanding belt 2
Max sanding width 630mm
Working height 2-110mm
First sand frame motor power 11kw
Second sand frame motor power 7.5kw
Sanding belt size 1900×650mm
Sanding belt speed 13m/s
Feed speed(Variable) 5-20m/sec

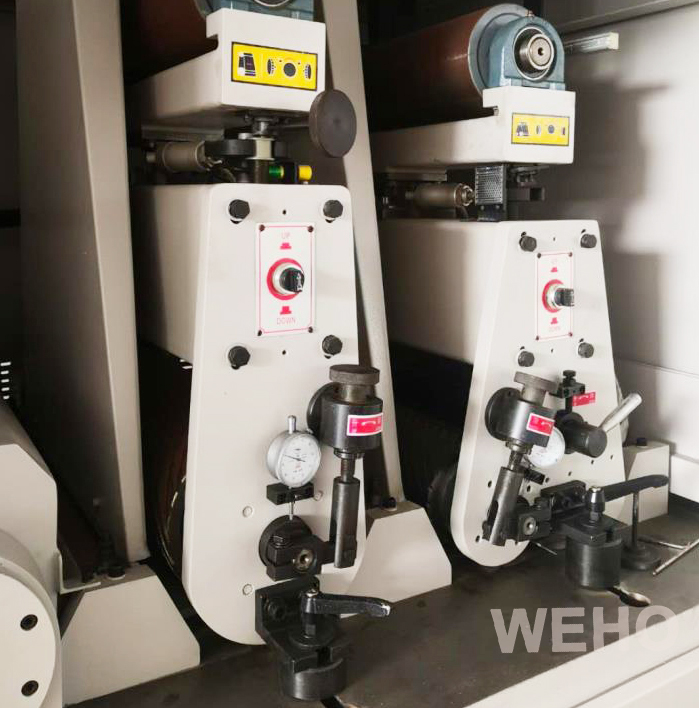

The diameter of the front sanding frame of the  belt sander is 190mm,and the steel roller Rear sand rack combination head, rubber roller plus polishing pad, rubber roller diameter 190mm.

Drive system: Ball screw transmission,high precision and more durable in use.

Feeding belt automatic entering , Protector for sanding belt breaking down and loosen. Advanced balancing testing fixed thick rolls, steel rolls and pulleys, makes the machine run more smoothly.

The wood floor sander machine with belt tensioning device, conveyor belt automatic centering device, sand belt deviation deviation stop device, photoelectric deviation deviation device, emergency stop device.

Control system:Servo system drive, high precision.

The wide belt sander conveyor belt material PVC diamond grid. Equipment body processing and tempering failure treatment, roller grinding and dynamic and static balance treatment. Granite grinding on conveyor bed platform.


WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

[]
