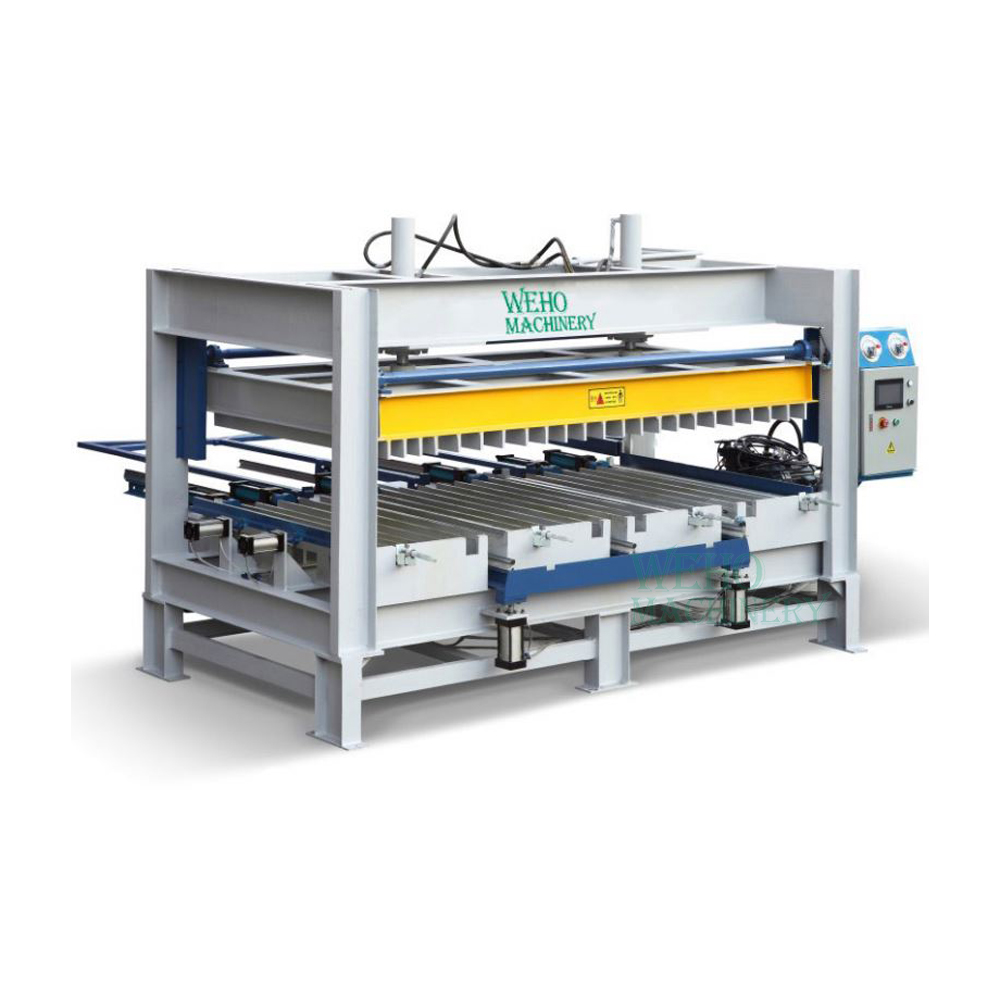

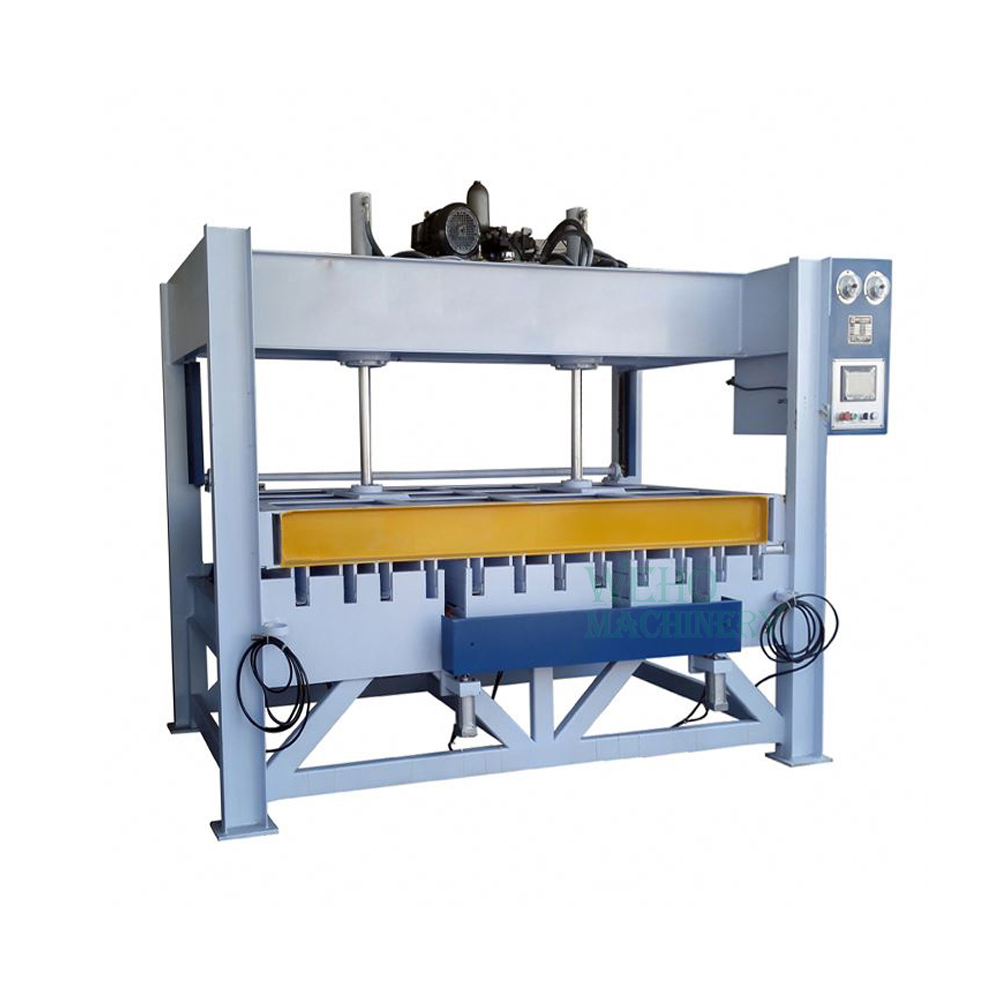

Fast face gluing board hydraulic press board splicing joint machine | Board Splicing Machine
Fast face gluing board hydraulic press board splicing joint machine | Board Splicing Machine

Fast face gluing board hydraulic press board splicing joint machine | Board Splicing Machine


Model:MH3248B
Voltage:380V/50HZ
Weight (KG):2000 KG
Power (kW):4
Dimension(L*W*H):3100*1900*1200
Max platen opening:1250*2500


Details
Spare Parts
Inquiry
It is mainly used for solid wood jointing board. It is the splicing of small pieces of wood or blocks of wood into boards, which not only improves the quality of the boards, improves the physical properties of the original boards, but also expands the scope of use board use.
Fast face gluing board hydraulic press board splicing joint machine is designed for automati board jointing. It can be cold or hot. The machine is connected to an automatic conveyor, can be operated by one person. It realizes functions such as automatic glue automatic loading, and automatic material receiving, which saves labor, improves efficiency, and reduces production costs.
Modle
MH3248B
Working size
1250*2500mm
Main Pressure
10T
Side pressure
15T
Power
4kw
Lift Speed
1.5m/m
Opening height
400mm
Weight
600kg
Overall size
3500*3000*2400mm


The overall material of the fuselage is large and heavy, the workmanship is fine, and the user-friendly design is simple, safe and efficient.press joint machine Suitable for splicing of laminated timber, finger joint board, solid wood furniture, doors and windows, etc.
Cold press board jointer is an energy-saving, cost-effective automation equipment, which consumes less electricity than high-frequency board jointing machine, has higher flatness than pinwheel board jointer, uses advanced PLC control systems for electrical appliances, it has high security.

The flatness error of the board splicing machine is small, and various types of wood with different thickness and width can be spliced.The thinnest can be 10mm thin plate, the thickest can be 500mm thick plate, if you need more thicker, you can customize the weight to 600mm.
Board splicing machinefeatures:
1. board joint machine has a high degree of automation and saves manpower
2. Fast jigsaw speed and super flatness
3. Save wood material
4. Easy to operate and simple to maintain
5. Reduce production costs.



WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
