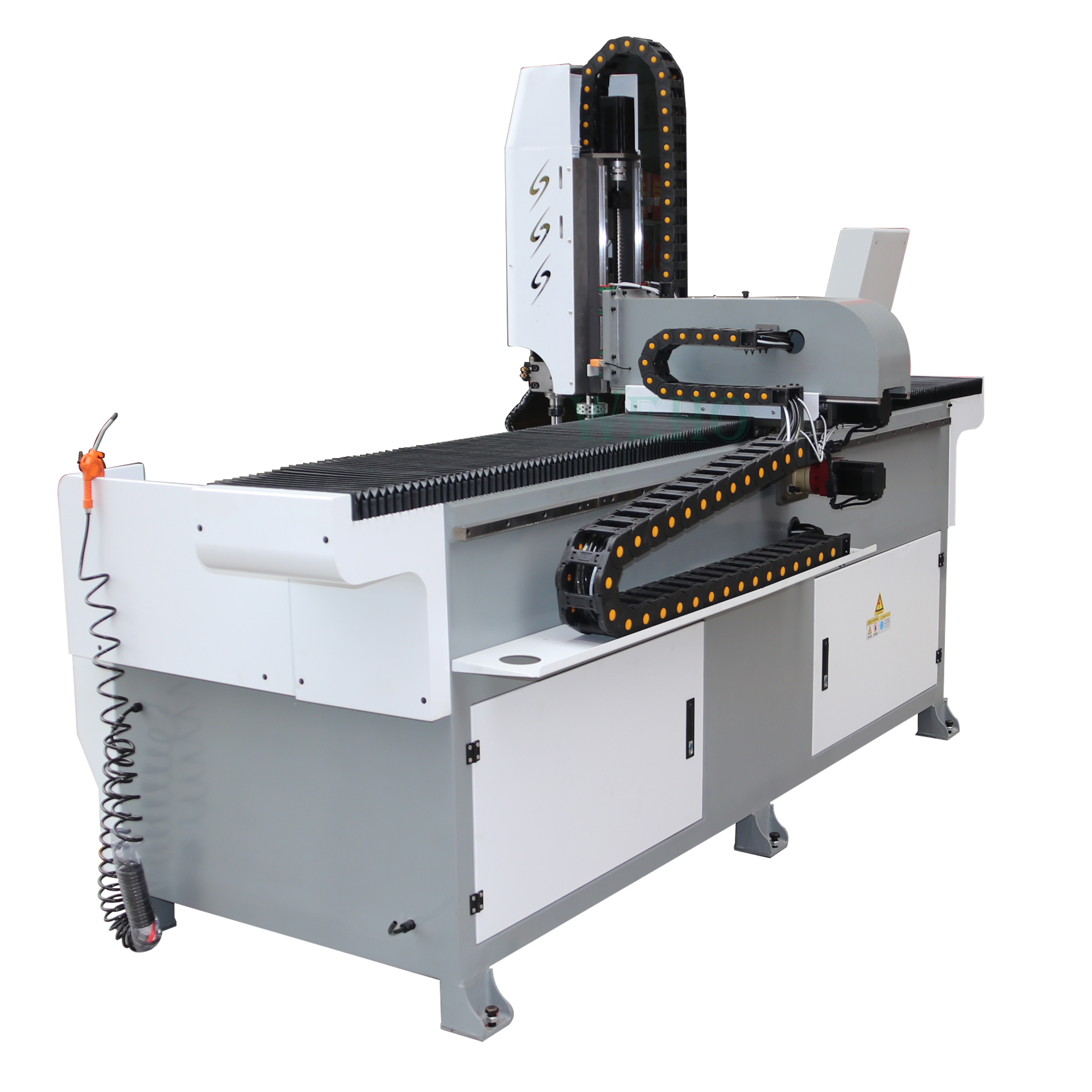

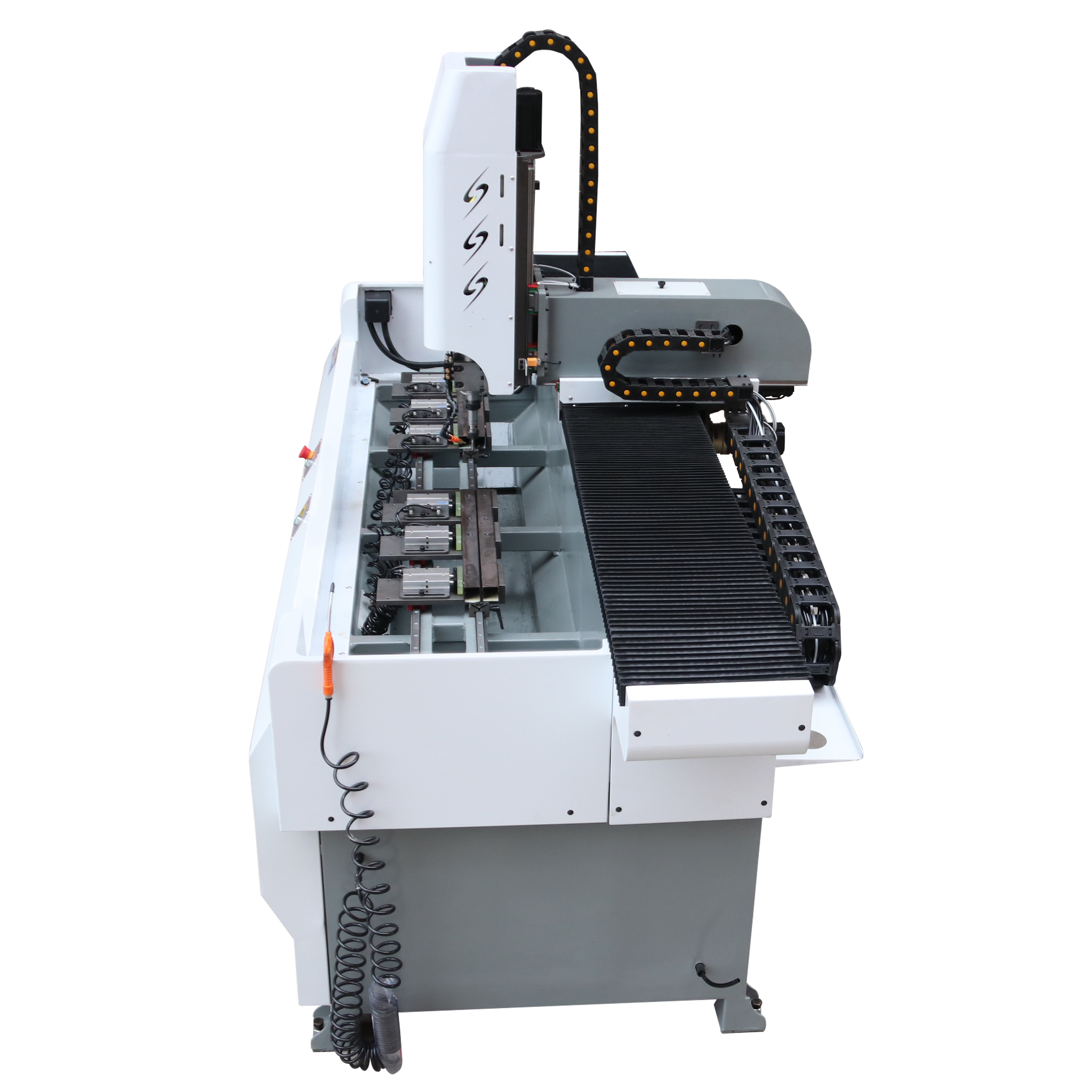

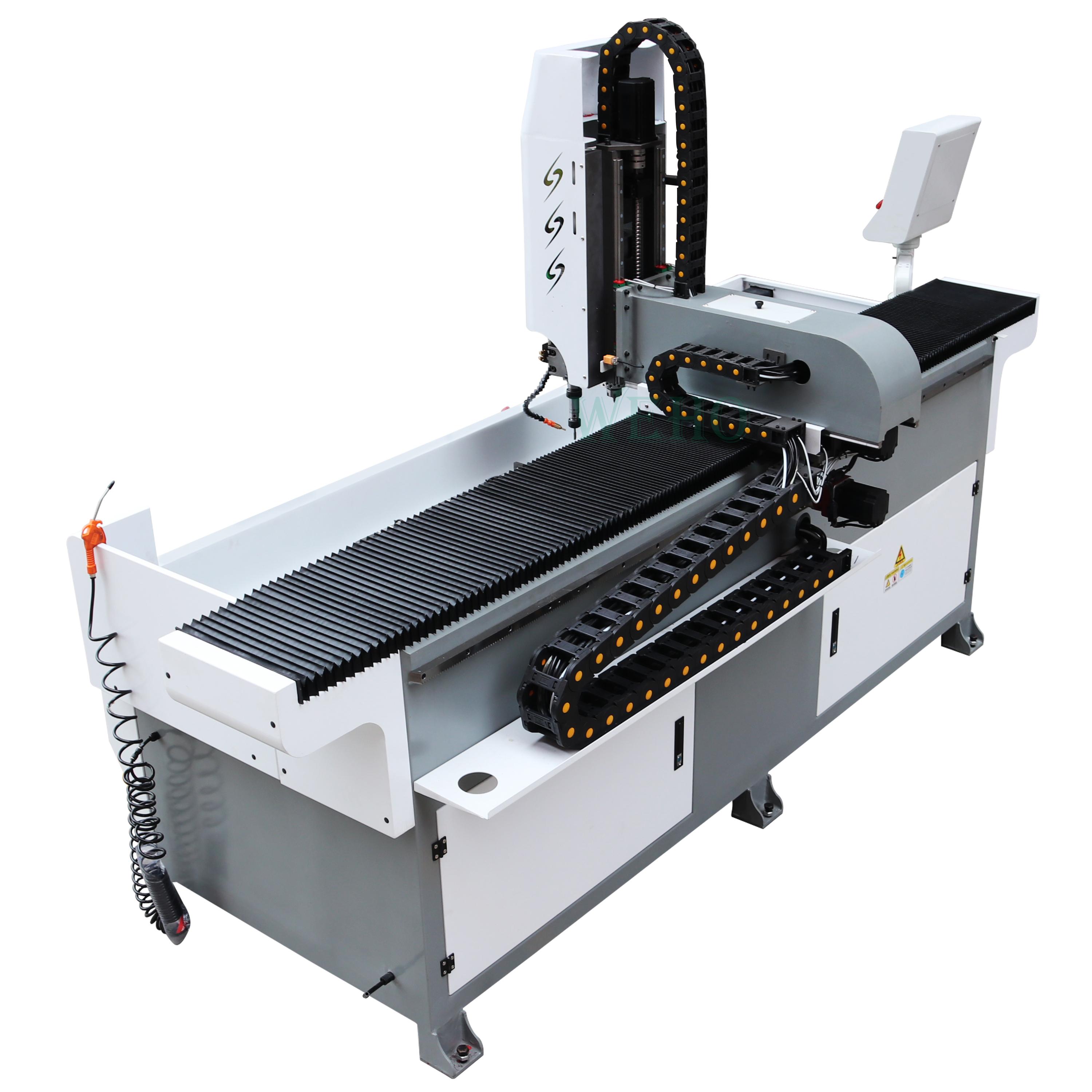

Form drilling machine has thermal flow drill friction stir drilling holes by heat to get excess material forms a sleeve
Form drilling machine has thermal flow drill friction stir drilling holes by heat to get excess material forms a sleeve

Form drilling machine has thermal flow drill friction stir drilling holes by heat to get excess material forms a sleeve

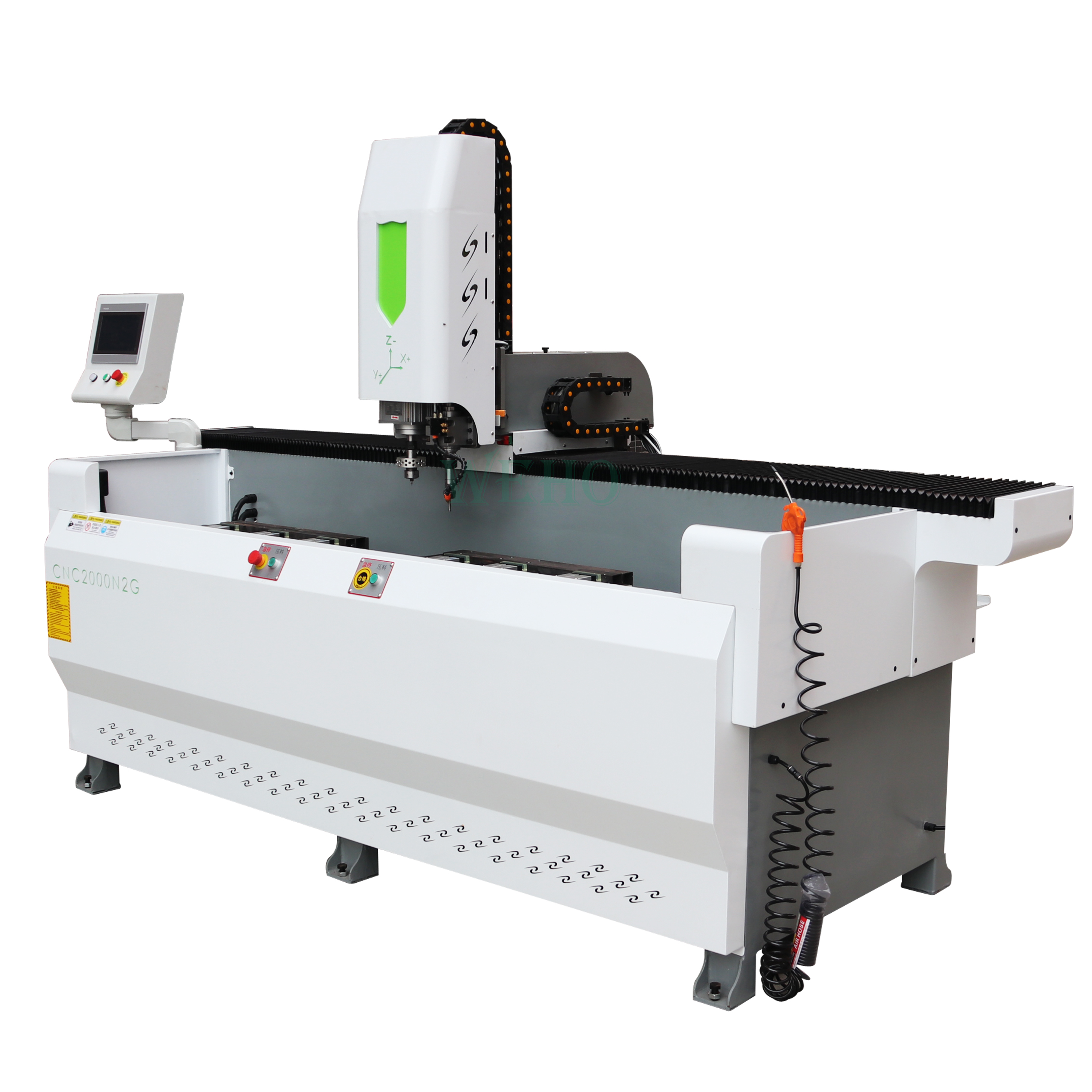

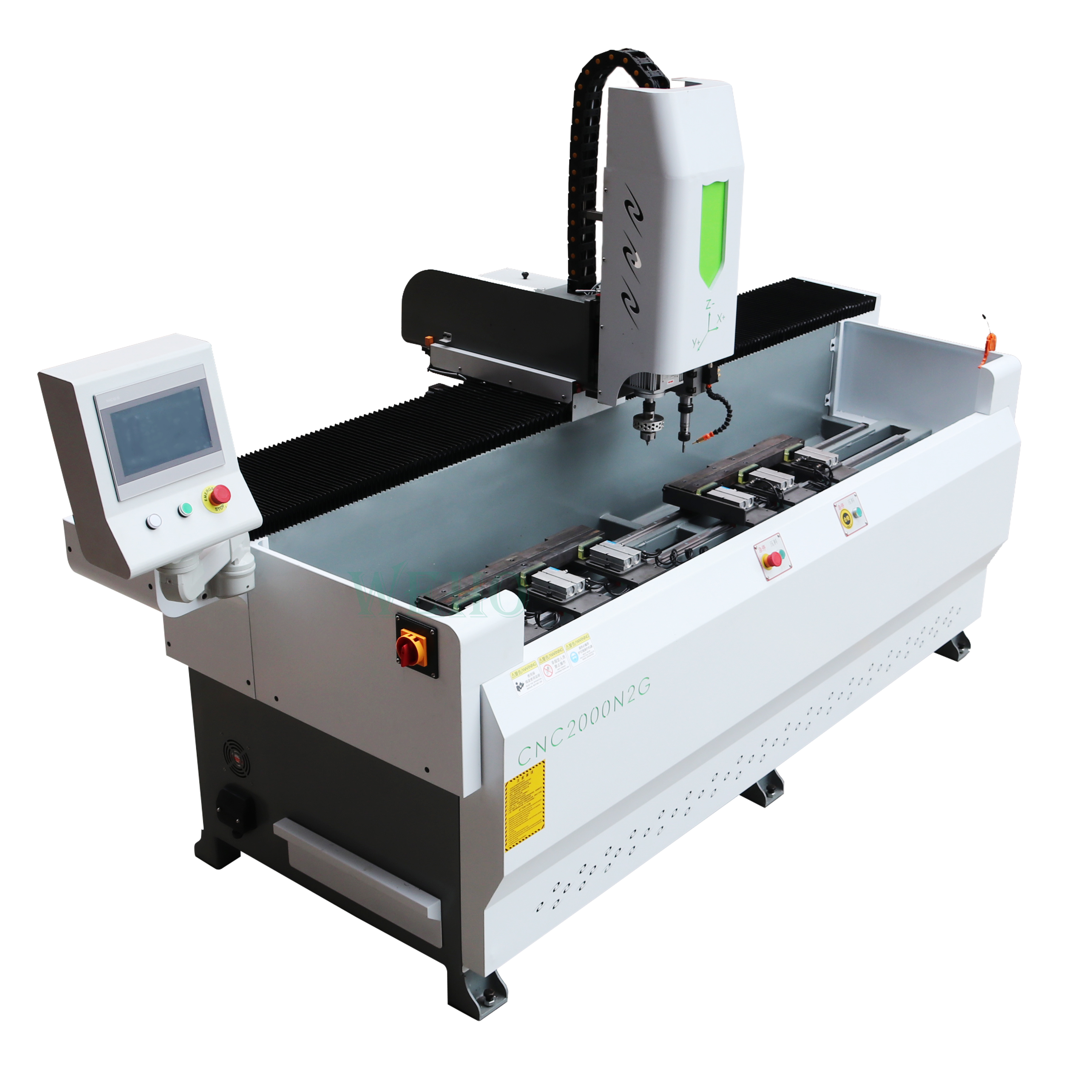

Model: CNC2000N2G
Effective machining range (X/Y/Z): (800/1500/2000/3000)/150/100
X/Y/Z stroke: (800/1500/2000/3000)/200/100
X/Y/Z-axis servo: 0.75KW
Total power: 6KW

Spare Parts

Model 800/1500/2000/3000
Effective machining range (X/Y/Z) (800/1500/2000/3000)/150/100
 X/Y/Z stroke  (800/1500/2000/3000)/200/100
 Total power  6KW
 Hot melt drill motor power  3KW
 Tapping servo  0.75KW
 X/Y/Z-axis servo  0.75KW
 Size  (L1800-4400)*W1400*H2150mm
  Product parts configuration
 Cylinder, air pressure regulation, solenoid valve  Yadeke/Delixi
Linear guide rail/screw Taiwan Shangyin/TBI
Rack and pinion Faston
Planetary reducer Faston
Servo motor/controller Ichikawa
Control system Display and control system
Induction switch Senrui Ding
High speed motor Tianyang
Low voltage electrical appliances, power supply China Delixi/Schneider

Friction drilling machine, making holes in metal in which the material is pushed out of the way with the aid of heat from friction.

The process is also called thermal drilling, flow drilling, form drilling machine, or friction stir drilling machine it is commonly used on bicycle frames, heat exchangers, and to create holes for thin wall of metal.

Flowdrill friction drill machine locally creates three times the material thickness, which can subsequently be tapped or use a thread forming screw.

Friction drilling machine allows customers to eliminate the use of standard fasteners such as rivet nuts and weld nuts.


  • Very quick process (2 to 6 seconds)
  • The process reshapes all material so that no material is lost. The excess material forms a sleeve that is about 3 times longer than the original thickness of the target material, which makes it possible to make very strong bolt joints in thin material.
  • It is a clean process because no litter (particles) is produced.
  • No access needed to back of workpiece, as with press-in or self-clinching hardware.
  • More reliable and faster than rivet nuts (an alternative that also does not require access to back of workpiece).
  • Works in almost all kinds of metal.
  • Internal screw threads cut with taps.


  1. Increased material thickness
  2. Suitable for high loaded threads
  3. High process reliability
  4. Fast production cycle time
  5. Long tool lifetime
  6. No waste, no single fasteners, recyclable
  7. Typical applications
  8. Threaded connection
  9. O-ring/sealing surface
  10. Bearing sleeve/hinge
  11. Brazing joint
