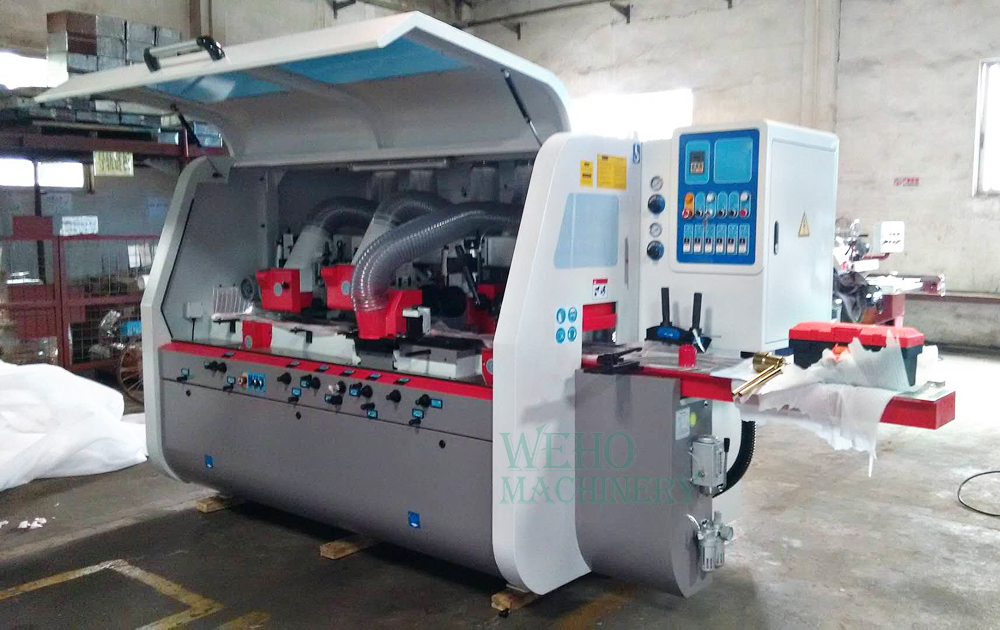

Four cutter planer industrial wood molding machine
Four cutter planer industrial wood molding machine

Four cutter planer industrial wood molding machine


Model:M623
Working width:25-230mm
Working thickness:8-100mm
Working table length:1970mm
Feeding speed:6-36
Power:39.55KW



Details
Spare Parts
Inquiry

12-230 mm width moulding capacity(different model with different working size). Full coverage sound cover/safety enclosure is optional. Long infeed table and fence for straightening. Precision sealed long life bearing. Industrial full power motor for maximum cutting capacity. High quality famous brand electric parts.
Produce name Four cutter planer industrial wood molding machine
Model M623
Working width 25-230mm
Working thickness 8-100mm
Working table length 1970mm
Feeding speed 6-36
Mian spindle diameter (mm) Φ 40
Main spindle revolution (r/min) 6500
Air pressure (Mpa) 0.6
1st Lower Shaft 5.5KW/7.5HP
Right vertical spindle 5.5kw/7.5HP
Left vertical spindle 5.5kw/7.5HP
1st Upper Shaft 7.5kw/10HP
2nd Upper Shaft 5.5KW/7.5HP
2nd Lower Shaft 5.5kw/7.5HP
Feeding beam lifting 0.55kw/0.75HP
Feeding motor 4kw/5.5HP
Total power  39.55kw/54.3HP
1st Lower Shaft Φ 125
Right Vertical spindle Φ 125-Φ 180
Left vertical spindle Φ 125-Φ 180
1st Upper Shaft Φ 125-Φ 180
2nd Upper Shaft Φ 125-Φ 180
2nd Lower Shaft Φ 125-Φ 200
Feeding wheel diameter (mm) Φ140
Dust outlet diameter (mm) Φ140

Whole body adapt casting iron, stable performance and high rigidity.
Fully-enclosed safety cover and door opening protection, low noise, safety and environmental protection.

Main shaft is precision-machined, balanced, and assembled accurately, keep high precision and stable operation even many years using.

Feeding system front and middle and rear use three cylinder press, stable pressure, easy adjustment.
Four sided moulder combines high efficiency with heavy duty operation and comes with a sound reputation for maximum dependability.

Working table surface adopts special materials and special heat treatment, hard chrome plating is thicker than others, wear-resistance, ensure working table long time using.




Our machine control quality from steel machinery, thicker steel ensure machine rotating without vibration. Completed processing ensure machine base not deformated in many years.
