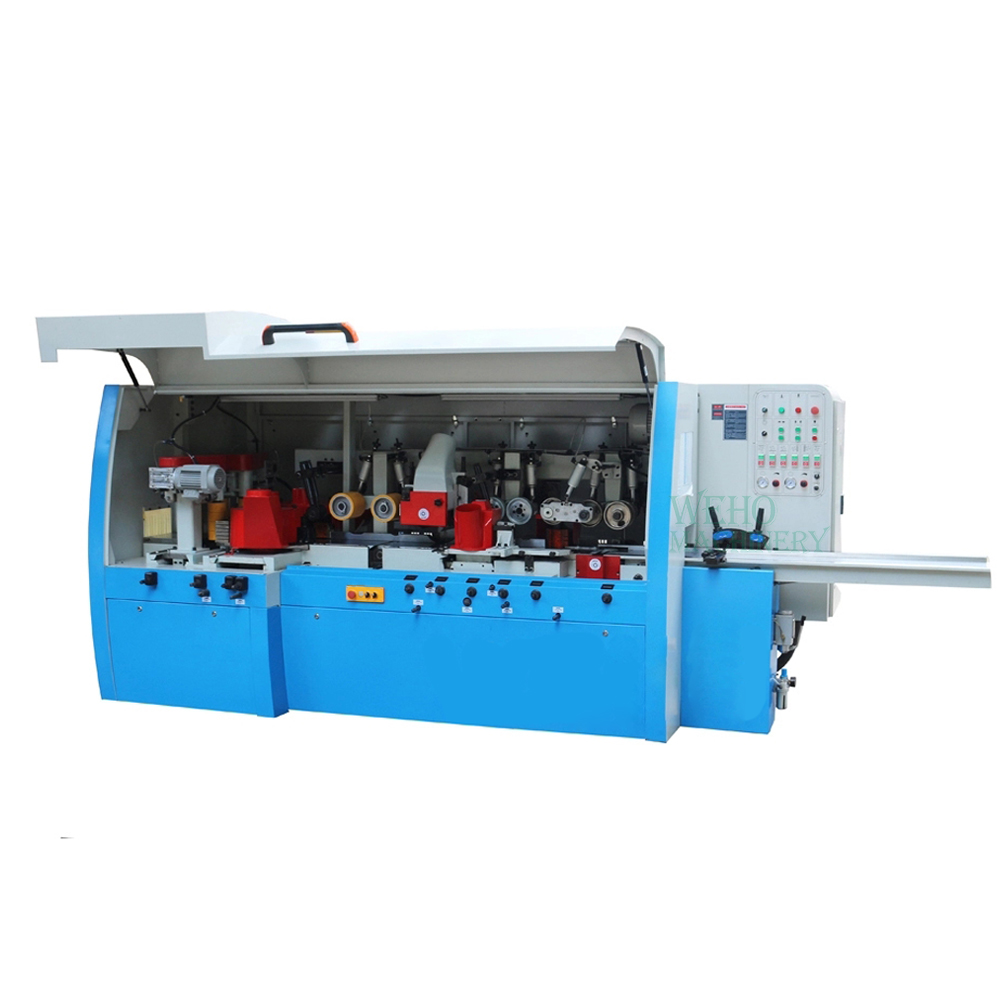

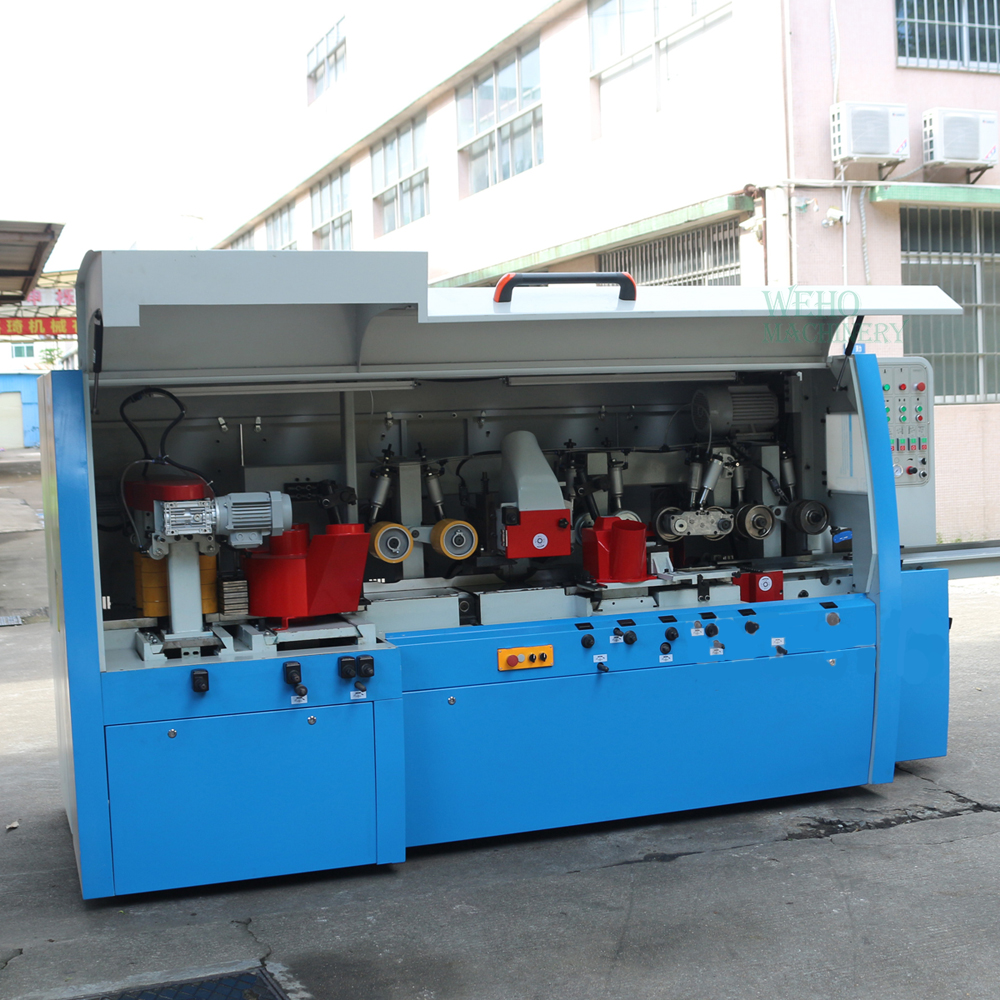

Four sided wood moulder planer machine for sale | Four Sided Planer Machine
Four sided wood moulder planer machine for sale | Four Sided Planer Machine

Four sided wood moulder planer machine for sale | Four Sided Planer Machine


Model:MB621
Working width:25-210mm
Working thickness:8-140mm
Working table length:1970mm
Feeding speed:6-36
Weight (KG):4300 KG
Power (kW):70.5


Details
Spare Parts
Inquiry

12-230 mm width moulding capacity(different model with different working size). Full coverage sound cover/safety enclosure is optional. Long infeed table and fence for straightening.
Produce name
Four side wood moulder planer machine for sale
Model
MB621
Working width
25-210mm
Working thickness
8-140mm
Working table length
1970mm
Feeding speed
6-36
Main spindle diameter
Φ40
Main spindle revolution
6500
Air pressure
0.6
1st Lower Shaft
5.5KW/7.5HP
Right vertical spindle
5.5kw/7.5HP
Left vertical spindle
5.5kw/7.5HP
1st Upper Shaft
7.5kw/10HP
Right saw shaft
18.5kw/25HP
Left saw shaft
18.5kw/25HP
Feeding beam lifting
0.55kw/0.75HP
Feeding motor
5.5kw/7.5HP
Left discharging motor
0.75kw/1HP
Right discharging motor
0.75kw/1HP
Total power
70.5kw/94HP
1st Lower Shaft
Φ125
Right vertial spindle
Φ125-Φ180
Left vertical spindle
Φ125-Φ180
1st Upper shaft
Φ125-Φ180
Right saw arbor
Φ180-Φ300
Left saw arbor
Φ180-Φ300
Saw shaft speed
4500
Saw shaft diameter
Φ50
Feeding wheel diameter
Φ140
Dust outlet diameter
Φ140
Overall dimensions
L4800*W1900*H1940
Suttle
4300

Feeding system front and middle and rear use three cylinder press, stable pressure, easy adjustment.


Precision sealed long life bearing. Industrial full power motor for maximum cutting capacity. High quality famous brand electric parts.

Working table surface adopts special materials and special heat treatment, hard chrome plating is thicker than others, wear-resistance, ensure working table long time using.

Solid heat treated cast iron construction for long life and vibration free performance. Incorporates many outstanding featurres including high speed operation and superior accuracy.
Whole body adapt casting iron, stable performance and high rigidity.

Fully-enclosed safety cover and door opening protection, low noise, safety and environmental protection.
Main shaft is precision-machined, balanced, and assembled accurately, keep high precision and stable operation even many years using.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
