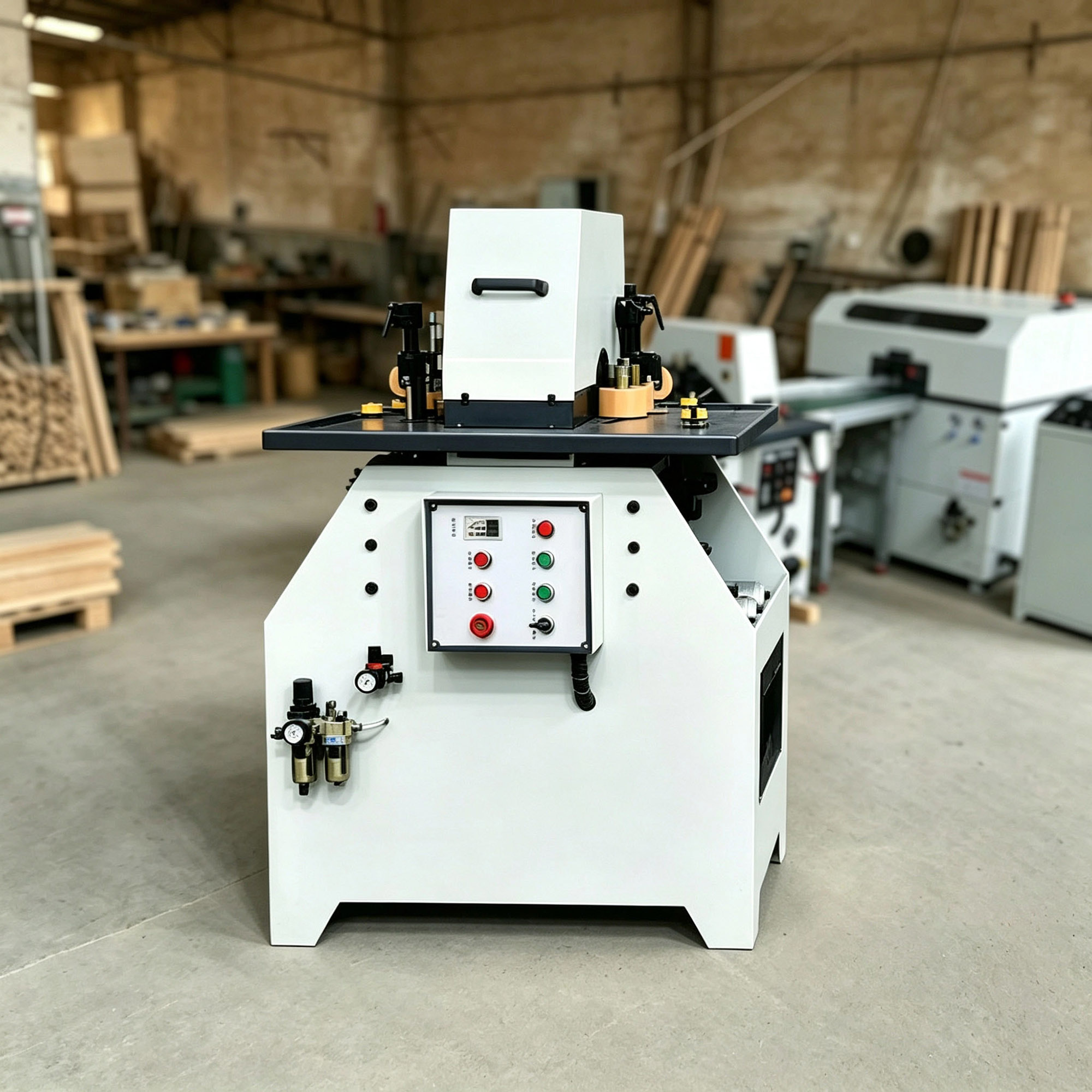

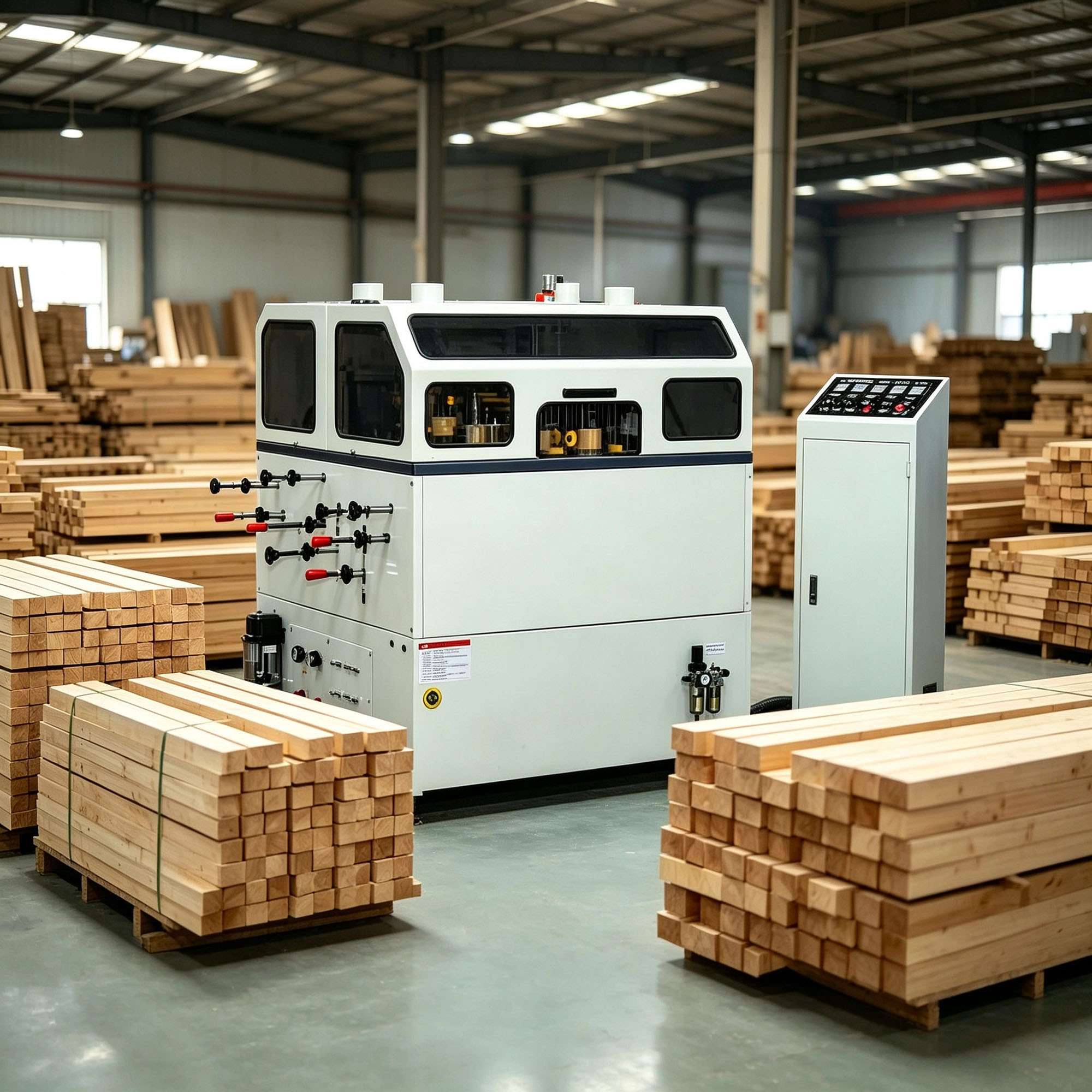

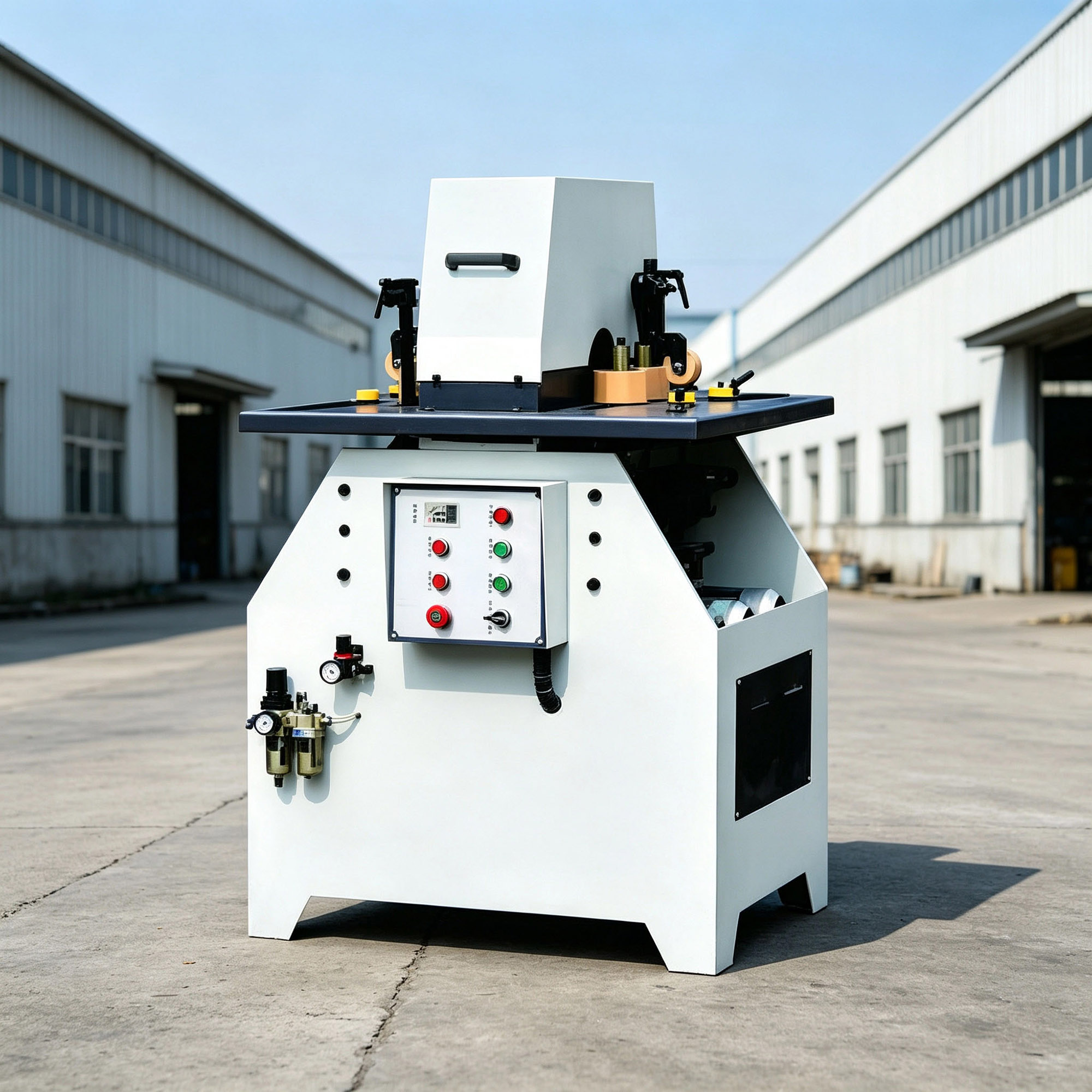

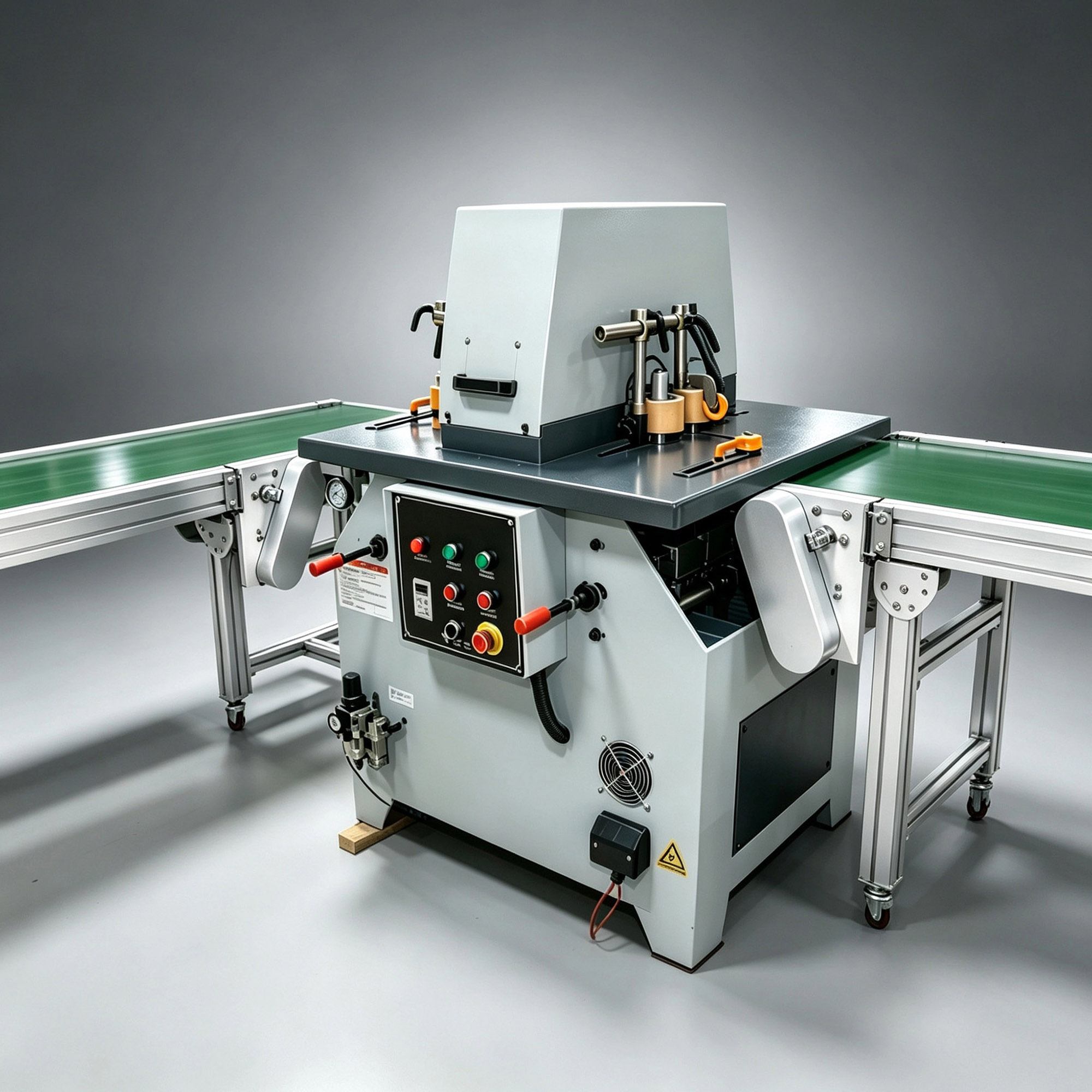

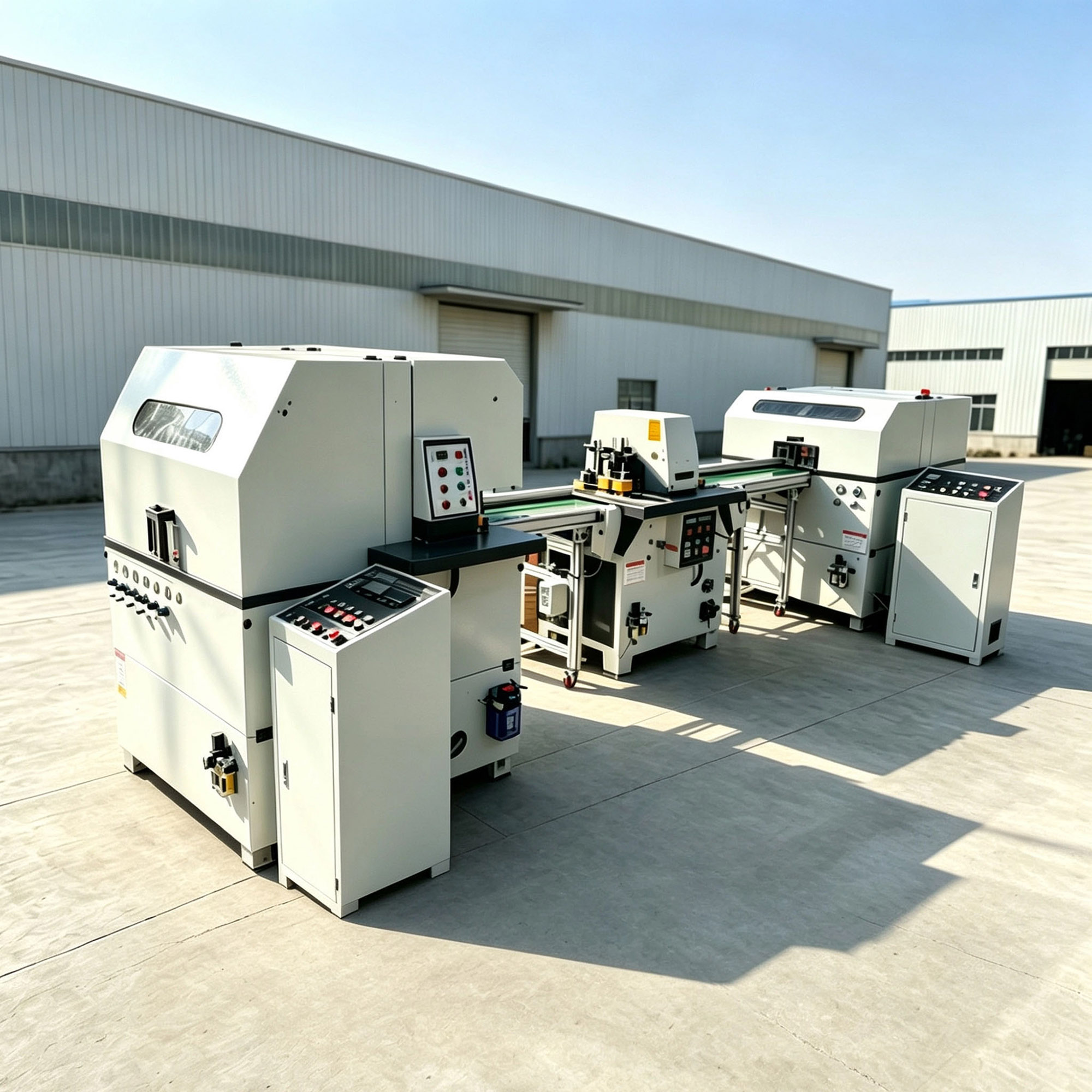

Four Sided Wood Moulder Sander Automatic Sanding Machine Profile Sander for Wood Chair Legs Strips Furniture Door Frame

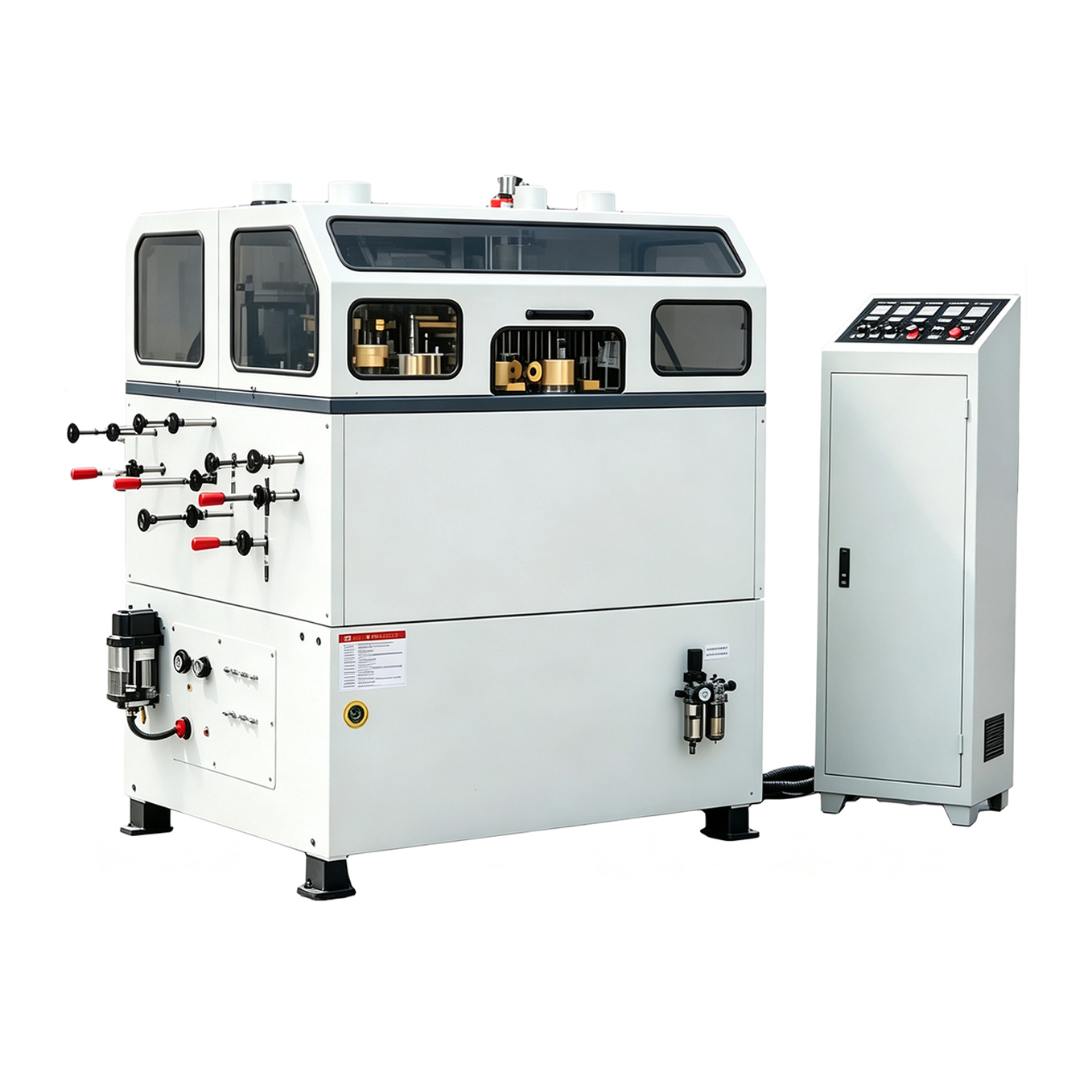

Model: MM-4P
Min sanding length: 300mm
Max sanding width: 100mm
Max sanding height: 100mm
Sand belt specification: 1450 x 170mm
Spindle motor power: 1.8KW x 4
Feeding motor power: 0.25KW x 6
|
Model |
MM-4P |
|
Min sanding length |
300mm |
|
Max sanding width |
100mm |
|
Max sanding height |
100mm |
|
Sand belt specification |
1450 × 170mm |
|
Spindle motor power |
1.8KW × 4 |
|
Feeding motor power |
0.25KW × 6 |
|
Power supply |
380V, 3P, 50Hz |
|
Feeding speed (frequency conversion) |
0~30M/min |
|
Gas source |
0.7mpa |
|
Machine size |
L1700 × W1300 × H1750mm |
|
Machine weight |
About 900kg |

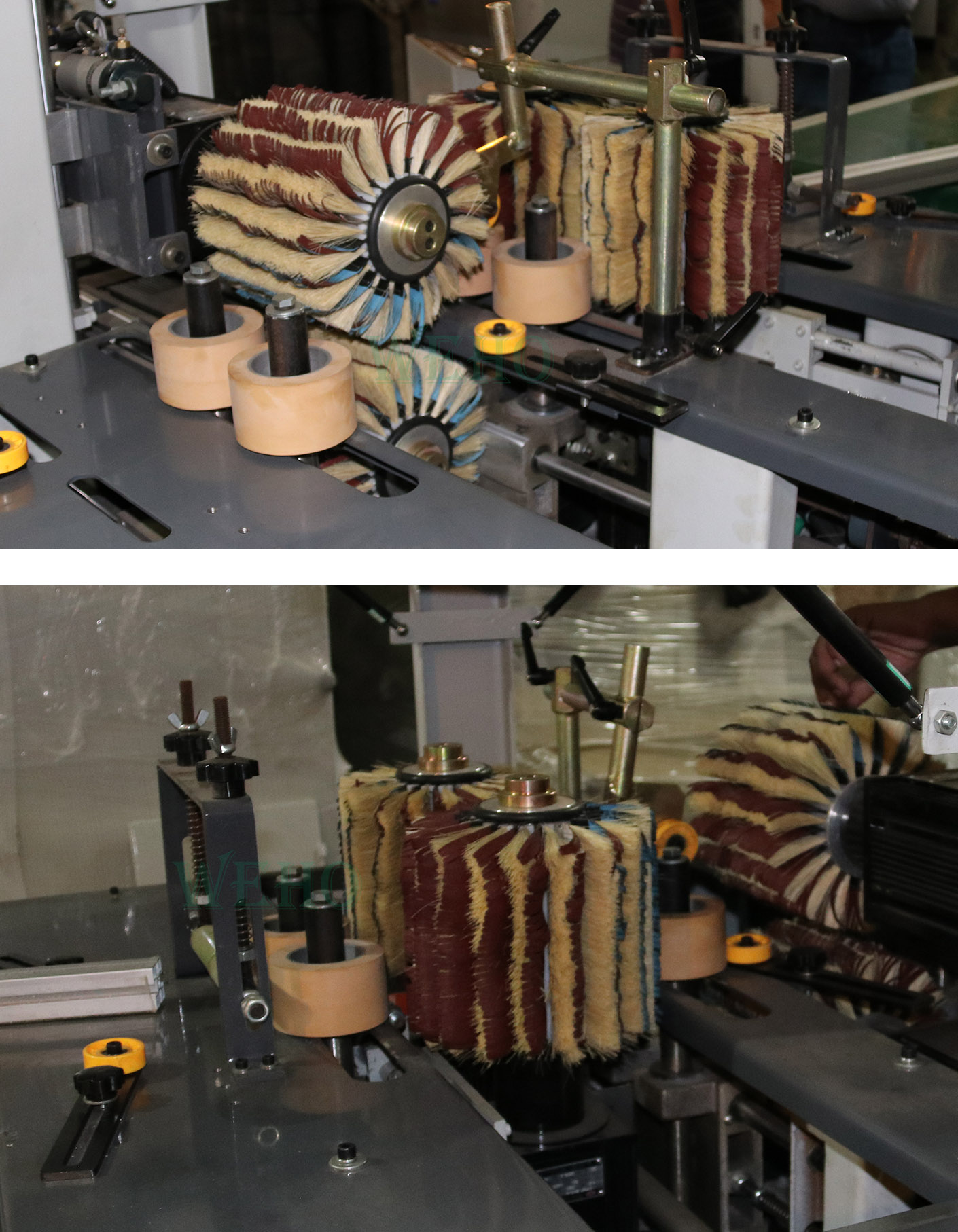

* It sands top, bottom and two side surfaces of timber in one single pass, without repeated manual turning.

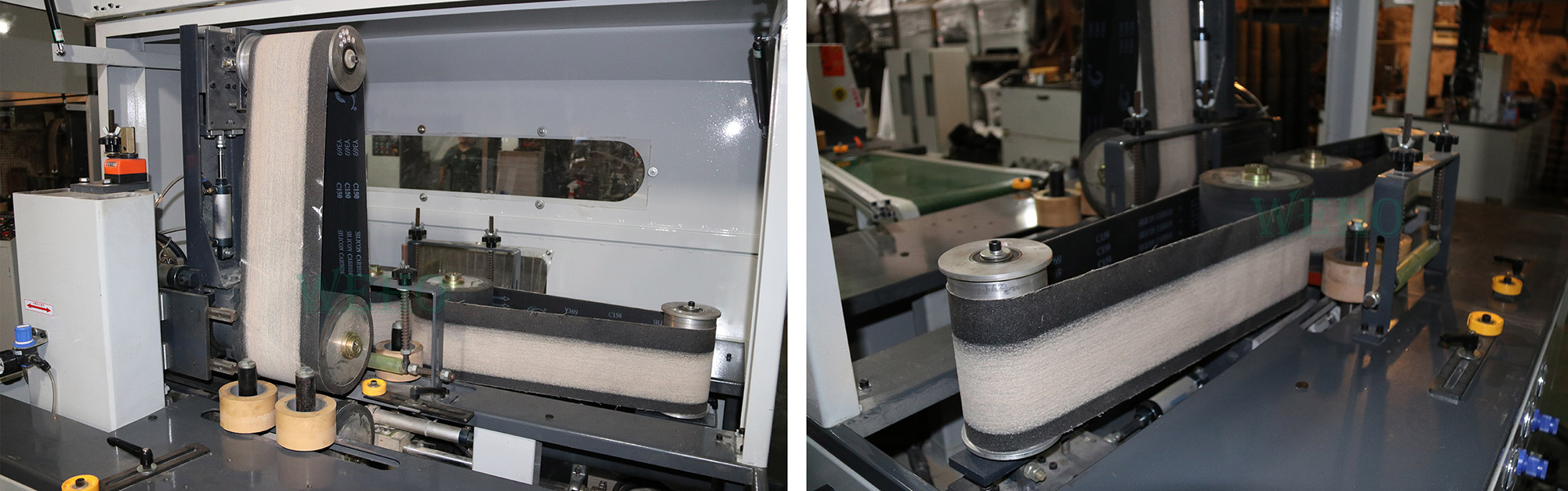

* Adjustable sanding units fit various solid wood mouldings and door frames, adapts to various width and thickness timber.

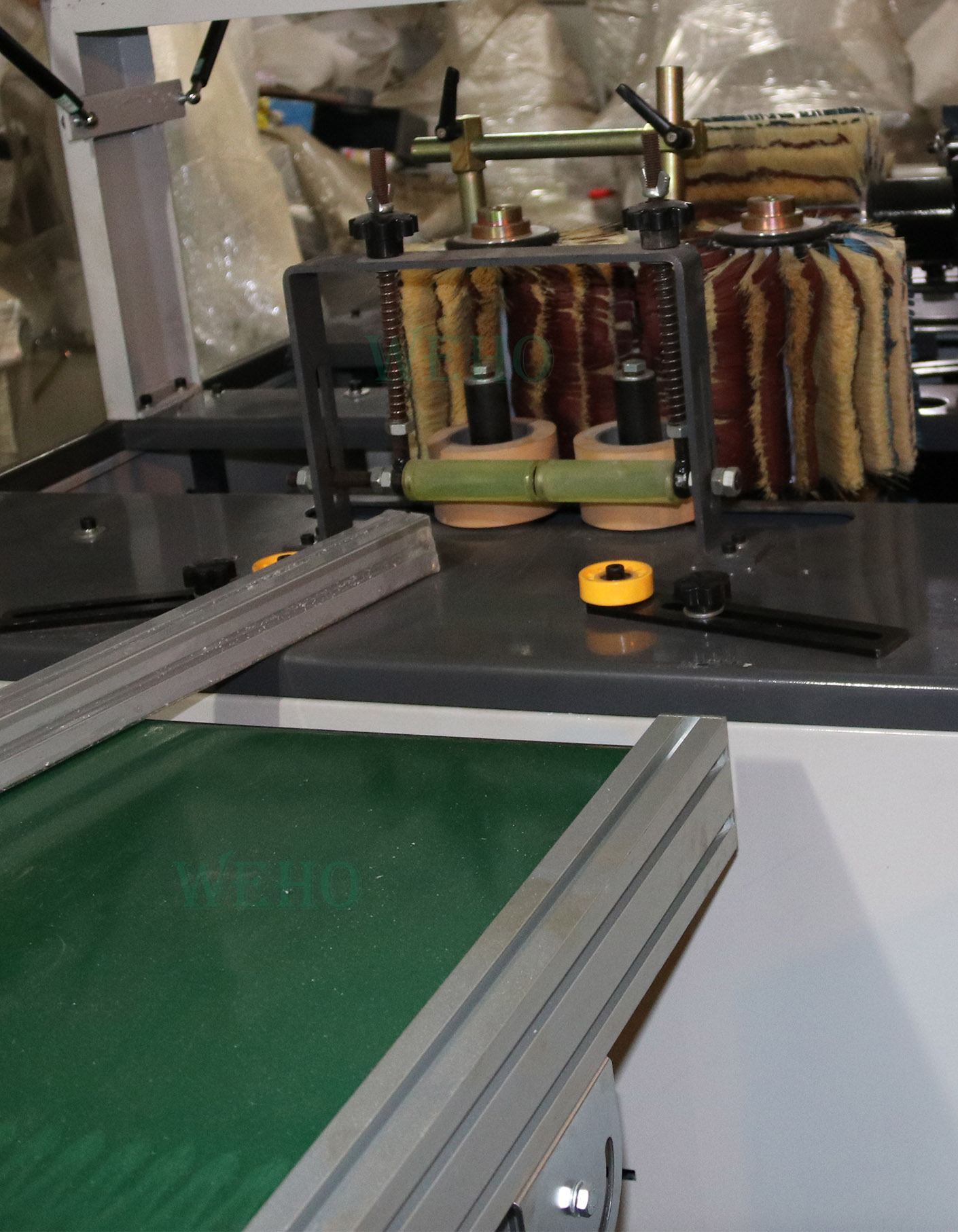

* Continuous feeding greatly raises output and cuts manual polishing work.
* Fine sanding removes rough marks for perfect painting base.
* Continuous feeding greatly raises output and cuts manual polishing work.
PACKAGING & SHIPPING SPECIFICATIONS
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
Weho Machinery Group Established in 2003, has rapidly grown in both size and production volume from its original factory located in Foshan. Weho is at the forefront of woodworking machines manufacturing inChina, and has facilities, resources and capabilities to fulfill customers' requirements in quality, speed and service.
What kind of workpieces is this 4 sided sander suitable for?

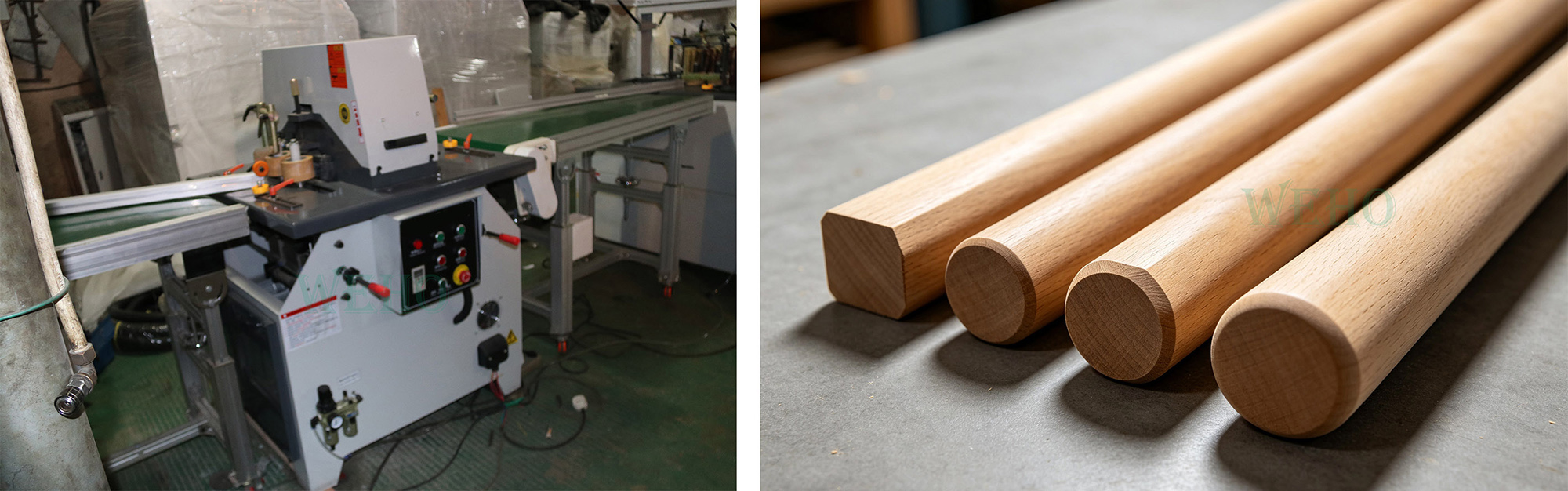

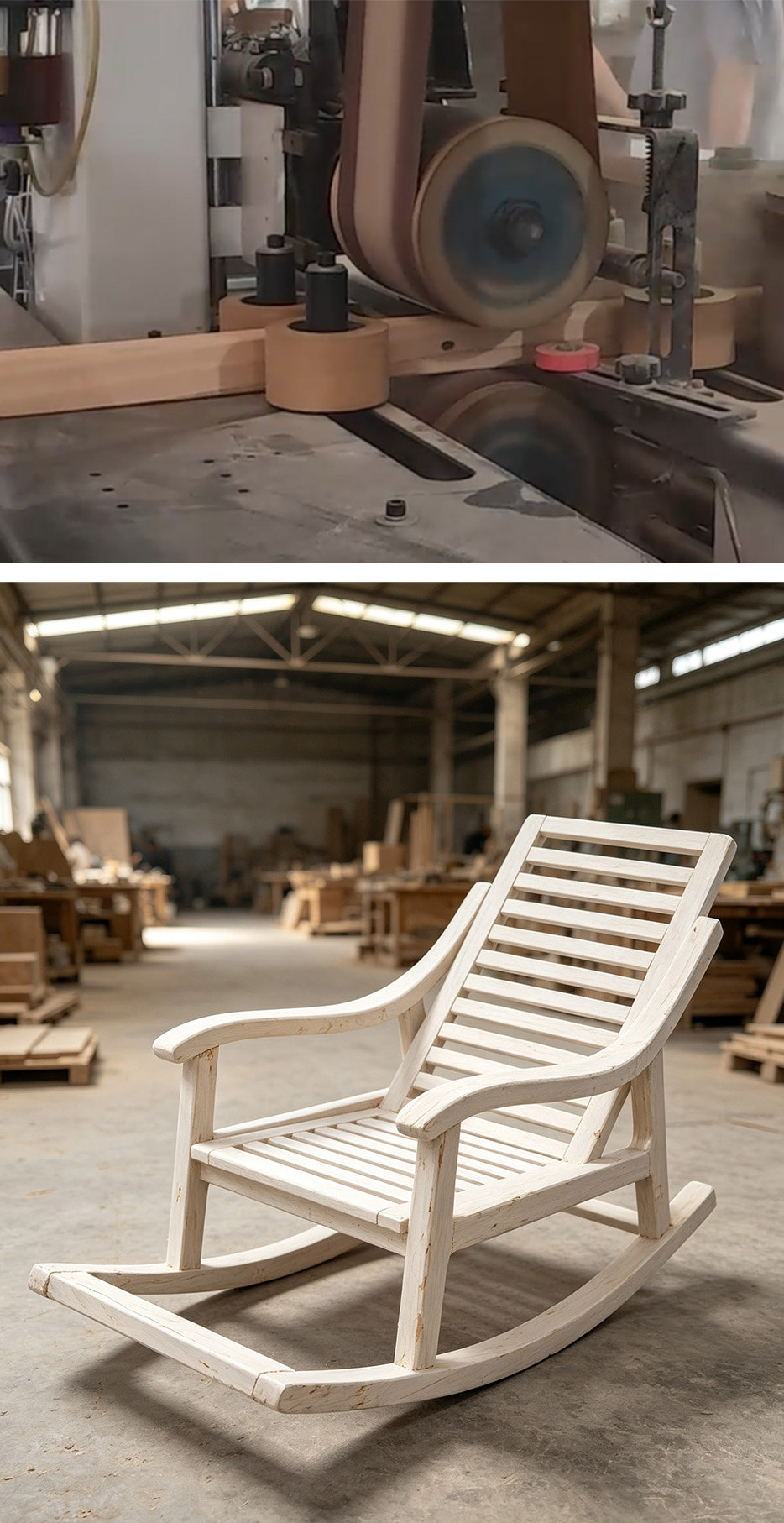

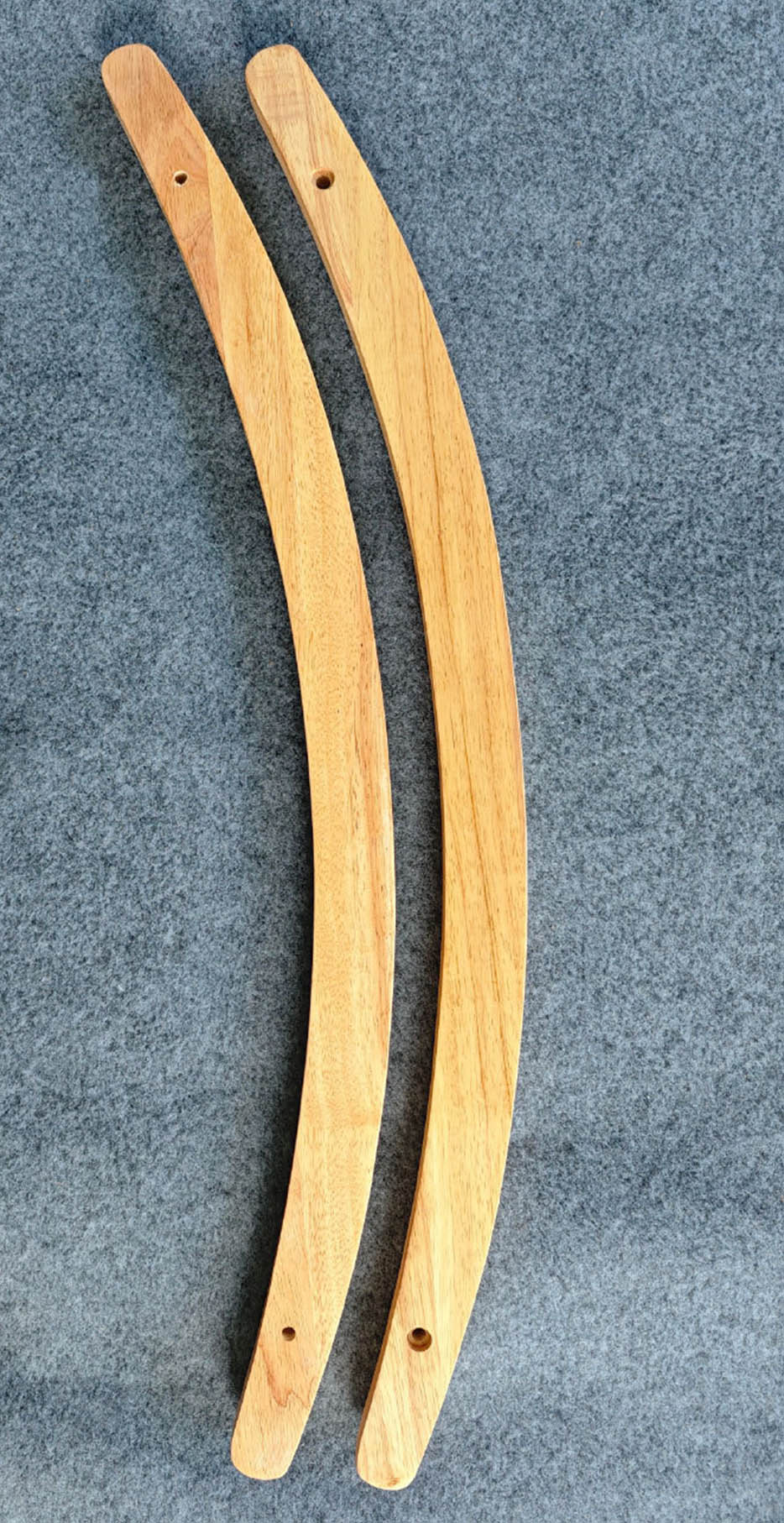

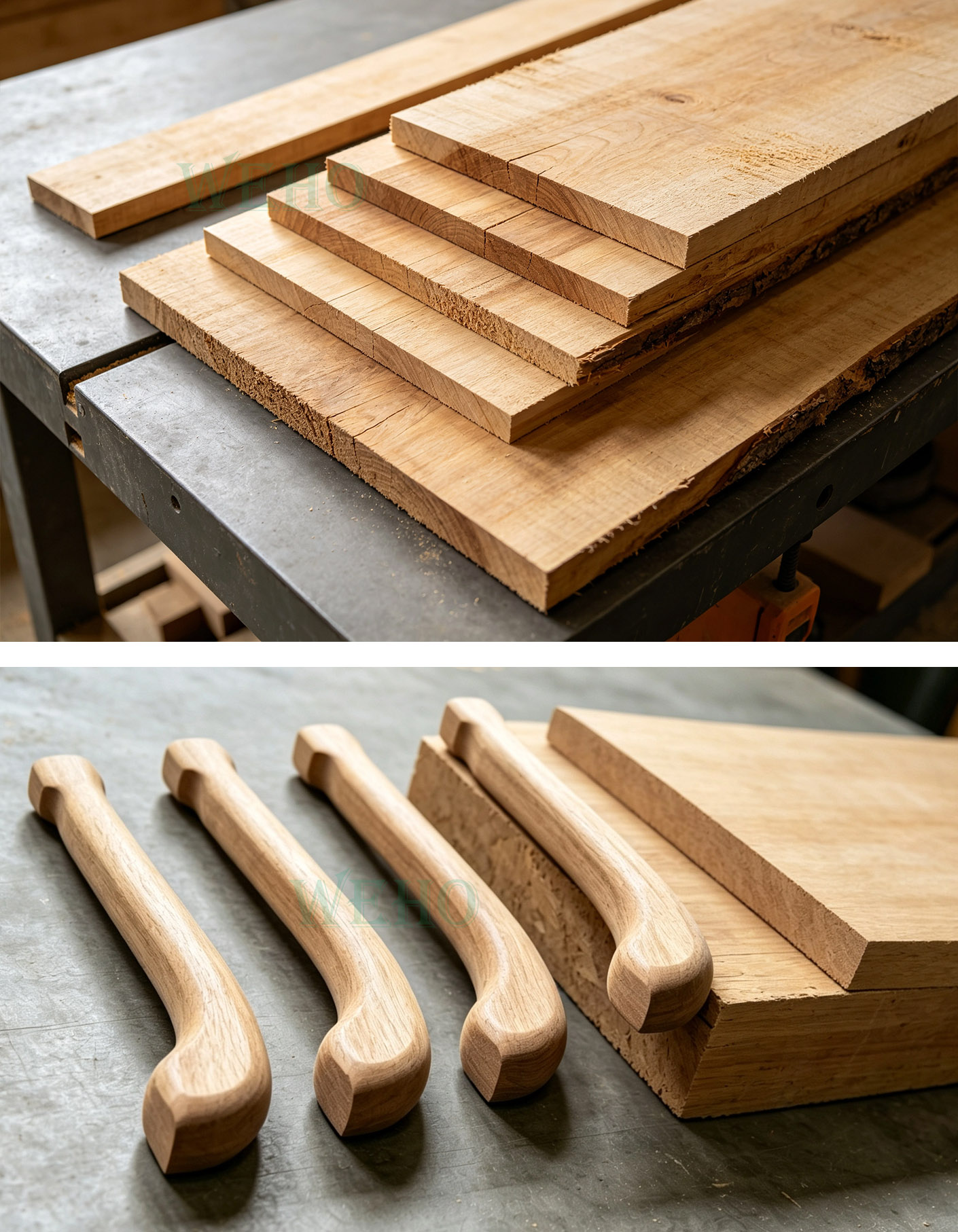

It is specially designed for solid wood chair legs, wood strips, mouldings, door frames and other long shape solid wood profiles. One pass four side sanding for top, bottom and two side faces.
What are the maximum & minimum processing dimensions?
Max sanding width:100mm Max sanding height:100mm Minimum sanding length:300mm Feeding speed adjustable from 0 to 30 m per mine via frequency converter
Is frequent manual workpiece turning needed during processing?
No need. It completes four side sanding in one single feeding pass, no manual flip over required, greatly reduces labor cost.
Is this machine fit for small scale furniture workshop?
Yes. Simple operation, stable performance, high continuous feeding output. Ideal for small to medium furniture factories for chair legs, wood mouldings production.
Can I adjust the sanding pressure for different wood materials?
Yes. All sanding units are adjustable. You can set sanding pressure according to soft wood or hard wood to avoid over sand or insufficient sanding.
What size of sanding belt does this machine use?

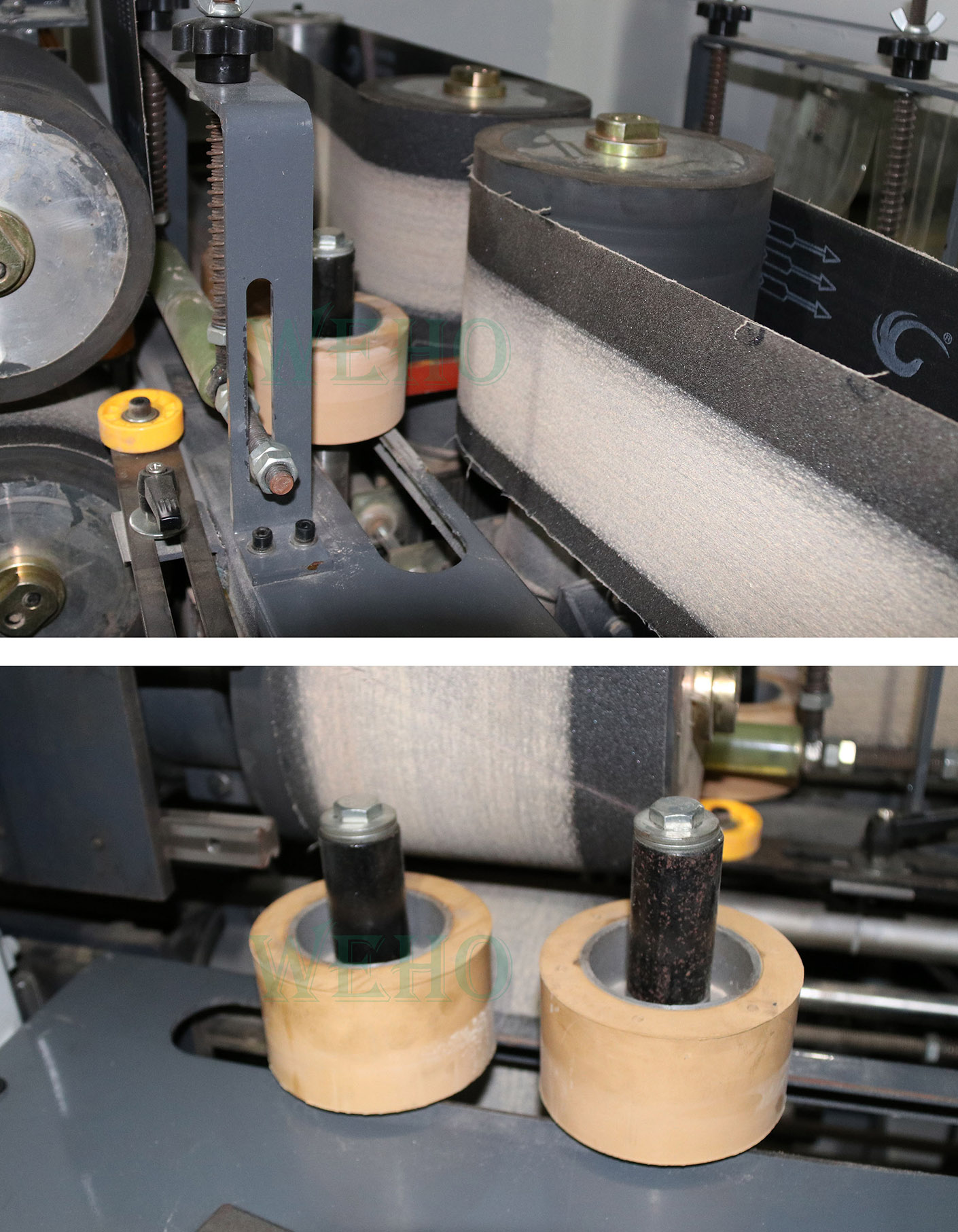

Standard sand belt specification: 1450 x 170mm. Different grit sand belts can be replaced for coarse sanding or fine polishing.
Does it support custom voltage for overseas market?
Yes, we can customize 220 to 415V, 50Hz or 60Hz according to your local factory power condition. Please inform us before order.
How about installation, operation and after sales support?
We provide English operation manual and operation video. Remote online guidance is available. On site engineer service is optional with extra charge.
