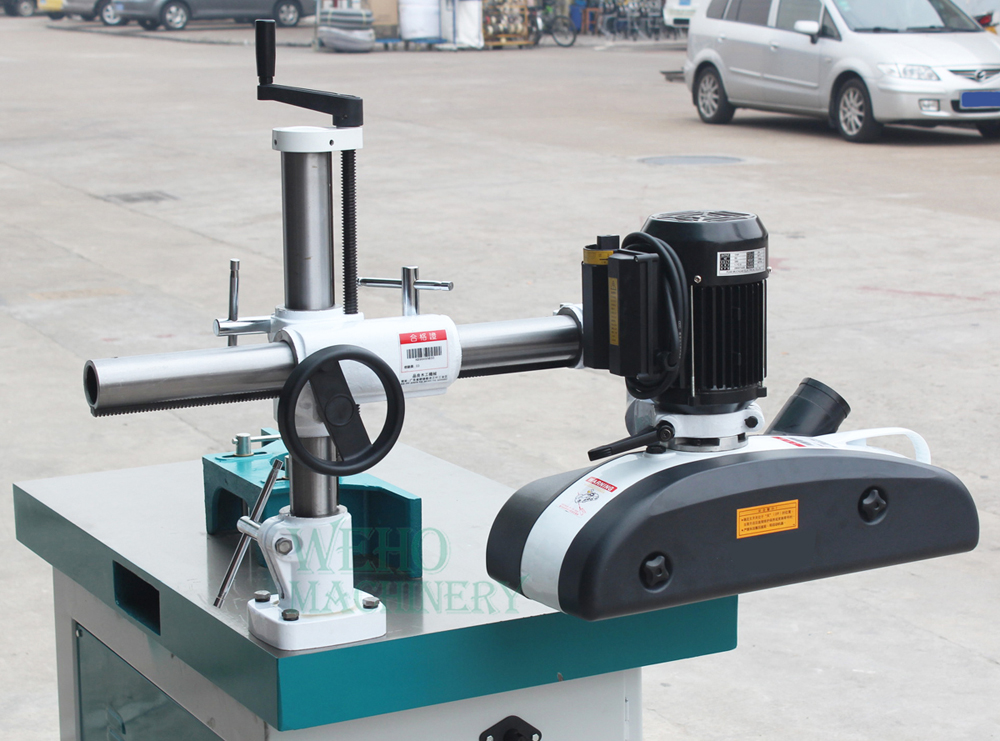

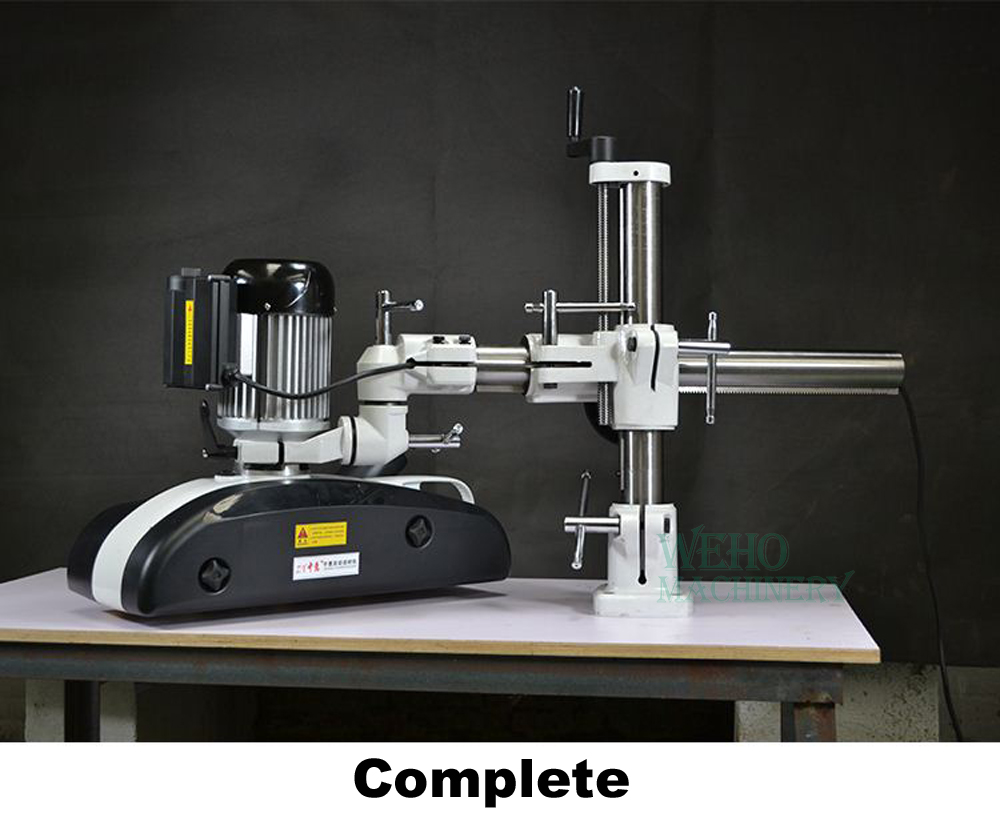

Four wheel eight speed power feeder
Four wheel eight speed power feeder

Four wheel eight speed power feeder


Model:MX48
Working length:300mm
Working thickness:50mm
Working width:1000mm
Power:0.75kw


Details
Spare Parts
Inquiry

Eight adjustable speeds:3.5m/min,5m/min7m/min,10m/min,12.5m/min,16m/min,25m/min,32m/min.
Model MX48
Parameter Working length 300mm
Working thickness 50mm
Working width 1000mm
Horizontal expansion distance 460mm
Up and down distance 250mm
Springing height of feeding wheel 27mm
Feeding wheel size 120*60mm
Power 0.75kw
Power feeder bracket Package specification 740*315*275mm
  Net weight 29.8kg
  Gross weight 31kg
Power feeder Package specification 740*270*530mm
  Net weight 28.15kg
  Gross weight 30.35kg









[]
