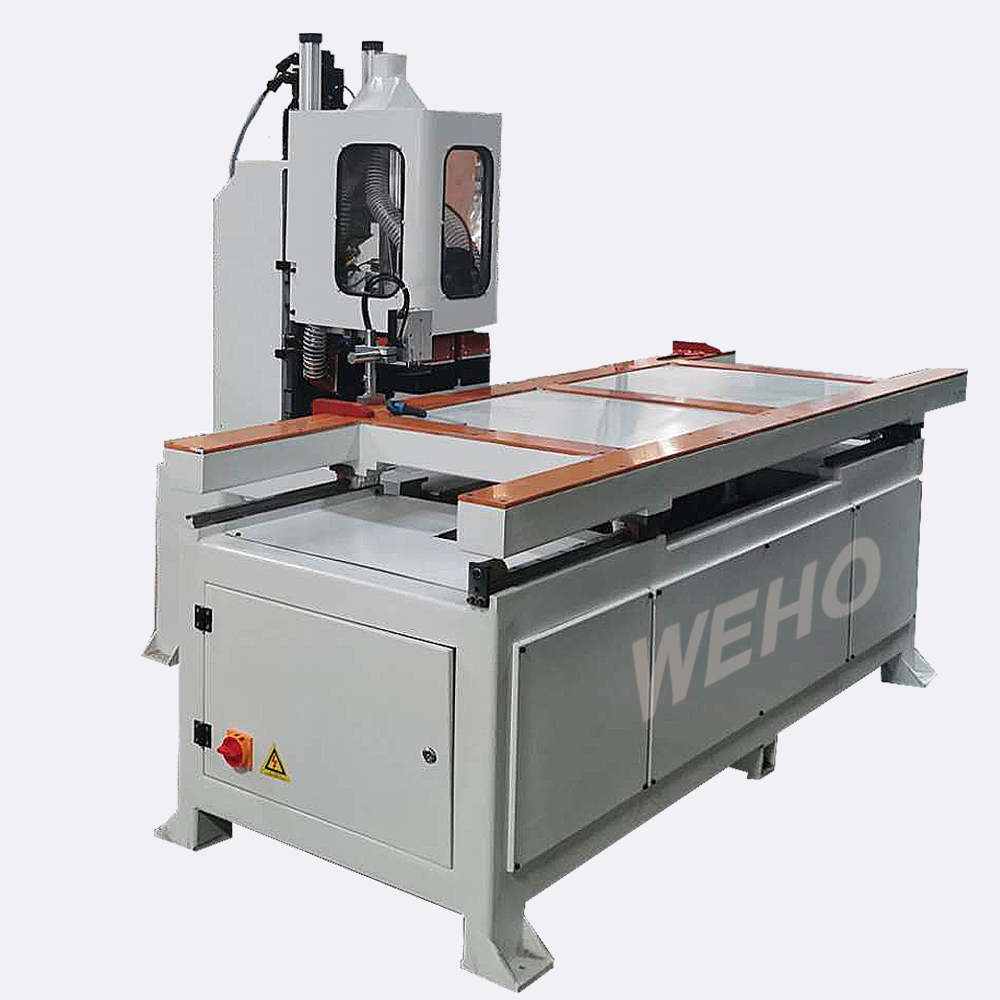

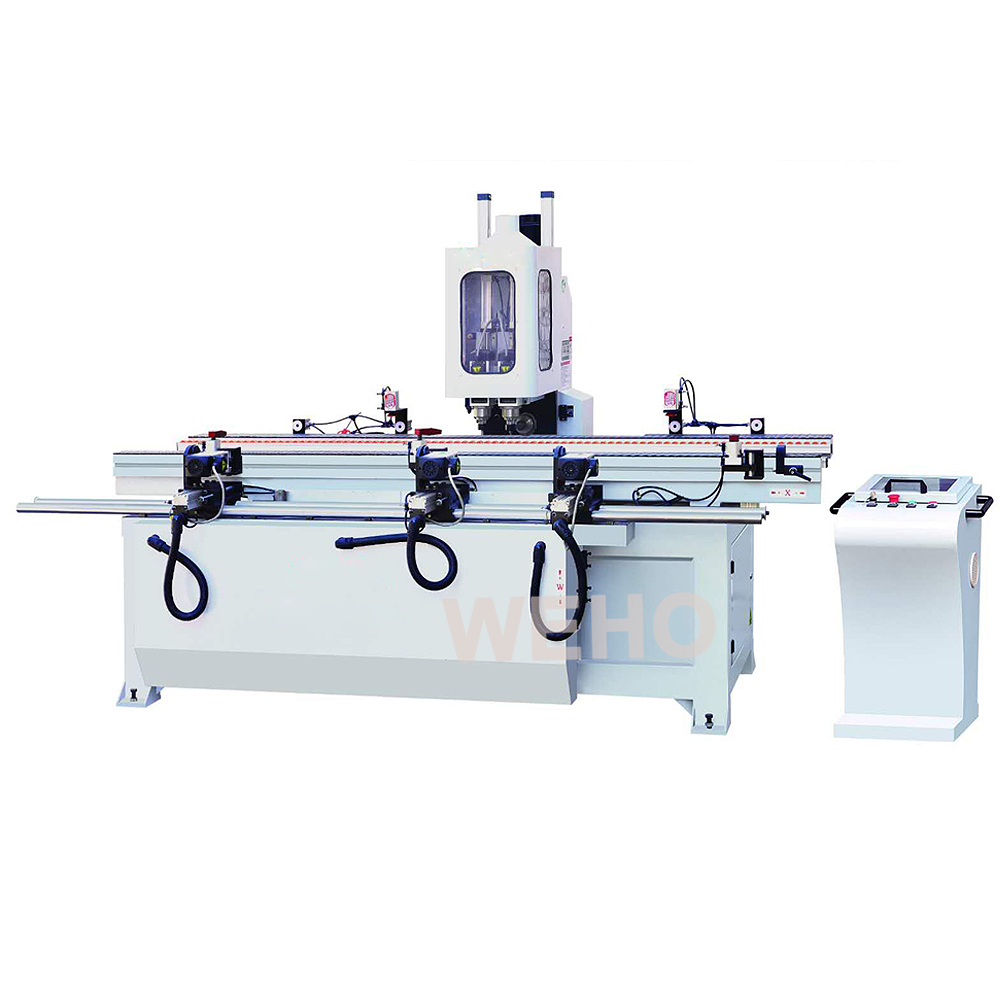

Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine

Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine


Model:MXZ2511
Maximum processing door height:2500mm
Processing door thickness:30-60mm
Processing door width:600-1100mm
Spindle Motor Power(kW):3.7


Details
Spare Parts
Inquiry


Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
CNC milling machine, particularly suitable for the production of doors and frames at industrial level and specifically for the milling regarding housing pommele hinges, plates and locks, besides handle holes and key holes.
CNC Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
Model
MXZ2511
Maximum processing door height
2500mm
Processing door thickness
30-60mm
Processing door width
600-1100mm
Maximum moving range of worktable
400mm
Maximum moving speed of worktable
8m/min
Hinge motor
3*1.1kw
Lock slot motor
3.7kw
Locking machine motor
0.4kw
Keyhole motor
2*1.5kw
Hinge tool chuck
ER20 12-13
Lock groove tool collet
ER32 15-16
Locking step tool chuck
ER20 12-13
Keyhole cutter
ER20 12-13
Size
2600*2500*1900MM
Weight
2000KG
Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
Designed for door manufacturers with the pommele hinges system, the milling machine distinguishes by solidity and ease of use, always offering the best ratio between quality and price.

Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
The tekno prime machine is suitable for the woodwork of doors and frames for the countries that adopt the pommele hinges and concealed hinges systems.

After a simple programming of the job to be performed, the machine will (through the loading and unloading belts) load the door to be processed and then start the milling and boring process previously set.


Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine,The software includes macro presets that allow a quick parameter setting. The parent company ensures a remote technical support in direct interaction with our specialists to reduce the distances and to help customers with the settings or changes of the parameters.



The machine body, its columns and some of its parts are internally manufactured by our welding department, equipped with CNC metalworking machines, guaranteeing our customers a a product durable.

Advantages
Thanks to the shape of the loading and unloading table, the machine can be installed in working lines.
In about 2 minutes and with a single positioning, the machine performs a complete milling and boring on the door allowing the operator to fit and fix its hardware.
[]
