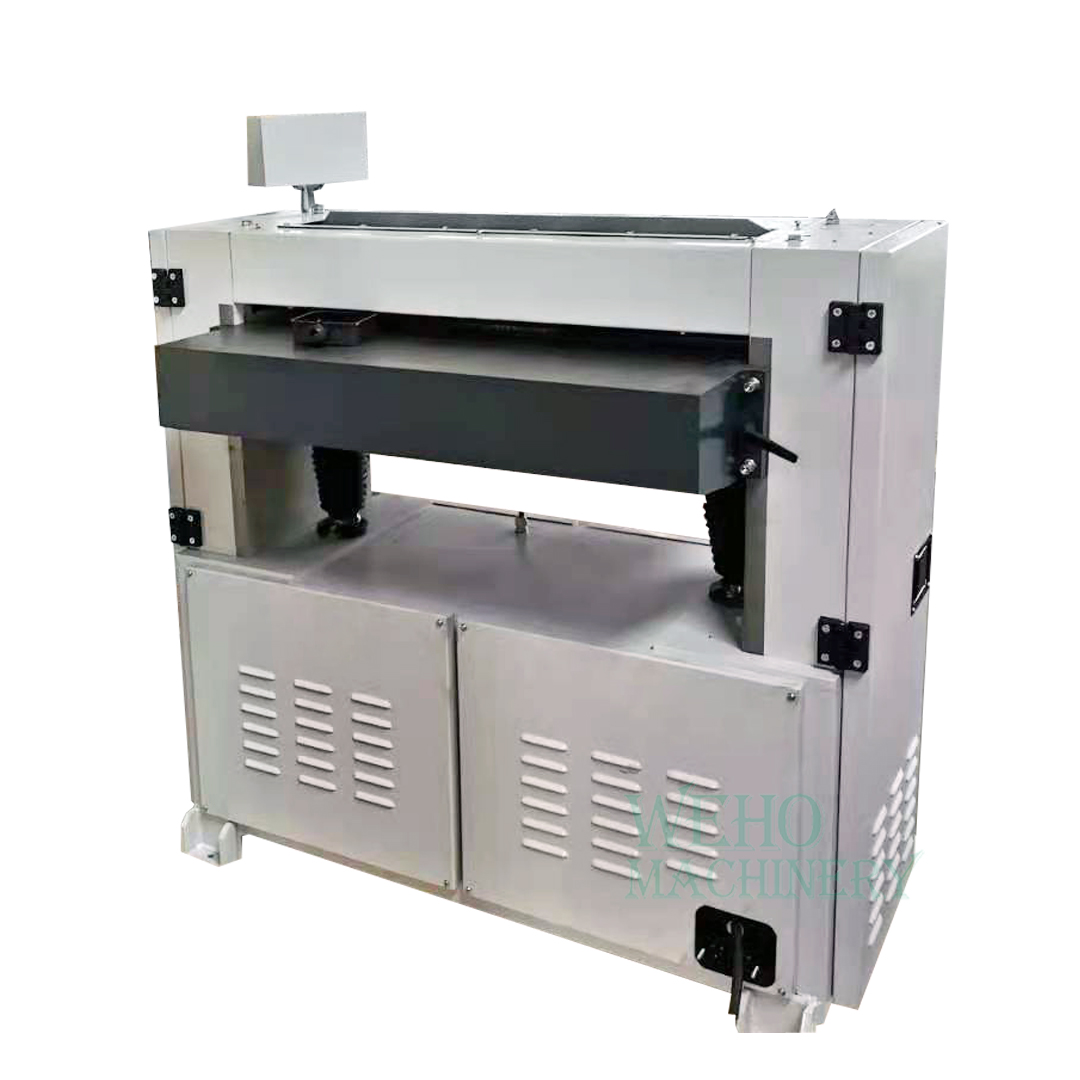

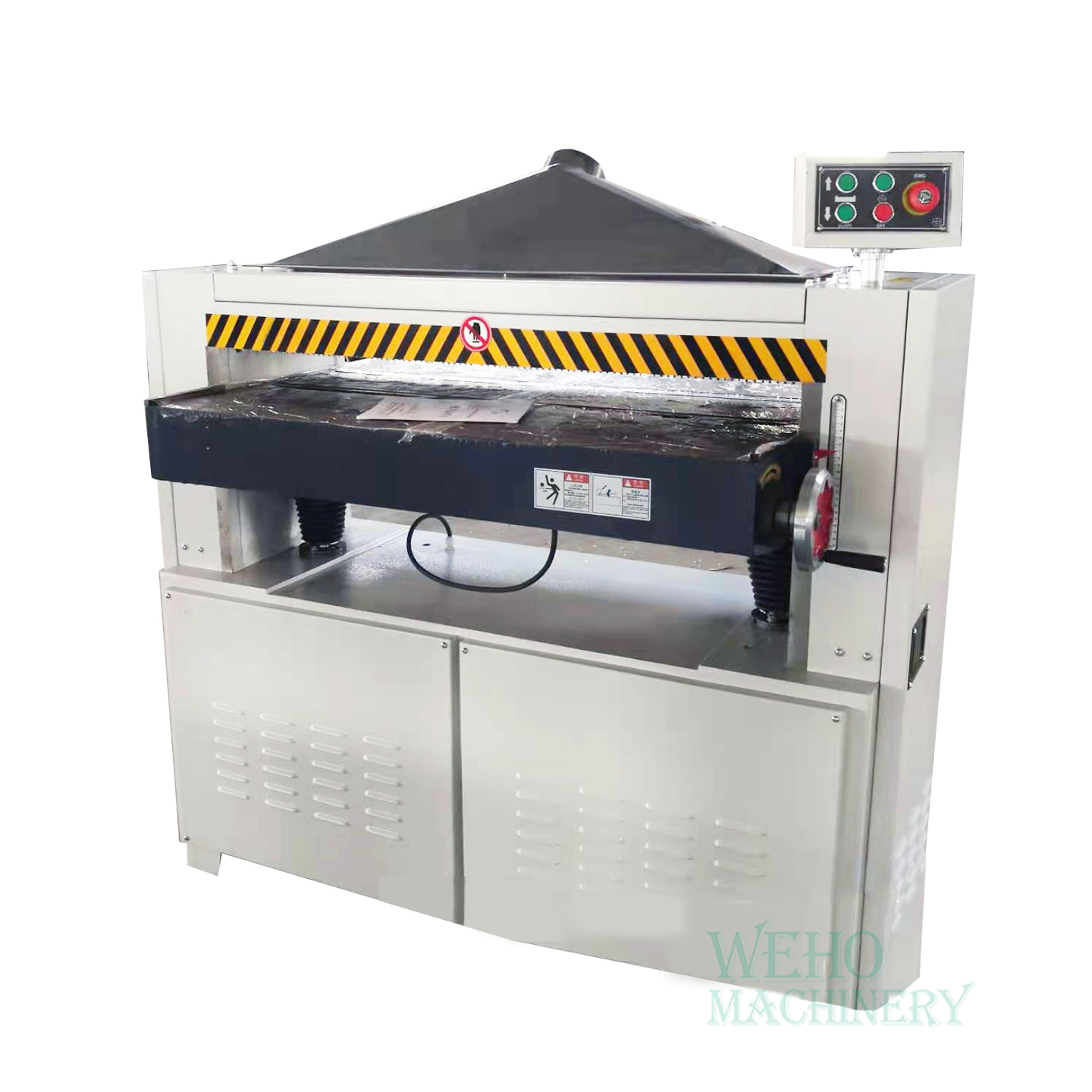

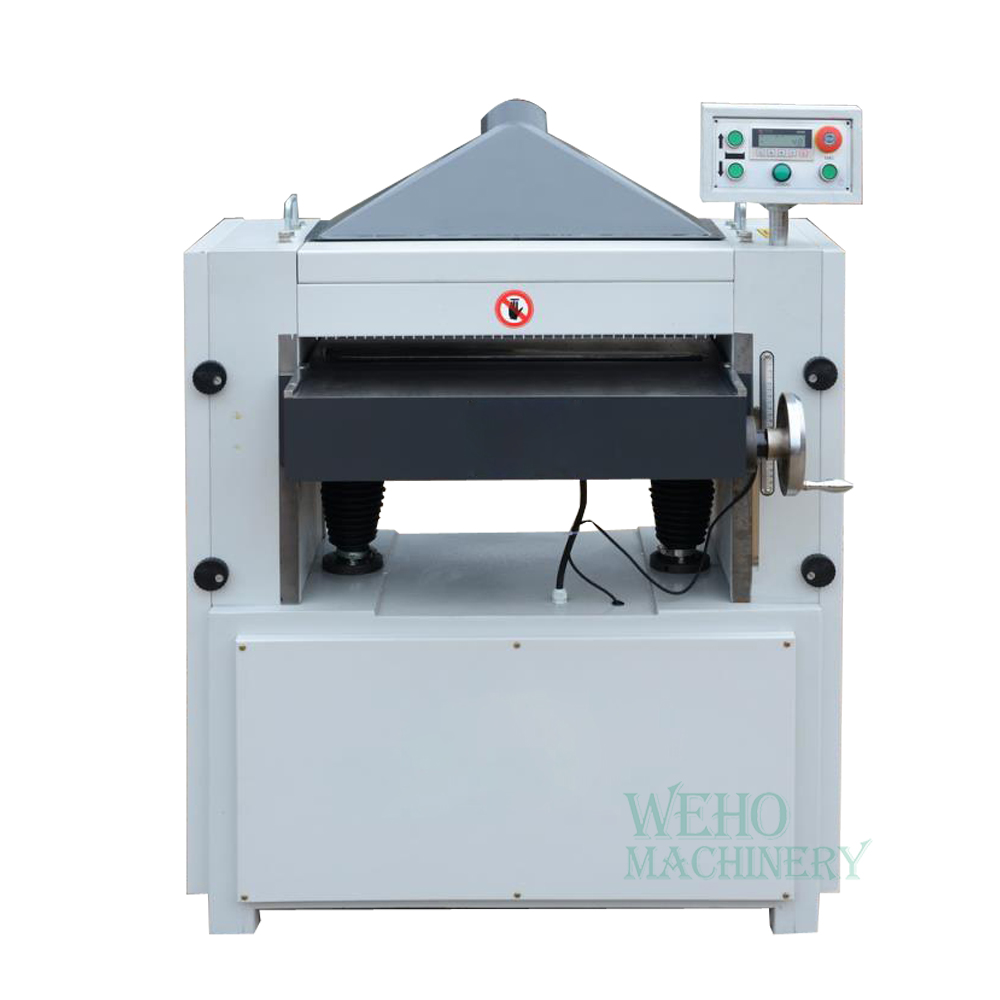

Heavery-duty single side wood thickness planer machine
Heavery-duty single side wood thickness planer machine

Heavery-duty single side wood thickness planer machine


Model:MW1000BM
Max working width:1000mm
Working thickness:8-200mm
Working length:≥300mm
Power:11kw


Details
Spare Parts
Inquiry


Wood thickness planer suitable for wood board jointing, solid wood furniture manufacture, surface planing, moulding etc.
Model MW1000BM
Max working width 1000mm
Working thickness 8-200mm
Max cutting depth <4mm
Working length ≥300mm
Cutting head speed 4500rpm
Feed speed 7-12m/min
Voltage 380V
Power 11kw
Total weight 1200kg
Total size 1205*1350*1450mm

High-speed refine planing.Its four precision ground columns provide extra stability when raising and lowering the table,the spiral cutter is optional.

Table of thickness is accurately positioned with an easy to use crank handle.

Heavy-duty rigid cast iron frame supports the work table and helps dampen vibration and ensures years of dependable service.



Thickness planer machine,apply to wood board manufactoring,soild wood funiture's such as wood chairs,wood tables,wood bed,wood cabinet,wood door,etc.





wood thickness planer machine
[]
