Complicated shapes of rake angle and clearance angle of all sorts of carbide saw blade tips.
Automatic adjustment system, start automatic adjust, the grinding wheels adjust position automatically.
It is user-friendly machine with transparent operation panel.
All moving parts controlled by motor, has not pneumatic or hydraulic system, ensure high precision.
Saw blade feeding in or feeding out control by servo motor.
The machine has automatic compensation program to compensate.
It can adjust grinding speed and it has automatic lubrication system.
- Building 3 Shunheli Industrial Park,
- Lunjiao Shunde Foshan City Guandong China.
- Send Your Mail At
- [email protected]
- Working Hours
- Mon – Sat Day: 09.00 To 18.00
Heavy precision knives sharpening equipment carbide TCT circular saw blade sharpener grinder machine
Model:CH800
Carbide Saw Outside Diameter:120-810mm
Saw Bore Diameter:10-220mm
Max Blade Thickness:10mm
Weight (KG):1100
Power (kW):3.7
Carbide Saw Outside Diameter:120-810mm
Saw Bore Diameter:10-220mm
Max Blade Thickness:10mm
Weight (KG):1100
Power (kW):3.7
Details
Spare Parts
Inquiry
Automatic sharpening tool machine sharpen circular saw blade with grinder
Designed to suit the requirements of carbide tct circular saw blade.
CH800 cnc machines sharpening machine saw blade sharpener
Is a suitable machine for grinding all kinds of carbide tct circular saw blades . For example, carbide tipped wood cutting saw blades, aluminum cutting saw blades, forest saw blades, table saw blades etc.
Name
|
Automatic sharpening tool machine sharpen circular saw blade with grinder
|
Carbide Saw Outside Diameter
|
120~810mm
|
Saw Bore Diameter
|
10~220mm
|
Max Blade Thickness
|
10mm
|
Tooth Pitch
|
25-100mm
|
Clearance Angel
|
6~ 45°
|
Bevel Grinding top angle
|
0° ~45°
|
Bevel Grinding face angle
|
-3°~ +20°
|
Grinding Path
|
20mm
|
Grinding Speed
|
0.56mm/s
|
Working Speed
|
5~20teeth/min
|
Grinding Wheel
|
125mm
|
Peripheral Speed
|
26m/s
|
Cooling Water Capacity
|
60KG
|
Main Motor Power
|
2.2KW
|
Machinery Weight
|
1100KG
|
Machinery Size (L×W×H)
|
1280mm×1680mm×2200mm
|
Automatic sharpening tool machine sharpen circular saw blade with grinder
4 axis cnc Saw blade sharpener machine is CNC machine for circular carbide saw blades grinding.
4 axis cnc Saw blade sharpener machine is CNC machine for circular carbide saw blades grinding.
Special made Forging main spindle, high precision and long time working, warranty is 2 years
Germany ABB motor for grinding wheel rotating, low noice and durable in use

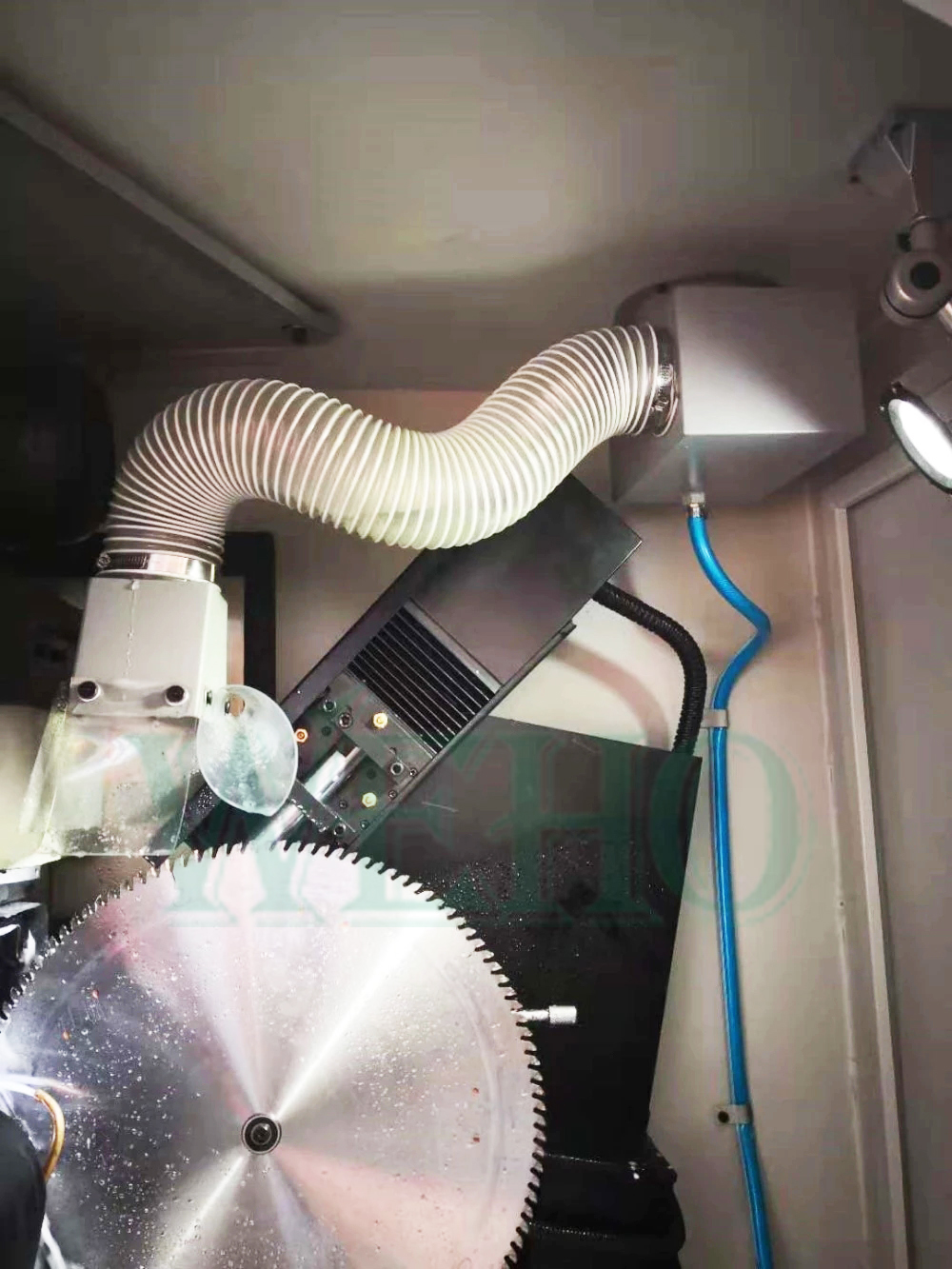

Water mist and oil mist suction device, keep inside of the machine clean and dry, reduce water mist into spindle bearing.
Automatic sharpening tool machine sharpen circular saw blade with grinder
1) User-friendly interface
2) 'Set-up' mode & 'run' mode
3)Variable grinding speed
High quality for electric road, without Signal jamming, keep the output exactly.
All Digital signal transmission, no censor, machine working very high accuracy.

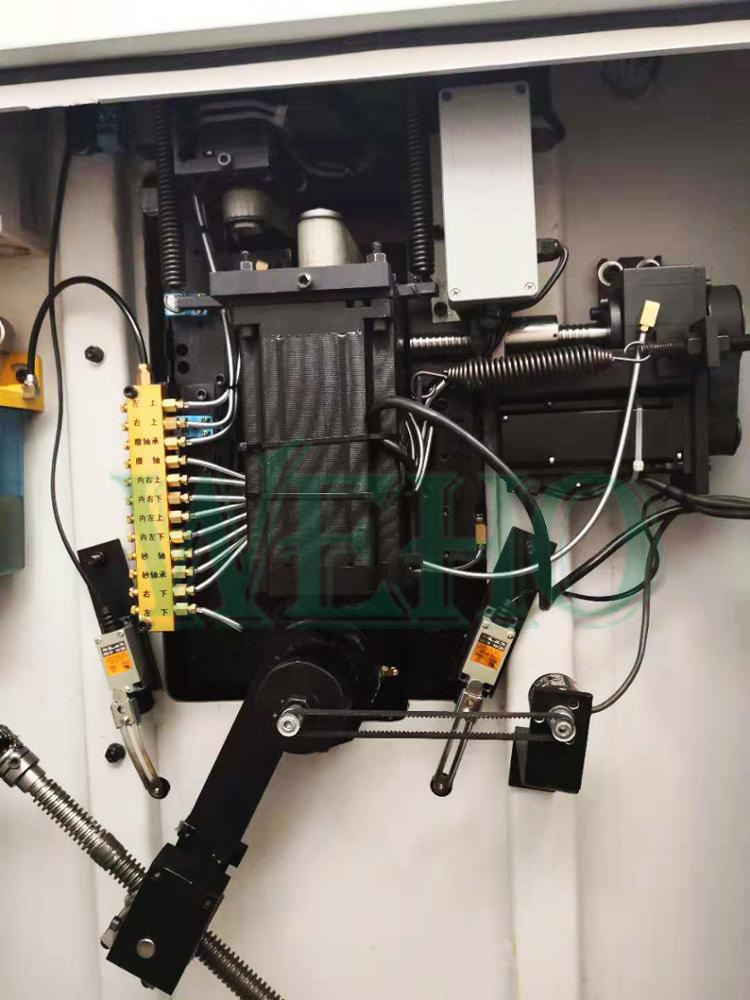

4 axis cnc control the grinding wheels moving, no hydraulic system, machine work high precision and low failure rate
Precision design, without any air pressure and hydraulic system, all control by electric, durable and accuracy
Circular saw blade sharpener for aluminum cutting saw
Specialized program, make operation more easier.
hand wheels adjust grinding wheels, easy and convenient.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
