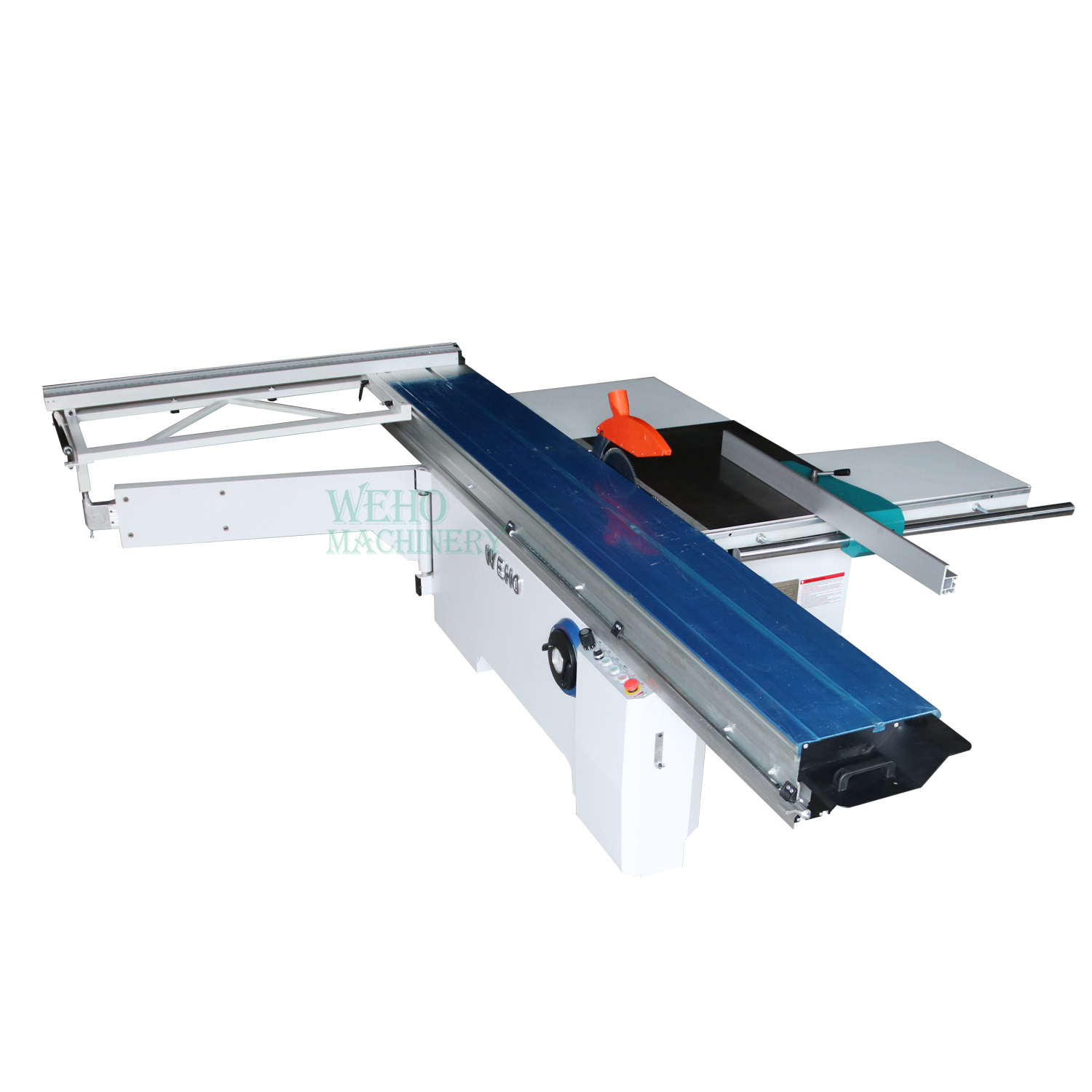

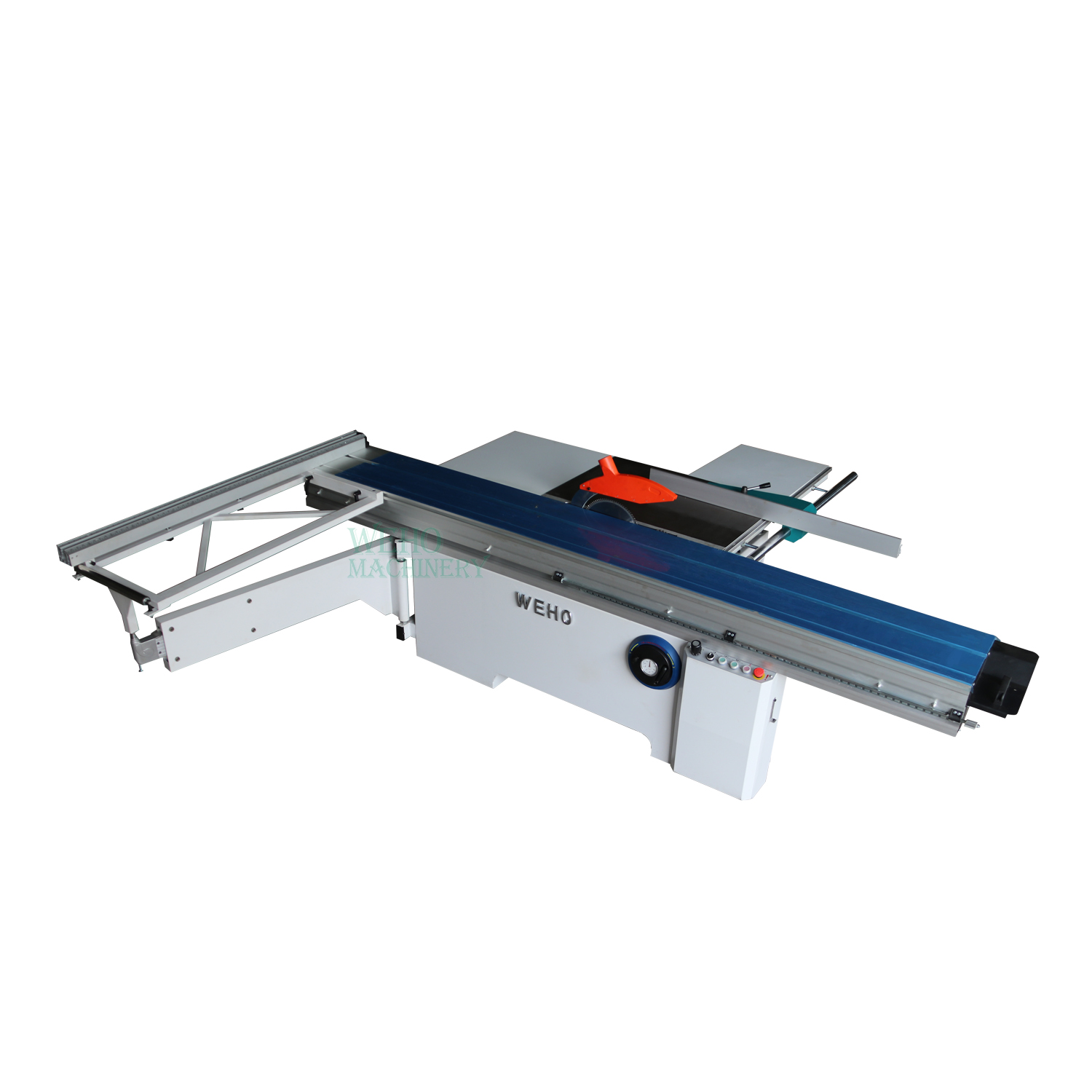

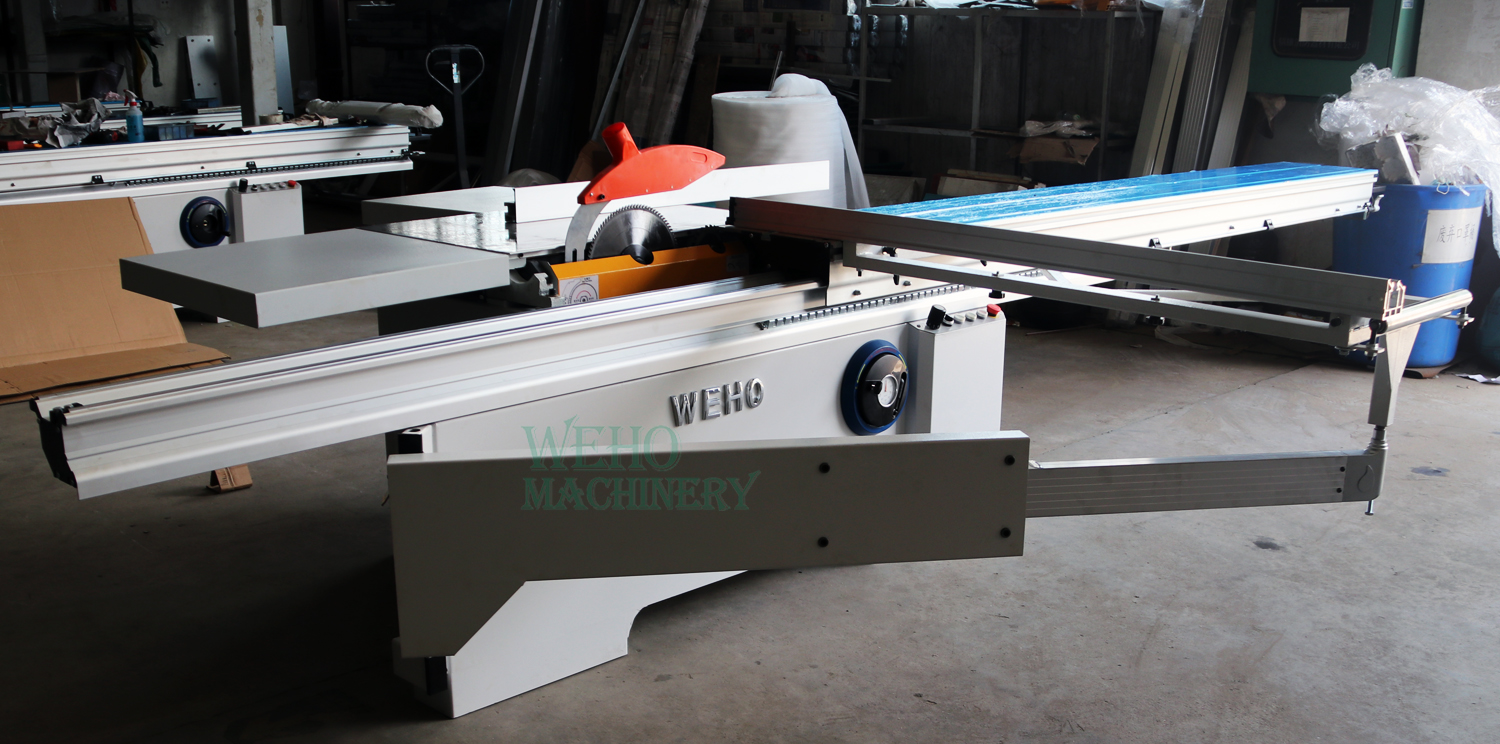

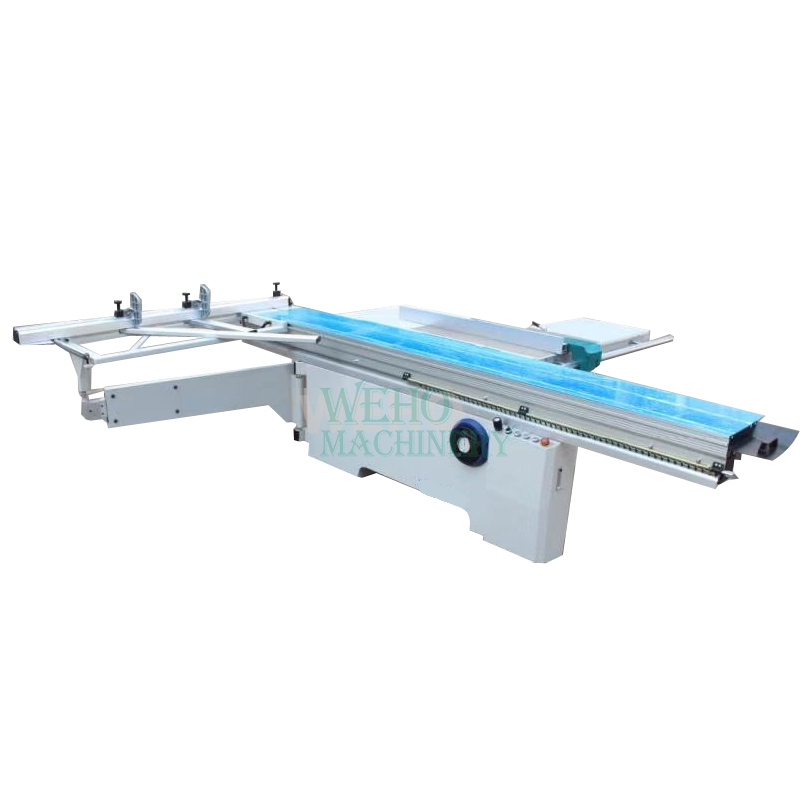

High Precise Sliding Panel Saw Cutter Machine | Precision Panel Saw
High Precise Sliding Panel Saw Cutter Machine | Precision Panel Saw

High Precise Sliding Panel Saw Cutter Machine | Precision Panel Saw


Model:MWJ6128;MW6130C
Workpiece thickness: 70 mm
Main saw power: 5.5 KW
Main saw speed: 4000 / 5000 rpm
Main saw blade: 350 mm
Scoring saw blade: 120 mm
Main saw spindle diameter: 30 mm


Details
Spare Parts
Inquiry



This model is mainly used for cutting sheets into sized parts. Easily cut plywood and melamine sheets into cabinet components.
It also used by cutting sheets of aluminum, plastic and wood .
Sliding block rising-down, precise,lightly and durable in use.
Provided with steel linear bearing post support arm travels with the carriage for maximum support and precise cuts.
Heavy frame anodized carriage assembly with precision bearings prevents cutting distortion
Micrometer adjustable dual position rip fence allows fast and accurate set-up for any work piece
With external scoring unit adjustments save set-up time
Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.
Product name
Sliding Panel Saw Machine
Model
MJ6128
MW6130C
Sliding table size
2800mm
3000mm
Max working length
2800mm
3000mm
Max working thickness
70mm
65mm
Max working thickness with 45° incline
/
45mm
Main saw diameter
350mm
350mm
Scoring saw diameter
120mm
120mm
Main saw spindle diameter
30mm
30mm
Scoring saw spindle diameter
22mm
22mm
Main saw motor power
5.5kw
5.5kw
Scoring saw power
0.75kw
0.75kw
Main saw spindle rotation speed
4000/5000r/min
4000/5000r/min
Overall dimensions(LxWxH)
3600x1800x1000mm
3600x1800x1000mm
Net weight
950kg
1080kg


Micrometer adjustable dual position rip fence allows fast and accurate set-up for any work piece.With external scoring unit adjustments save set-up time.It also used by cutting sheets of aluminum, plastic and wood.Sliding block rising-down, precise,lightly and durable in use.
Large, accurate and easy installation sliding table makes precision cutting possible.Scoring blade eliminates all tear out on laminated plywood and other lumber coring it first.

Convenient, quick release fence.Powerful motor with aluminum housing enables heat to exhale efficiently.Finish ground, heavy-duty cast iron table.

Extension panel at the back and both sides provide larger table surfaces.Blade guard with dust collection outlet to eliminate saw just more efficiently.

Sliding table comes with precision fence with lens magnifier.Easy to change any type of sliding tables.

4" dust hood onwoodworking sliding panel saw,Steel constructed cabinet for durability and stability.
Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.This model is mainly used for cutting sheets into sized parts. Easily cut plywood and melamine sheets into cabinet components.Provided with steel linear bearing post support arm travels with the carriage for maximum support and precise cuts


Precision Panel Saw
[]
