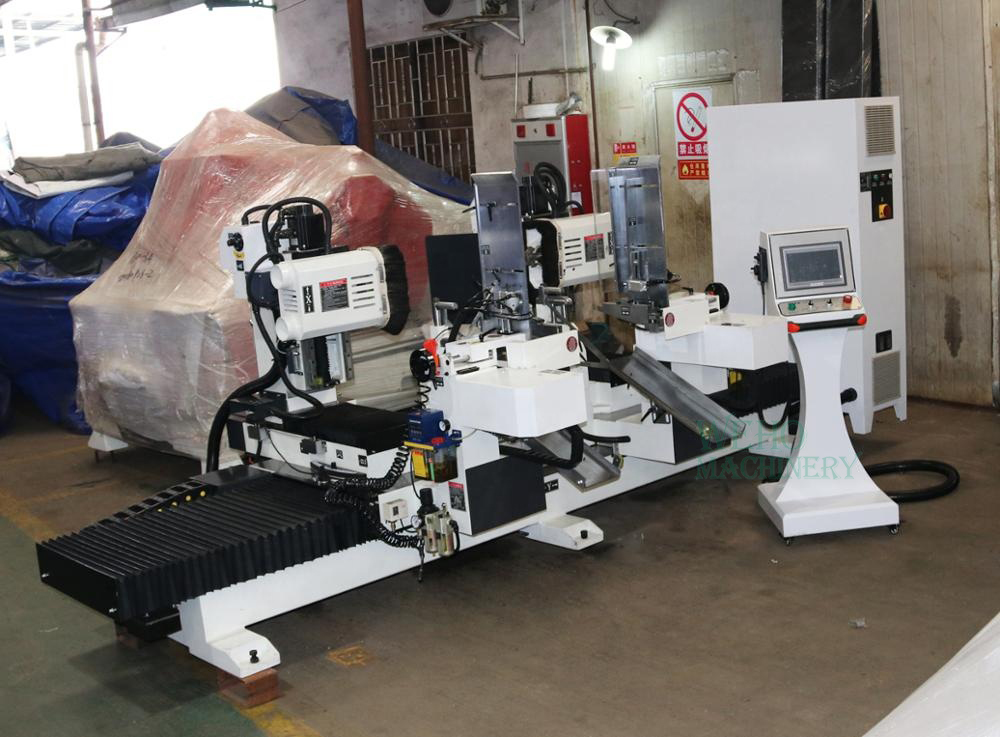

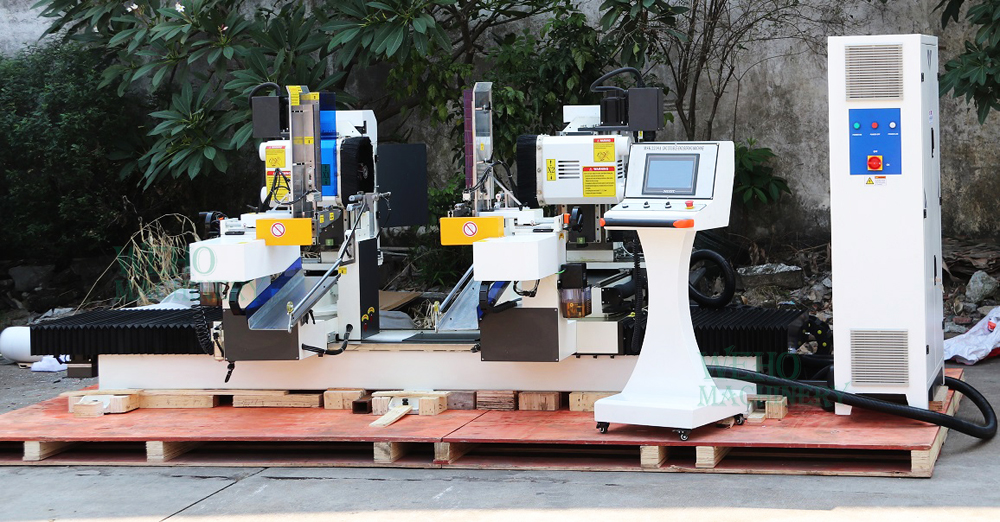

High speed double end tenoner machine for wooden furniture chairs bed sofa tenon making
Model:MSK-2218A
Spindle speed:10000r/min
Processing wood:2000*180*80mm
Max tenoning width:180mm
Max tenon thickness:70mm
Power:16.8kw
Spindle speed:10000r/min
Processing wood:2000*180*80mm
Max tenoning width:180mm
Max tenon thickness:70mm
Power:16.8kw
Details
Spare Parts
Inquiry
Wood through feed double end tenoner machine,5 axis with tenoning funtions double end.
TECHNICAL FEATURES FOR CNC DOUBLE END TENONER
- Continuous revolution of cutters around the piece
- Thickness, inclination and width of tenons adjusted by external handles, even when the machine is working,
- Motorized approaching of the R.H. head.
- Cast iron frame to eliminate vibrations
TECHNICAL FEATURES FOR CNC DOUBLE END TENONER
- Continuous revolution of cutters around the piece
- Thickness, inclination and width of tenons adjusted by external handles, even when the machine is working,
- Motorized approaching of the R.H. head.
- Cast iron frame to eliminate vibrations
Model | MSK-2218A |
Specification for processed wood | Max2100*180*80mm |
Processing tenons between specifications | Max2000*180mm |
Working width | Max180mm |
Working thickness | Max70mm |
Processing tenons specifications | Max40mm |
Motor total power | 16.8kw |
Spindle speed | 10000r/min |
Rated current | 28A |
Voltage | 380V |
Weight | 2200kg |
Working pressure | 0.6MPA |
Dimensions | 4500*2000*1850mm |
Automatic alignement of worked pieces on guides situated in front of the operator, who is in the best position both to collect pieces and to control their quality.
Possibility to cut off, adjusting the thickness to "0"

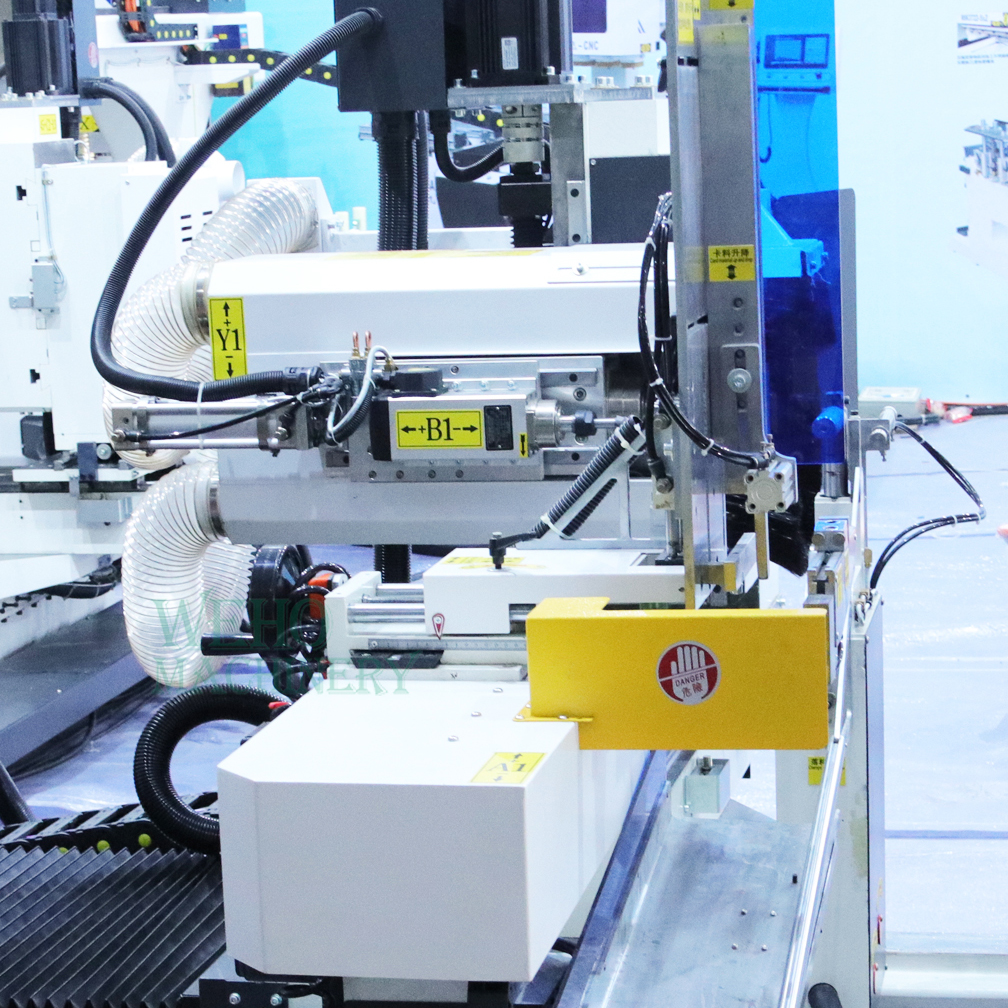

Heads held by angular contact bearings to eliminate clearances.Loader/unloader for straight or bent pieces.
Sincronized loading/unloading to prevent any collision.
Name: Guide | Name:Frame |
Brand: CHINA WEHO | Brand: CHINA WEHO |
Germany imported Rexroth with dustproof rail (x-axis, z-axis) warranty 2 years |
Cast iron frame to eliminate vibrations |
