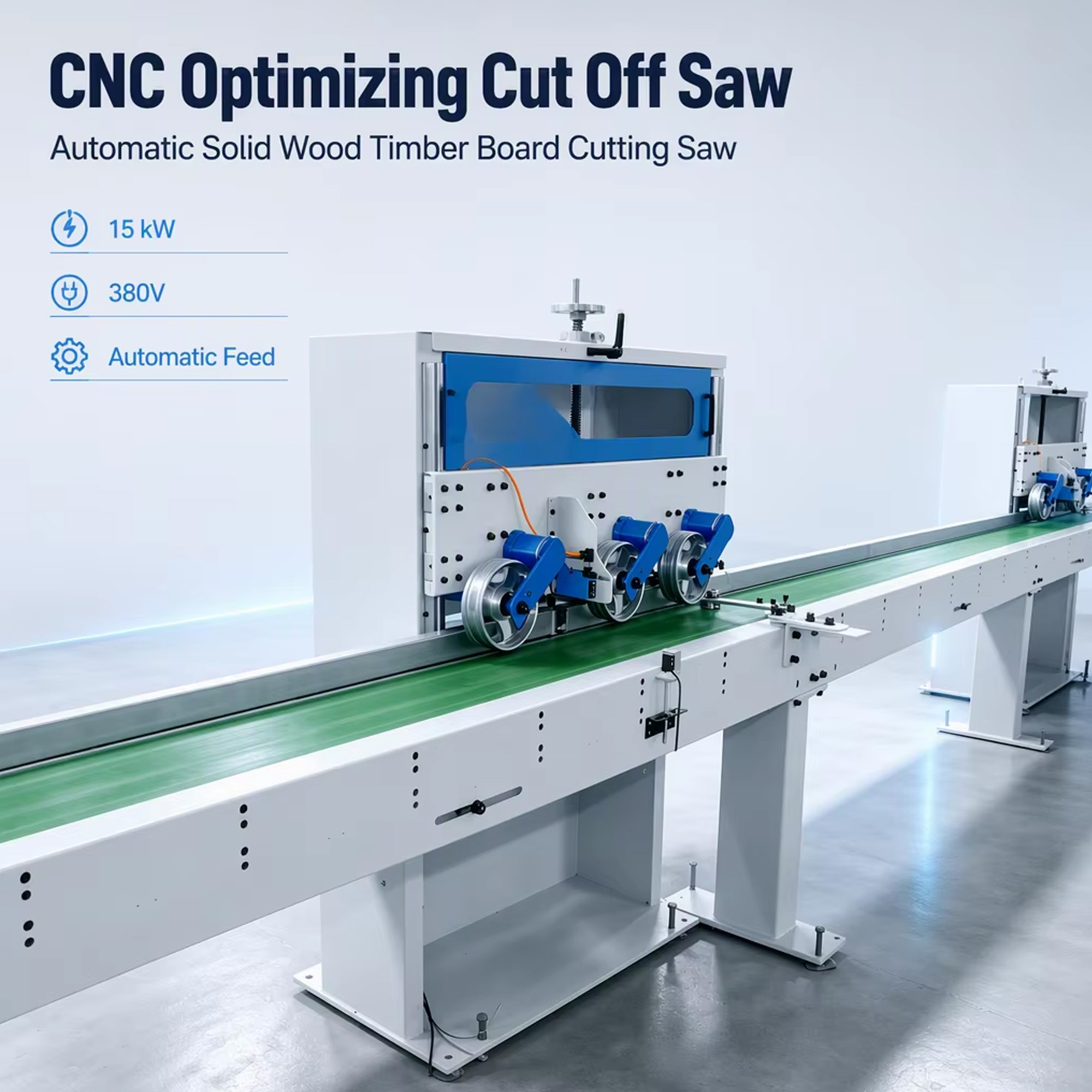

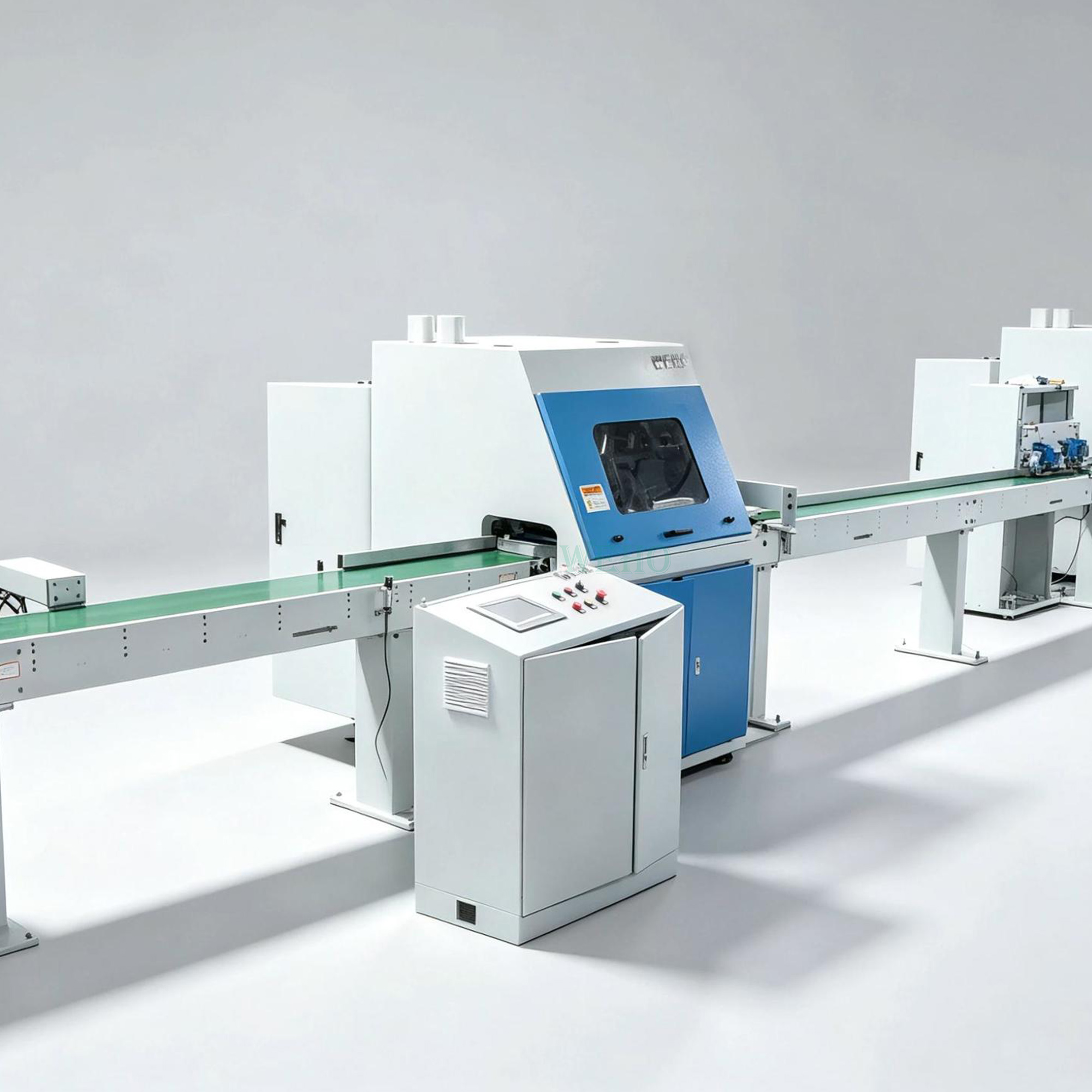

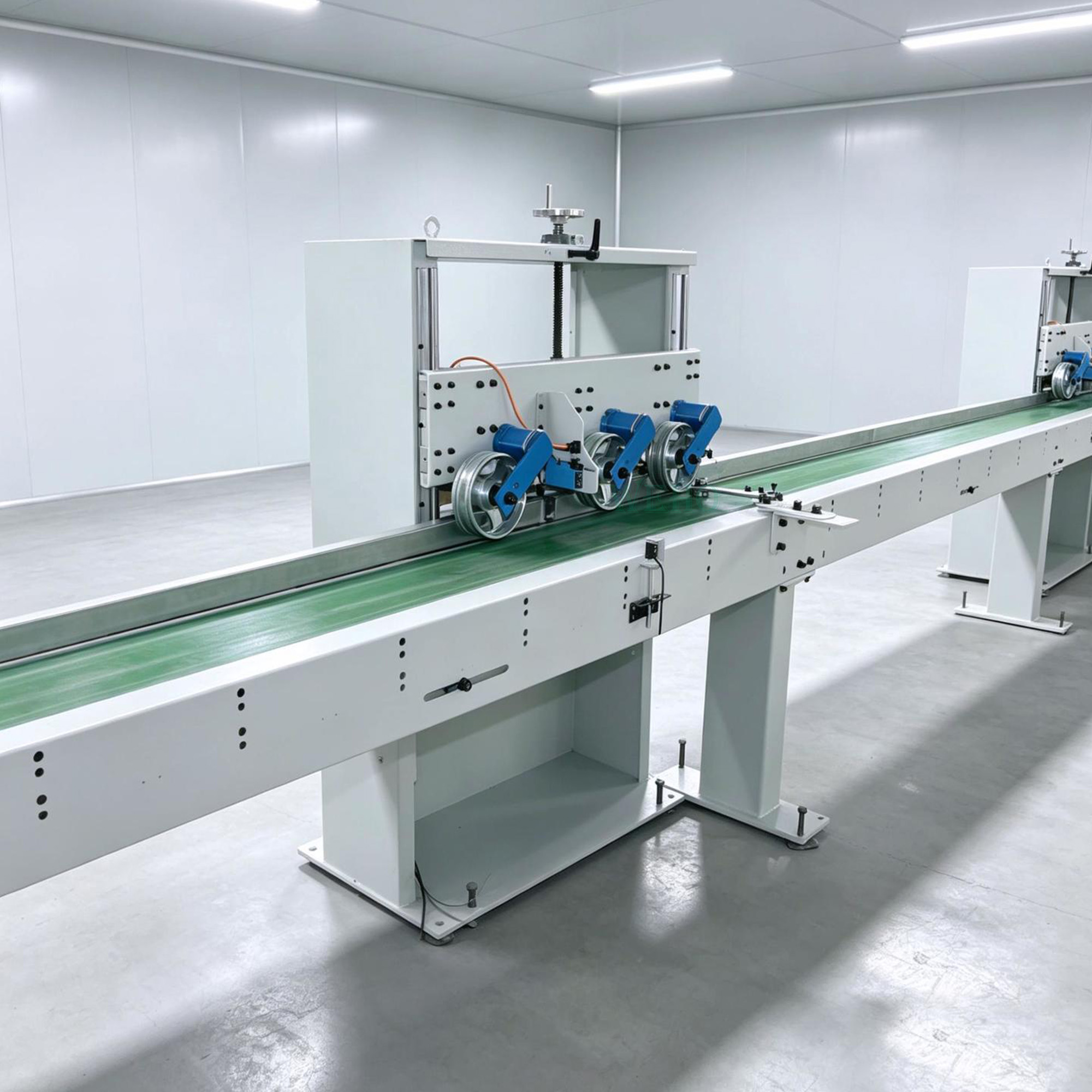

High speed full automatic circular saw wood CNC optimizing cross cut machine
Feeding length:400mm-∞
Feeding width:20-200mm
Feeding thickness:12-80mm
Power:15kw
The optimal cross-cut saw is controlled by computer, which can form the best sawing plan for the production plan, cross-section the wood, and have the functions of analysis, optimization and statistics; it can greatly improve the wood yield and production efficiency.

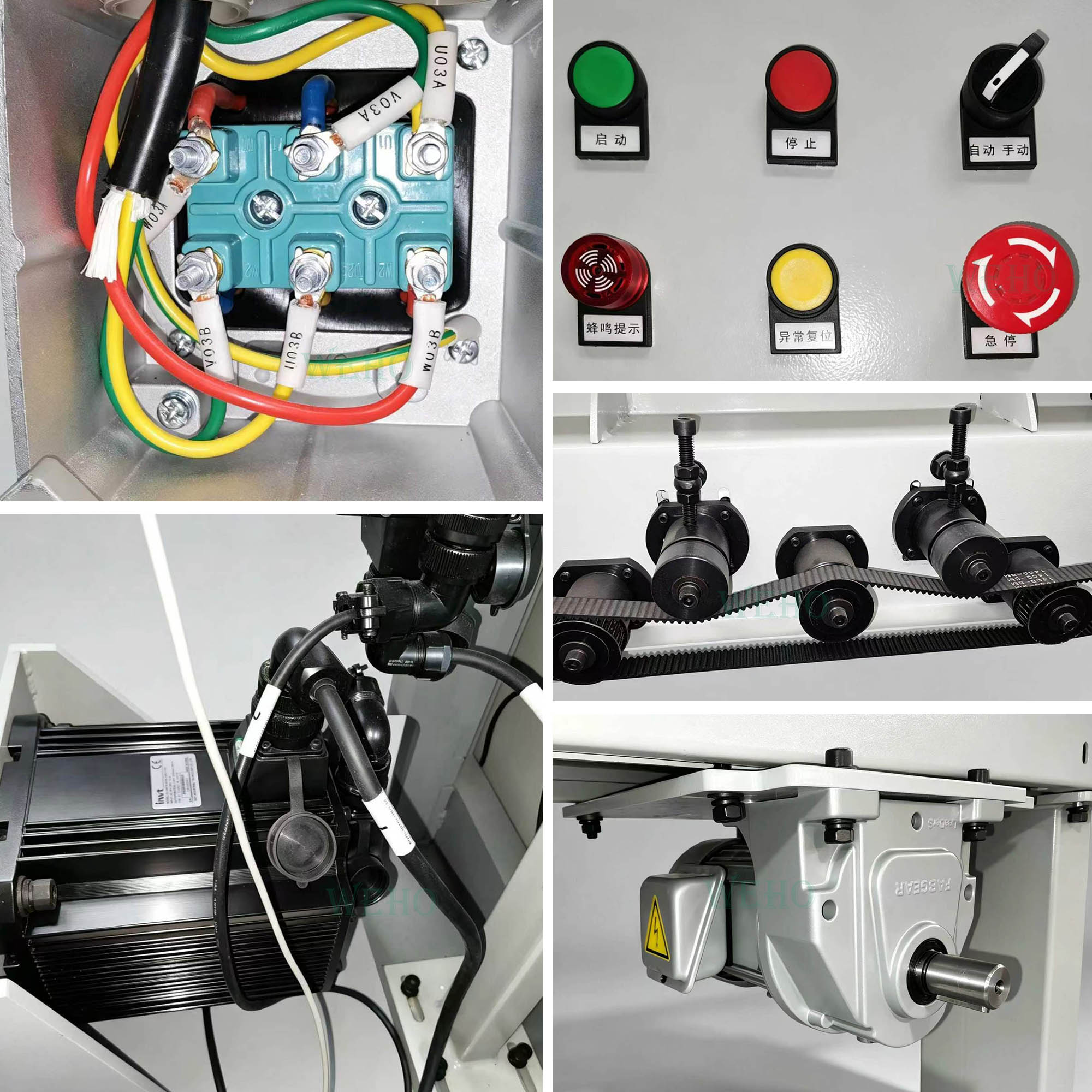

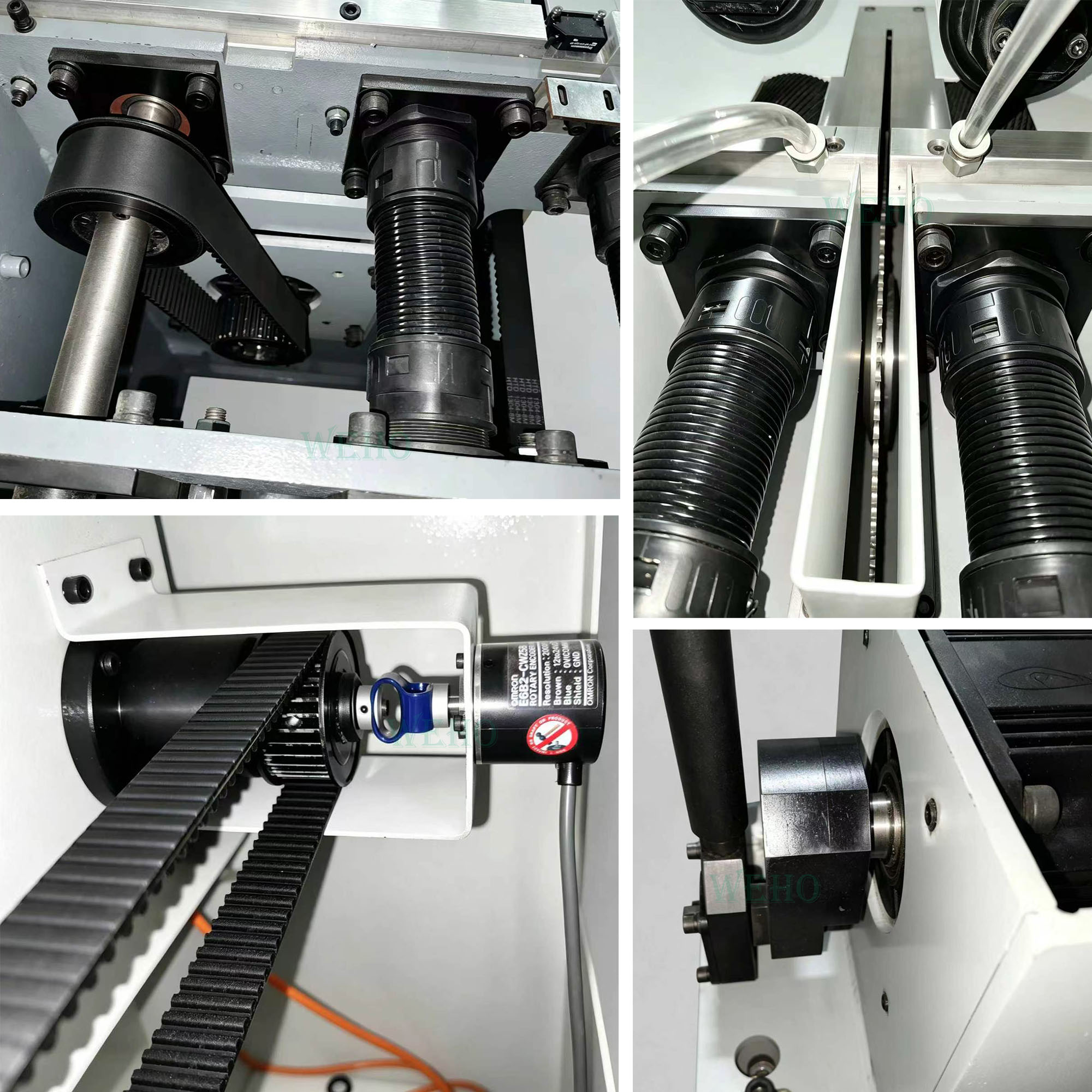

1. Both the lift saw system and the feed system have servo drives to ensure a smoother, more precise and efficient sawing process.

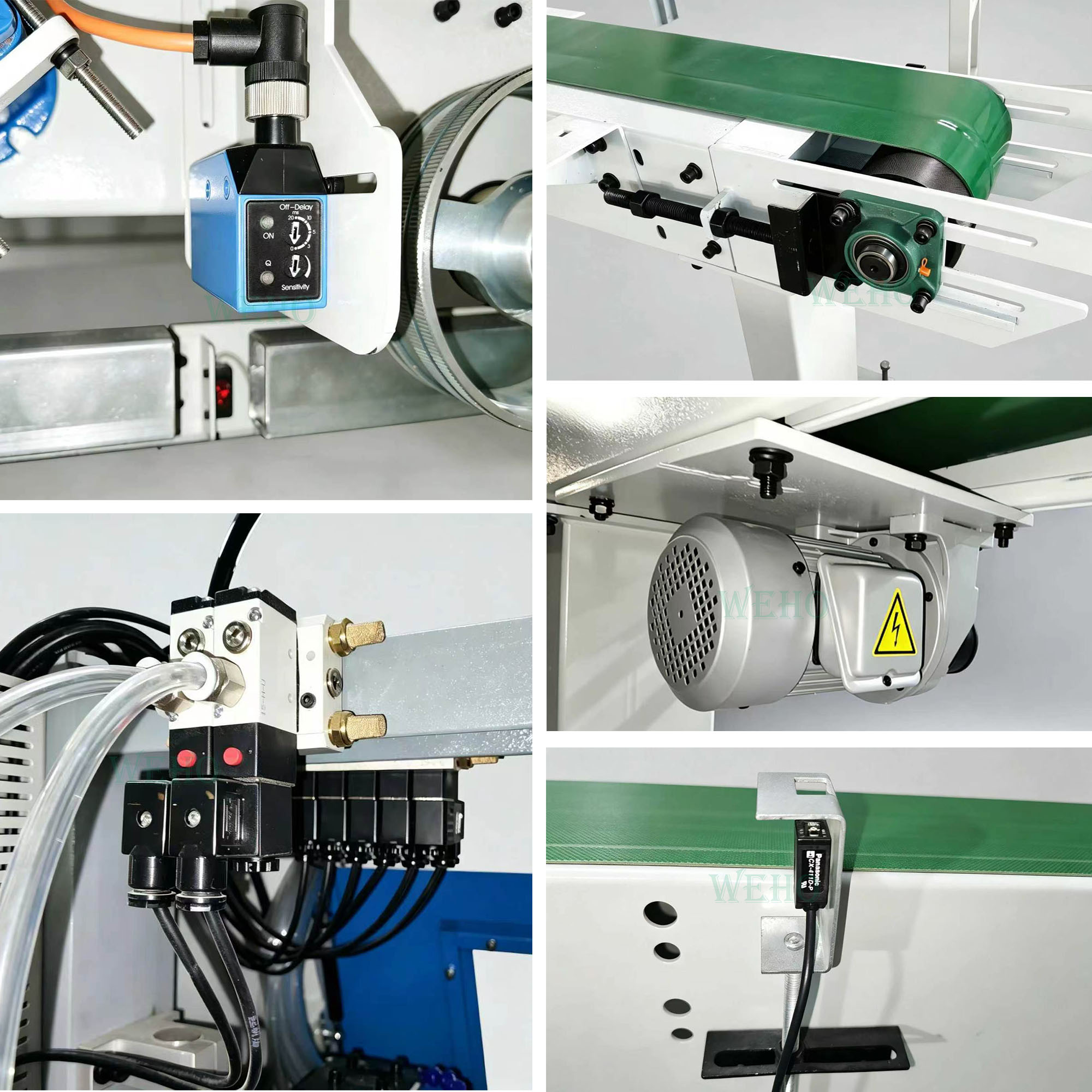

2.High-precision sensors and linear guides ensure high-speed feed of the machine
3.The working area is equipped with a closed protective cover, and the worker is far away from the sawing area and has high safety.
4.Save labor, increase production, and increase wood processing profit
5. Improve the yield, simple optimization, quantity statistics, servo lift saw, fast speed, strong stability
| Model | MX200 |
| Feeding length | 400mm-∞ |
| Feeding width | 20-200mm |
| Feeding thickness | 12-80mm |
| Fixed length at rear of saw | Min 80mm |
| Bend of the board | Max 10mm/m |
| Thickness tolerance | Max ±3mm |
| Cutting tolerance | ±1mm(≤1000mm) ±2mm（＞1000mm） |
| Feed speed | 100m/min |
| Cutting cycle | 0.15s-0.3s |
| Wokring height | 900mm |
| Saw spindle motor | 4500rpm |
| Electric connected load | 15kw |
| Voltage | 380V/50HZ |
| Air consumption | 1200NL/min |
| Servive pressure | 8 bar |
| Diameter oa air consumption dusts | 12mm |
| Exhaust speed | 25m/s |
| Diameter of dust exhaust dusts | 120mm*2 |

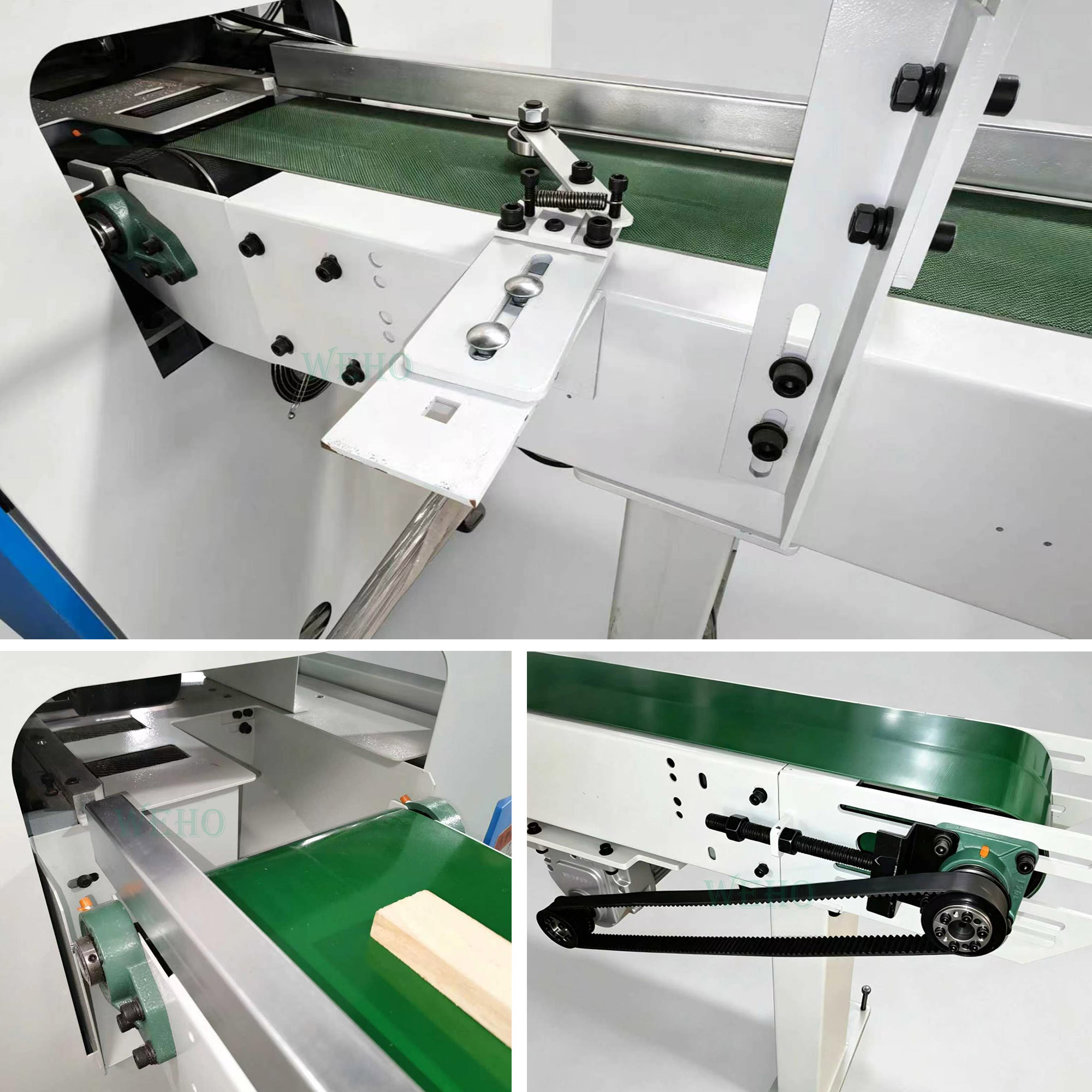

Automate optimize wood cross-cutting machine ,Automatically supply oil to the main unit slider, which makes the lubrication effect of the slider better and prolongs the service life of the slider.

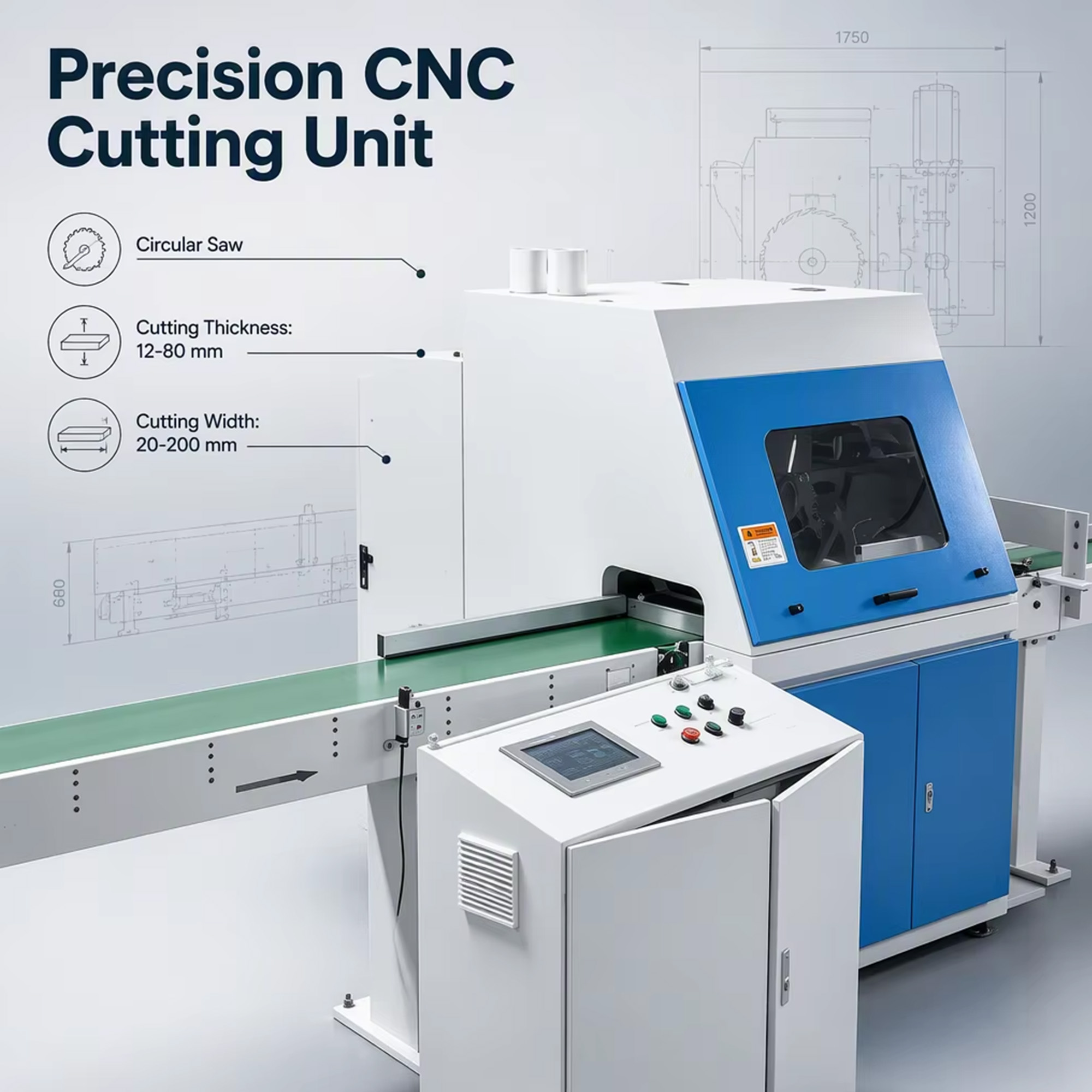

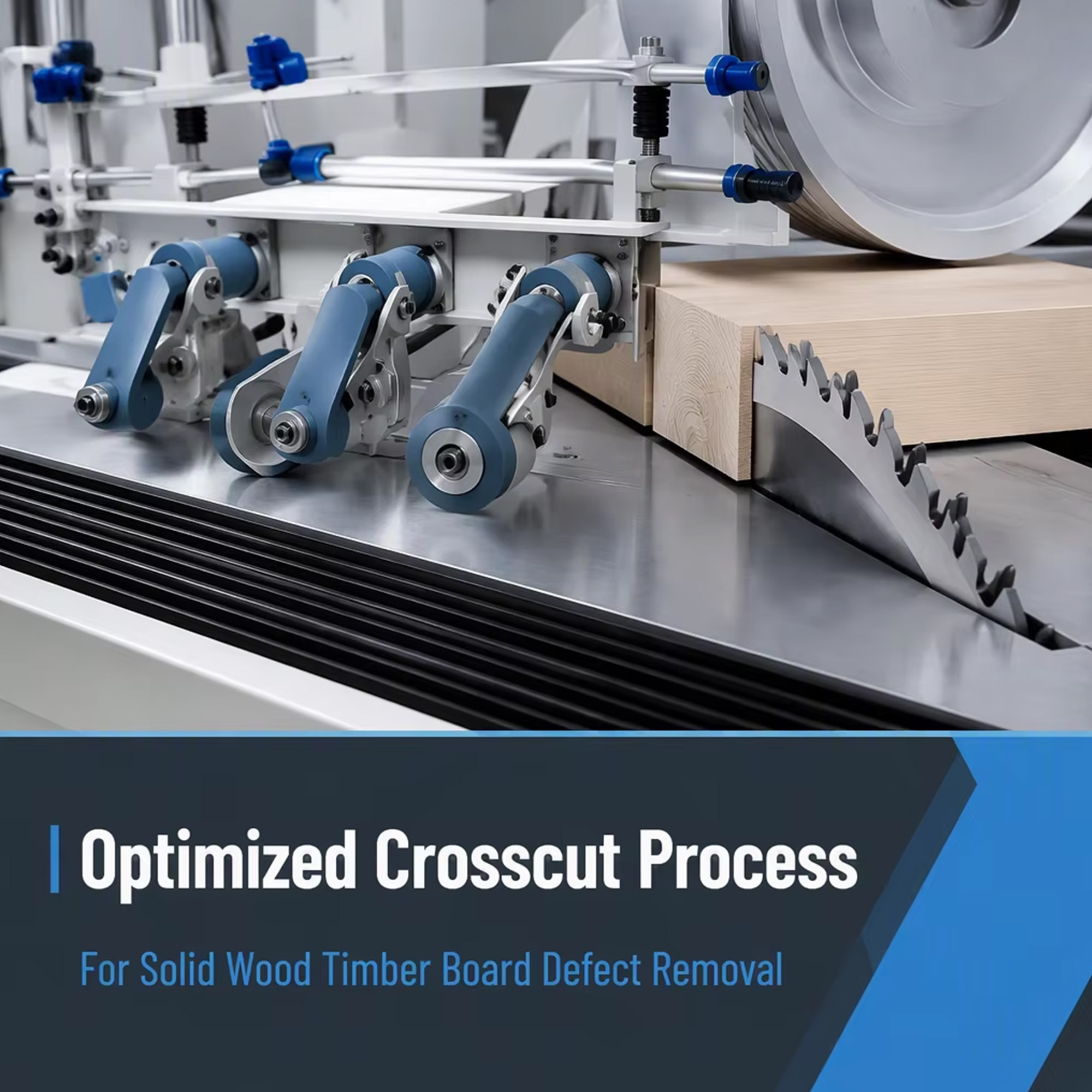

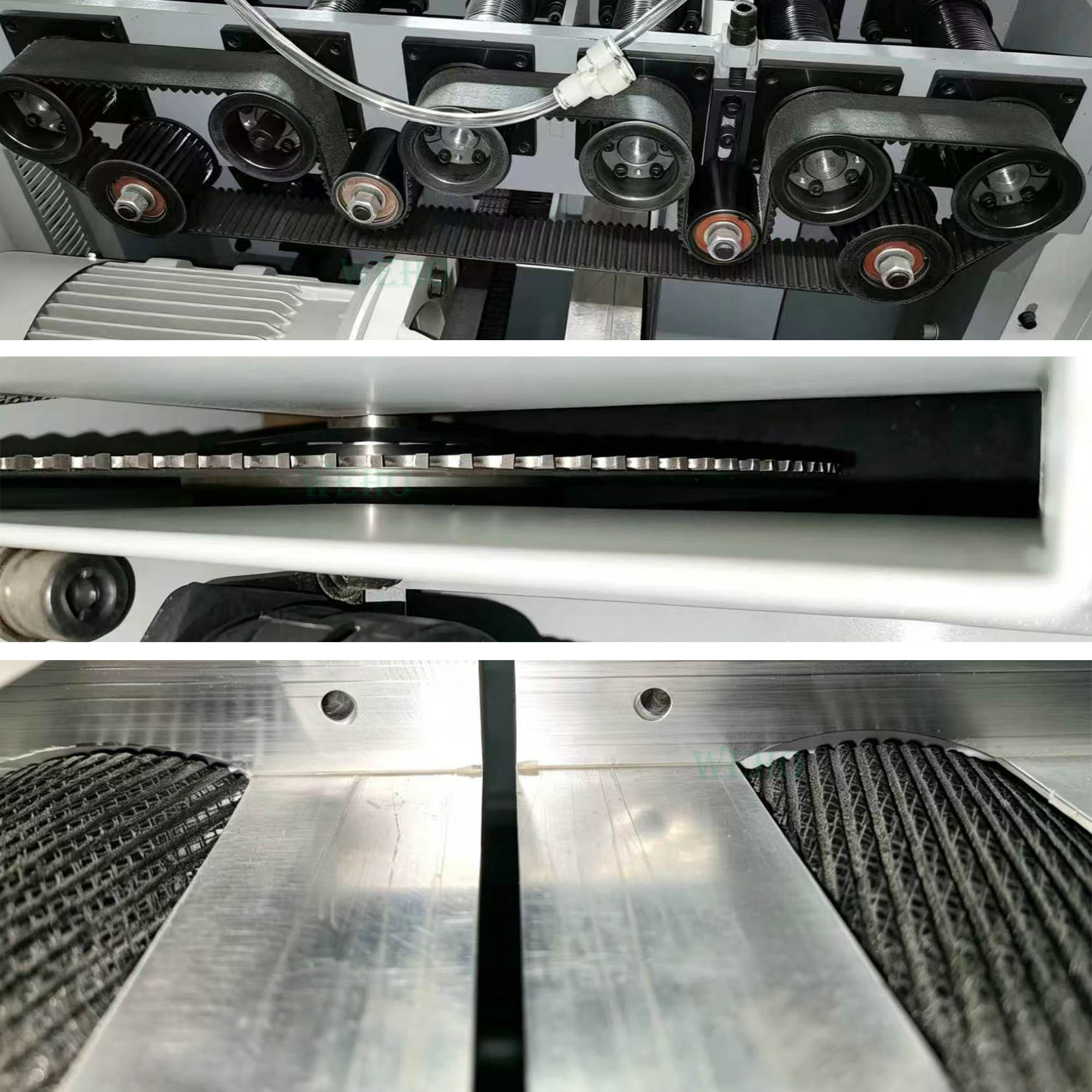

Wood cross-cutting machine for optimizing crosscut saw,Precision sawing mechanism, precise cutting, efficient and stable.
An automatic cross cutting saw makes it easy. Operators use a UV Crayon to mark defects in the material. The saw cuts around those defects and optimizes the clear material while cutting parts. Accuracy is an additional benefit you get from using an optimizing cross cut saw station. You won’t ever have to use a tape measure again and you will have repeatable accuracy at thousandths of an inch, meaning no more cutting inaccuracies, less material waste, and greater lumber savings.
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
What is this CNC optimizing cut off saw mainly used for?

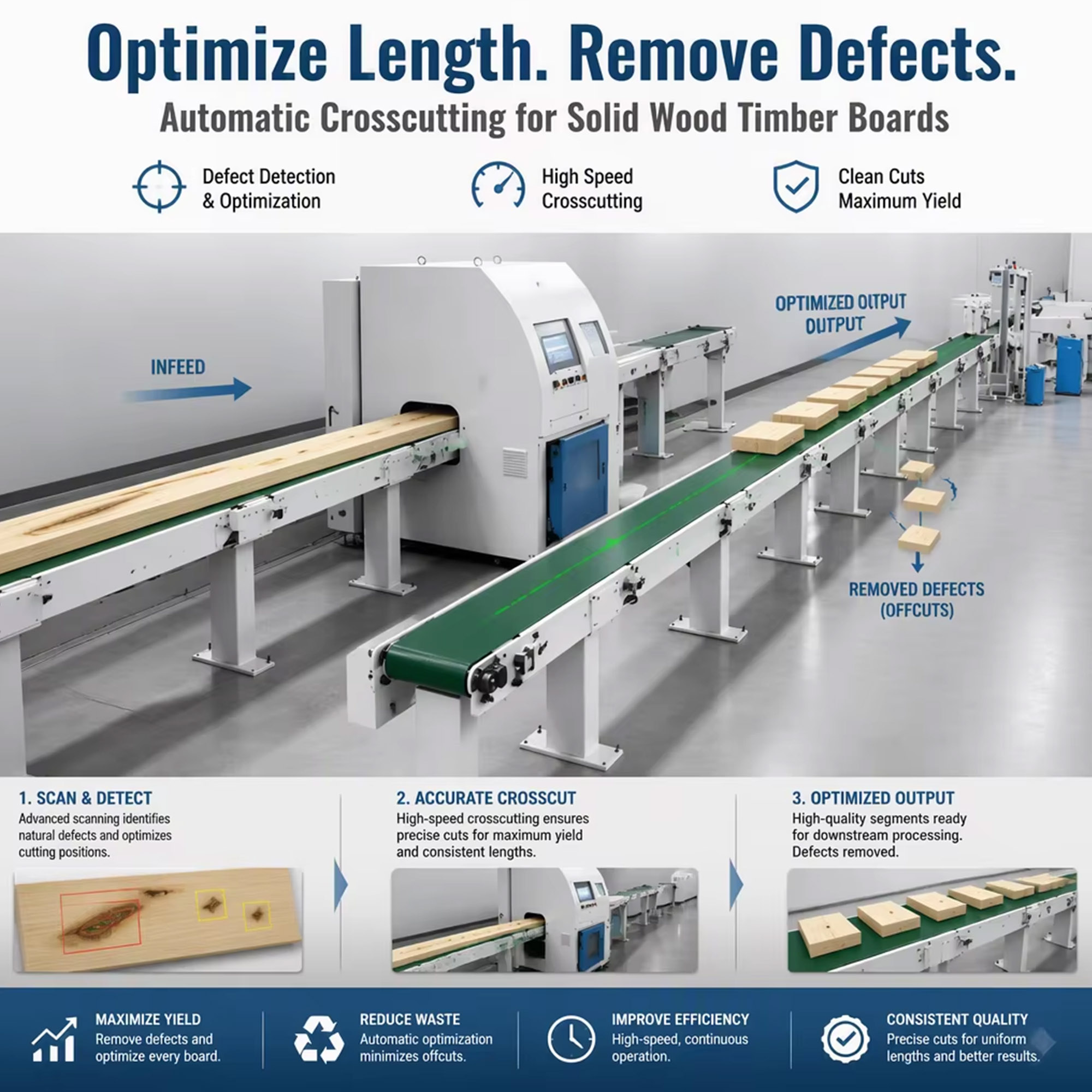

It automatically scans timber defects like knots, cracks, then optimizes cutting length, removes defective parts. Widely used for solid wood boards, lumber, furniture production.
What raw materials can this machine process?
uitable for solid wood such as pine, poplar, oak, beech. It works for sawn timber, wood slats, wood planks.
How does the defect detection & optimizing system work?
Equipped with scanning system. It detects defects, calculates the best cutting scheme automatically to maximize material yield.
Can we set different cutting lengths? What’s the cutting range?
Yes, cutting length can be set freely on touch screen. We have multiple models with different working ranges, support custom request.

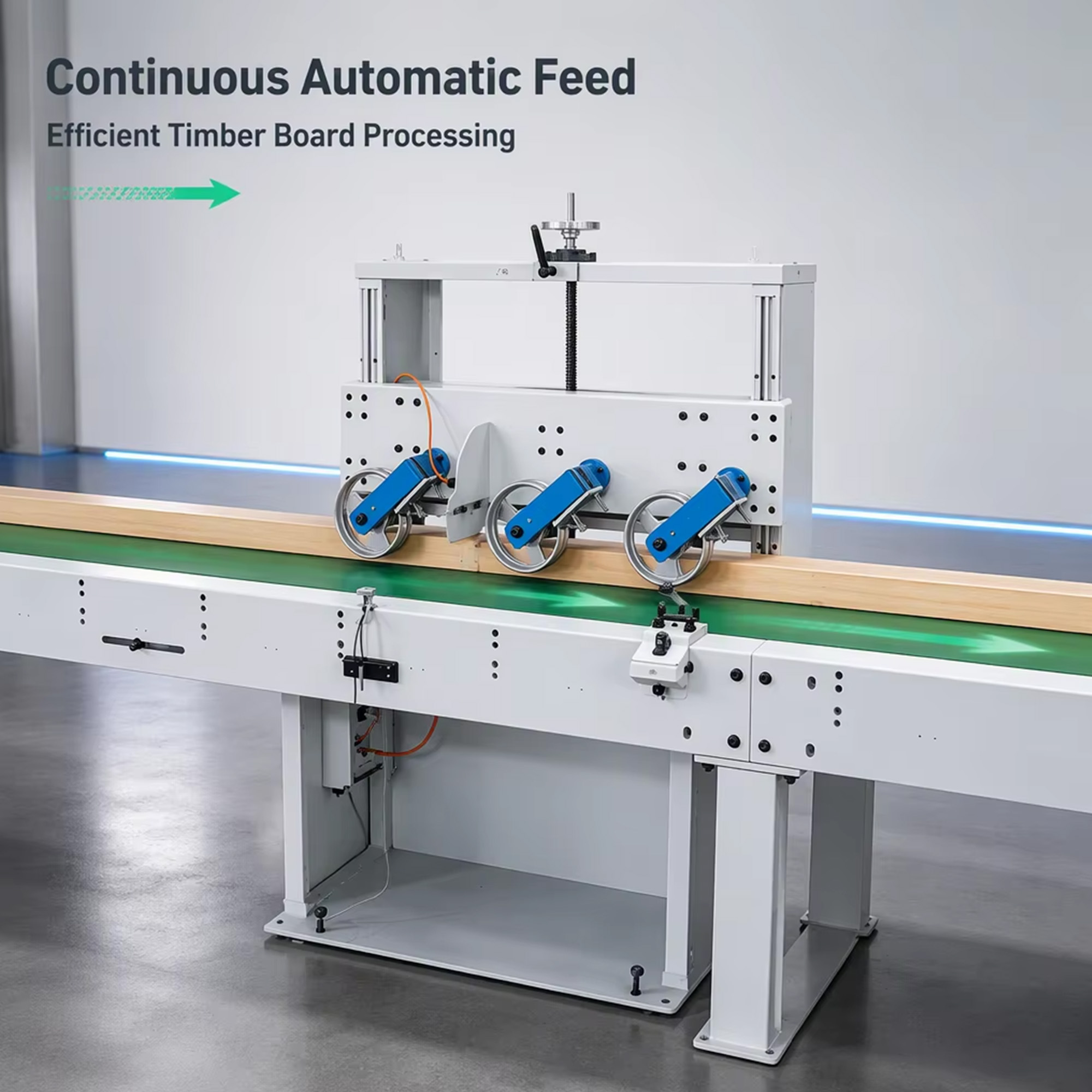

What is the feeding mode?

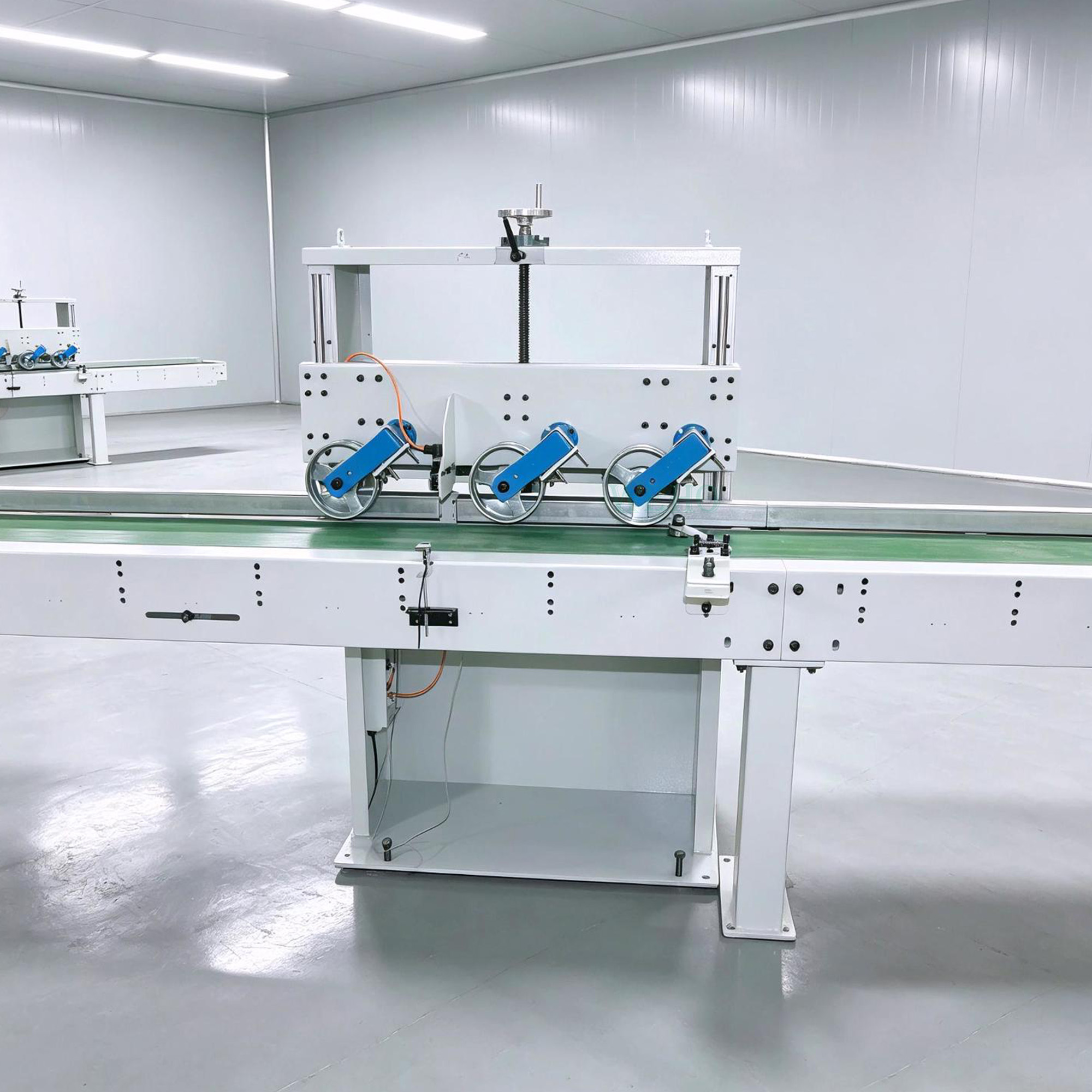

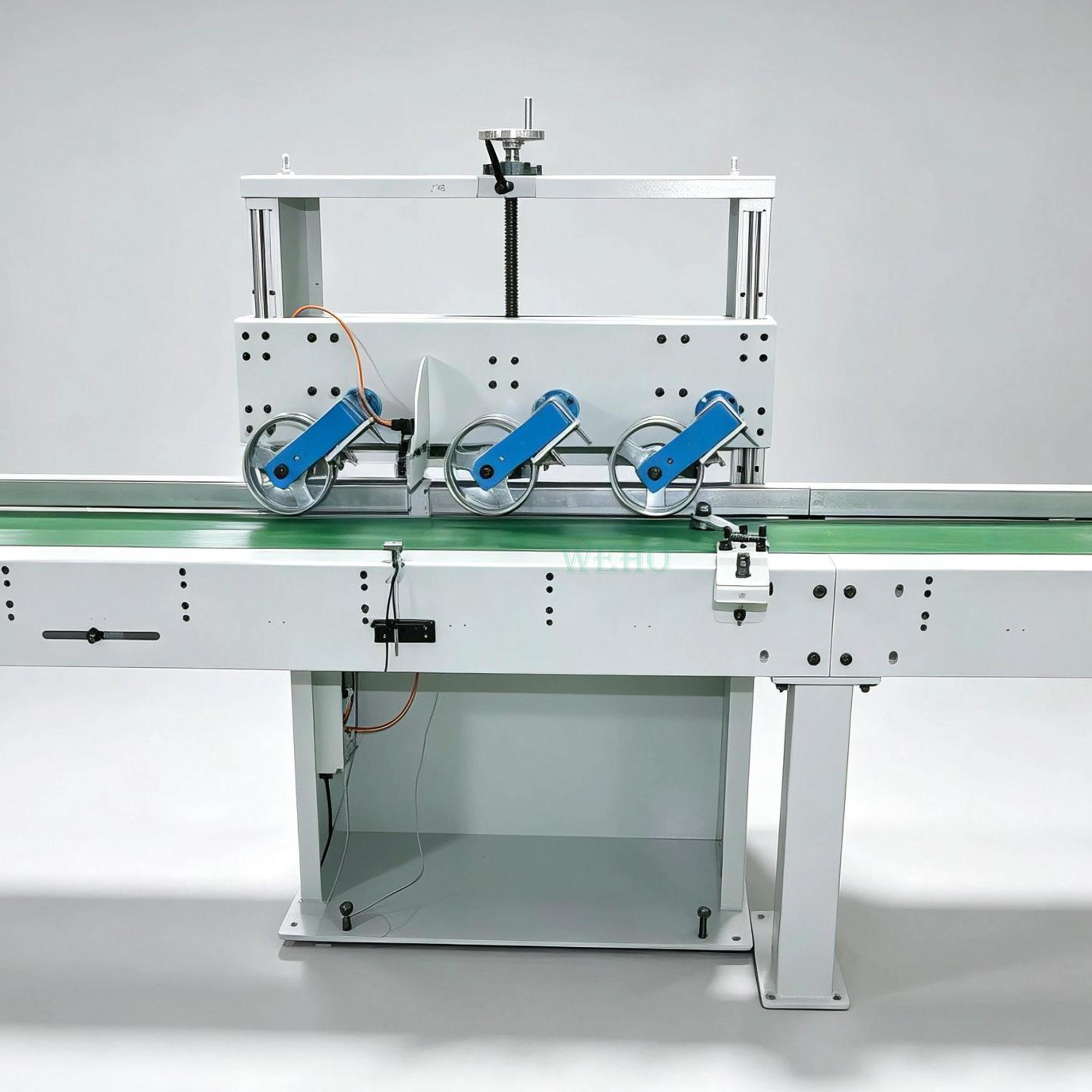

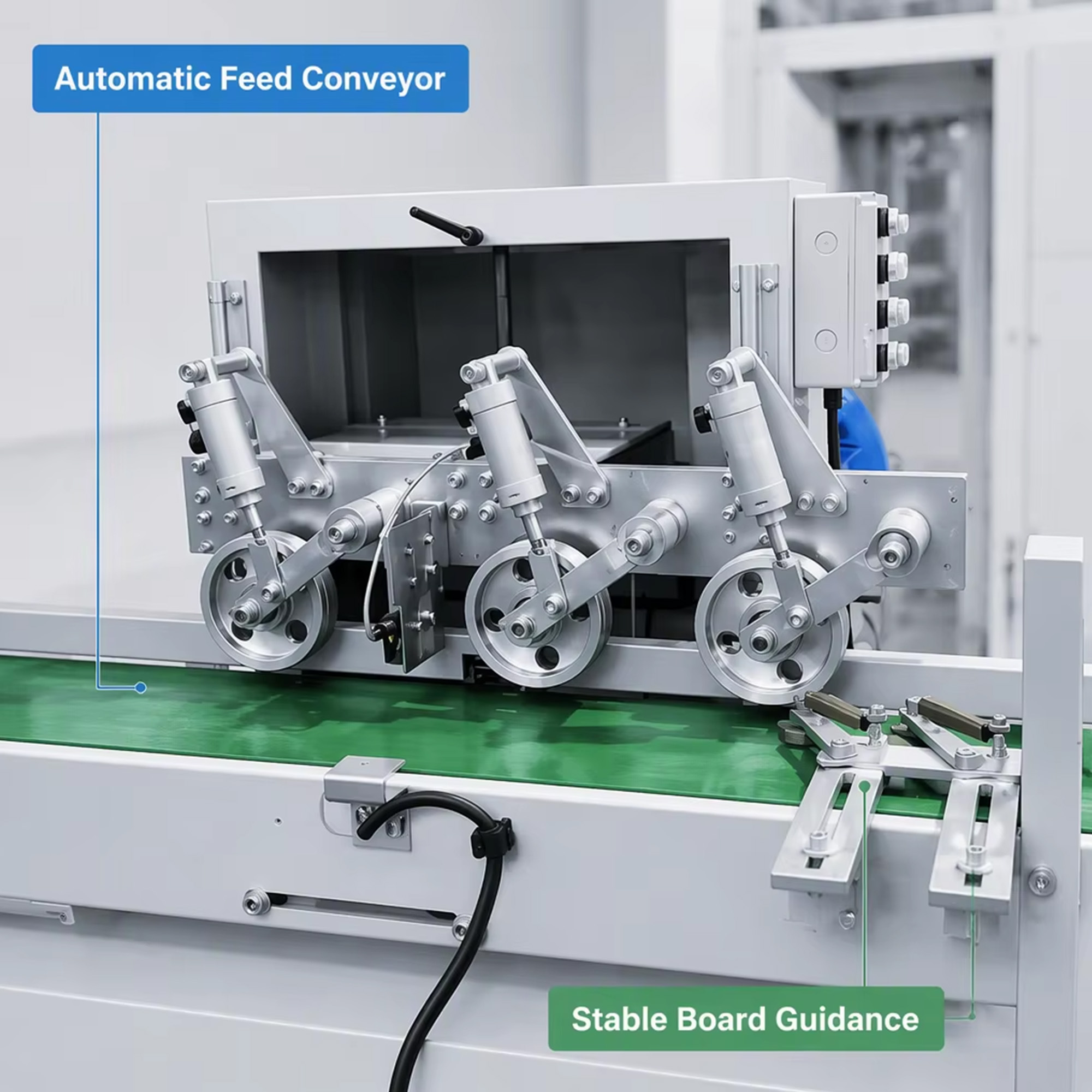

Automatic feeding, continuous running. High speed, reduce manual handling.
How to buy？
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate？
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty？
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts. After buying, technical supporting contact 008613326792205
