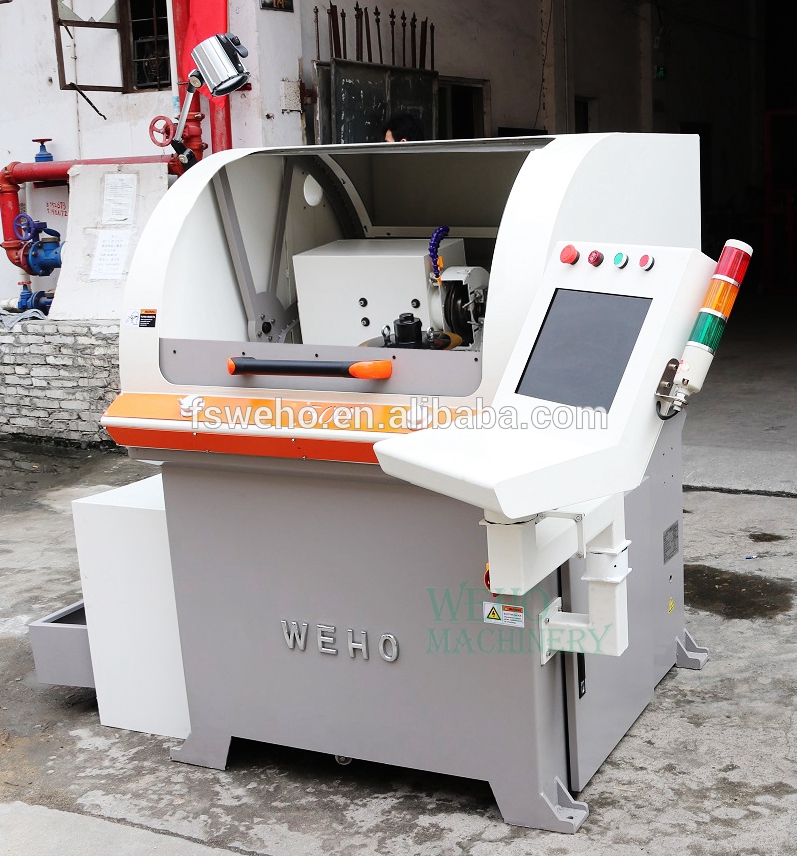

HSS circular saw blade sharpening grinding machine CNC PLC controlled | Saw Sharpening Machine
Model: HSS500-3A
3 Axes: X, Y, Z (Not chamfer axis)

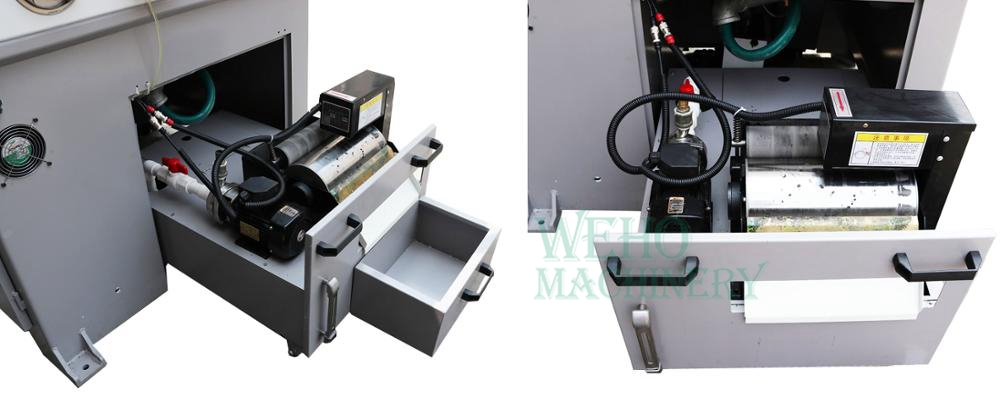

Magnetic separation slag remover: 60L/min
Grinding tooth type: Triangular tooth, Arc tooth, High-low tooth, Variable pitch tooth
Grinding precision: Face angle ±1.0°, Top angle ±1.0°, Tooth depth ±0.1mm, R ±0.1mm
Best Sharpening Equipment for High Speed Steel Saw blade, Which use for metal cutting.
Suitable to sharpen or re-cut and chamfer automatically HSS saw blades in creep feed grinding method by using CBN grinding wheels.
Circular saw grinding machine are CNC sawblade sharpening machines with 3 or 4 axes servo control.
|
Model |
HSS500-3A |
|
3 Axes |
X, Y, Z (No chamfer axis) |
|
Magnetic separation slag remover |
60L/min |
|
Grinding tooth type |
Triangular tooth, Arc tooth High-low tooth, Variable pitch tooth |
|
Grinding precision |
Face angle ±1.0°, Top angle ±1.0° Tooth depth ±0.1mm, R ±0.1mm |
|
Grinding saw blade size |
Diameter Ø80mm–Ø500mm, 10 ~ 600 teeth |
|
Saw blade pitch |
T1.3–T22mm |
|
Saw blade thickness |
＜3.5mm |
|
Cutting angle |
0.01° ~ 30° |
|
Grinding speed |
2 ~ 60 teeth/min |
|
Grinding wheel size |
Ø200mm*Ø32mm |
|
Grinding wheel thickness |
1mm ~ 3mm |
|
Running speed |
4500 ~ 6000rpm |
|
Total power |
About 8kw |
|
Weight |
About 600kg |
|
Size |
L1100mm*W1400mm*H1800mm |
Fully automatic operations for sawblade outer diameter, number of teeth, sharpening amounts,cutting angles, back clearance angles, and up-down chamfer. Humanized two handwheels make re-sharpen old teeth easy to operate.

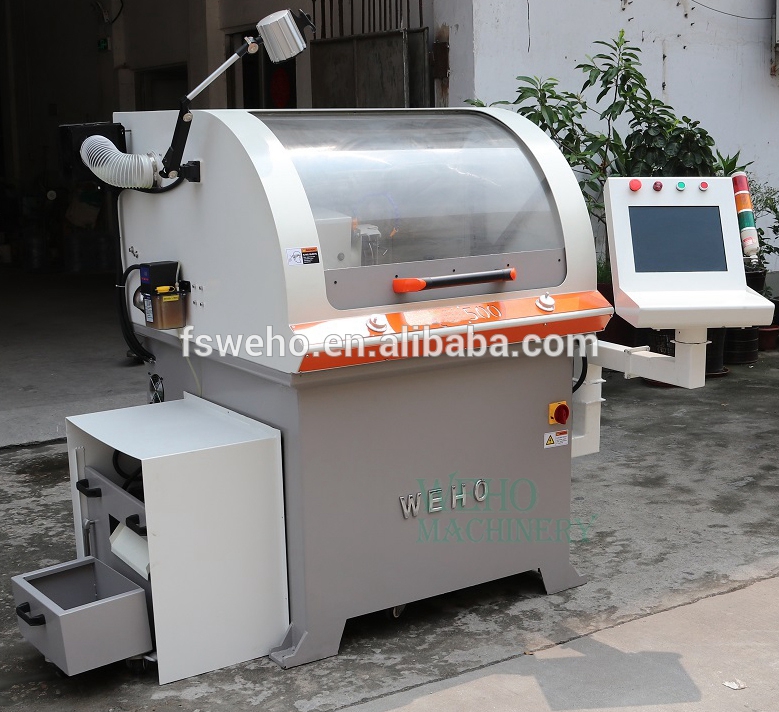

The elegant, fully-enclosed splash guard is standard equipment.
The guard prevents dust pollution during wet sharpening, reduces noise, and provides an excellent working environment. The new designed and special window provides widen vision and easy to see the grinded object.
HSS saw sharpening machine Advantage:
1)A fully automatic CNC HSS sawblade sharpening machine.
2) CBN diamond grinding wheel.
3) Cooling system
4) Automatic cutting angle setting.
5) Grinding wheel speed setting.

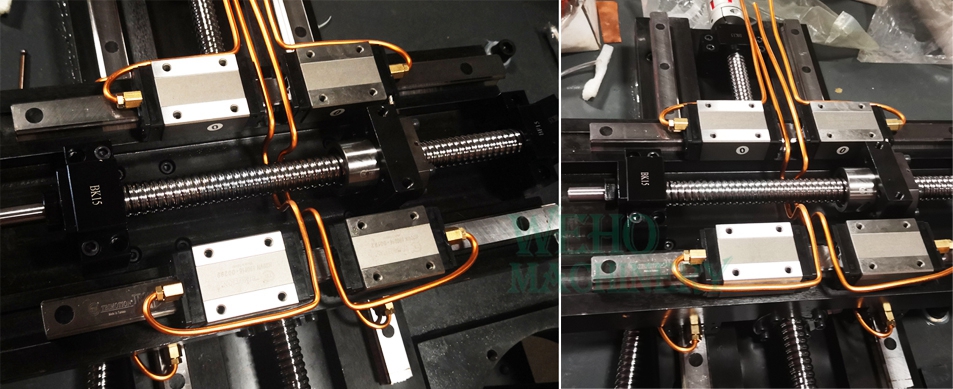

6) Three axes servo control.
7)Oil mist filter
8) Patented splash guard.
It is easy to open the guard and convenient to change the saw blade.
