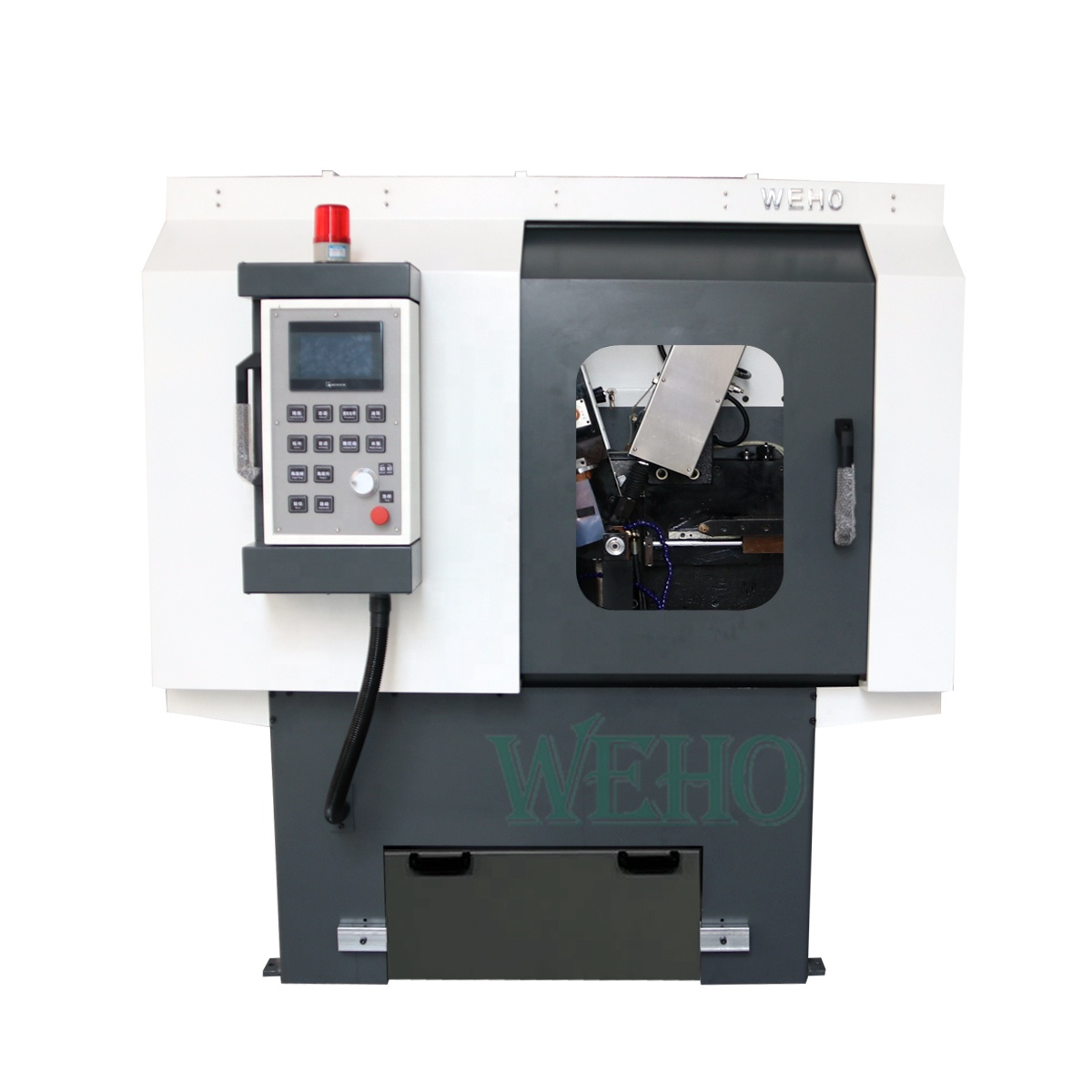

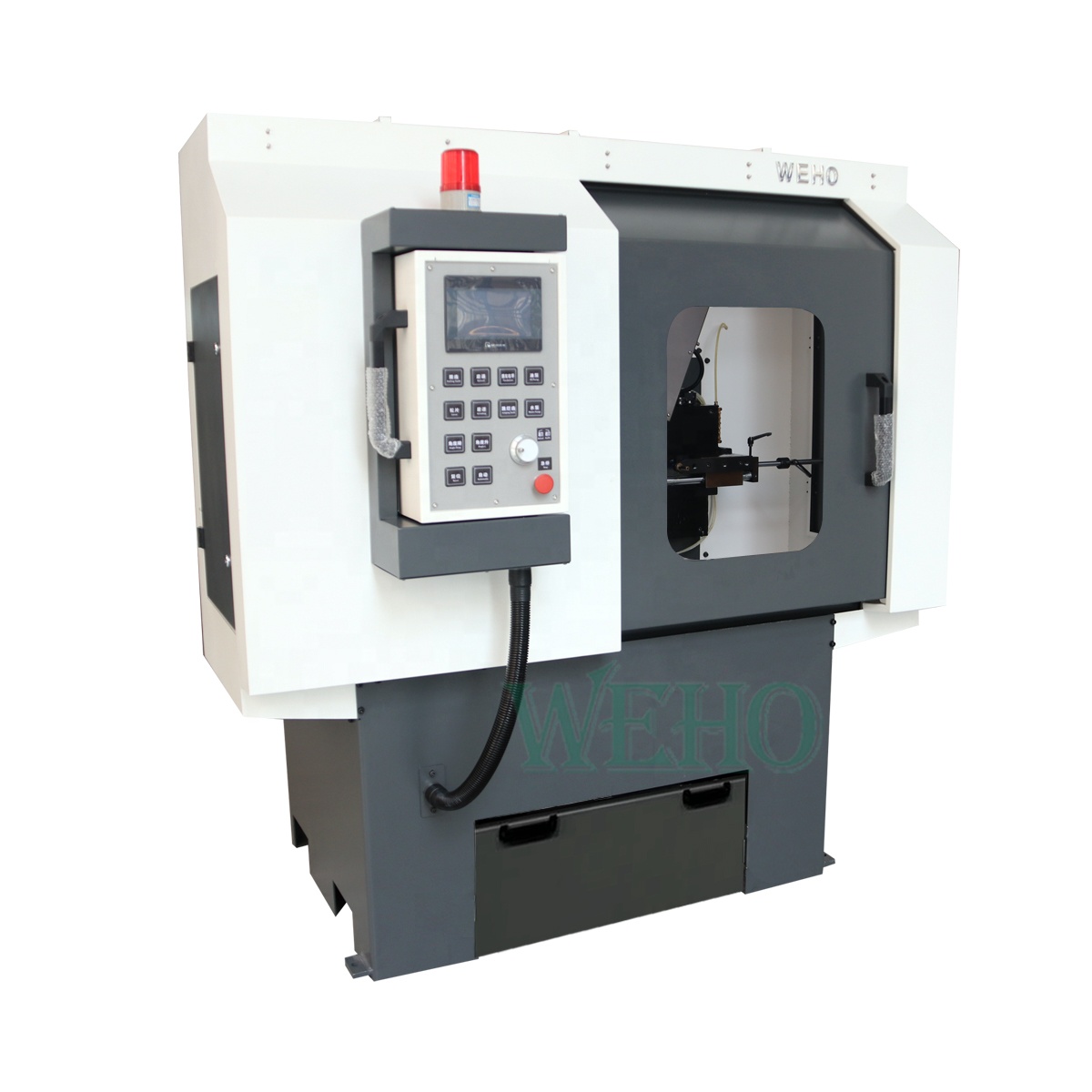

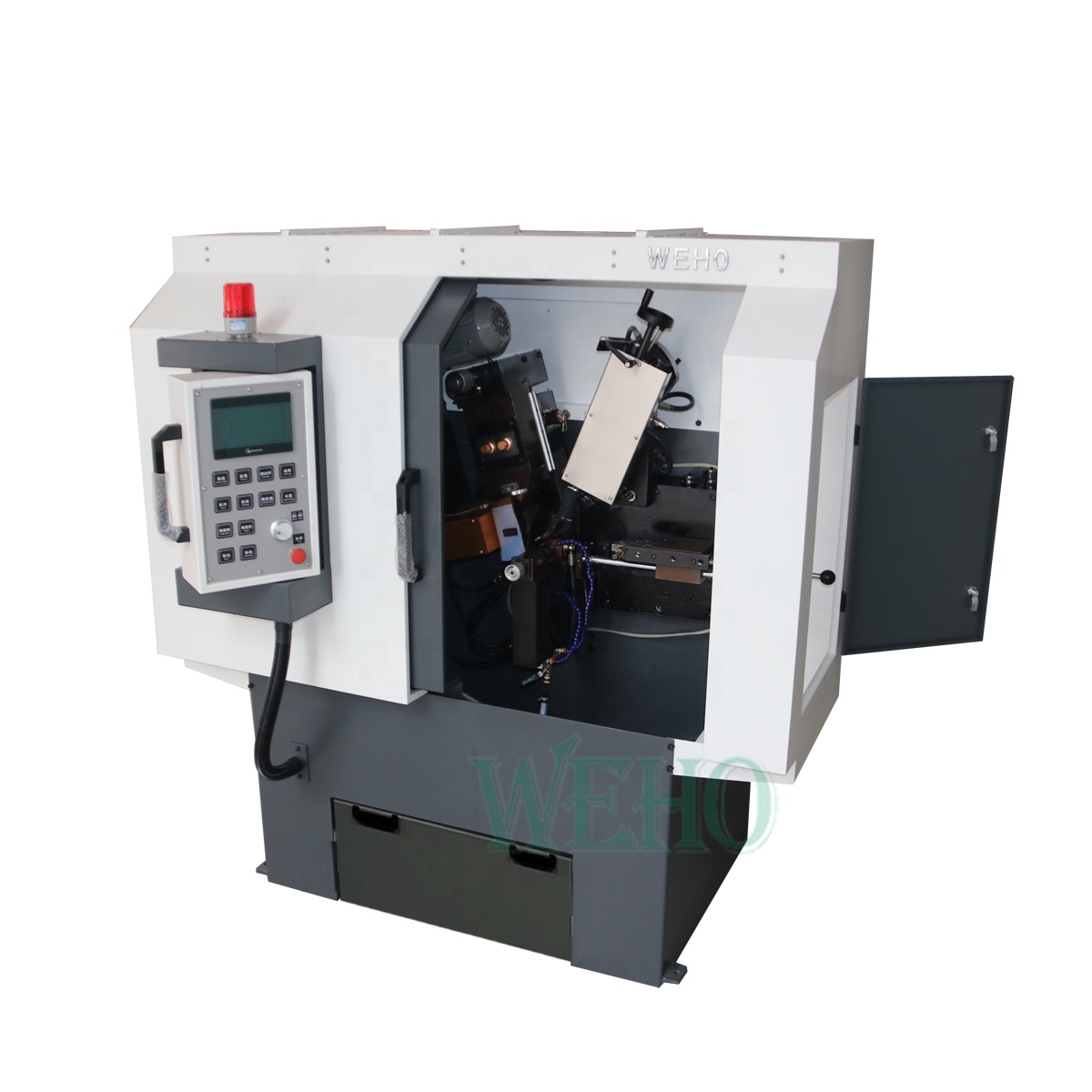

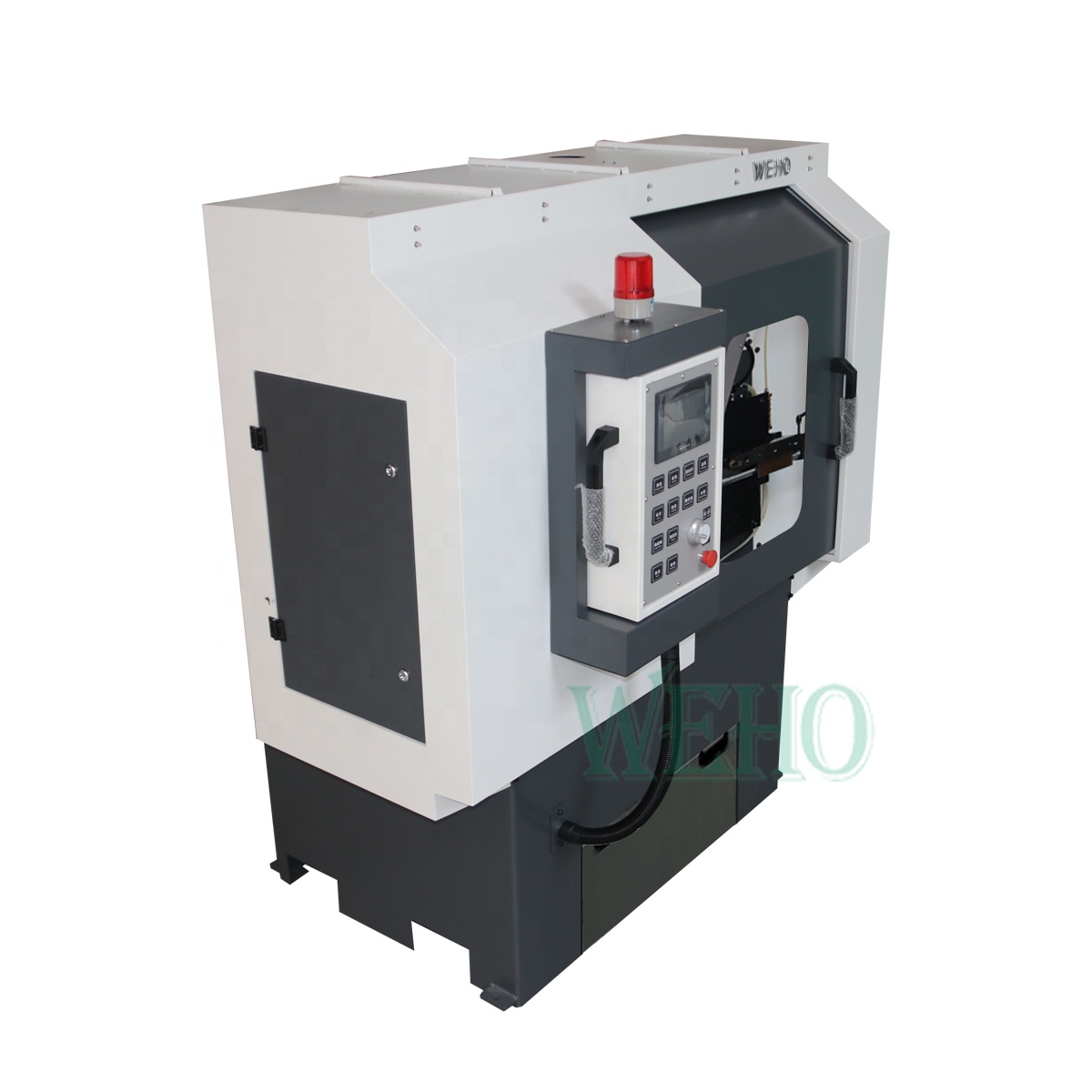

Hydraulic automatic top and face grinding TCT circular saw blade grinder sharpening machine
Hydraulic automatic top and face grinding TCT circular saw blade grinder sharpening machine

Hydraulic automatic top and face grinding TCT circular saw blade grinder sharpening machine


Model:MF026C
Carbide Saw Outside Diameter:80-810mm
Saw Bore Diameter:10-220mm
Max Blade Thickness:12mm
Peripheral Speed:26m/s
Working Speed:5-20teeth/min
Wheel Size(mm):125
Weight (KG):900


Details
Spare Parts
Inquiry
Designed to grind T.C.T. circular saw blades, generally used for cutting timber, press board, PVC and aluminum. Its aim is to provide a clean and undamaged cutting edge for the materials used.
Model
MF026C
Carbide Saw Outside Diameter
80-810mm
Saw Bore Diameter
10-220mm
Max Blade Thickness
12mm
Tooth Pitch
7-100mm
Clearance Angel
6°-45°
Bevel Grinding top angle
-7°~40°
Bevel Grinding face angle
3°~+20°
Coolant Capacity
80L
Grinding Speed
0.56mm / s
Working Speed
5-20teeth / min
Grinding Wheel
125mm
Peripheral Speed
26m/s
Overall size
1280*1680*2200mm
N/W
900kg
There are two different kinds of grinding processes, which can be performed with this machine.

It's capable of grinding standard tooth shapes on carbide tipped circular saw blades up to Ø800mm.

Hydraulic driven, microprocessor controlled. Lift off face and top grinding.Face grinding of ATB tooth form in one cycle.Hydraulic driven saw blade clamp.
One is for face grinding,The other is for top grinding.TCT circular saw blade grinder for Top and Face Grinding machine.Grinding all common tooth types. Totally enclosed cabin for operator safety.


Hydrualic system made in Taiwan, ensure stability. PLC is Mitsubishi, fast response.
Hydraulic tct circular saw blade grinder for Top and Face Grinding machineSimple controls for ease of use.Rigid base. Independently adjustable grindingProduction conformed with CE standards.


For the complicated shapes of rake angle and clearance angle of all sorts of carbide saw blade tips. The machine has automatic compensation program to compensate.
18 months Warranty, main spindle made from Taiwan company.Servo system is Inovance, very famous brand in China,Siemens motor for this machine, make this machine more stronger.It can adjust grinding speed and it has automatic lubrication system.
[]
