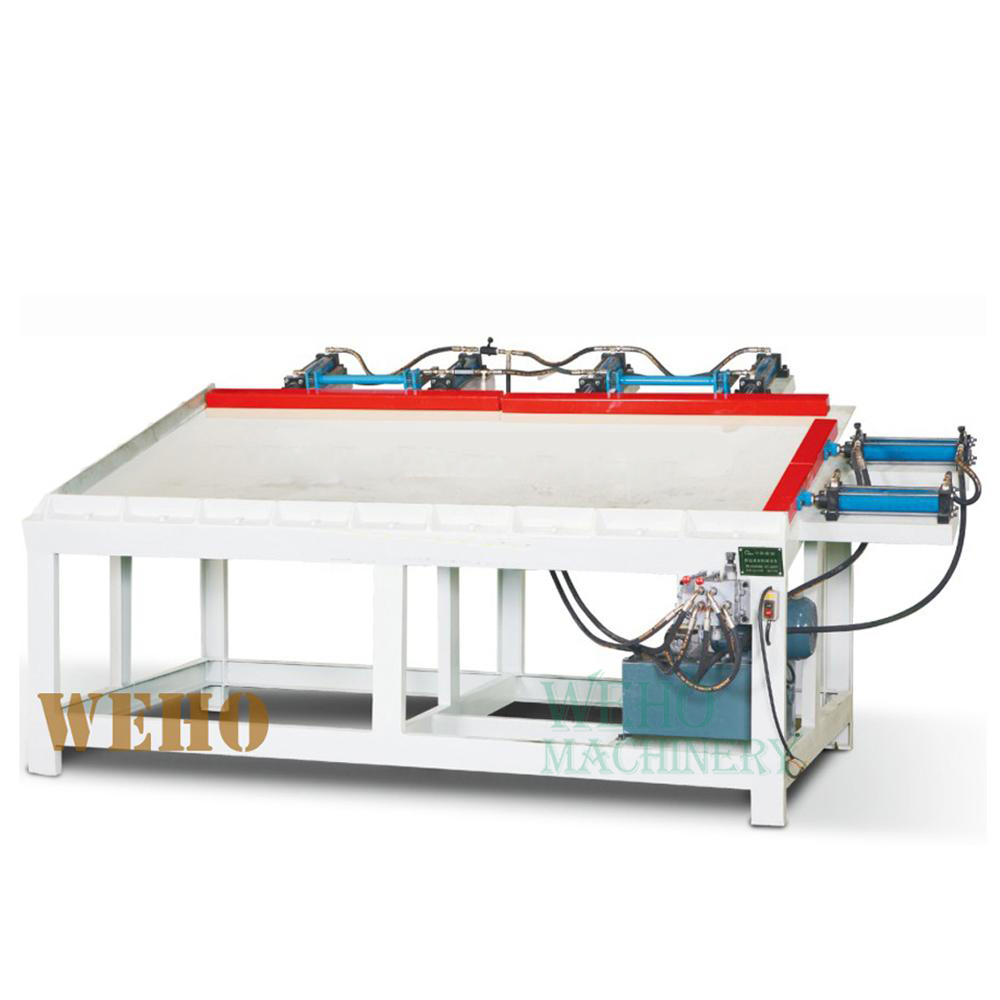

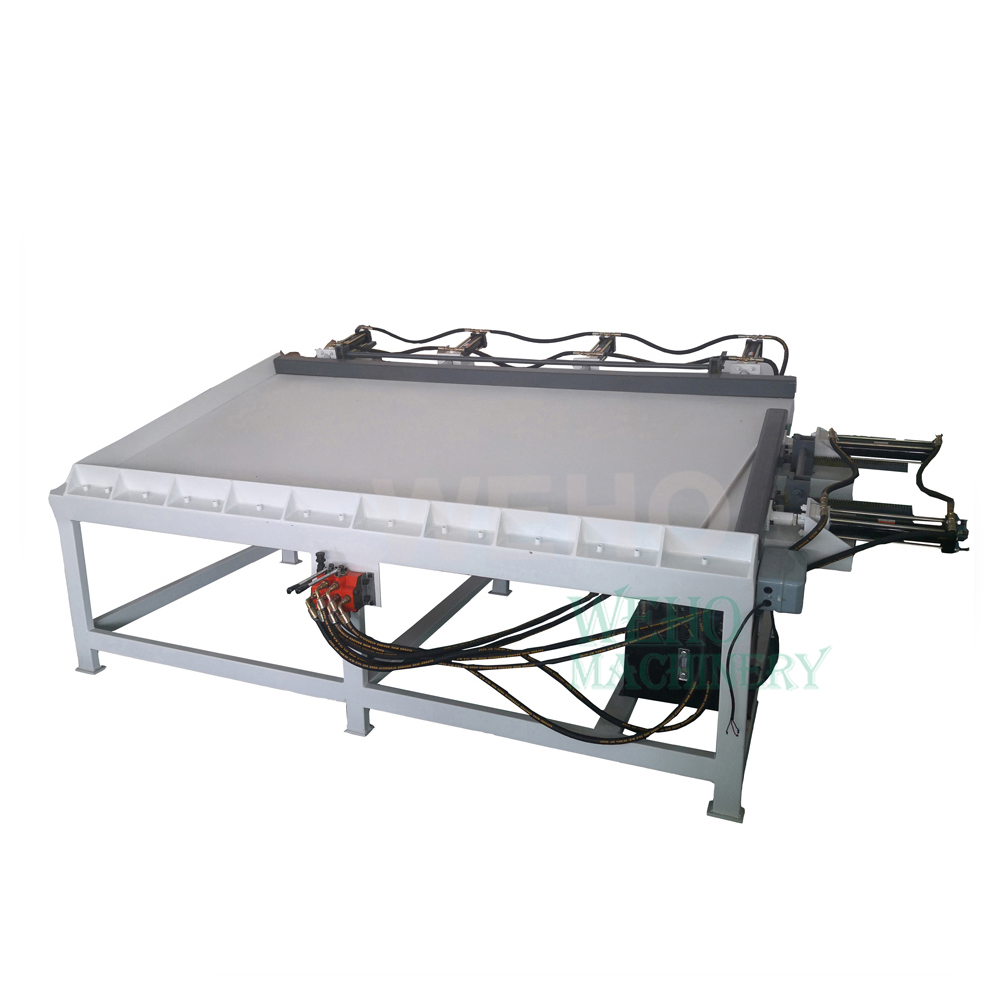

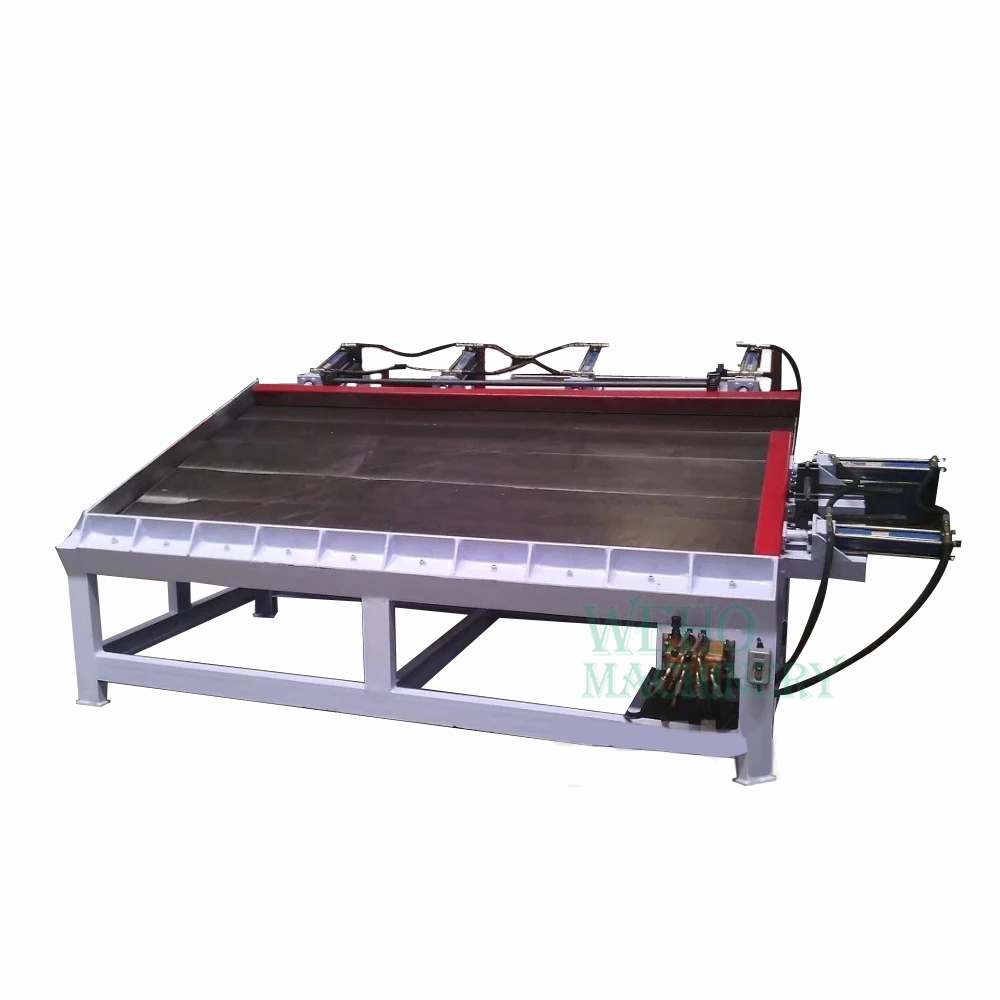

Hydraulic wood door & window frame press composer sheet clamp carrier assembly machine MH1224 | Hydraulic Door Composer
Hydraulic wood door & window frame press composer sheet clamp carrier assembly machine MH1224 | Hydraulic Door Composer

Hydraulic wood door & window frame press composer sheet clamp carrier assembly machine MH1224 | Hydraulic Door Composer


Model:MH1224
Power (kW):2.2
Dimension(L*W*H):3300*1900*1200
pressing pressure:25T
Max platen opening:1220*2440



Details
Spare Parts
Inquiry
Allows for several goods of different dimensions to be pressed simultaneously- cabinet boxes can be clamped at the same time as large panels or eccentric-shaped furniture pieces.Hydraulic system has low noise, no leakage, energy saving and consumption reduction.Special size can be tailored to your requirements.
Name
Kitchen cabinet hydraulic woodworking assembly machine
Modle
MH124
Working size
1200*2400mm
Up Oil cylinder size
50* 4 pcs
Side oil cylinder
50*2 pcs
Power
2.2kw
Oil cylinder pressure
2000kg
Up pressure
4T
Sided pressure
2T
Weight
600kg
Overall size
3300*1900*1200mm
Wood doors and windows are assembled by door assembly system picture face Frame Clamping table.The size of the assembly is flexible, the size is adjustable, and the utility is extremely convenient.The assembly plane is flat and the assembly precision is high.
Frame Clamping is a processing equipment suitable for assembling wooden doors and windows. It is novel in design, light andflexible in adjustment, and can be equipped with pneumatic pressure device, thus further ensuring the assembly quality.

Frame Clamping machine is characterized by flexible and convenient operation and high production efficiency.
Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.


[]
