Industrial CNC vertical curve cutting wood band saw machine | Vertical Wood Band Saw
Industrial CNC vertical curve cutting wood band saw machine | Vertical Wood Band Saw

Industrial CNC vertical curve cutting wood band saw machine | Vertical Wood Band Saw

Processing capacity:2500*1250*150cm
Processing speed:1-25m/min
Saw wheel diameter:800*40mm
Saw wheel speed:450-700rpm
Saw blade turning angle:+90~-90

Spare Parts

1) The processing efficiency is high, the processing work-piece surface is good quality and no need to be crossed.
2) Save the timber, processing range is wide, automatic programming, the operation is easy, man-machine division, it can reduce the risk of industrial injury, it is an ideal production equipment for wood furniture and other enterprises.Fast connect feeding table saw and main cutting band saw
Model MJS1625B
Processing methods Table feed movement and saw blade rotation
Processing capacity 2500*1250*150mm
Clip holder 4
Pressing method Roller pressing*2(D76*1150mm)
Movable aluminum alloy work bar 5
X-axis drive mode Precision rack and pinion
Y-axis drive mode Precision ball screw
Max processing speed 1-25m/min
Max return speed 50m/min
Saw blade specification Length 5400mm*Width 12-15mm* Thikcness0.7mm
Saw blade tensioning method Pneumatic tension
Saw blade tensioning cylinder D125*50
Cylinder tension pressure 0.4Mpa
Saw wheel diameter 800*40mm
Saw wheel speed 450-700rpm
Min sawing radius 30mm
Saw blade turning angle 90~-90
Main motor power 7.5kw
X-axis servo motor power 1kw
Y-axis servo motor power 1.0kw
Z-axis servo motor power 0.4kw*2
Worktable feed linear guide 30
Control system CNC
Saw head(L*W*H) 1000*665*2325mm
Workbench(L*W*H) 5500*2100*1660mm
Electric control box(L*W*H) 1250*600*1600mm

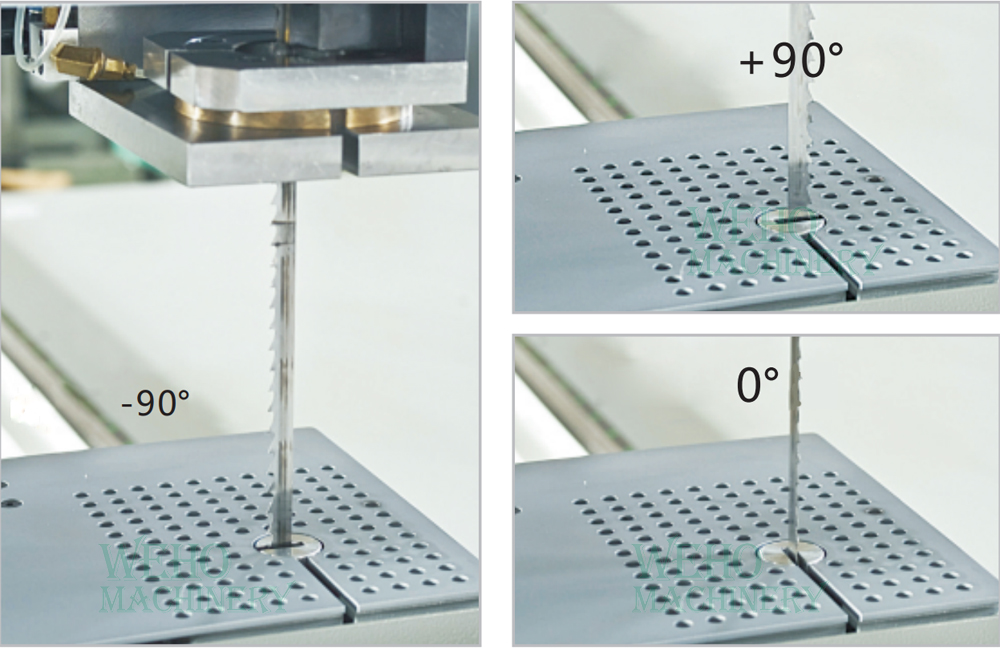

This cnc bandsaw no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide,  scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.

The open feeding platform is more convenient, and the sawing efficiency is higher.

Strong cylinder fixtures, the clamping device is reliable, clamping range is wide, it can saw the multi-layer sheet synchronously.The saw clamping device can enhance its precision.

CNC band saw machine is an affordable and economy machine, it can solve the curve processing for hundreds of users.

woodworking vertical cnc band saw machine.Strong clamper for push workpieces.safety door to provent accident.Cast aluminium wheel.

​​​​Vertical Wood Band Saw
