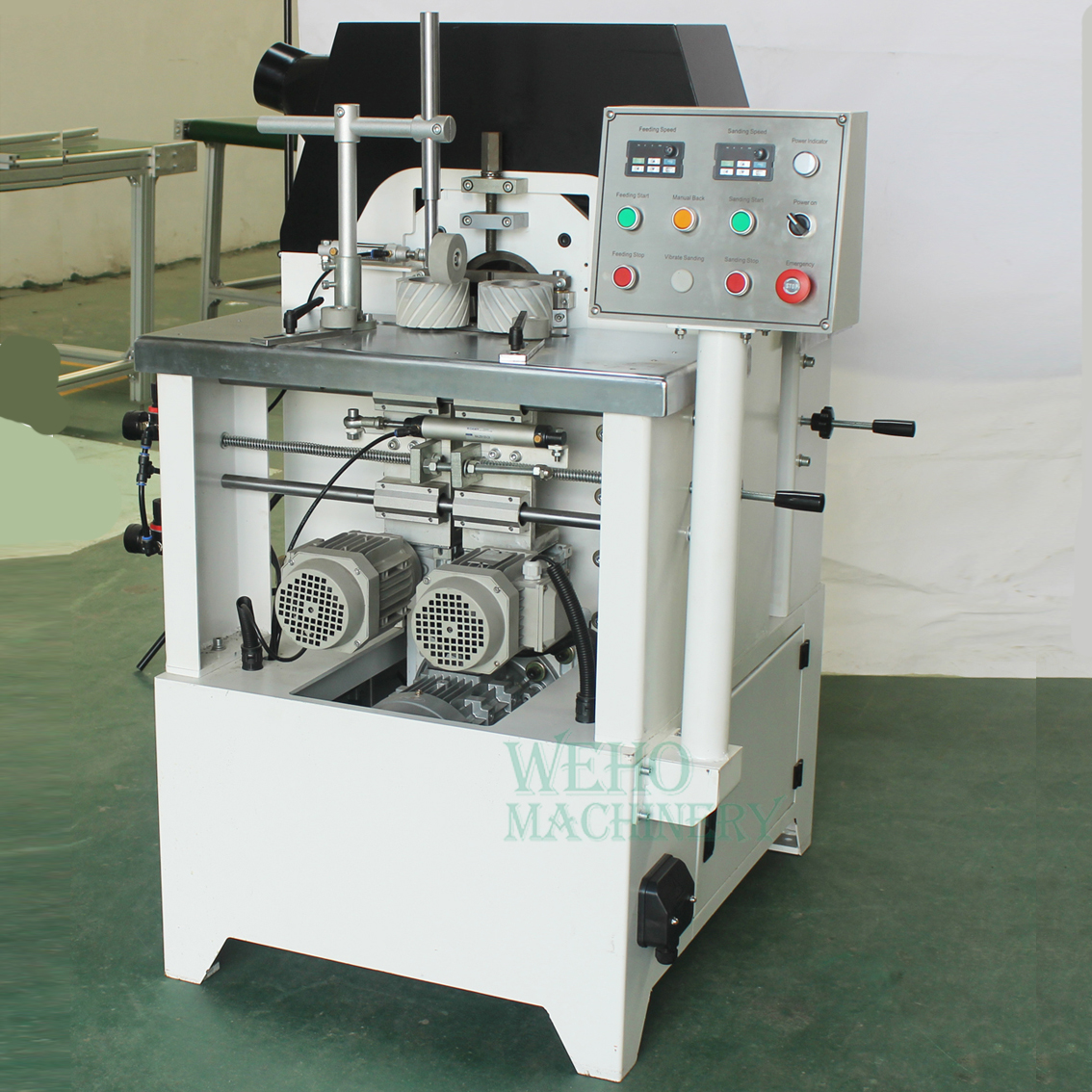

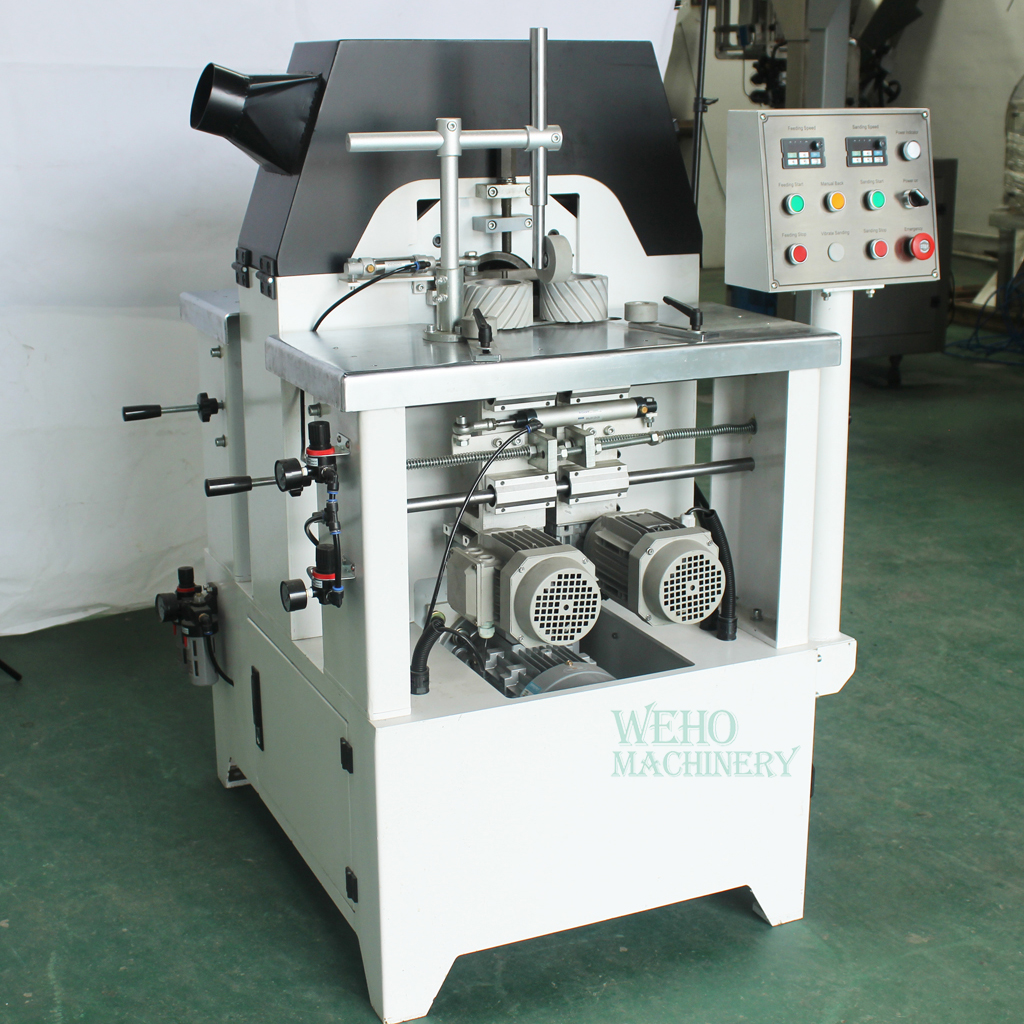

Industrial sanding chamfering machine for bend woood furniture
Industrial sanding chamfering machine for bend woood furniture

Industrial sanding chamfering machine for bend woood furniture


Model:MM45
Max working width:120mm
Max Working thickness:120mm
Min Length:360mm;450mm
Dimension(L*W*H):1600*950*1500


Details
Spare Parts
Inquiry

This production line solves the problem of sanding / chamfering / polishing of the surface of dining chair, and basically meets the requirements of the sanding surface to be flat, without waves, and no chamfers. The finished front feet can be directly painted or primed.
Model MM45
Max working width 100mm
Max working thickness 100mm
Min working length 380mm
Sanding motor 2.2KW*1 with invetor
Feeding motor 0.25KW*4
Feeding speed 3-15m/min(Frequency )
Sanding belt size 65*1280mm
Table height 92cm
Dust output φ100*1
Weight 350Kg
Overall size 1600*950*1500mm

The sand belt movement adopts the air-feeding structure, which is more stable and guarantees the sanding quality.

The belt is equipped with air blowing heat dissipation, which can effectively extend the life of the belt and reduce the cost of consumables.

Spring positioning structure for small wood sanding machine, fast, accurate and easy to learn, reduce failure rate.

Closed dust suction structure, no flying dust, more environmentally friendly.

The main shaft adopts original imported NSK high sealed bearings.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
