Industrial woodworking mortiser slotting groove Automatic Mortising machine | Mortiser Machine
Industrial woodworking mortiser slotting groove Automatic Mortising machine | Mortiser Machine

Industrial woodworking mortiser slotting groove Automatic Mortising machine | Mortiser Machine


Model:MS3112
Max. rabbet length:120mm
Max. rabbet height:16mm
Max. mortise depth:80mm
Spindle speed:9000rpm
Spindle motor:2.2kw



Details
Spare Parts
Inquiry

Wood working slotting groove Automatic Mortising machine
Mainly use for wood mortising.
Wood Oscillation mortising machine with steel round rods on spindle side ways.
Product Name
Wood working slotting groove Automatic Mortising machine
Model
MS3112
Max. rabbet length
120mm
Max. rabbet height
16 mm
Max. mortise depth
80mm
Main spindle rotation
9000r/min
Working table tilted
+ - 15 degree
Total power
2.2kw
Overall size
1500 * 1200 * 1200mm
N/W
550kg
Gross weight
570 kg
Nitrogen cylinder supports top cover firmly.RIGHT AND LEFT TABLE.

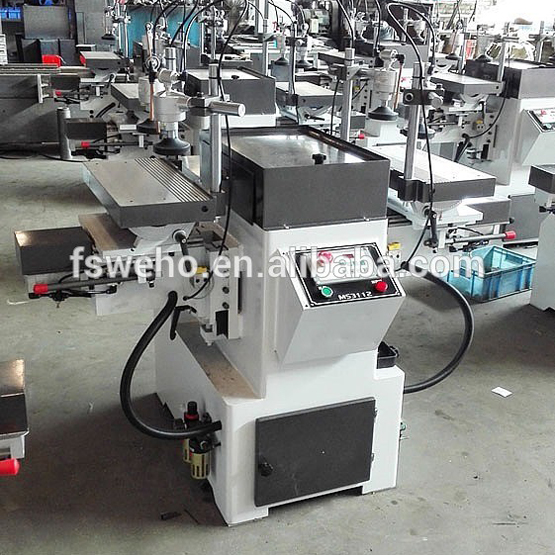

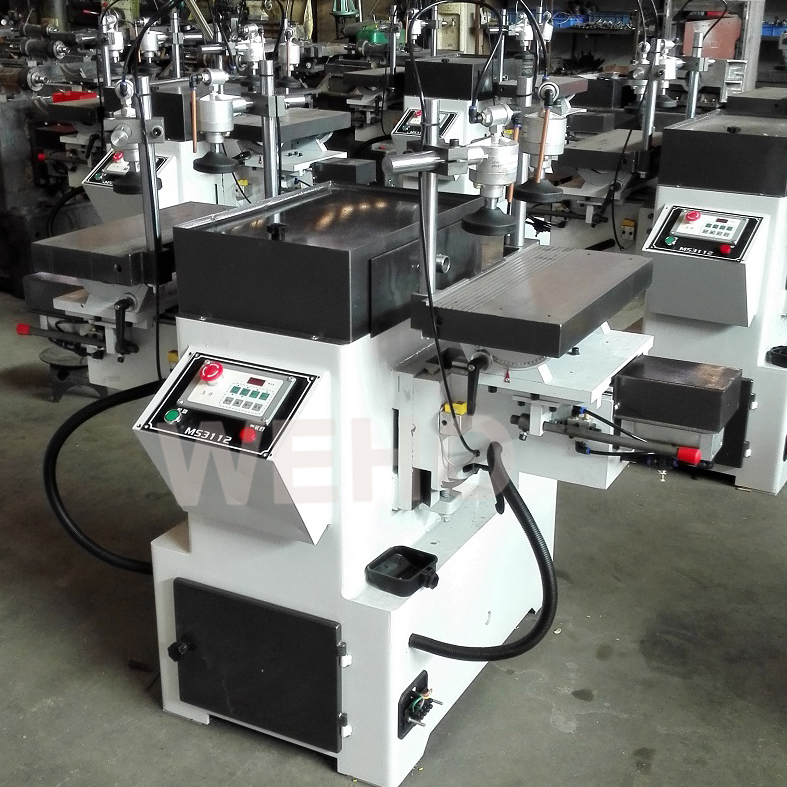

Wood working slotting groove Automatic Mortising machine

Wood working slotting groove Automatic Mortising machine,Table tits 25 degree at the right and left side.Table is elevated by turning a hand wheel.

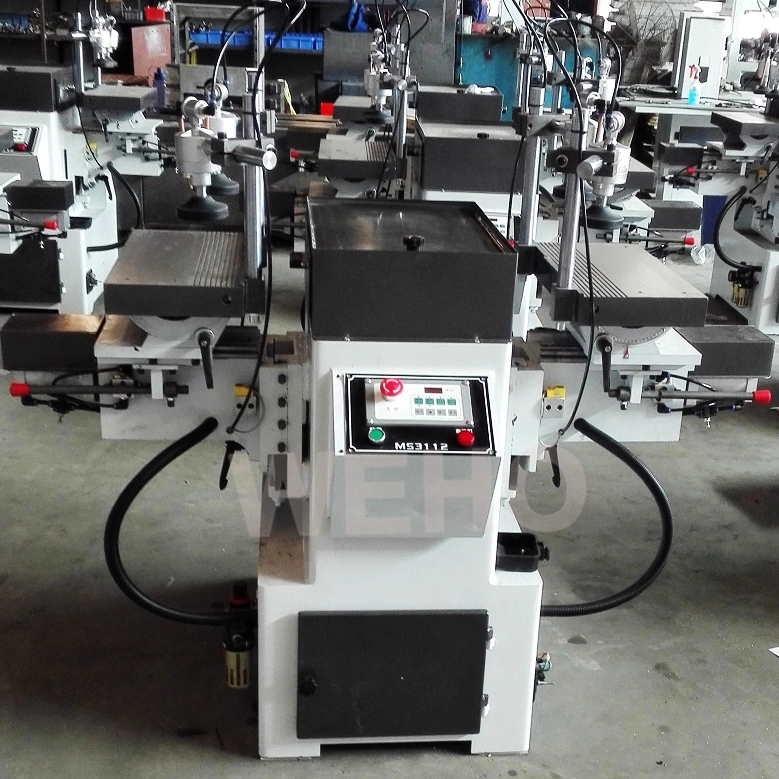

The machine is equipped with two tables at the right and left side allowing two operators to use simultaneously.

A mechanical meter provided on the mortise width adjustment mechanism ensures high accuracy adjustment.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design
and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
