Laminate through feed melamine particle board edge banding machine
Laminate through feed melamine particle board edge banding machine

Laminate through feed melamine particle board edge banding machine

Min. panel length:300mm
Min. panel width:150mm
Panel thickness:10-60mm
Machine power:15kw
Overall size:9560*1000*1600mm

Spare Parts

Modern thermoplastic and moisture-curing reactive adhesives ensure superior bonding strength and high-quality appearance in edgebanding applications.

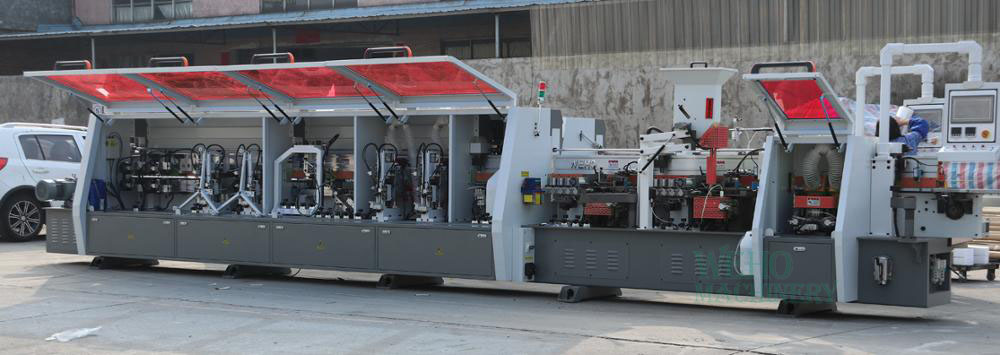

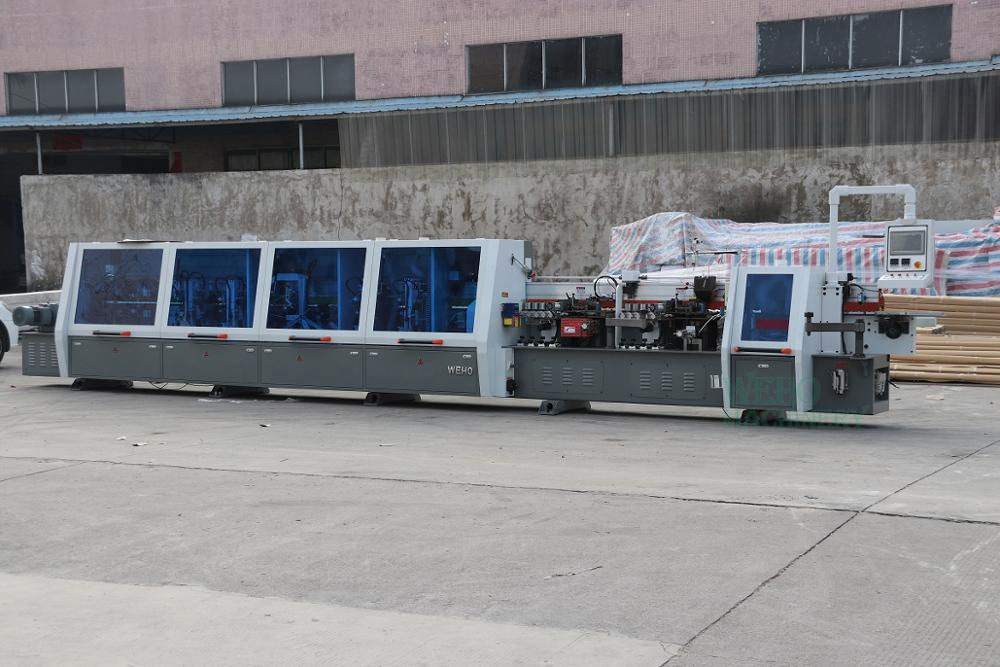

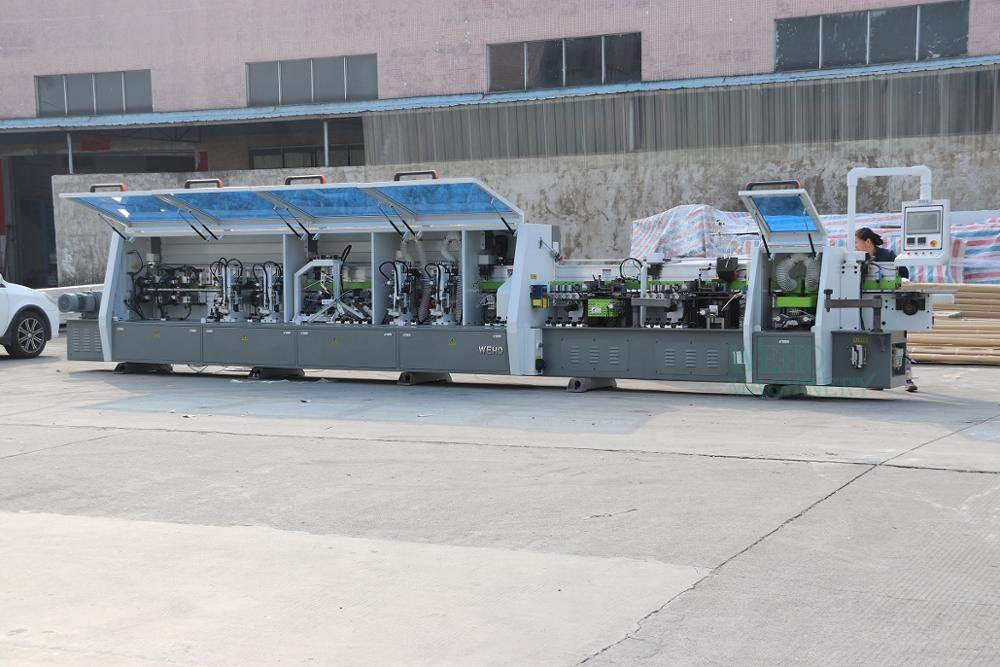

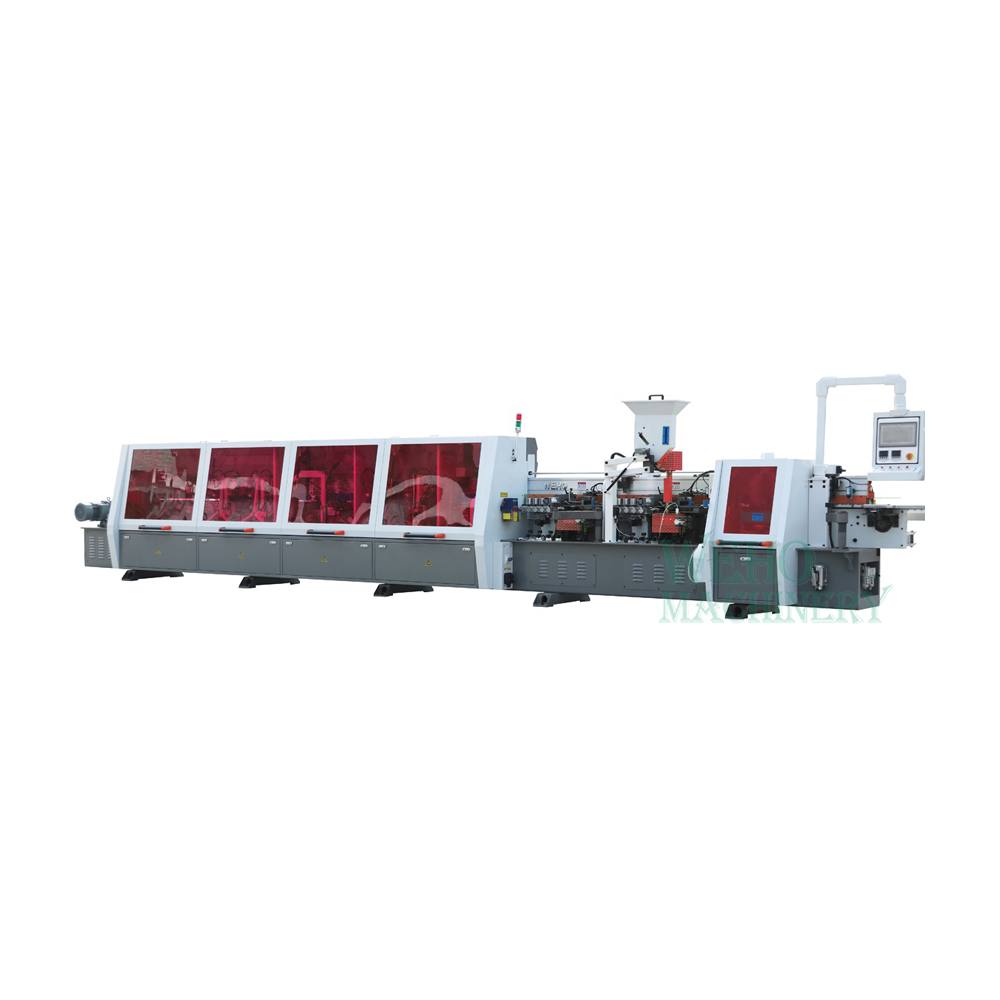

Product Name PUR edge banding machine
Model PUR-QJKE850
Min. panel length 300mm
Min. panel width 150mm
Panel thickness 10-60mm
Edging thickness 0.3-3mm
Feeding speed 13-22m/min
Machine power 15kw
Air pressure 0.6mpa
N/W 2800kg
Overall size 9560*1000*1600mm

PUR hot melt adhesives are renowned for meeting the highest demands with regard to a zero-bondline appearance as well as resistance to heat, moisture and chemicals in kitchens and bathrooms.

1, Premilling. 2, PUR Gluing.3, EVA glue pot, 4, End trimming. 5,Rough trimming. 6.Fine trimming. 7, Corner trimming. 8, Scrapping. 9, Scrapping 2.10, Buffing.11, Spray cleaning

A broad spectrum of adhesion to different edgeband materials is equally important as fast adhesive setting for direct downline processing and high heat resistance and durability.

 WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

Particle Board Edge Banding
