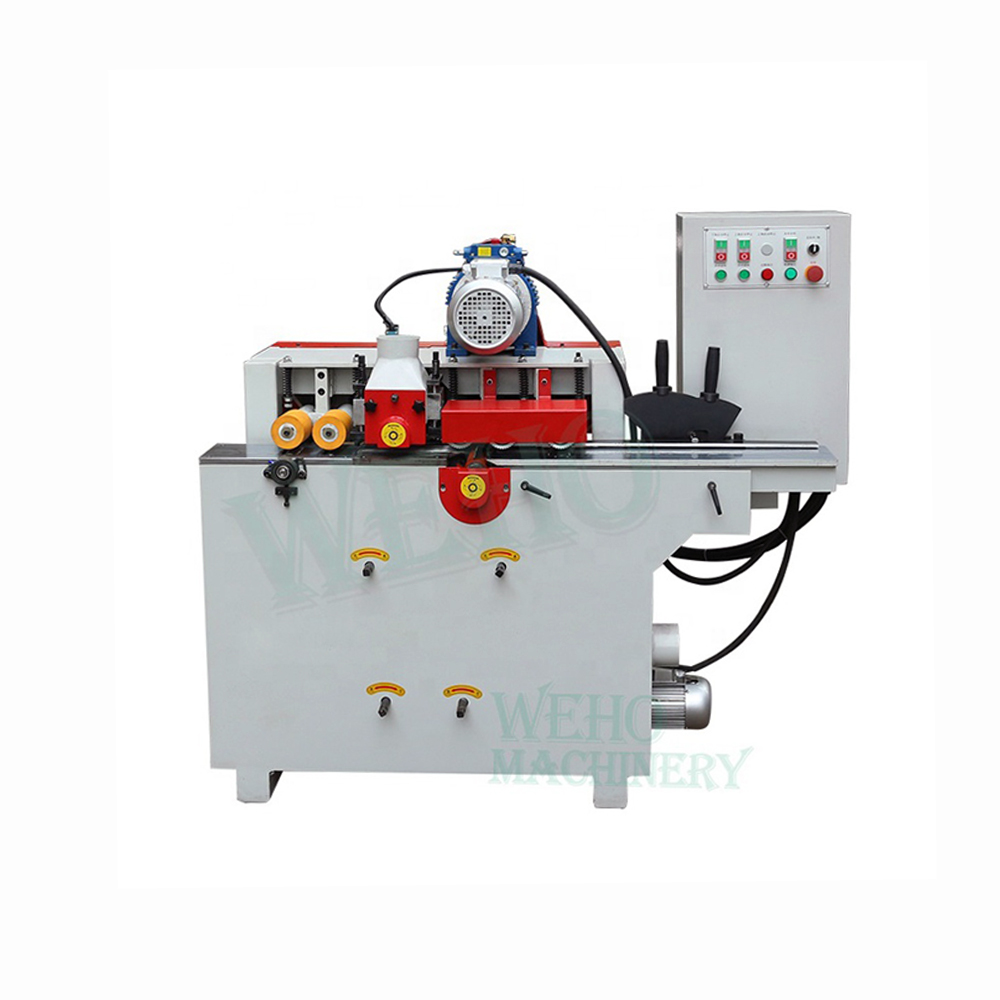

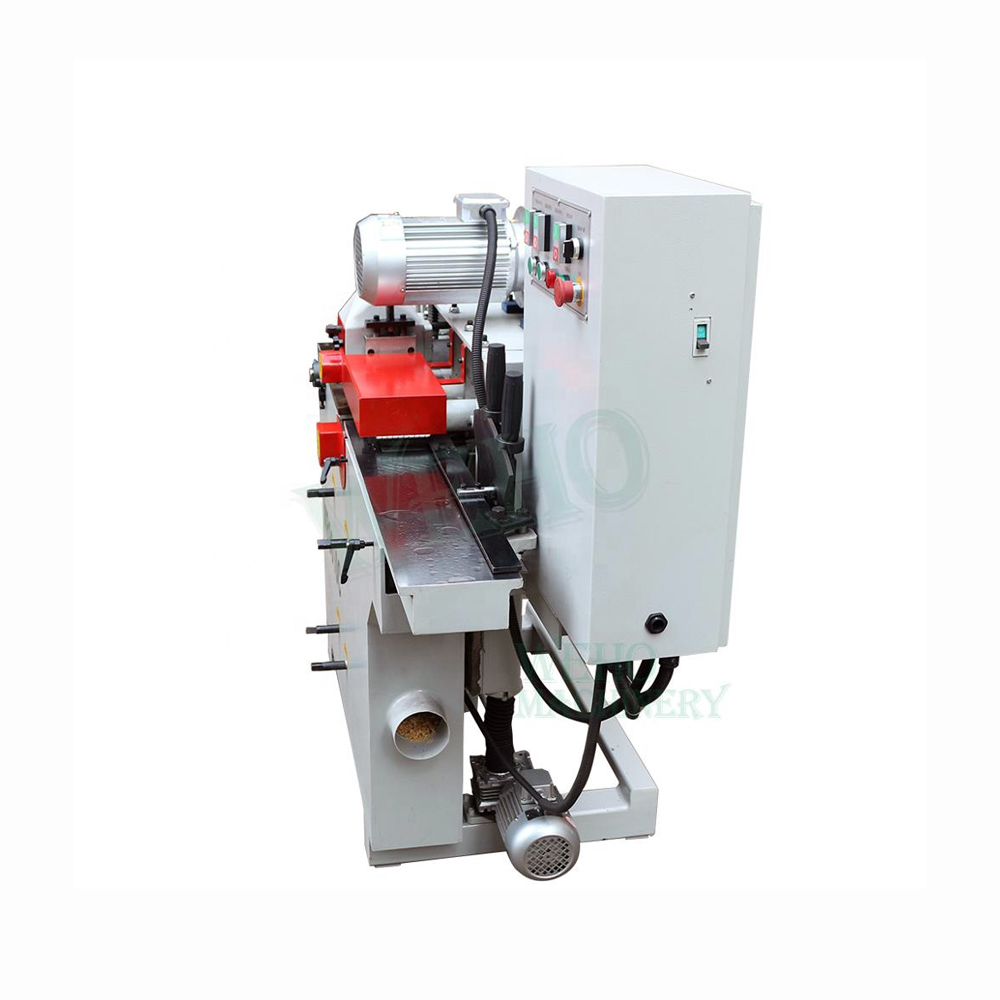

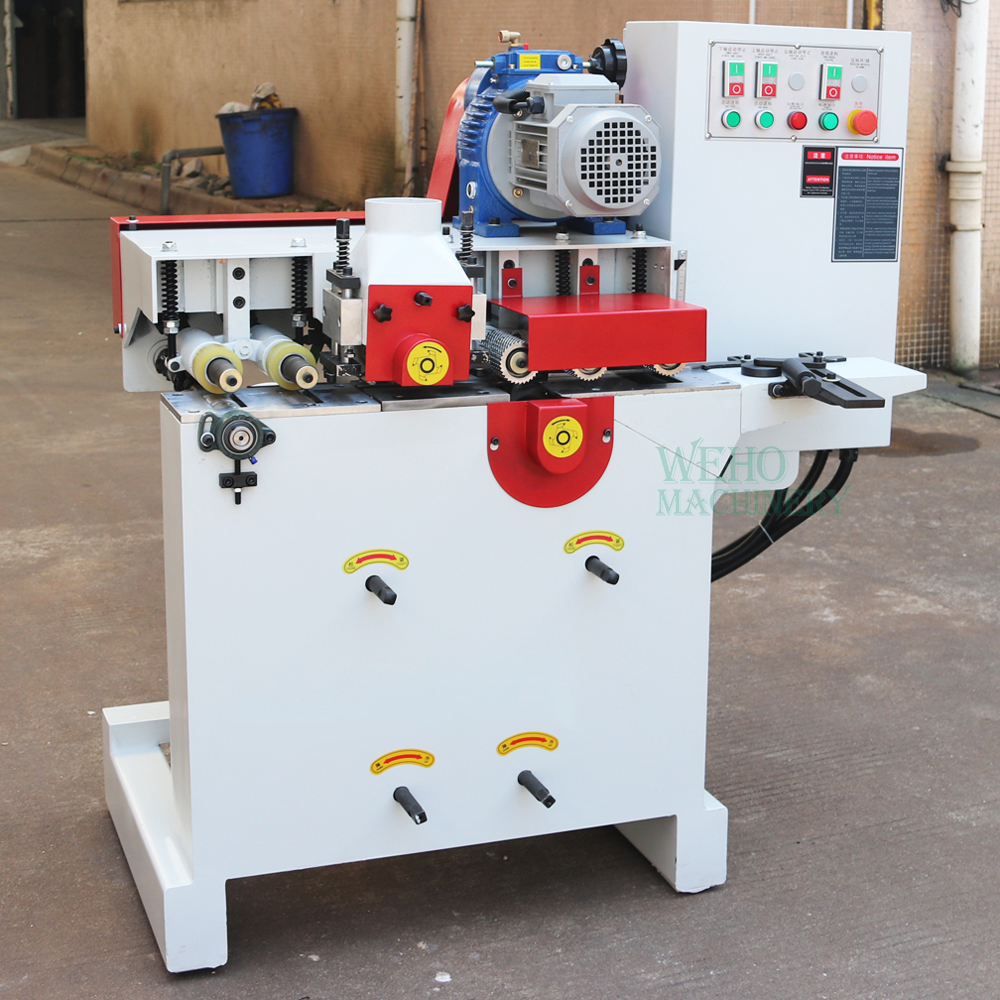

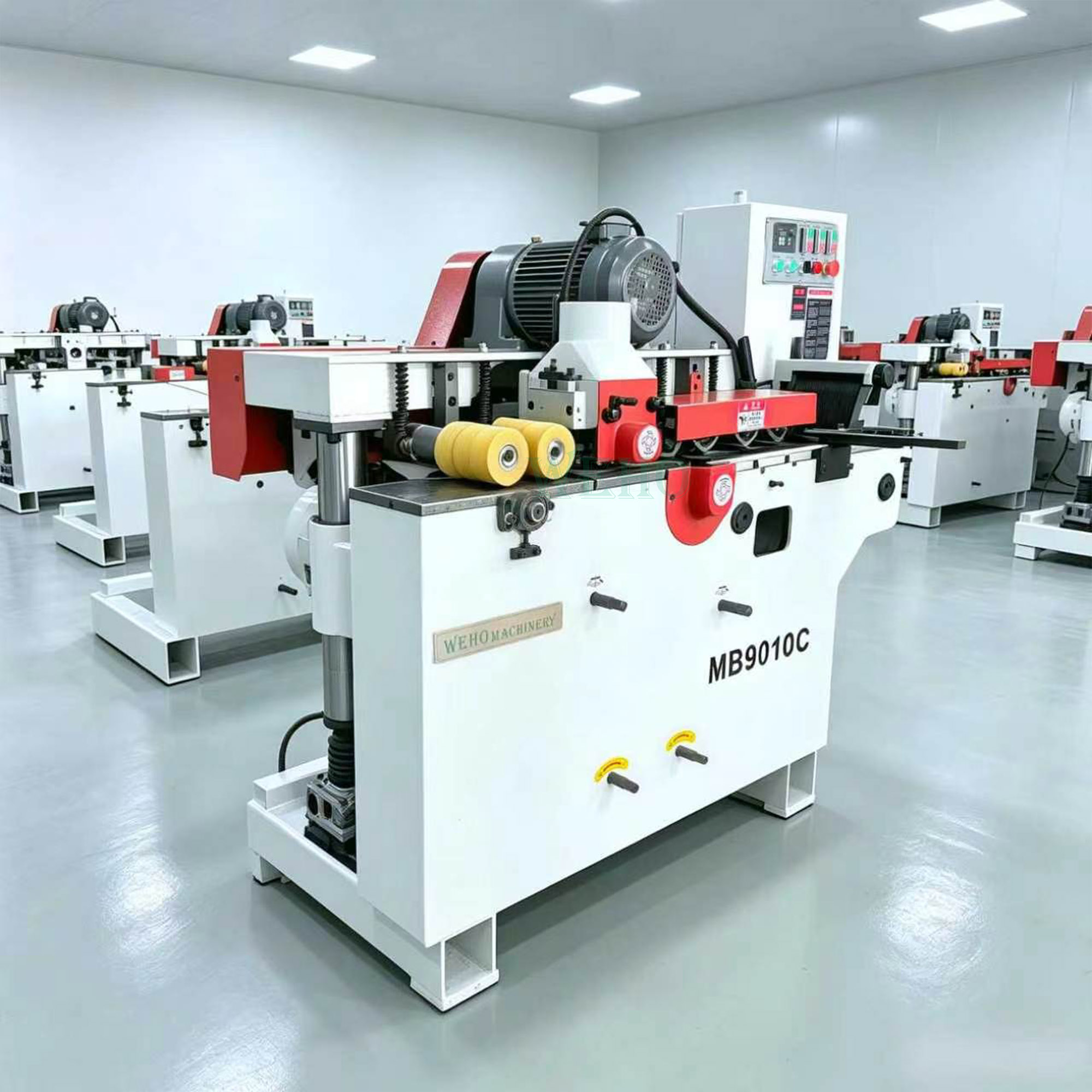

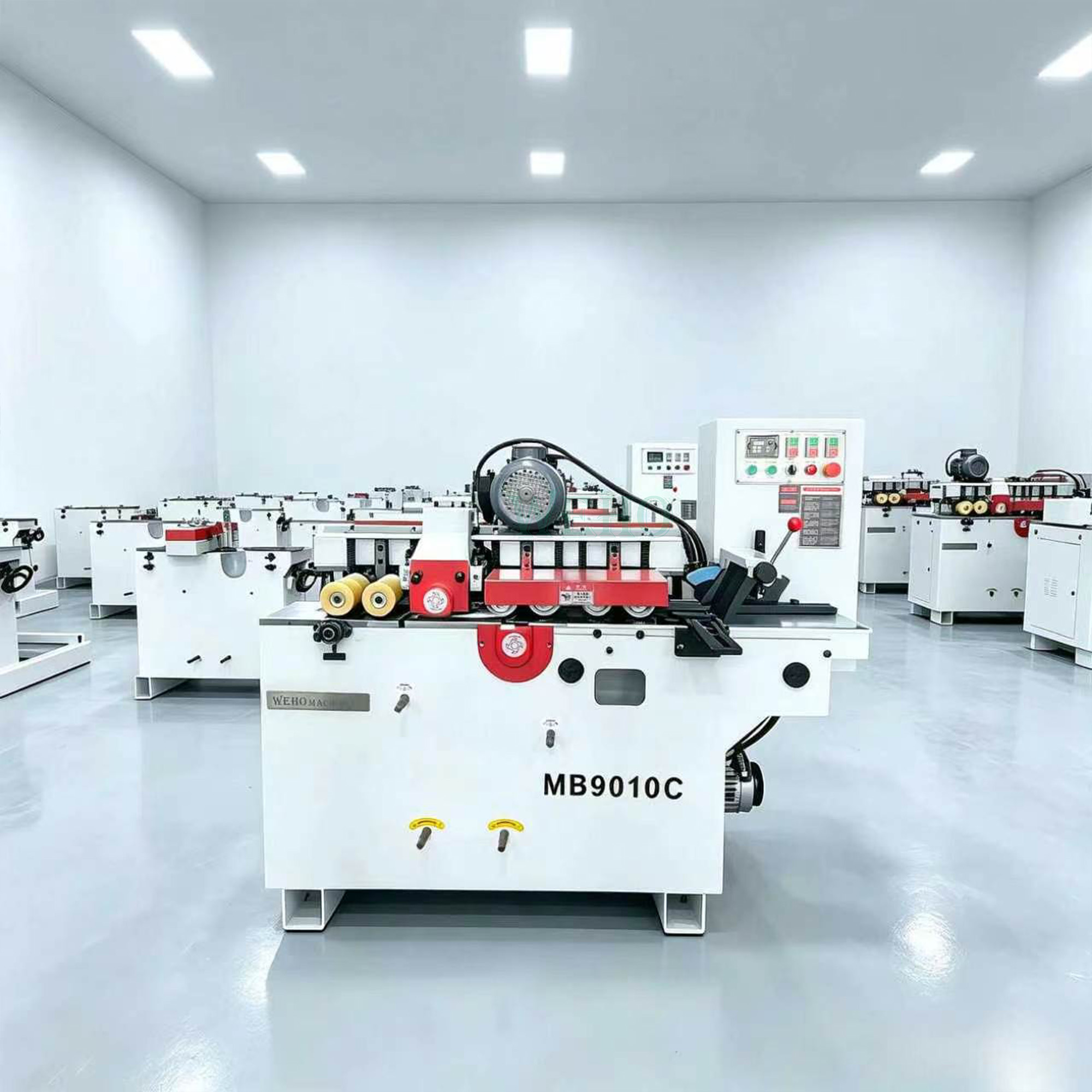

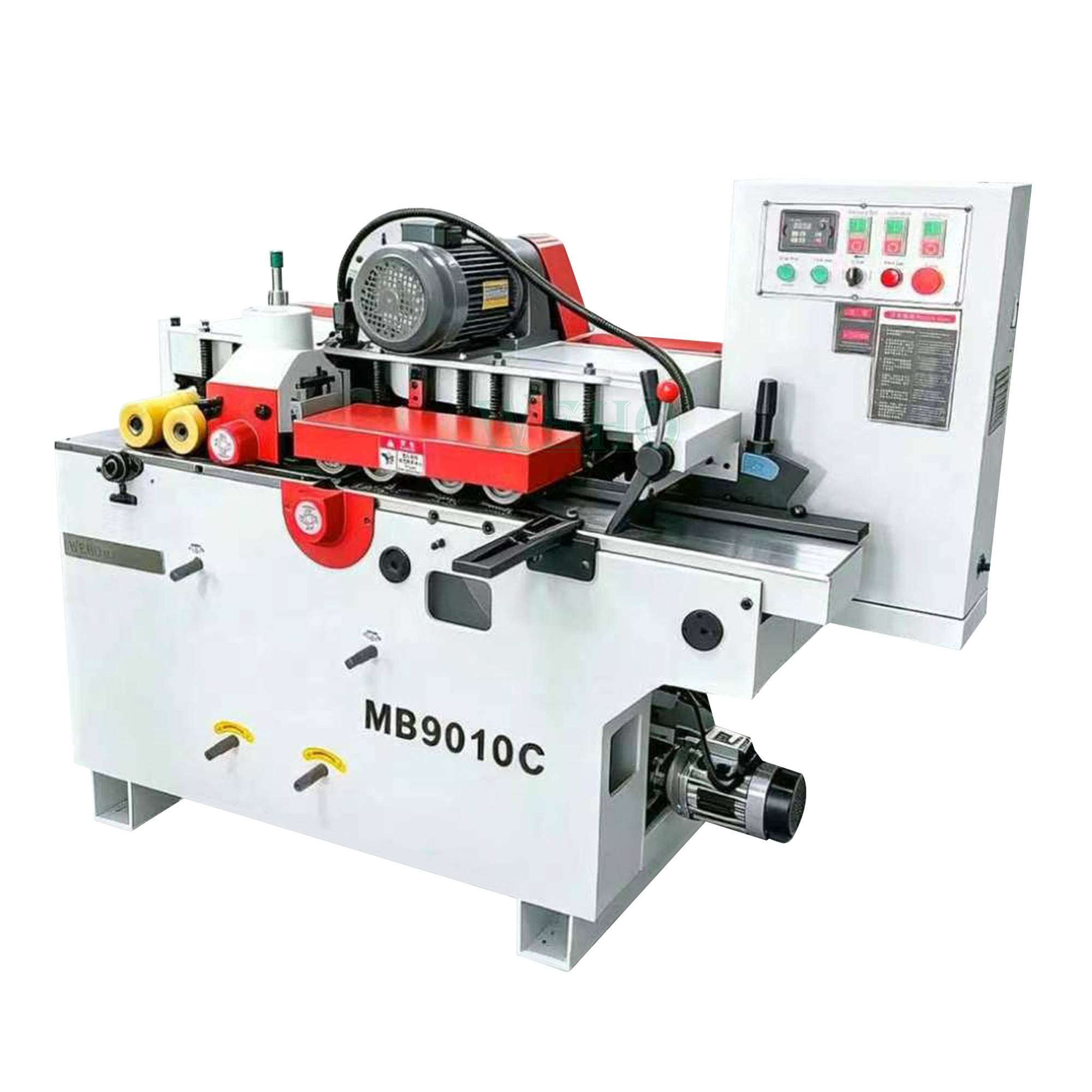

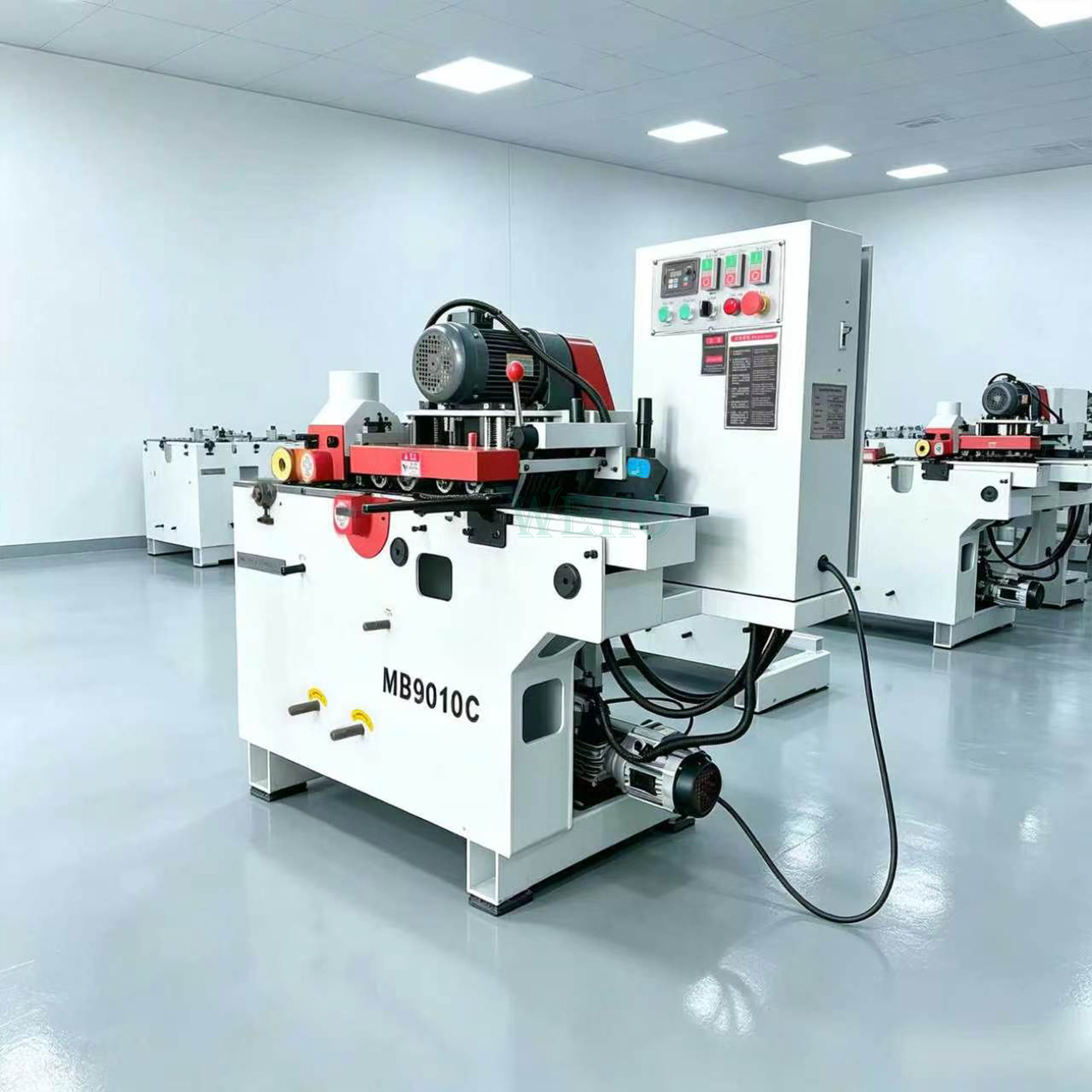

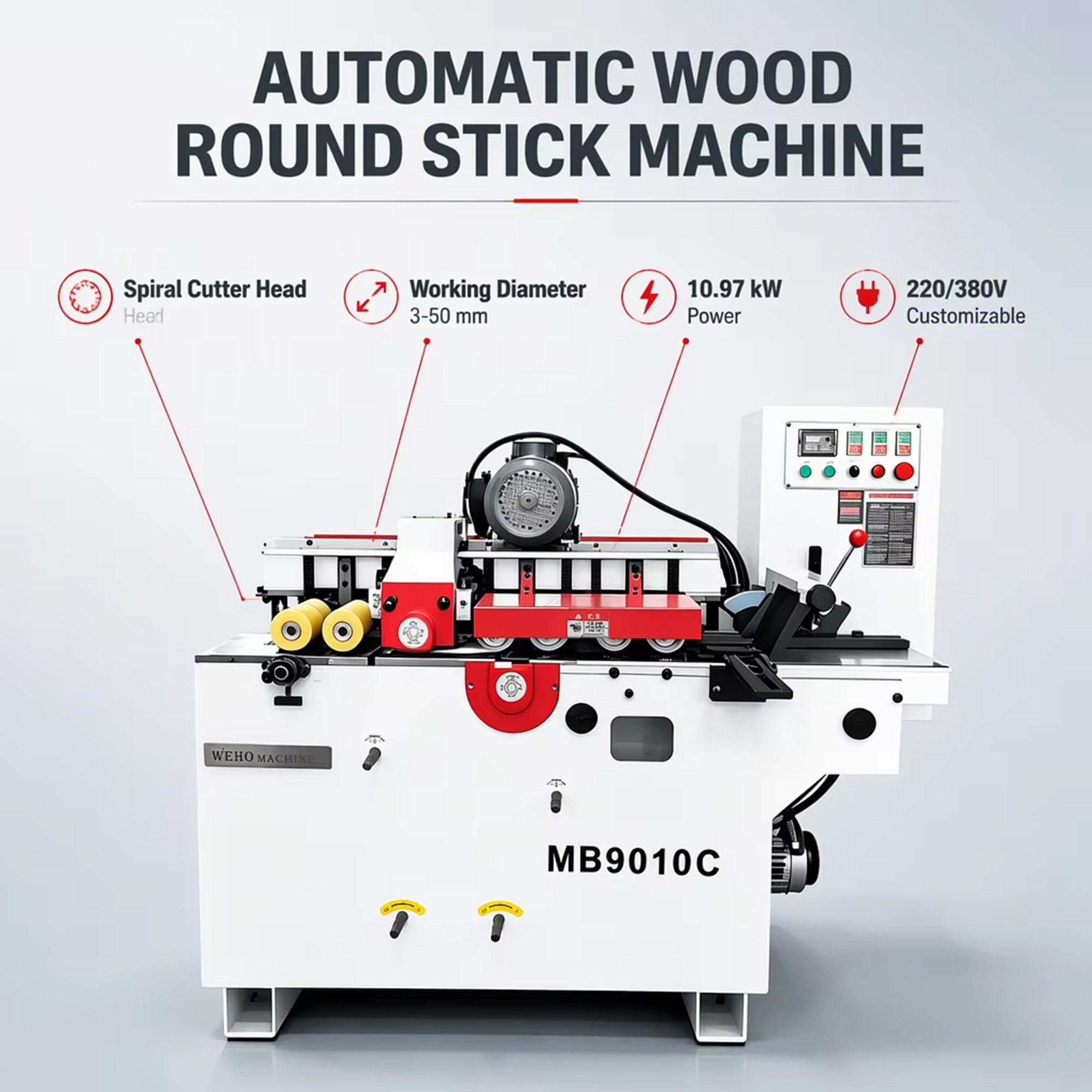

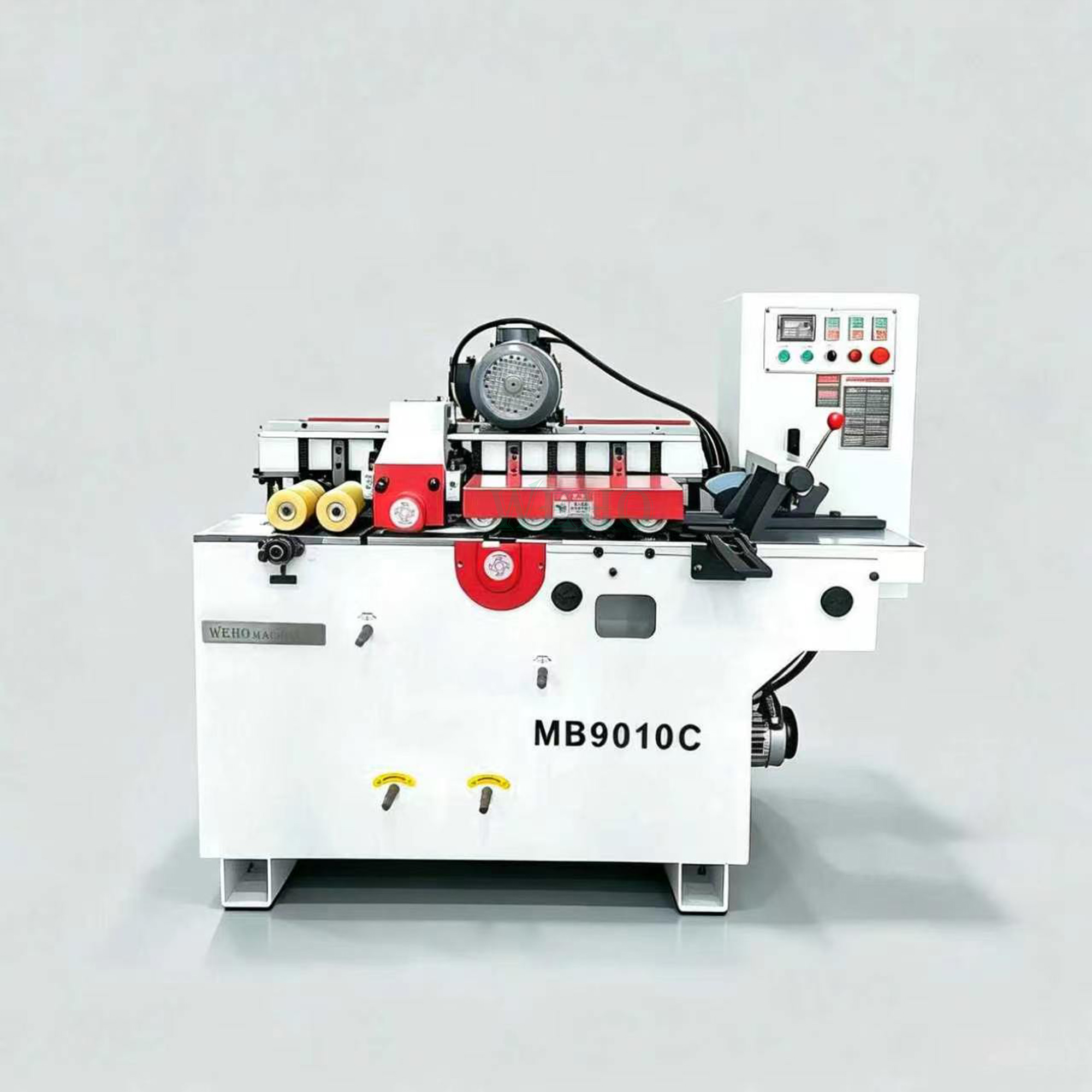

Making Mop And wood Broom Handle Machine
Working length:250-6000mm
Working width:10-100mm
Working thickness:6-100mm
Main spindle Dia:Φ30mm
Power:10.97kw
The round bar machine can be used in a wide range of applications.This set of equipment is mainly used for shovel, hoe, and round bar. wood dowels cutter with automatic feeding is safe and high efficient.Daily use of mops and tooling in the production of workers and peasants, as well as the decoration of circular wood for furniture.

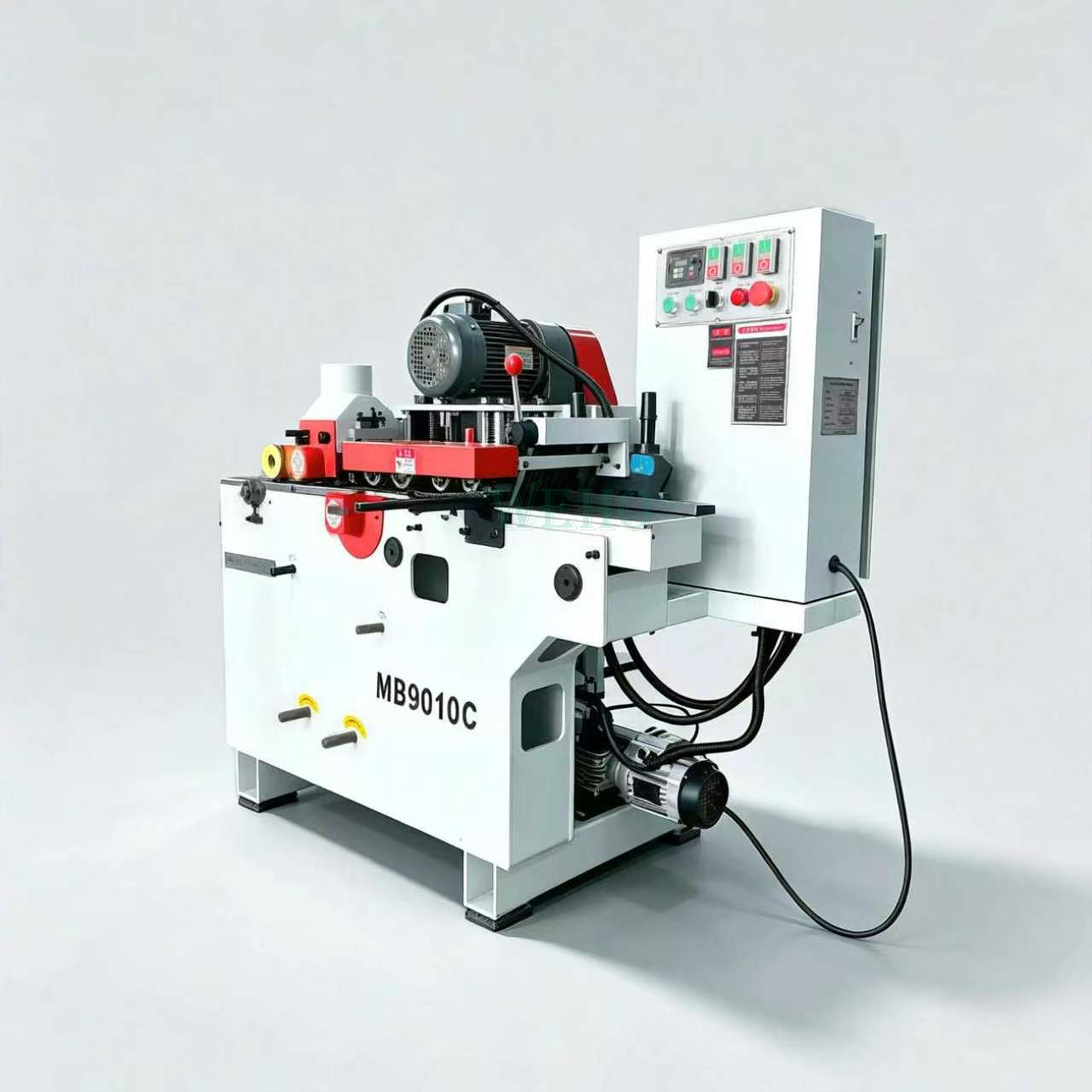

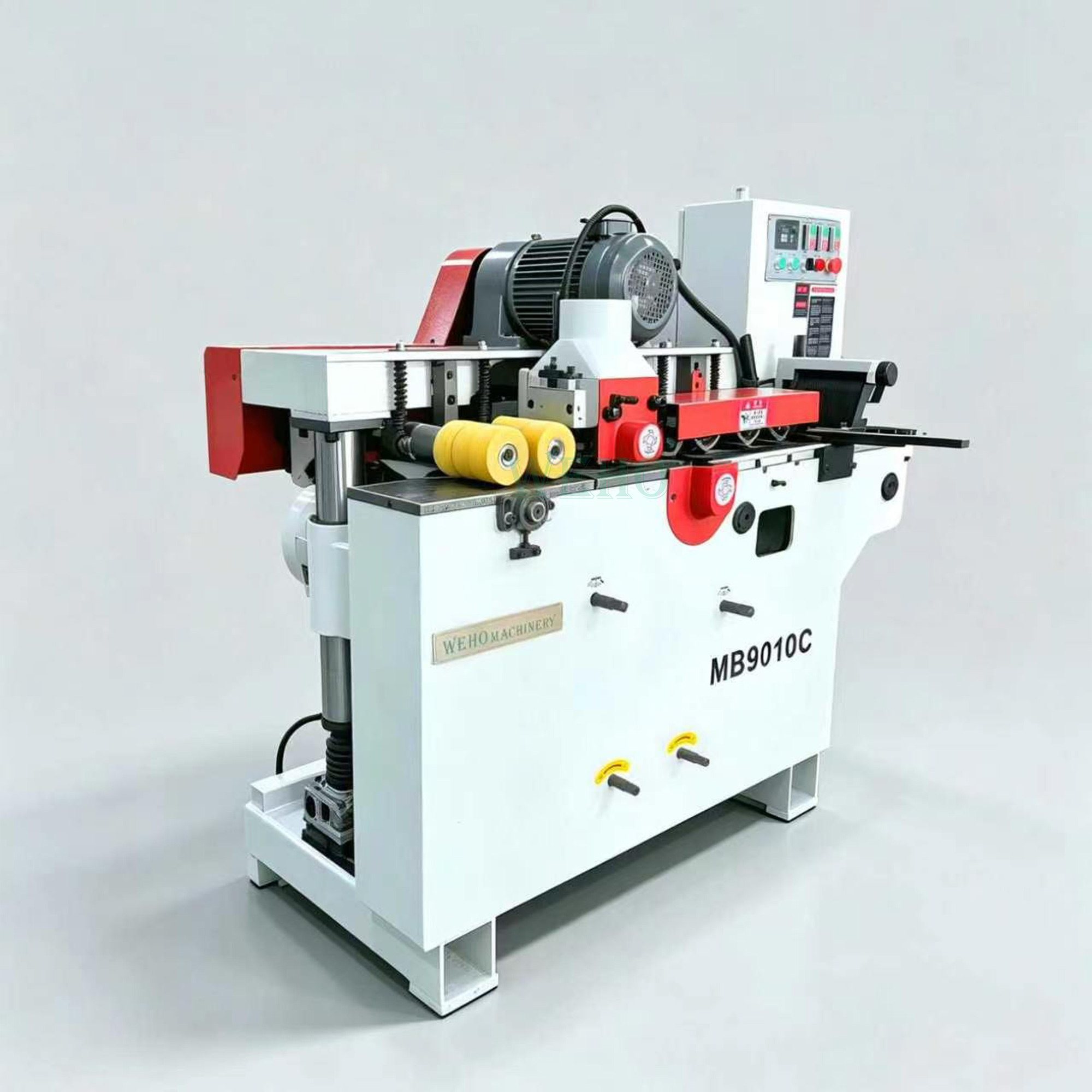

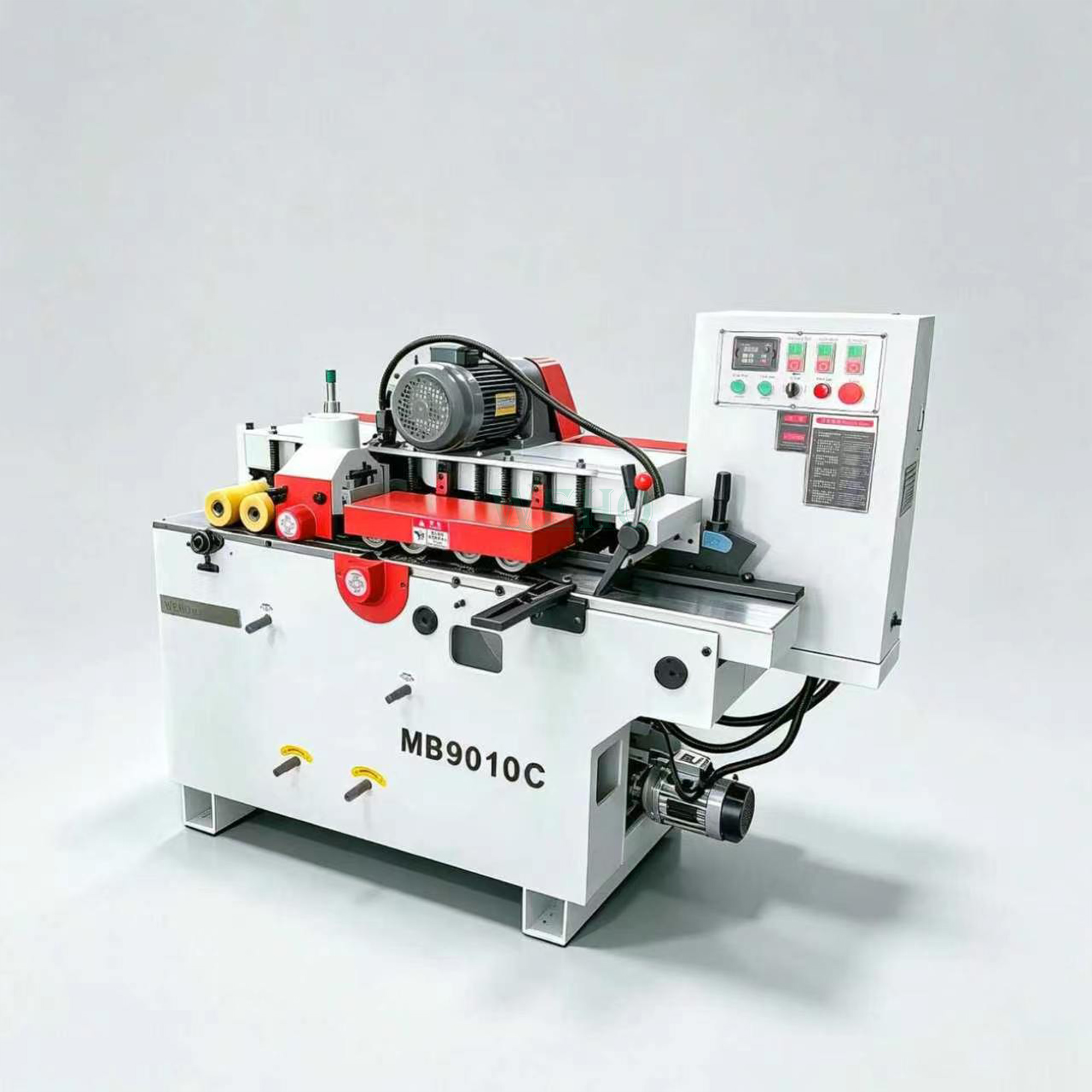

| Model | MB9010C |
| Working length | 250-6000mm |
| Working width | 10-100mm |
| Working thickness | 6-40mm |
| Feed motor power | 1.1kw |
| Feed speed | 6-30m/min |
| Dimension | 1435*760*1355mm |
| 1st Lower shaft | 5.5kw |
| 2st Lower shaft | 5.5kw |
| Lifting motor power | 0.37kw |
| Spindle speed | 8500r/min |
| Max cutter diameter | φ100mm |
| Extraction outlet size | φ100mm |
| Spindle diameter | φ30mm |
| Total power | 10.97kw |
The machine is mainly used for turning wooden sticks, which use double side planer to makes the round rods many pieces one time passing.

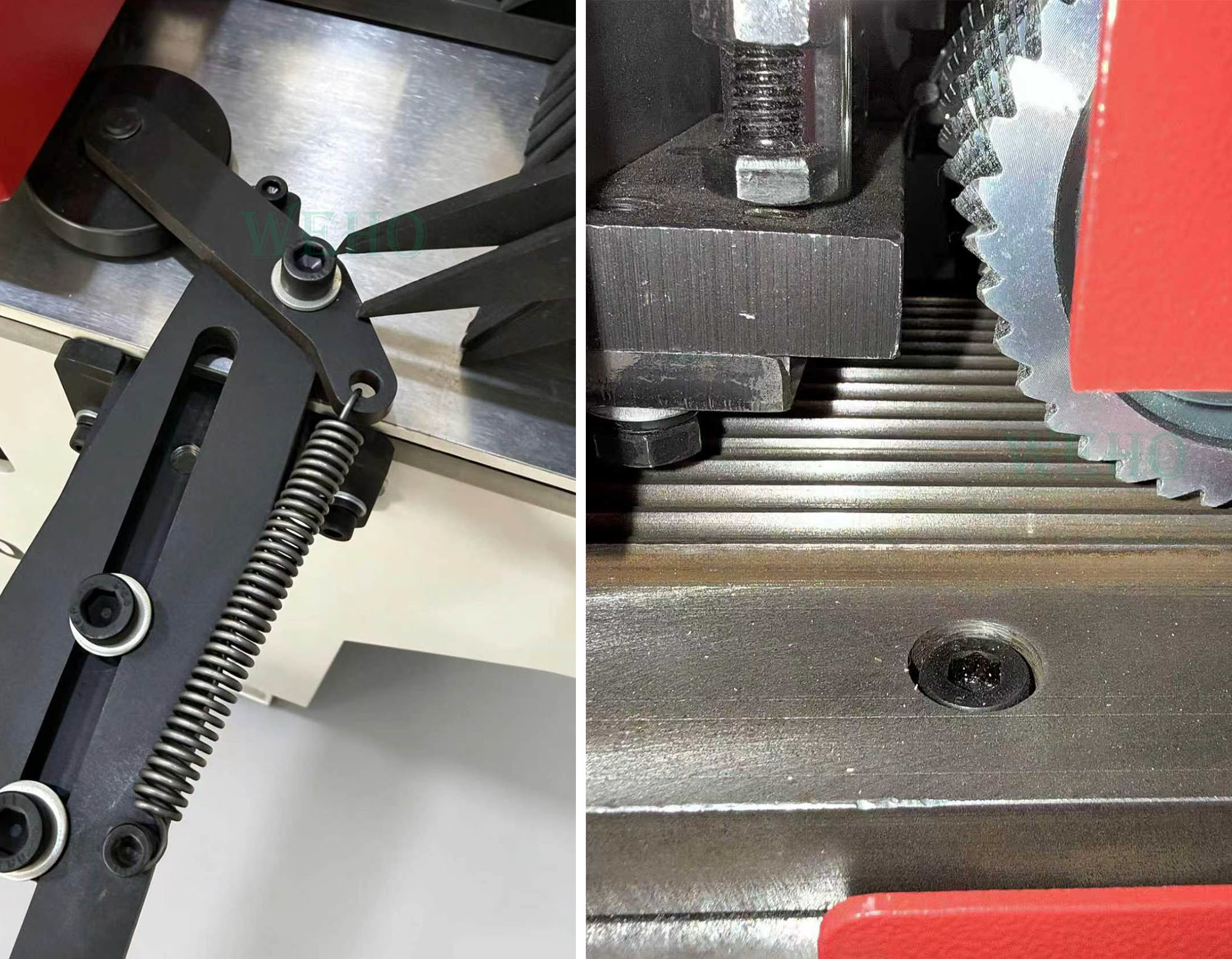

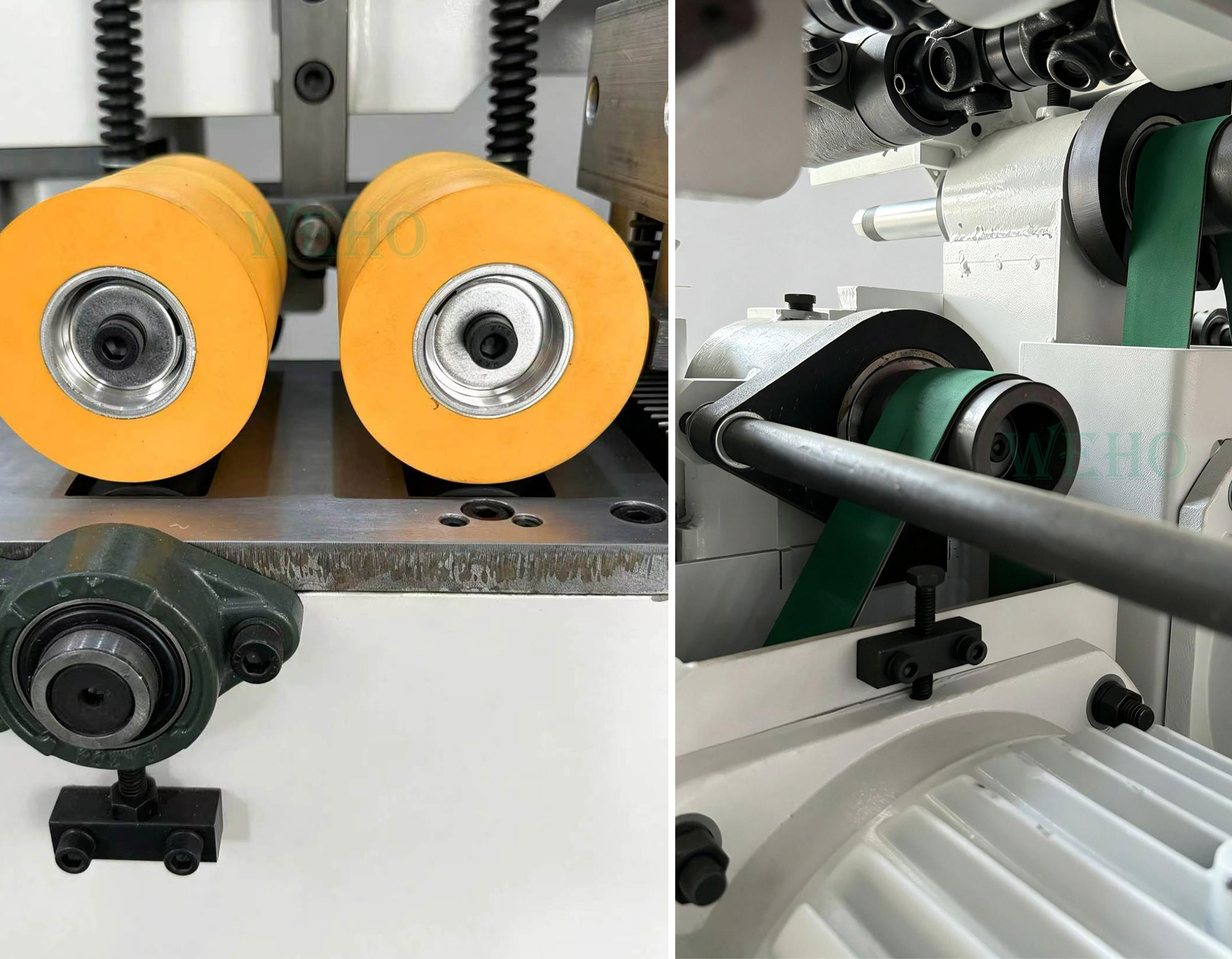

The work table surface was precision ground and then electro chrome plated and polished to a smooth mirror finish. Durable wear resistance surface is easy to clean and maintain.

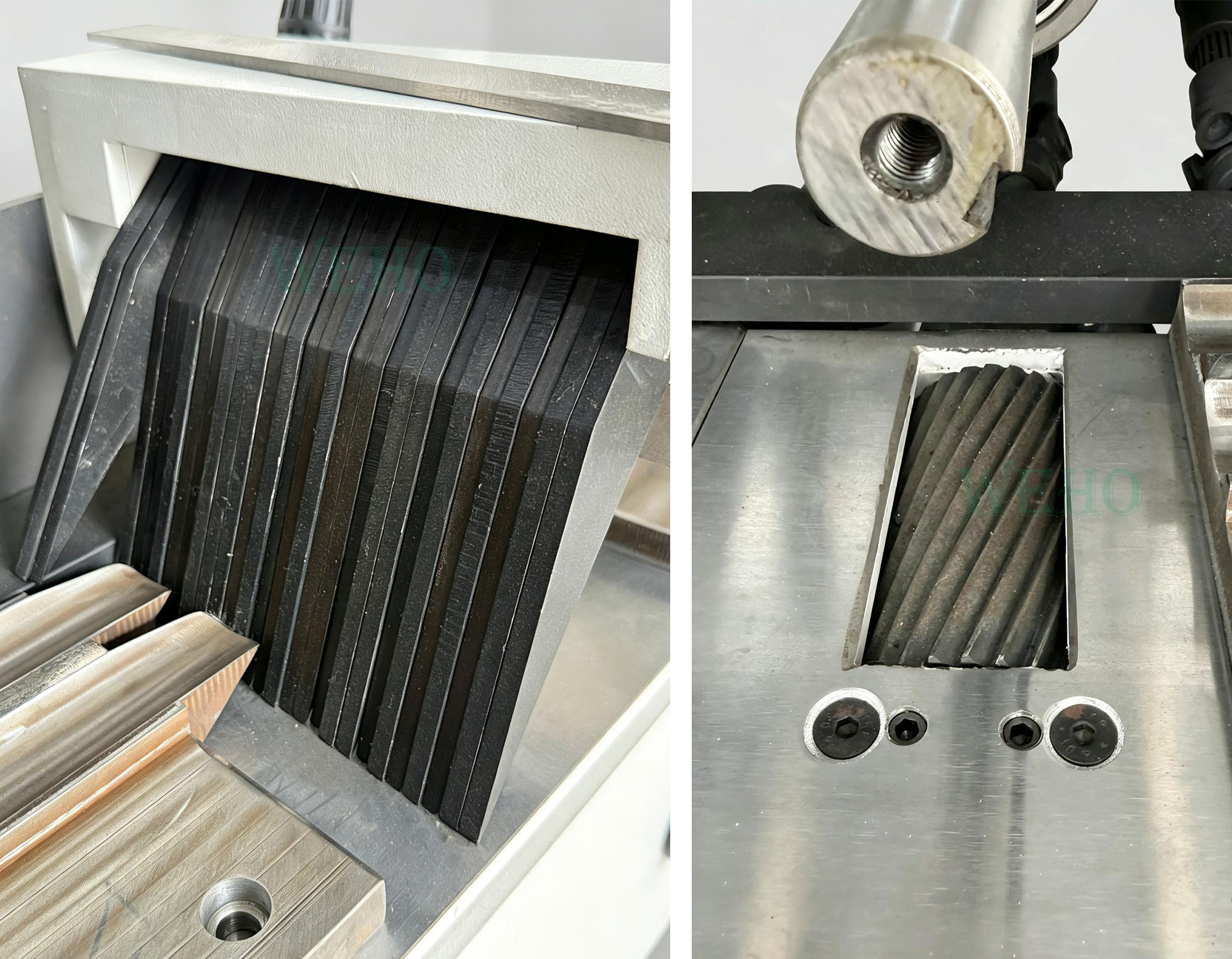

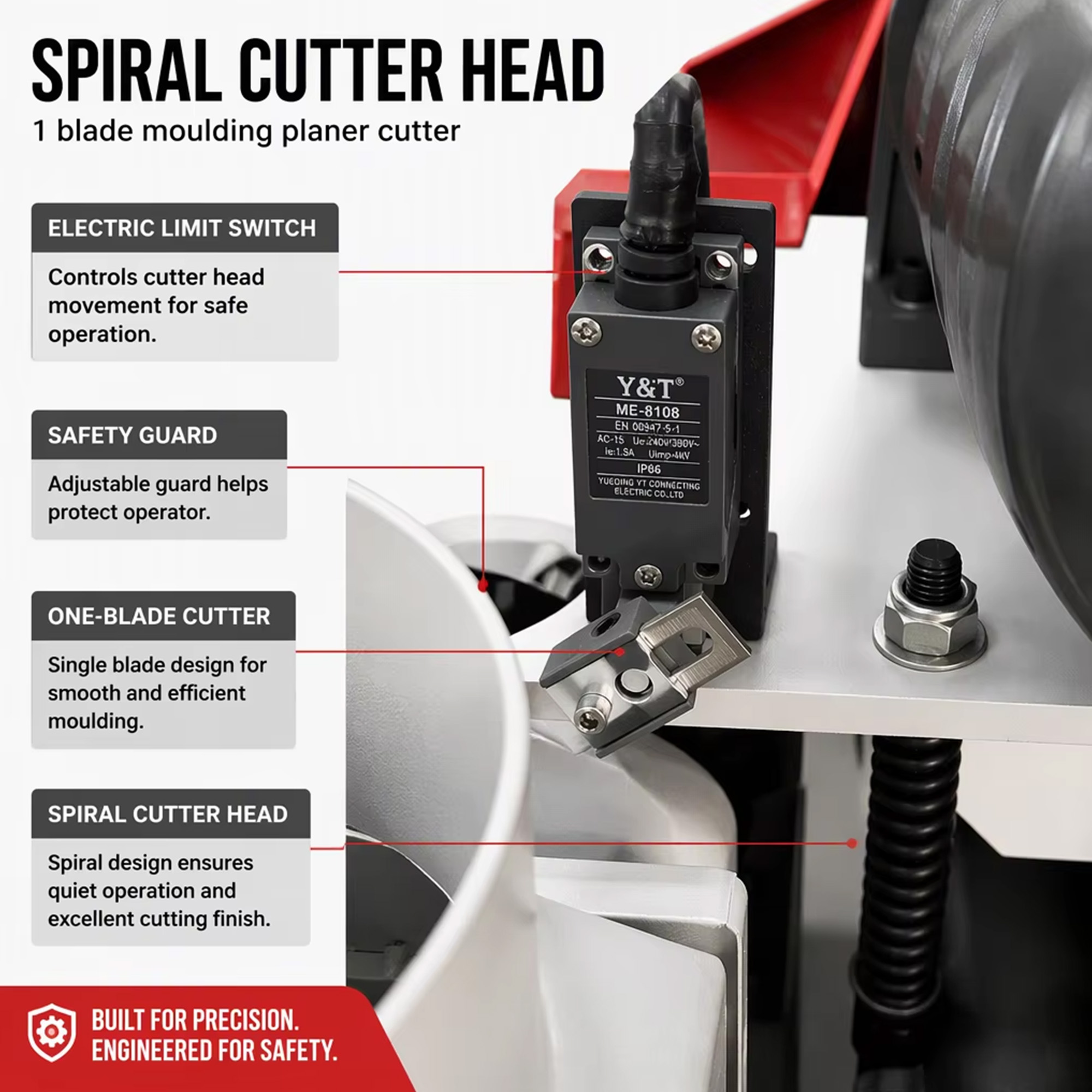

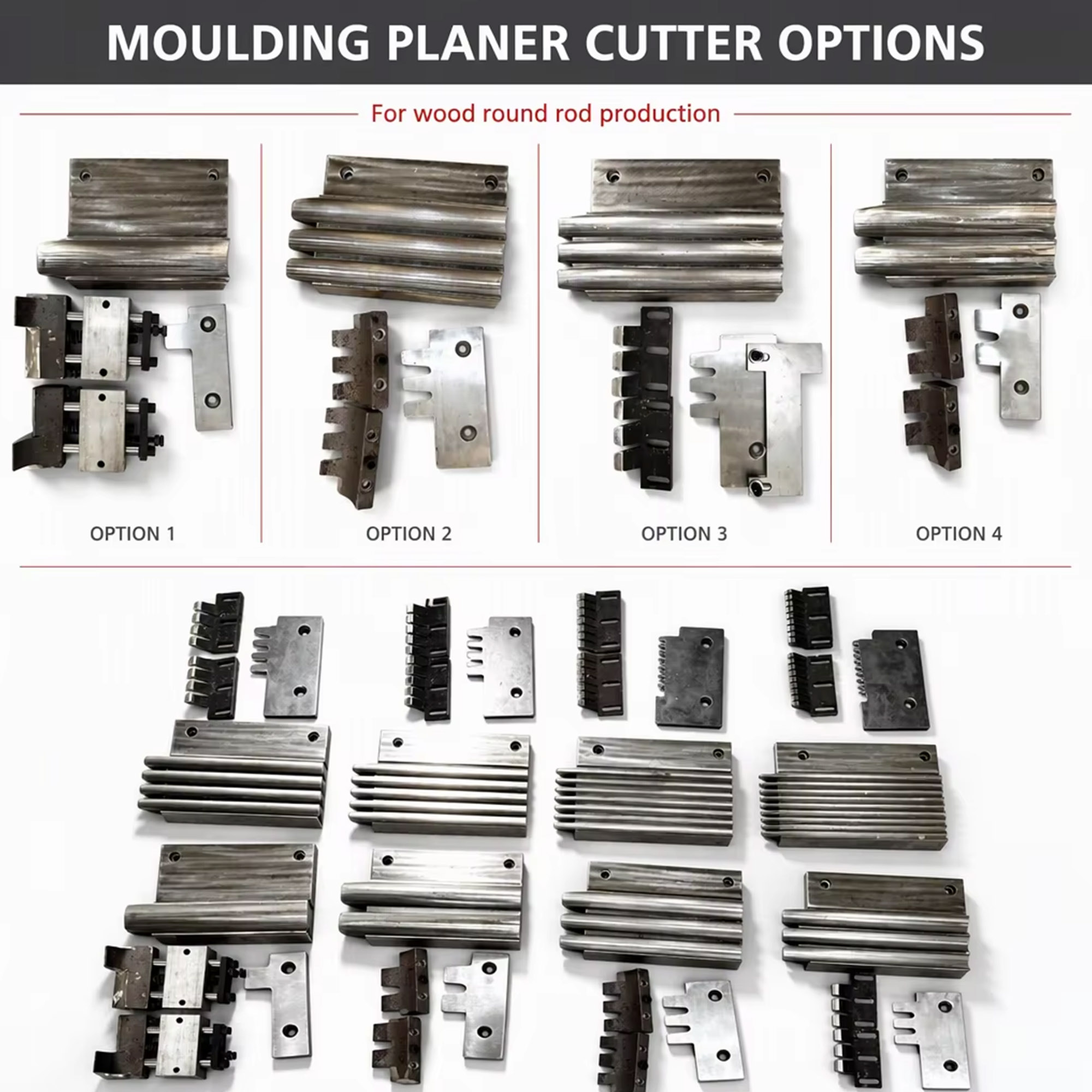

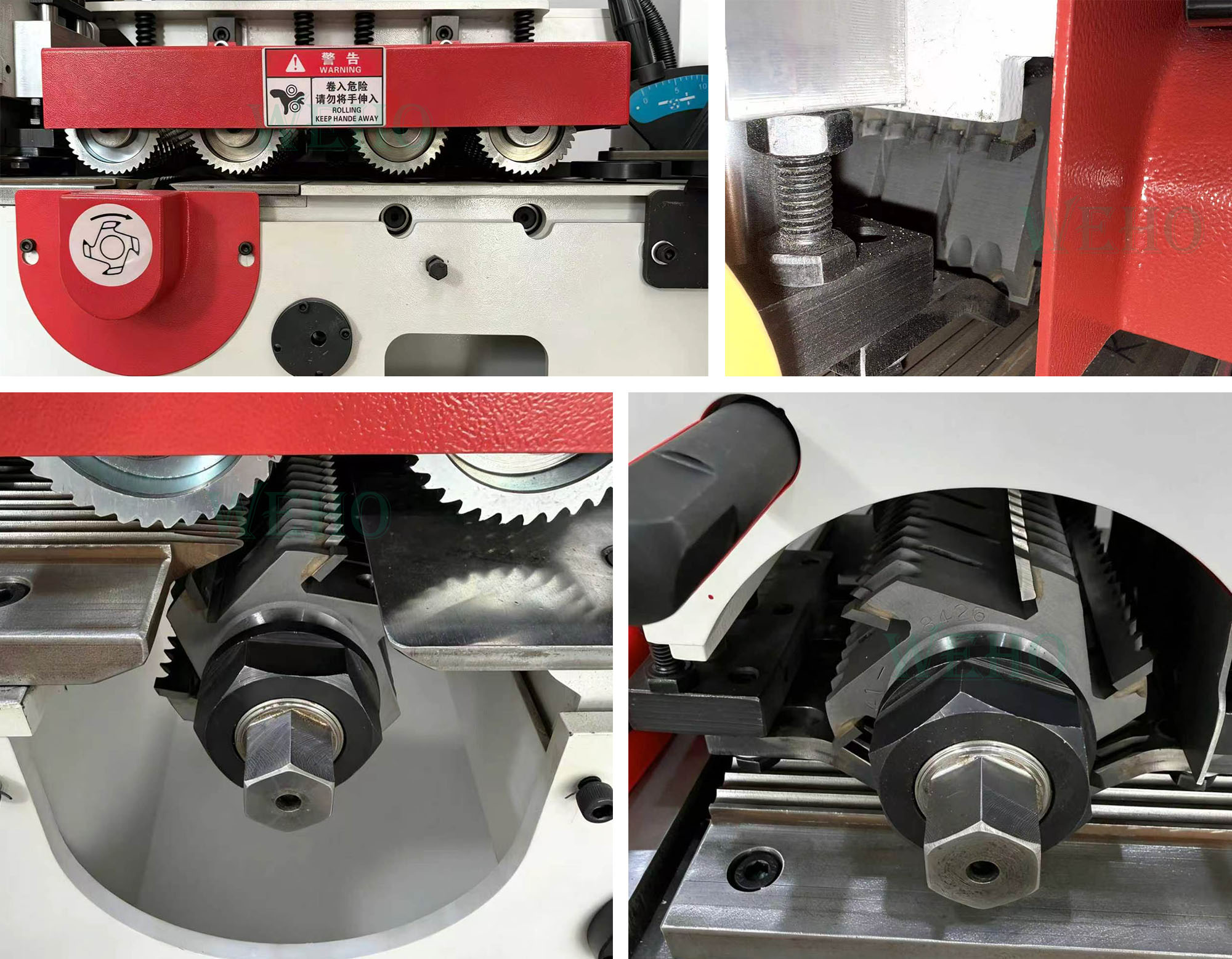

Cutting tools
The round rod machine can be used to make shaper on top and bottom side as double sides moulder. The raw materials can be square or round, and other types of round bars can be customized.(Processing 4-150mm diameter range.)The finished round rods with tapered ta[ers are esaier to insatll on tools such sa shovel and hoe.

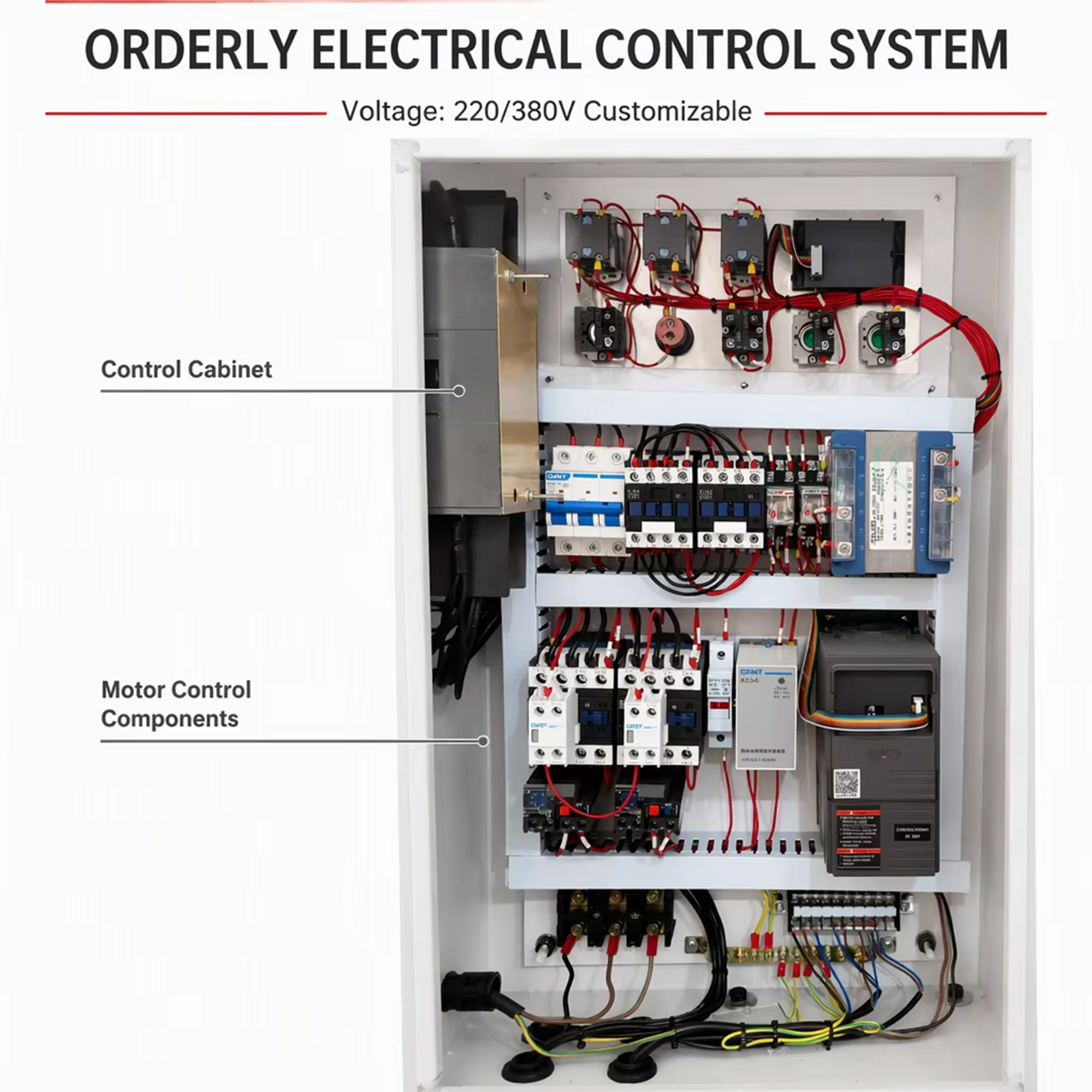

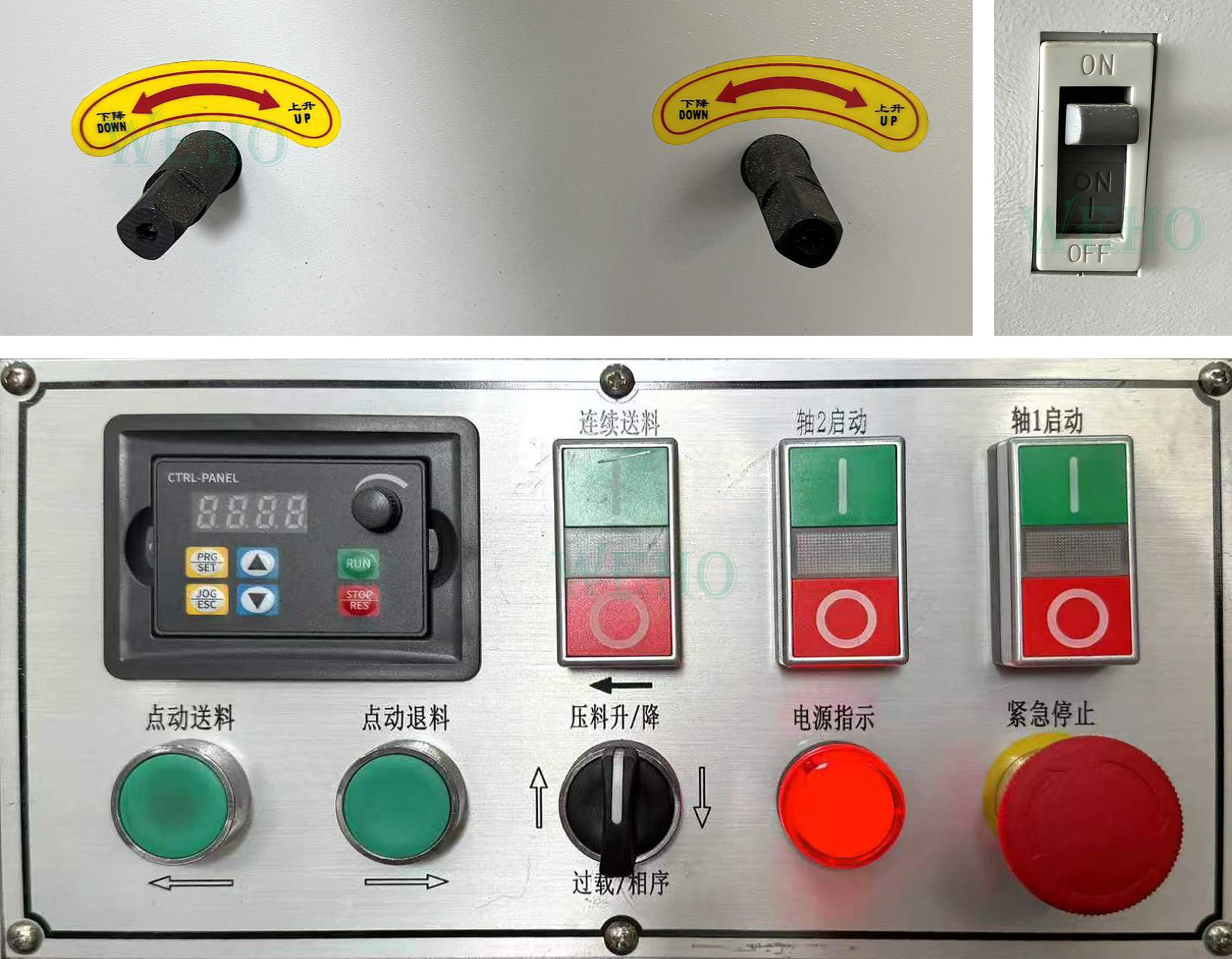

Electrical box and Control panel
The wood dowels cutter with automatic feeding is safe and high efficient.
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
Wood Round Machine WAYON STONE provide making Mop And wood Broom Handle Machine,Please contact us if you need it
What is this machine used for?
This automatic wood round rod mill is used to turn square timber into round wooden dowels, mop sticks, broom handles, shovel handles, hammer handles and curtain rods. Widely used in wood handle manufacturing factories.
What types of wood can it process?
Poplar, birch, beech, pine, eucalyptus and other solid wood. Dry wood is recommended to avoid bending of finished round sticks.
What diameter range of round rods can it produce?
Different models support different diameter range. Normally from Φ6mm to Φ100mm. We can change moulds to get different round rod sizes.
How about the production capacity?
High continuous feeding speed. Capacity depends on wood hardness and finished diameter. Smaller diameter gets higher output.
Is it easy to operate? How many workers are needed?
Simple operation. 1 worker can operate the machine. No highly skilled worker required.
Can we customize the machine?
Yes. We can customize feeding length, spindle, moulds and motor according to your finished rod size and local requirements.
What are the wearing parts?
Round rod mould, cutting blades, feeding rollers. WEHO supplies spare parts at factory cost.
Can it work together with double side planer?
Yes. Square timber first planed by double-side planer, then fed into this round rod machine to get smooth round sticks. It forms a complete automatic production line.
