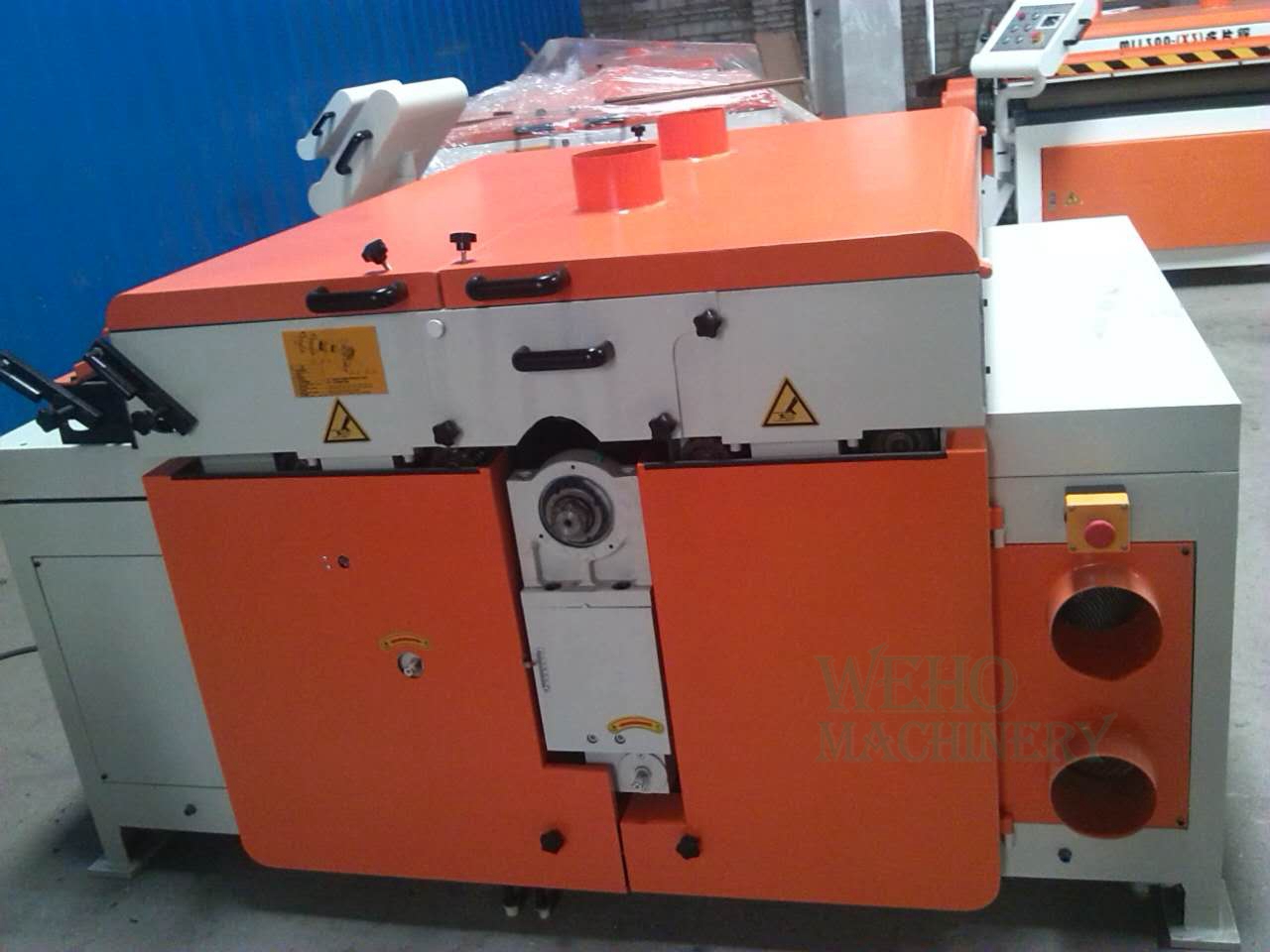

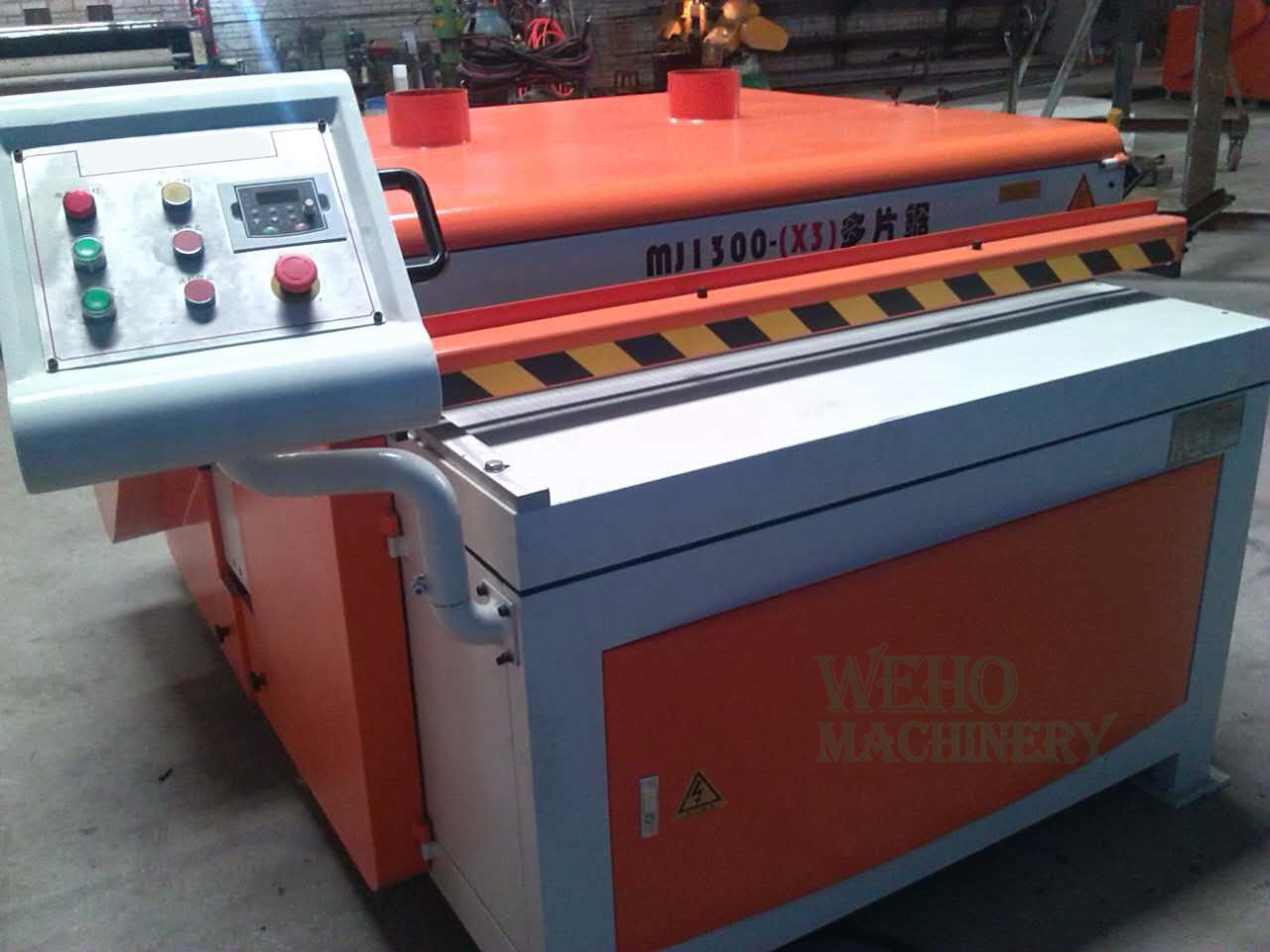

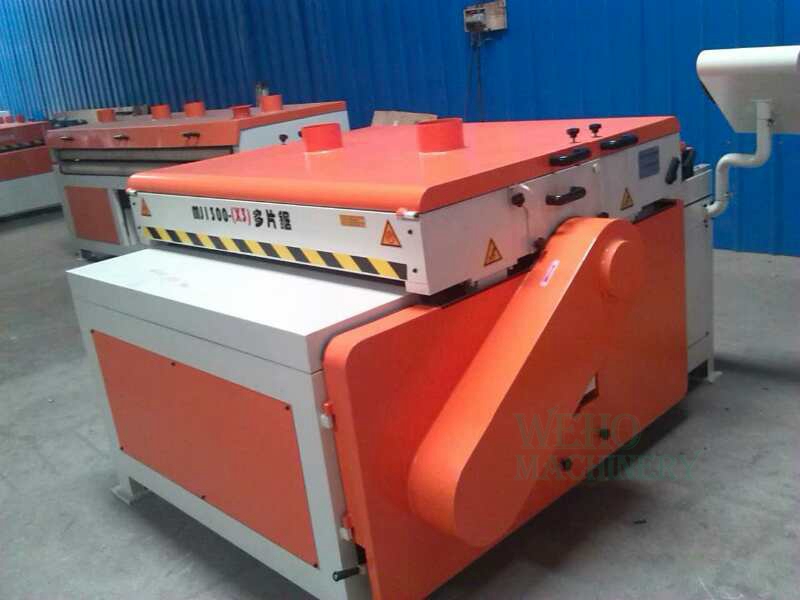

Multi blade circular rip saw machine for wood board cutting
Multi blade circular rip saw machine for wood board cutting

Multi blade circular rip saw machine for wood board cutting

Saw blad diameter:205mm
Raw panel thickness:5-25mm
Max width of raw panel:400mm
Feeding speed:0-12m/min

Spare Parts

The Multi-blade Panel Saw has been devised for executing cuts and multiple grooves on boards, also with veneered surfaces and coated with various materials.
Model MJ400-X3
Saw blad diameter 205mm
Main spindle motor power 7.5kw
Feeding speed 0-12m/min
Feeding power 1.5kw
Raw panel thickness 5-25mm
Max width of raw panel 400mm
Active bottom rubber roller 4
Passive top rubber roller 4
Feed board width ≥300mm
Oversize 2030*720*1230mm

It is realized in various powers and with working width capacity of 80, 130, 160, 190, 250 o 310 cm, the MLS can be supplied with special equipment, according to the production requirements of the customer, and also in the version TR, for transversal grooves and cuts.

For the processing of fiberboard,laminated wood,soild wood and so son,also it can work out different depth on the same worpicec.(Door frame board,moulding,etc.)

The machine features a precise and compact tubular steel structure, which gives to the unit an high sturdiness and, moreover, it is equipped with:
- electronic adjustment of the advancement speed;
- regulation system of the passage opening among the rollers of the advancement group, according to the panels thickness;
- safety system for panels thickness control;

- regulation system of the cutting and grooving depth, without changing the working table height with respect at the floor;
- advancement group of the workpieces through rollers, with opening by a pneumatic cylinder for permitting the tools change on the spindle;

It is a machine with an high efficiency, which is used with excellent results for the production of prefinished parquet, walls and ceilings, doors for furniture, strips for profiles, staves for beds, MDF frames and so on.
