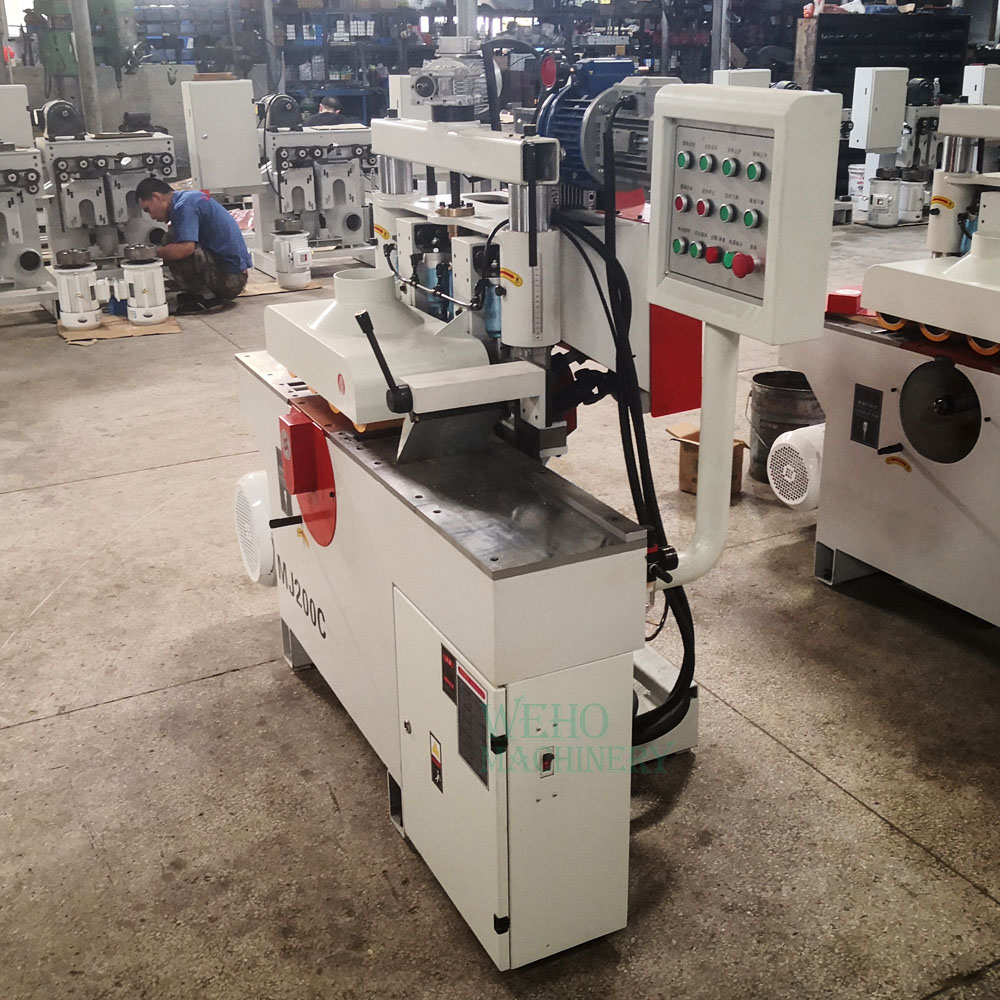

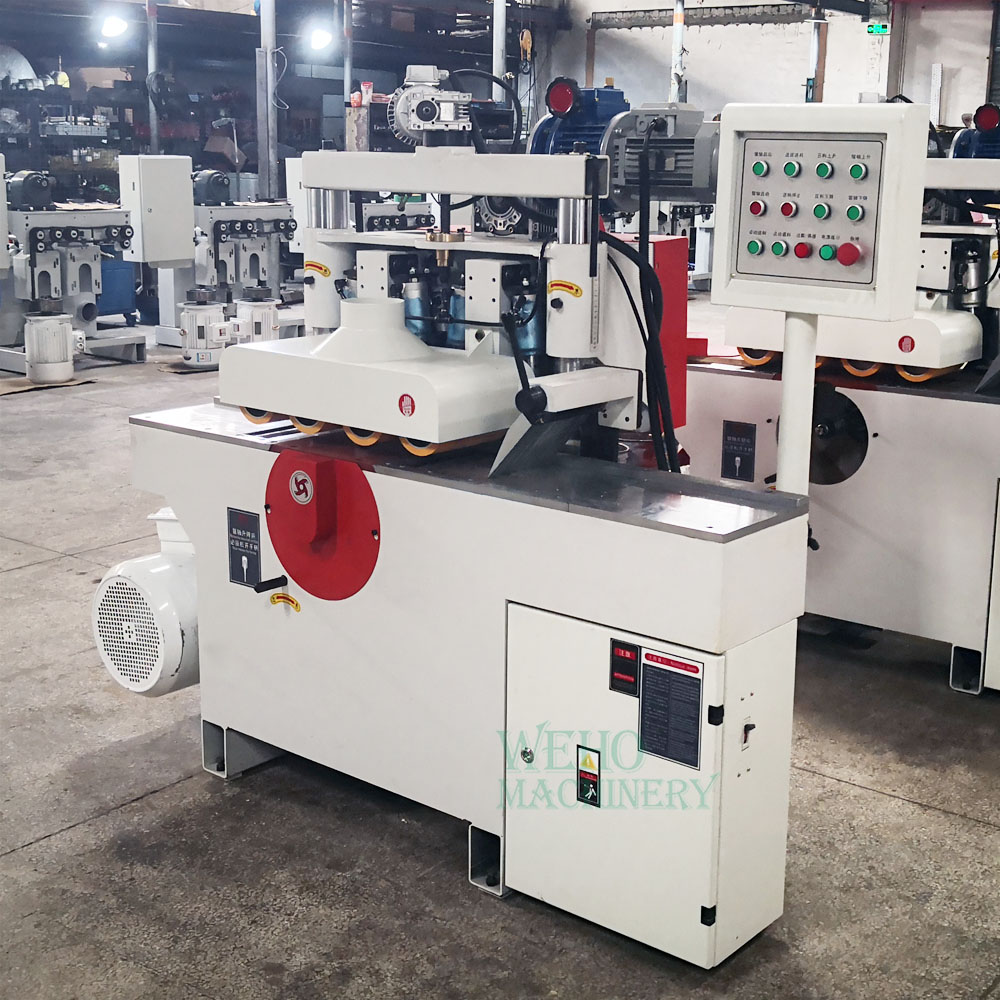

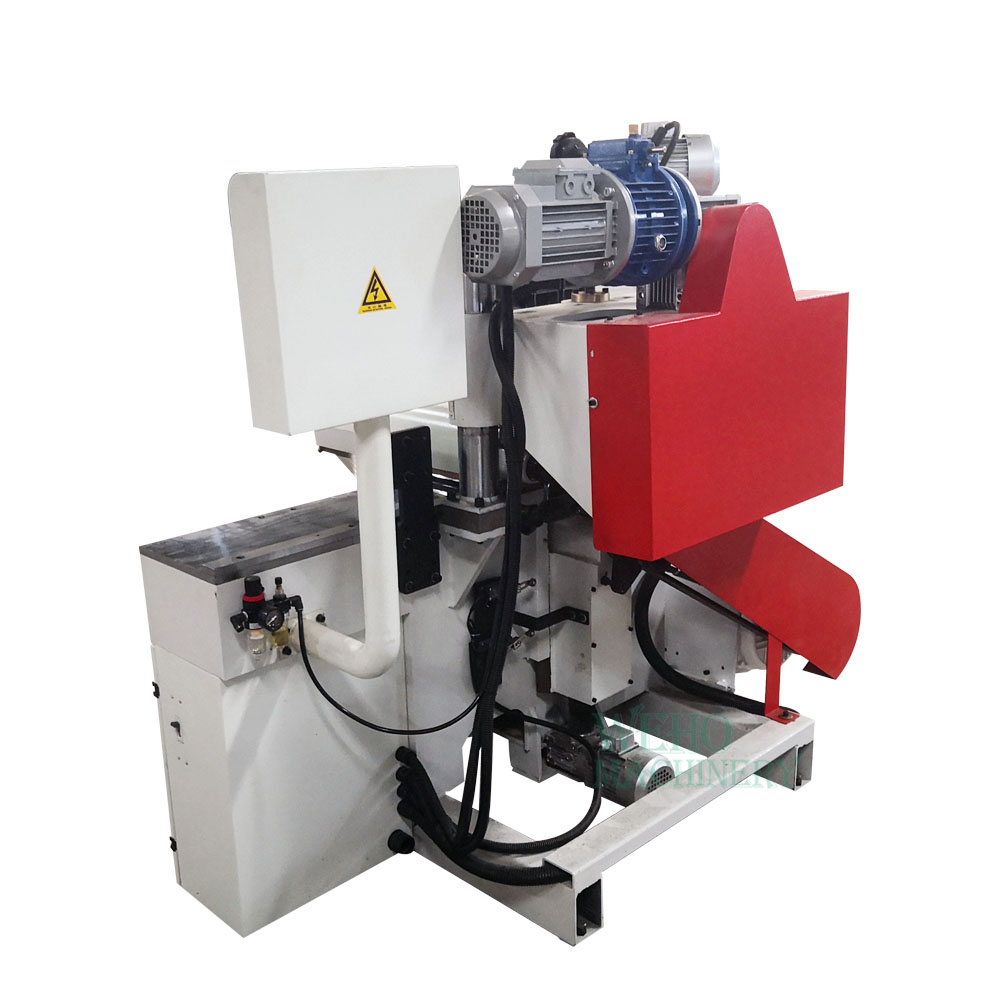

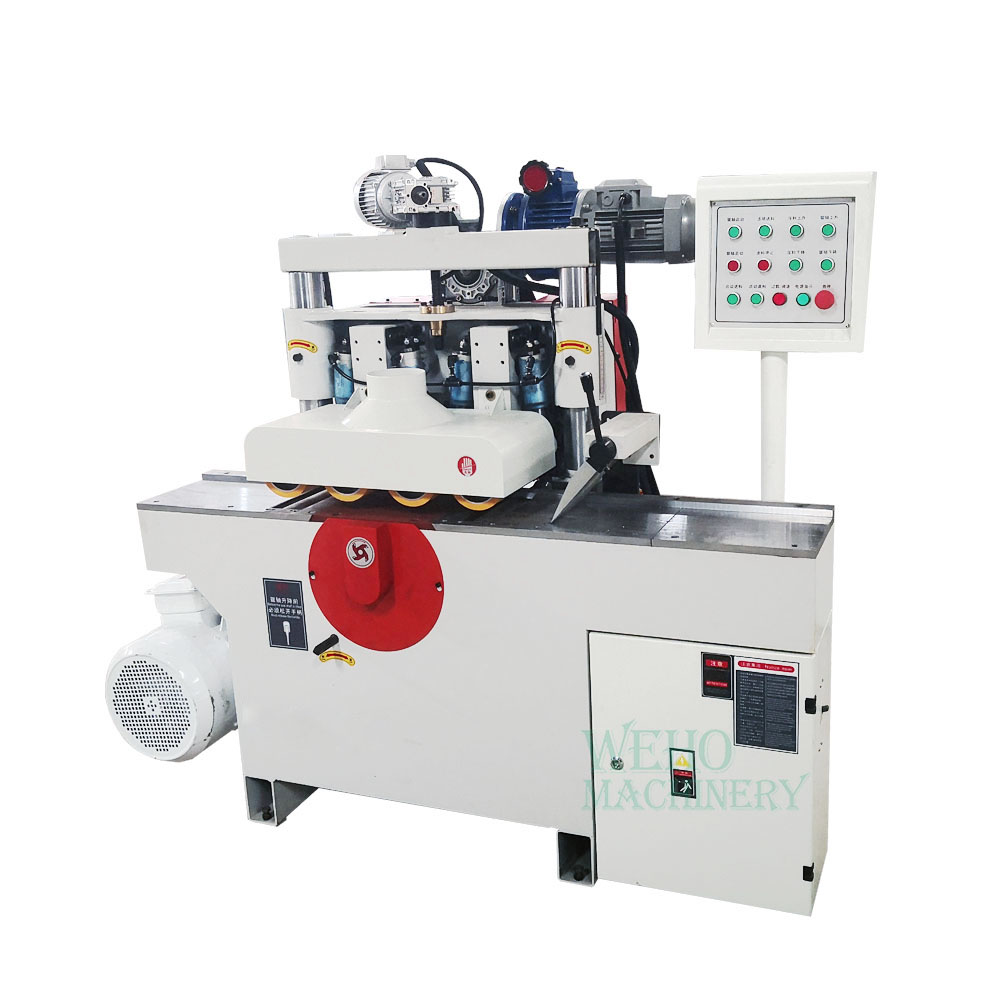

Multi blade cut rip saw machine for wood cutting
Multi blade cut rip saw machine for wood cutting

Multi blade cut rip saw machine for wood cutting


Model:MJ200B
Max working width:300mm
Max working thicknes:60mm
Spindle speed:3600r/min
Max cutter diameter:φ205mm
Total power:8.62kw/12.12kw



Details
Spare Parts
Inquiry

Automatic multiple rip saw machine is used to cut strips from sheets of wood, plywood,  pressed boards, press board, fiberglass, densified wood or insulation sheets.
Model MJ200B
Working length 300-6000mm
Wokring width 10-200mm
Working thickness 5-60mm
Feed motor power 0.75kw
Feed speed 4-20m/min
Axis motor power 7.5kw/11kw
Power take-off and landing 0.37kw
Spindle speed 3600r/min
Max cutter diameter φ205mm
Extraction outlet size φ160mm
Spindle diameter φ35mm
Total power 8.62kw/12.12kw
Dimension 1460*900*1500mm



It has four precision feeding rollers and closed cutting tools to prevent material running, which is safe and efficient.

Max cutting width to 200mm, suitable for most lines timber cutting. feeding material parts designed with prevent springback.

We get multiple strips from a single pass as the Multiple Rip Saw uses multiple carbide tipped special saws to cut sheet into separate strips of required width.

It is necessory equipment for timber cutting, national wood furniture such bed, sofa, chairs processing.
