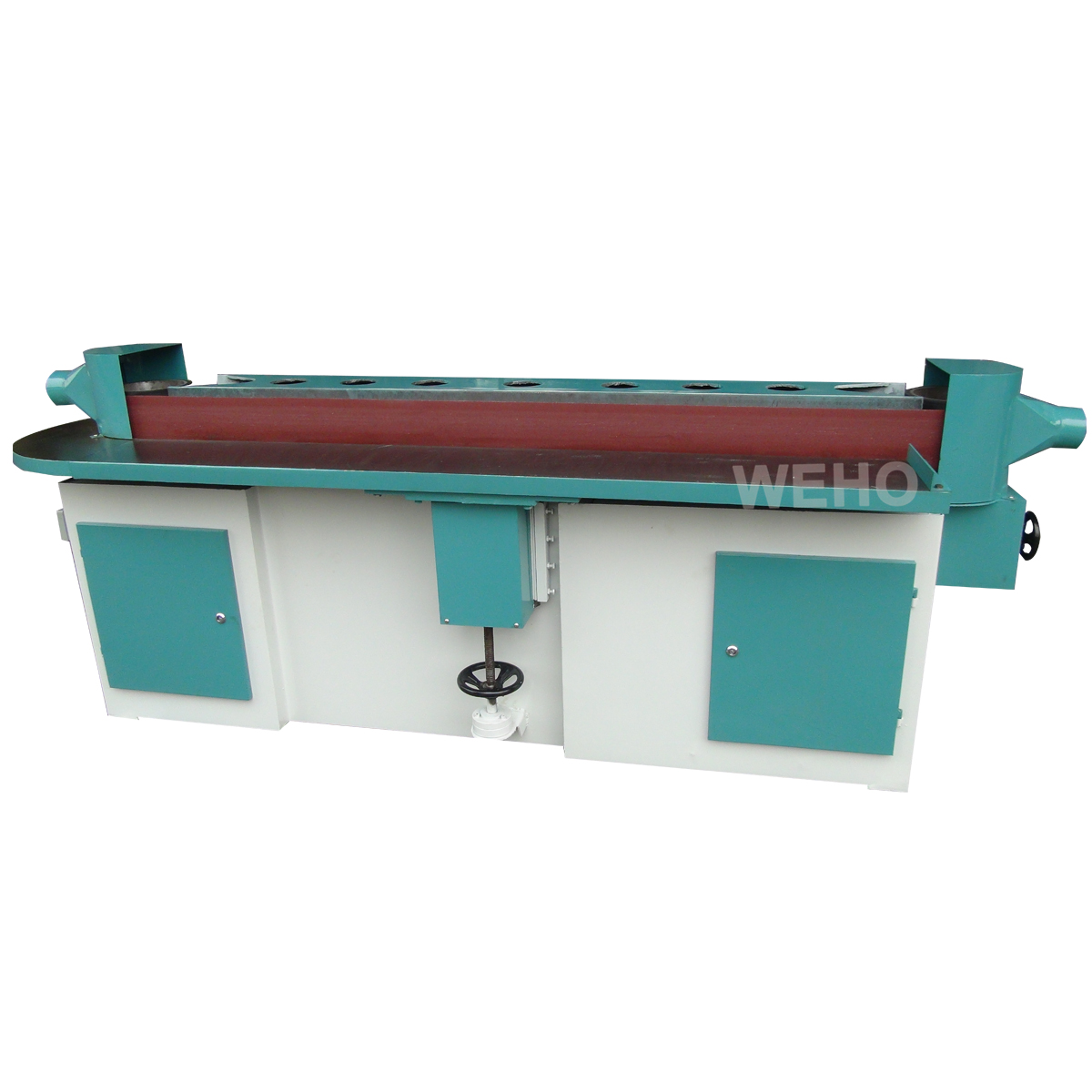

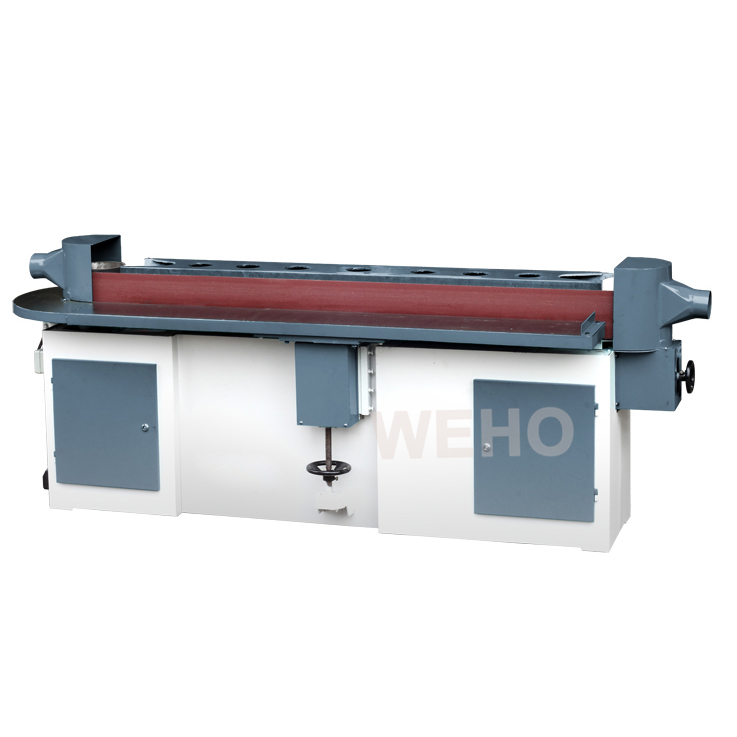

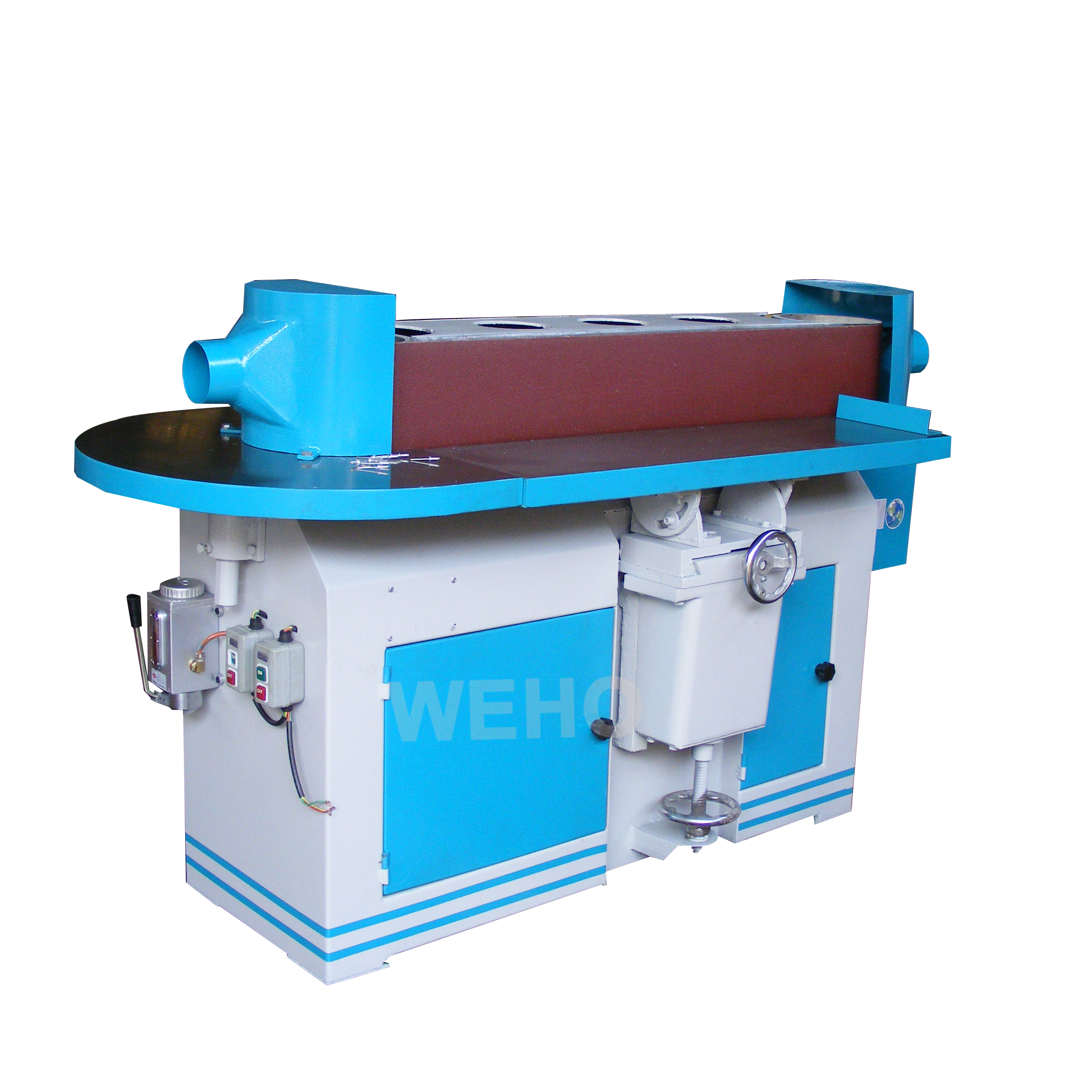

Oscillation edge belt floor sander woodworking machine for floorboards
Oscillation edge belt floor sander woodworking machine for floorboards

Oscillation edge belt floor sander woodworking machine for floorboards


Model:MW2028
Main wheel speed:1420r/min
Motor:4kw
Belt size:3120 * 170mm
Sanding belt linear speed:9 m/sec
Weight (KG):360 KG
Power (kW):4


Details
Spare Parts
Inquiry
Mainly use for the surface grinding of solid wood,bamboo,paneltype furniture,wooden door and window,veneer,calcium sulfate board,calcium sillicate board,WPC products,finewood and laminted wood materials.It's widely used in the furniture ,wooden door and floor industry.
Model
MW2028
Sanding belt linear speed
9m/sec
Spindle speed
1420r/min
Sanding belt size
3120*170mm
Main spindle power
4kw
Oscillation motor power
0.025kw
Dust outlet diameter
100mm*2pc
Overall size
1800*800*1000mm

5hp three phase motor with push button on/off switch.working table tilts 0-45 degrees to work as an edge sander, or at any angle in between.Cast iron work table with angle gauge at right hand end.

Fabricated sheet steel cabinet stand with wide base for good support.Simple belt tracking adjustment to keep belt running on pulleys.Cast iron work stop mounted across sanding belt.Dust extraction take-off on both ends of sanding belt.Cast iron support table on one end for curved work sanding.









Sander Woodworking Machine
[]
