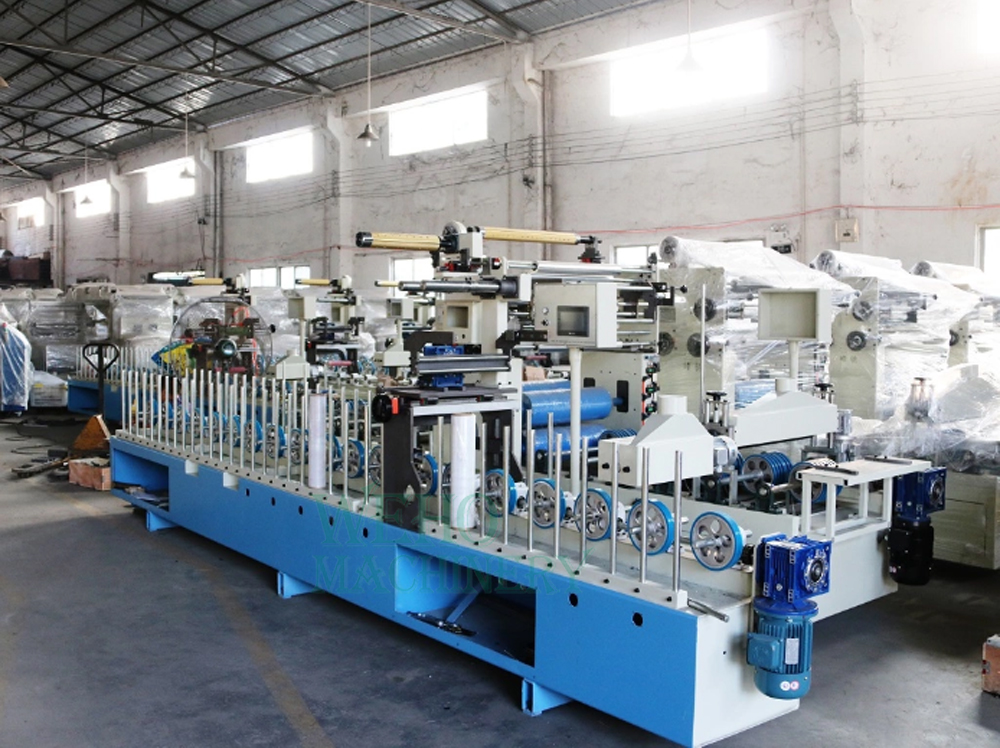

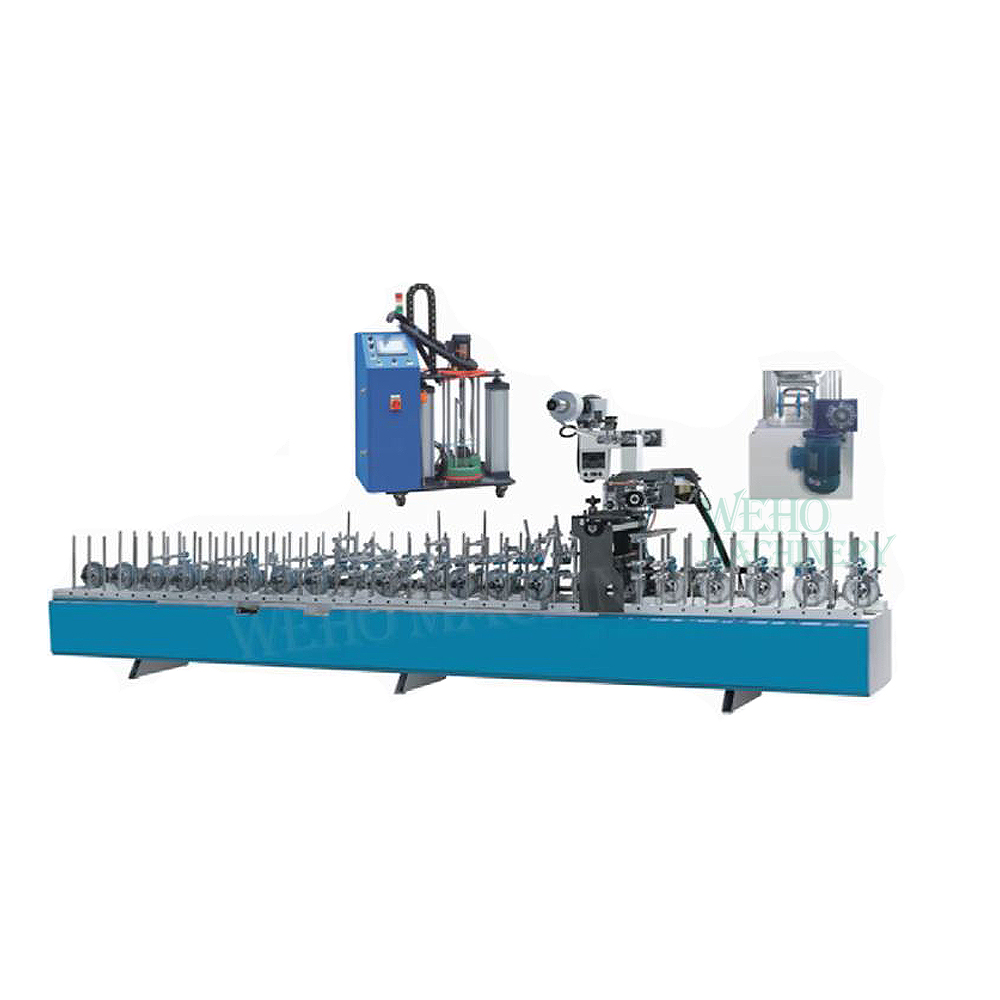

Acrylic PET film HPL wood mdf lamination Pur hot melt glue laminating machine
Acrylic PET film HPL wood mdf lamination Pur hot melt glue laminating machine

Acrylic PET film HPL wood mdf lamination Pur hot melt glue laminating machine


Model:PUR-300;PUR-450;PUR-600;PUR-900;PUR-1250
Max.film wrapping width:300-1250mm
Feeding motor power:1.5kw
Heating power:12.5kw
Weight:2500kg


Details
Spare Parts
Inquiry

For Window wraps plastic, pvc or paper  profiles wrapping,with reel-mounted materials. Available in three versions with maximum working widths 310 mm, 400 mm and 550 mm or special size is customized. PVC roll maximum diameter 400mm.
Quick set-up with adjustment optimization system for transport wheels.
Model PUR-300 PUR-450 PUR-600 PUR-900 PUR-1250
Max.film wrapping width 300mm 450mm 600mm 900mm 1250mm
Max.process thickness 90mm 90mm 90mm 90mm 90mm
Min.process length 600mm 600mm 600mm 1500mm 1500mm
Feeding speed 1-60m/min
Feeding motor power 1.5kw
Heating power 12.5kw
Overall dimensions 6000x600X1800mm
Weight 2500kg
Max.diameter of roll cover material 400mm
Custom-made Max width of cover film 600/900/1200mm


Proprietary engineering and vast wrapping experience have resulted in a great cost-to-value ratio.

Frequency-controlled drives for pvc and workpieces conveyor.
Unit includes; melter, application pump and slot-coater.

Telescopic switch cabinet. Un-winder for reel mounted materials.PVC Wrapping zone equipped with easy to use quick change systems.Central width adjustment for the wrapping zone.Silicone rubber rollers.

Quality and excellent customer service,guarantee complete systems,for profile wrapping machines of out standing technical performance.

In the initial processing phase,systems guarantee high quality preparation and treatment of the profile surfaces and aconsider able control of the production process,that is made safe and reliable.


Suitable tor building materials, furnitures,table tops,doors,windows,or related manufacturers use. Complex Shapes can achieve the perfect products pvc profile wrapping processing.

Suitable for building materials, furniture, table tops, doors and windows, decorative strips or related professional manufacturers. It can perfect the surface of complex shape products. Specially used for decorative lines and aluminum, plastic materials, Surface is covered with PVC film and milamine paper. Using high standard glue, it can cover all angles, arcs, bumps, grooves, curls, etc.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

[]
