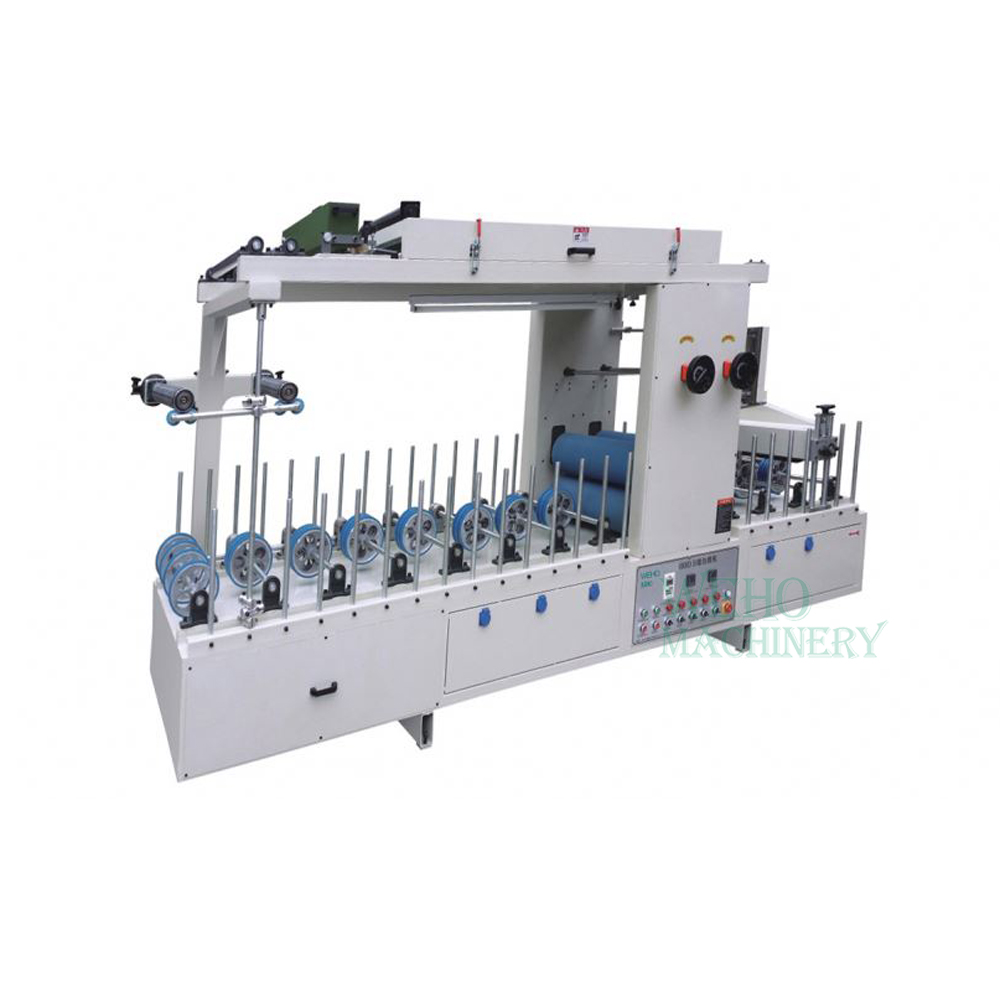

PVC wood integrated wall profile cold glue frame warpping coating making machine | Pvc Wall Coating Machine
PVC wood integrated wall profile cold glue frame warpping coating making machine | Pvc Wall Coating Machine

PVC wood integrated wall profile cold glue frame warpping coating making machine | Pvc Wall Coating Machine


Model:MF-C300
Max.film wrapping width:
300mm
Max.process thickness:90mm
Power:7.5kw
Weight:2500kg


Details
Spare Parts
Inquiry

For Window wraps plastic, pvc or paper  profiles wrapping,with reel-mounted materials. Available in three versions with maximum working widths 310 mm, 400 mm and 550 mm or special size is customized. PVC roll maximum diameter 400mm.

Product

PVC profile wrapping machine

Max.film wrapping width

300mm

Max.process thickness

90mm

Min.process length

600mm

Feeding speed

0-35m/min

Feeding motor power

1.5kw

Heating power

6kw

Overall dimensions

4000x600X1800mm

Weight

2500kg

Max.diameter of roll cover material

400mm

Custom-made Max width of cover film

600/850/1200mm


Best solution for PVC profile wrapping machine.Quality and excellent customer service,guarantee complete systems,for profile wrapping machines of out standing technical performance.

In the initial processing phase,systems guarantee high quality preparation and treatment of the profile surfaces and aconsider able  control of the production process,that is made safe and reliable.Suitable tor building materials, furnitures,table tops,doors,windows,or related manufacturers use.
PVC Wrapping zone equipped with easy to use quick change systems.Central width adjustment for the wrapping zone.Silicone rubber rollers.

Unit includes; melter, application pump and slot-coater. Quick set-up with adjustment optimization system for transport wheels. Telescopic switch cabinet. Un-winder for reel mounted materials.

Proprietary engineering and vast wrapping experience have resulted in a great cost-to-value ratio.
Frequency-controlled drives for pvc and workpieces conveyor.

Specially used for decorative lines and aluminum, plastic materials, Surface is covered with PVC film and milamine paper. Using high standard glue, it can cover all angles, arcs, bumps, grooves, curls, etc. Suitable for building materials, furniture, table tops, doors and windows, decorative strips or related professional manufacturers. It can perfect the surface of complex shape products.

Complex Shapes can achieve the perfect products pvc profile wrapping processing. PVC profile wrapping machine features and uses.
